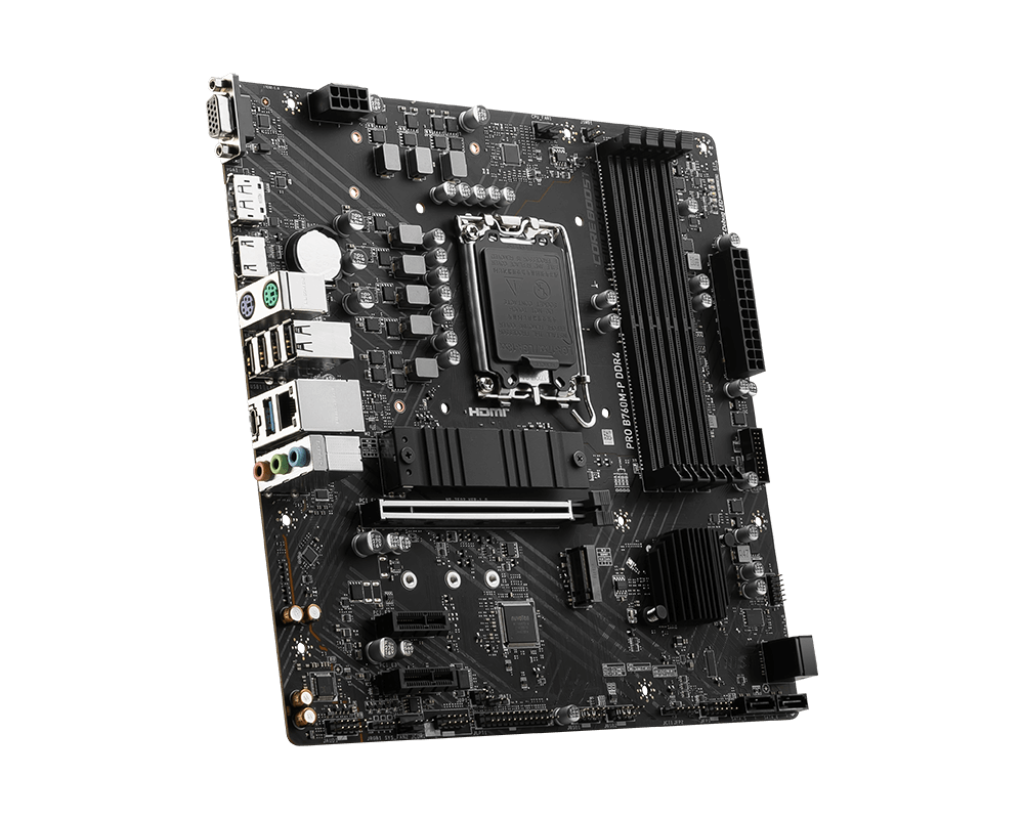

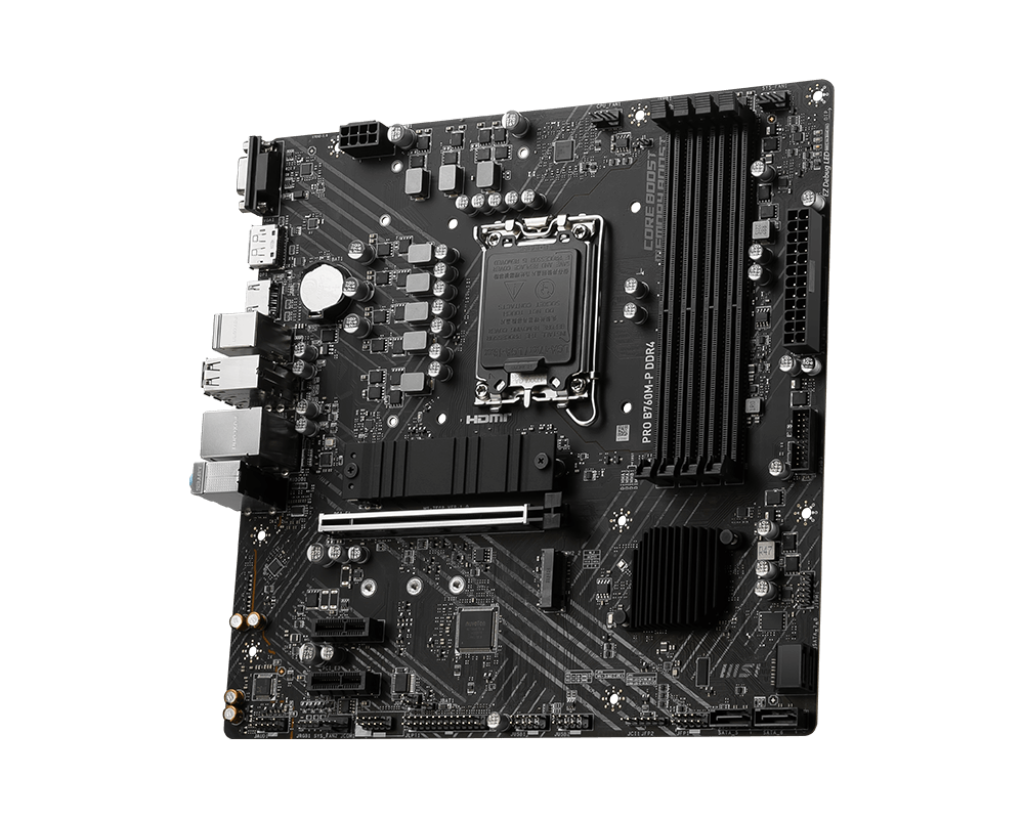

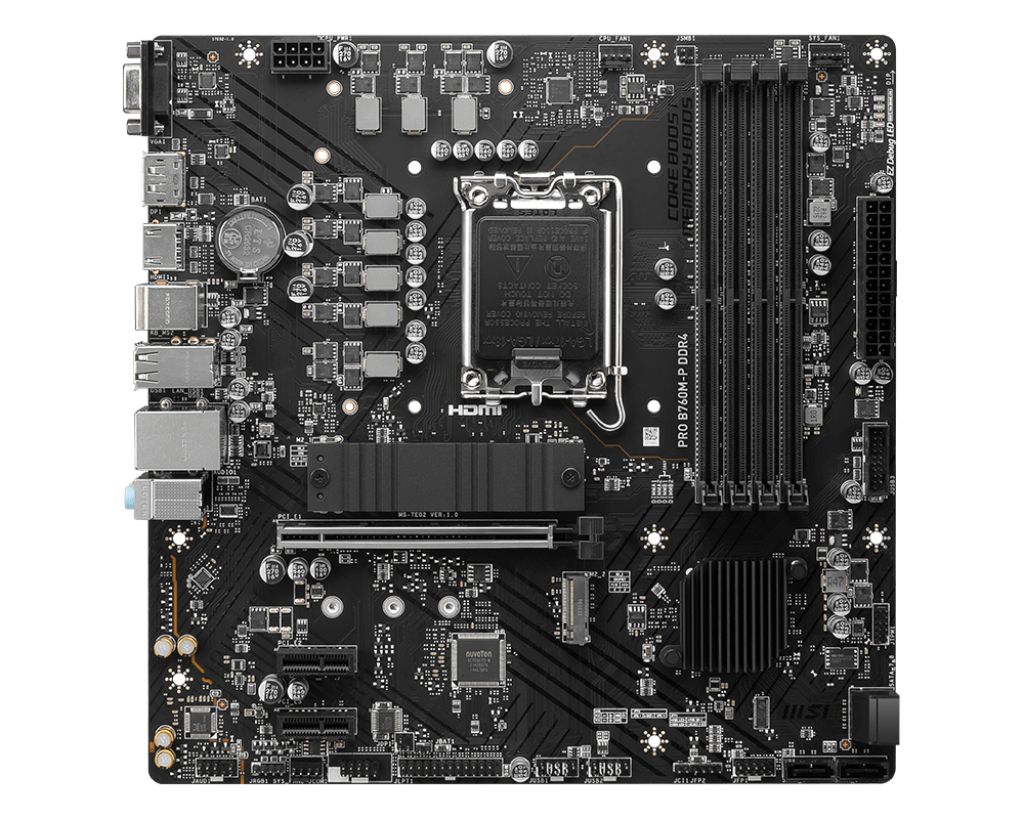

MSI PRO B760M-P Motherboard
  • Model:PRO B760M-P
  • Supports Intel Core 12th-14th Gen
  • B760 chipset, LGA 1700 socket
  • DDR5 memory up to 6800+ MHz (OC)
  • PCIe 4.0, M.2 Shield Frozr
  • 3 Years Warranty from MSI
₹ 11,850
Next Day Dispatch
1
Chipset
INTEL B760
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700
Memory
4x DDR5, Maximum Memory Capacity 256GBMemory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 6800+ MHz• 1DPC 2R Max speed up to 6400+ MHz• 2DPC 1R Max speed up to 6000+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP 3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory
Onboard Graphics
1x HDMI™Support HDMI™ 1.4, maximum resolution of 4K 30Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 4K 60Hz*1x VGASupport VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
1x PCI-E x16 slot2x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio
Realtek® ALC897 Codec7.1-Channel High Definition Audio
Storage
2x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G* SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
4x USB 2.0 (Rear)4x USB 2.0 (Front)1x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type C (Rear)
LAN
Realtek® RTL8111H Gigabit LAN
Internal IO
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Printer Port (JLPT)1x Com Port (JCOM)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports
LED FEATURE
4x EZ Debug LED

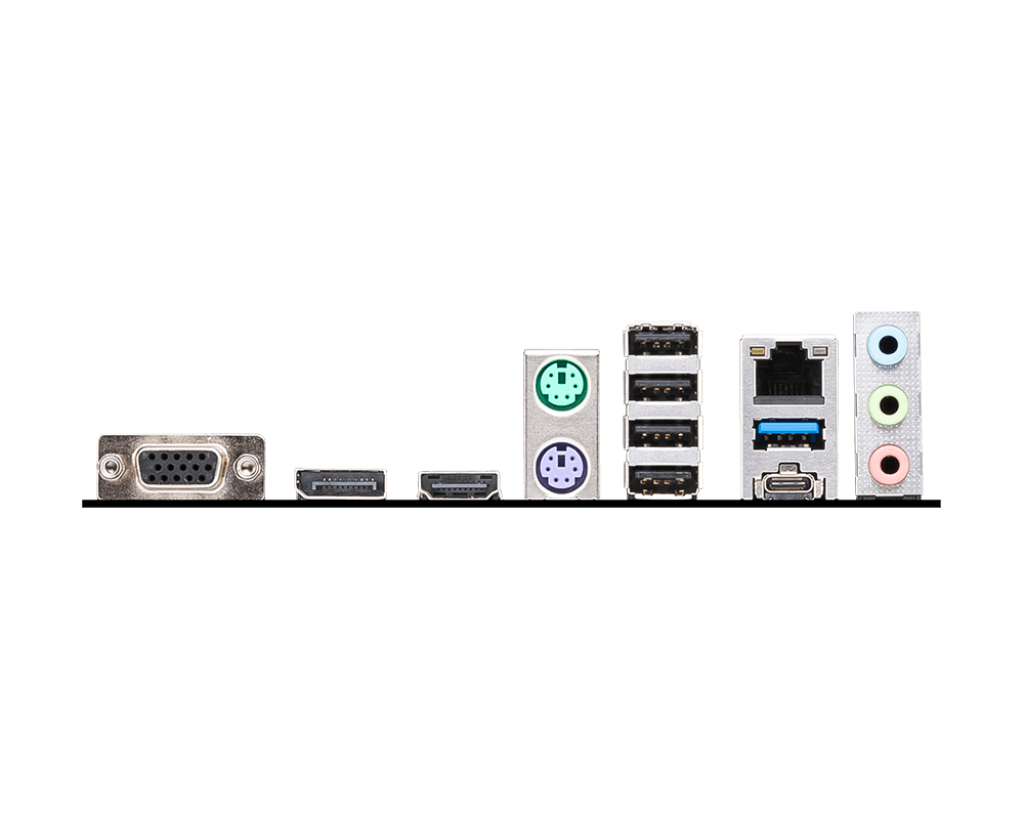

BACK PANEL PORTS
1. VGA2. DisplayPort3. HDMI™4. Keyboard / Mouse5. USB 2.06. LAN port7. Audio Connectors8. USB 3.2 Gen 1 5Gbps (Type-A)9. USB 3.2 Gen 2 10Gbps (Type-C)
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
mATX243.84mmx243.84mm
