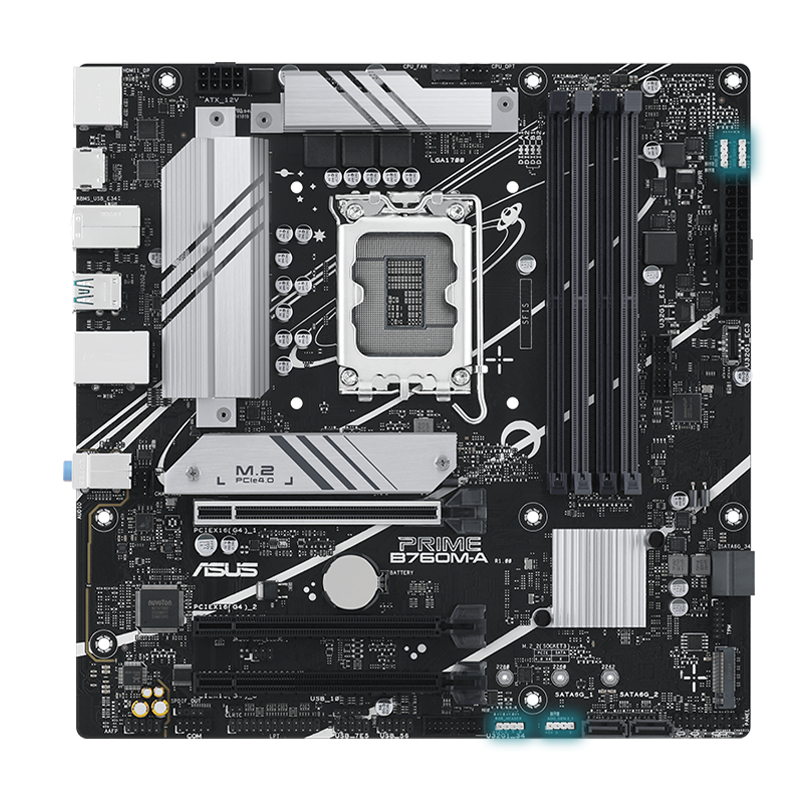

ASUS PRIME B760M-A Motherboard
- Model:PRIME B760M-A
- Supports 13th & 12th Gen Intel Core CPUs
- Intel B760 chipset, LGA 1700, Micro-ATX form
- Supports DDR5 memory, Aura Sync RGB
- PCIe 4.0, dual M.2 slots, USB 3.2 Gen 2
- 3 Years Warranty from ASUS
₹ 13,050
Next Day DispatchFree Delivery
1
Related Products
Best Match Products
ASUS PRIME B760M-A Motherboard
- Model:PRIME B760M-A
- Supports 13th & 12th Gen Intel Core CPUs
- Intel B760 chipset, LGA 1700, Micro-ATX form
- Supports DDR5 memory, Aura Sync RGB
- PCIe 4.0, dual M.2 slots, USB 3.2 Gen 2
- 3 Years Warranty from ASUS
₹ 13,050
Next Day DispatchFree Delivery
1
₹ 13,050
Next Day Dispatch
1
- Product Name
- PRIME B760M-A
- Chipset
- Intel® B760
- CPU Socket
- LGA 1700
- Form Factor
- mATX
- PCIe
- PCIe 4.0
- Memory
- DDR5
- M.2 Slots
- 2
- Ethernet
- Realtek 2.5Gb Ethernet
- Display Output
- 1 x DisplayPort, 2 x HDMI™ ports
- SATA
- SATA 6 Gbps
- Rear USB
- USB 3.2 Gen 2
- Front USB
- USB 3.2 Gen 1 Type-C®
- AI Ready
- Yes (Ready for Advanced AI PC)
- Heatsinks
- VRM heatsinks, M.2 heatsink, PCH heatsink
- Fan Headers
- Hybrid fan headers
- Fan Control
- Fan Xpert 2+
- Memory Technology
- ASUS Enhanced Memory Profile II, ASUS OptiMem II
- RGB Lighting
- Aura Sync RGB Lighting
- RGB Headers
- Onboard Addressable Gen 2 headers and Aura RGB header
- PS/2
- PS/2 combo port
- USB 2.0 Ports (Type-A)
- 2 x USB 2.0 ports(Type-A)
- USB 3.2 Gen 2 Ports (Type-A)
- 2 x USB 3.2 Gen 2 ports(Type-A)
- USB 2.0 Ports (Type-A), Additional
- 2 x USB 2.0 ports(Type-A)
- Audio Jacks
- 3 x Audio Jacks
- Expansion Slots
- 1 x PCIe 4.0 x16 (max @x16 mode) SafeSlot Core+, 1 x PCIe 4.0 x16 (@x4 mode), 1 x PCIe 4.0 x16 (@x1 mode)
- LPT Header
- 1 x LPT header
- Addressable Gen 2 Headers
- 2 x Addressable Gen 2 headers
- Dual Channel Memory
- Yes
- Memory Optimization
- OptiMem II
- CPU Compatibility
- Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
- USB 3.2 Gen 1 Type-C®
- 1 x USB 3.2 Gen 1 Type-C®
- USB 3.2 Gen 1 Header
- 1 x USB 3.2 Gen 1 header
- M.2 Slots (Details)
- 2 x M.2 slots • 1 x M.2 2280 (PCIe 4.0 x4 mode) • 1 x M.2 2280 (PCIe 4.0 x4 mode)
- Single Addressable Gen 2 Header
- 1 x Addressable Gen 2 header
- Aura RGB Header
- 1 x Aura RGB header
- USB 3.2 Gen 1 Header (Additional)
- 1 x USB 3.2 Gen 1 header
- ProCool Connector
- Yes
- Six-Layer PCB Design
- Yes
- AEMP II
- Yes (ASUS Enhanced Memory Profile II)
- Memory OC Supported
- Up to 6600(OC) AEMP II
- DDR5 Baseband
- 4800 DDR5 Baseband
- OptiMem II
- Yes
- Max M.2 Data Rate
- Up to 64 Gbps
- PCIe 4.0 Slot
- Yes
- USB 3.2 Gen 1 Type-C® (Front)
- Yes
- Realtek 2.5 Gb Ethernet
- Yes
- LANGuard
- Yes
- Audio Codec
- Realtek S1220A
- Audio SNR (Line Out)
- 120 dB SNR for stereo line out
- Audio SNR (Line In)
- 113 dB SNR for line in
- Impedance Sensing
- Yes
- DTS:X® Ultra
- Yes
- Audio Shielding
- Yes
- Dedicated Audio PCB Layers
- Yes
- Premium Audio Capacitors
- Yes
- Aura Sync
- Yes
- Armoury Crate
- Yes
- Q-LED Core
- Yes
- PCIe® Slot Q-Release
- Yes
- Q-Latch
- Yes
- SafeSlot Core+
- Yes
- FlexKey
- Yes
- Overvoltage Protection
- Yes
- Stainless-Steel Back I/O
- Yes
- Heatsink for M.2
- Yes
- VRM Heatsink and Thermal Pads
- Yes
- Fan Headers (Auto-Detection)
- 4-Pin PWM/DC Fan headers support auto-detection of PWM or DC fans
- Fan Control Software
- ASUS Fan Xpert 2+
- Multiple Temperature Sources
- Each header can dynamically reference three thermal sensors
- Smart Fan Protection
- Integrated circuit protects each fan header from overheating and overcurrent
- Total USB 2.0 Ports (Type-A)
- 4
- Total USB 3.2 Gen 2 Ports (Type-A)
- 2
- Total USB 3.2 Gen 1 Type-C®
- 1 (front)
- Total Audio Jacks
- 3
