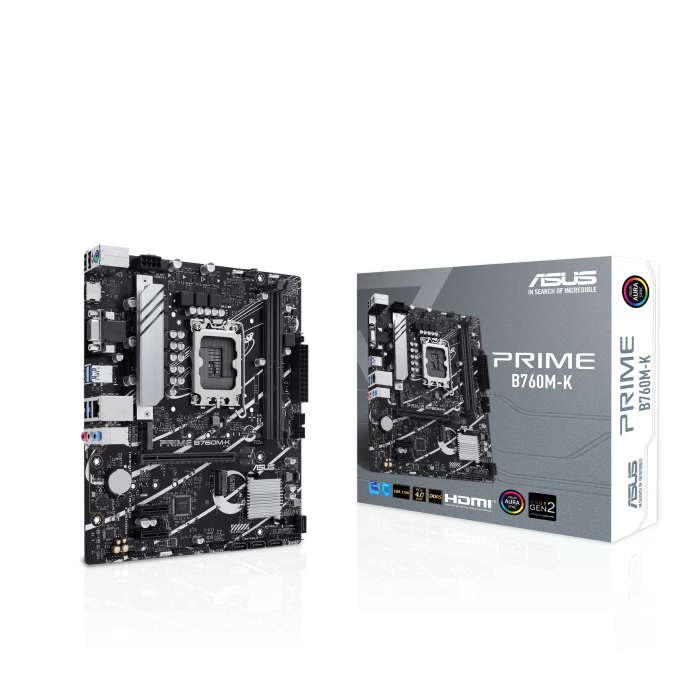

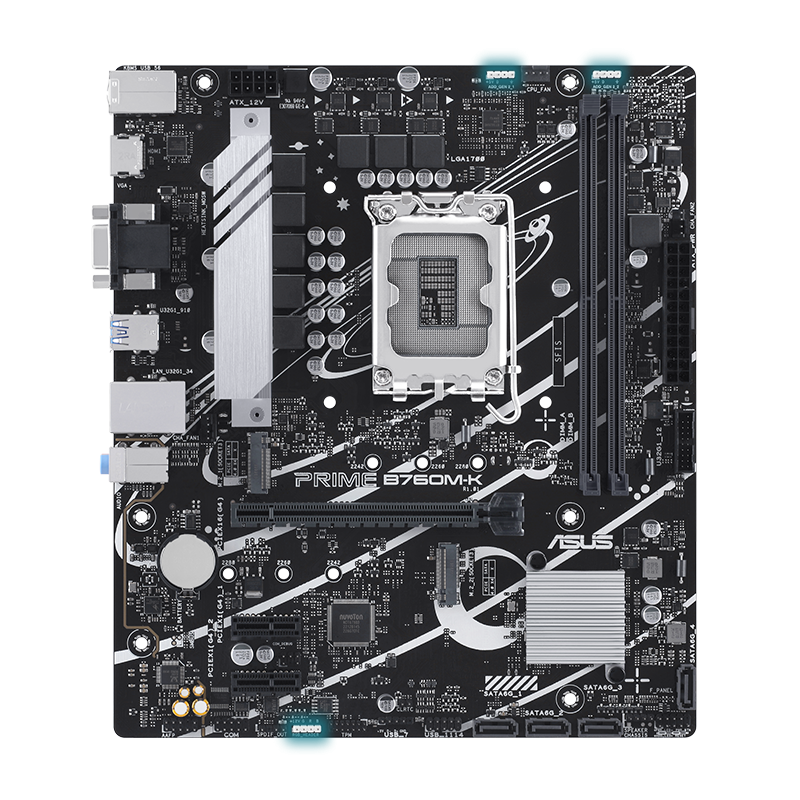

ASUS PRIME B760M-K Motherboard
  • Model:PRIME B760M-K
  • Supports Intel 14th/13th/12th Gen CPUs
  • Intel B760 chipset, LGA 1700 socket, mATX
  • Dual DDR5 slots, high-speed memory
  • PCIe 4.0, dual M.2, USB 3.2, 2.5Gb LAN
  • 3 Years Warranty from ASUS
₹ 9,650
Next Day Dispatch
1
Model
PRIME B760M-K
CPU
Intel® Socket LGA1700 for Intel® CoreTM 14th & 13th Gen Processors, Intel® CoreTM 12th Gen, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
2 x DIMM slots, Max. 96GB, DDR5 8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x VGA port1 x HDMI™ port*** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports 4K@60Hz as specified in HDMI™ 2.1.
Expansion Slots
Intel® Core™ Processors (14th & 13th & 12th Gen)1 x PCIe 4.0 x16 slotIntel® B760 Chipset2 x PCIe 4.0 x1 slots- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® Core™ Processors (14th & 13th & 12th Gen)M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
USB
Rear USB (Total 6 ports)4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A）Front USB (Total 5 ports)1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
4 x USB 3.2 Gen 1 (5G) ports (4 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x VGA port1 x HDMI™ port1 x Realtek 2.5Gb Ethernet port3 x Audio jacks1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and Cooling related1 x 4-pin CPU Fan header2 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports2 x USB 2.0 headers support 3 additional USB 2.0 portsMiscellaneous2 x Addressable Gen 2 headers1 x Aura RGB header1 x Clear CMOS header1 x COM Port header1 x Front Panel Audio header (AAFP)1 x S/PDIF Out header1 x Speaker header1 x SPI TPM header (14-1pin)1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III- DIGI+ VRM- LANGuard- Overvoltage Protection- SafeSlot Core- Stainless-Steel Back I/OASUS Q-Design- Q-DIMM- Q-LED Core- Q-SlotASUS EZ DIY- ProCoolASUS Thermal Solution- VRM heatsink designAura Sync- Aura RGB header- Addressable Gen 2 headers
Software Features
ASUS Exclusive SoftwareArmoury Crate- Aura Sync- Fan Xpert 2+- Power Saving- Two-Way AI Noise CancellationAI Suite 3- DIGI+ VRM- PC CleanerASUS CPU-ZNorton 360 Deluxe (60 Days Free Trial)WinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables2 x SATA 6Gb/s cablesMiscellaneous1 x I/O Shield2 x M.2 anchorsDocumentation1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
mATX Form Factor9.6 inch x 8.3 inch (24.4cm x 21.1cm)
