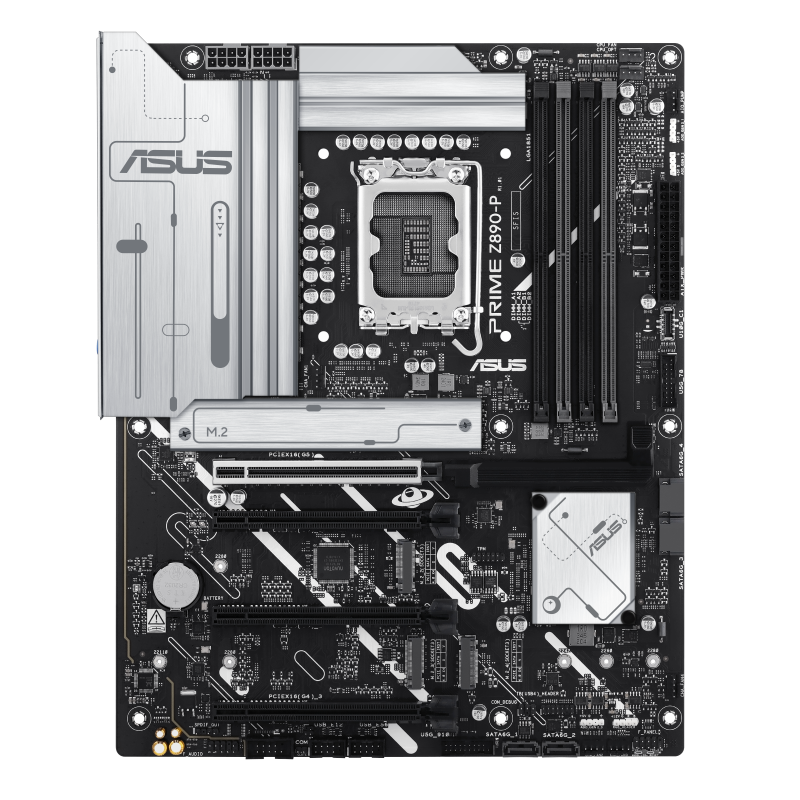

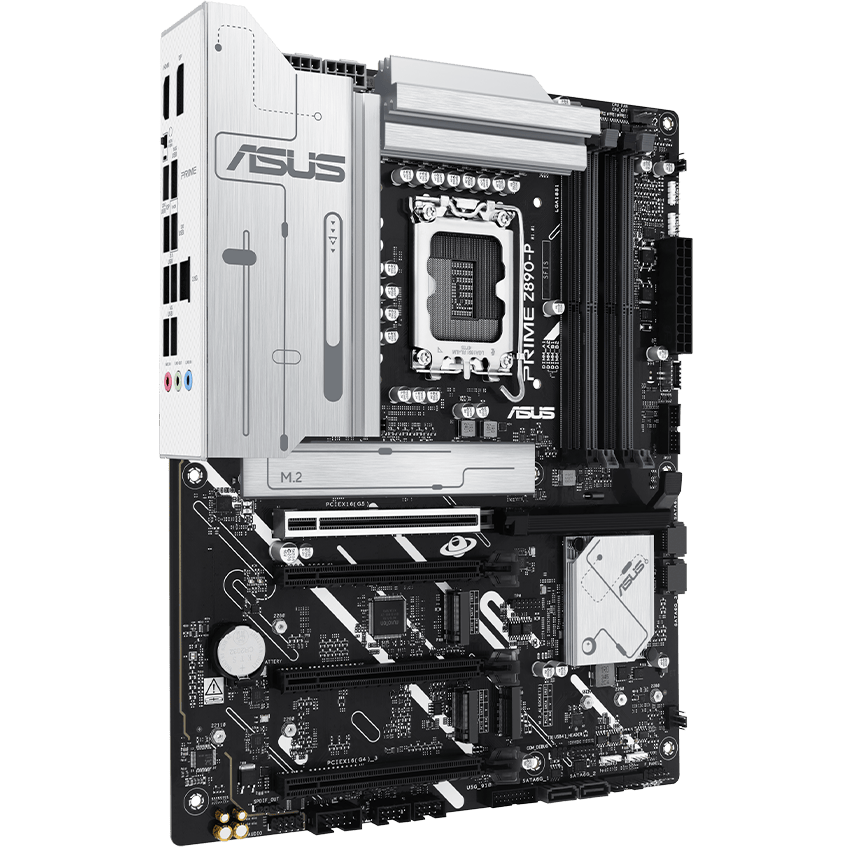

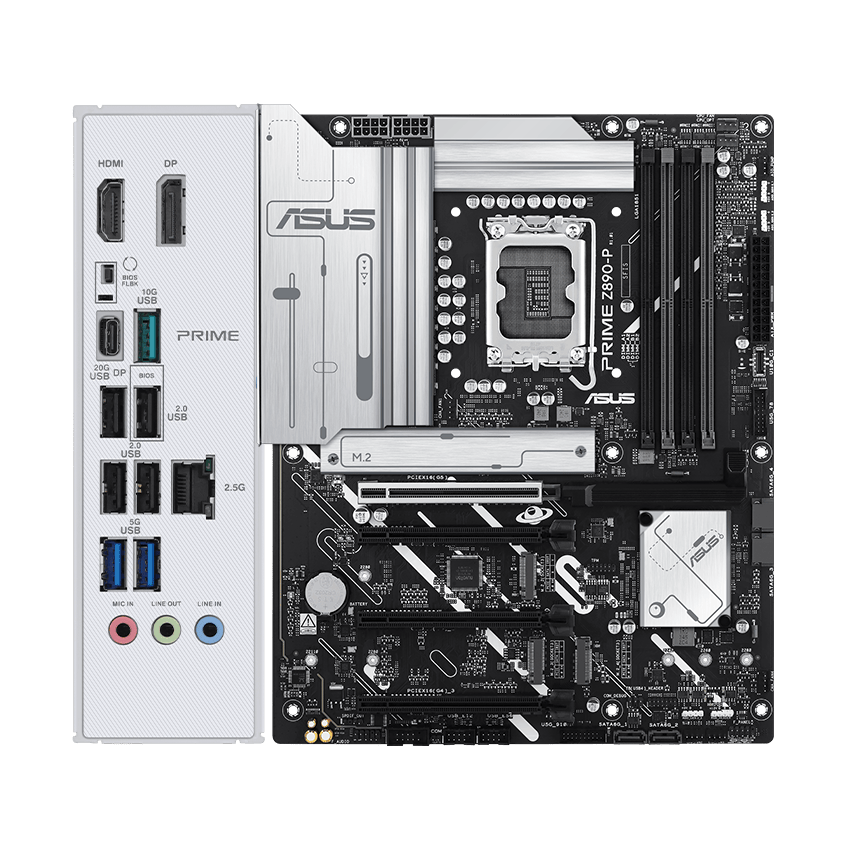

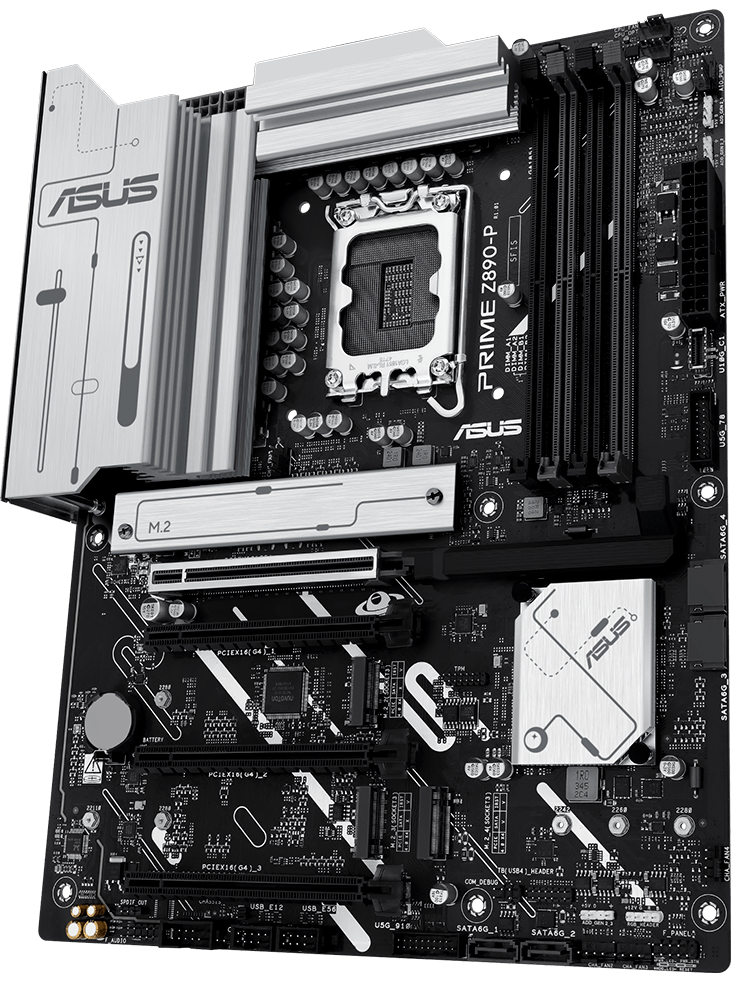

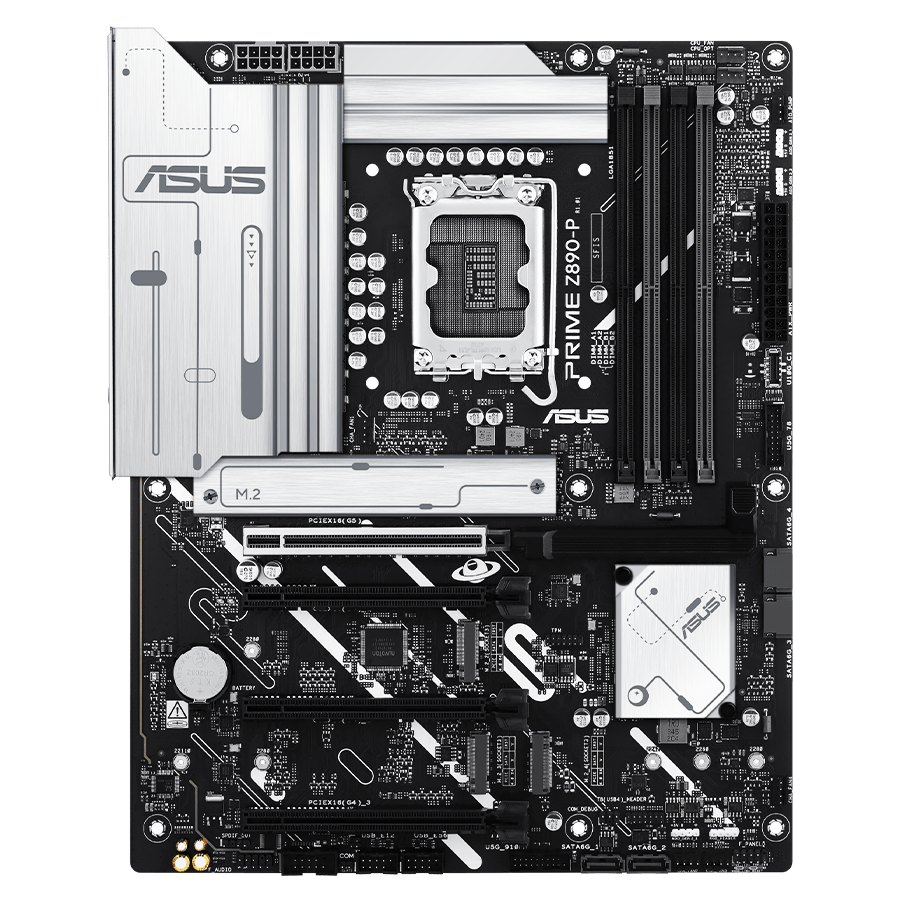

ASUS PRIME Z890-P-CSM Motherboard
  • Model:PRIME Z890-P-CSM
  • Supports Intel Core Ultra Series 2 CPUs
  • Intel Z890 chipset, LGA1851 socket, ATX form
  • 4 DIMMs, dual channel DDR5 memory
  • PCIe 5.0, USB-C, multiple M.2 slots
  • 3 Years Warranty from ASUS
₹ 25,500
Next Day Dispatch
1
Model
PRIME Z890-P-CSM
CPU
Supports Intel® Core™ Ultra Processors (Series 2), LGA1851*
CPU Technology
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
Chipset
Intel® Z890 Chipset
Memory Slots
4 x DIMM slots, max. 256GB, DDR5
Memory Speed
Support up to 8666+MT/s (OC),Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Memory Architecture
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile
ASUS Enhanced Memory Profile III(AEMPIII)
Graphics Output
1 x DisplayPort**
Graphics Output
1 x HDMITM port***
DisplayPort (USB-C)
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****
Expansion Slots (CPU Lanes)
1 x PCIe 5.0 x16 slot
Expansion Slots (Chipset Lanes)
2 x PCIe 4.0 x16 slots (support x4 mode)
Expansion Slots (Chipset Lanes)
1 x PCIe 4.0 x16 slot (supports x1 mode)
Storage Total
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
M.2 Slots (CPU)
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2 Slots (CPU)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2 Slots (Chipset)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2 Slots (Chipset)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
SATA Ports
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 2.5Gb Ethernet
Ethernet Features
ASUS LANGuard
Rear USB Ports
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
Rear USB Ports
1 x USB 10Gbps port (1 x Type-A)
Rear USB Ports
2 x USB 5Gbps ports (2 x Type-A)
Rear USB Ports
4 x USB 2.0 ports (4 x Type-A)**
Front USB Ports
1 x USB 10Gbps connector (supports USB Type-C®)
Front USB Headers
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
Front USB Headers
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
Audio Codec
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Audio Features
Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Playback
Supports up to 24-Bit/192 kHz playback
Audio Feature - Shielding
Audio Shielding
Audio Feature - Capacitors
Premium audio capacitors
Audio Feature - PCB Layers
Dedicated audio PCB layers
Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
Back Panel I/O Ports
1 x USB 10Gbps port (1 x Type-A)
Back Panel I/O Ports
2 x USB 5Gbps ports (2 x Type-A)
Back Panel I/O Ports
4 x USB 2.0 ports (4 x Type-A)
Back Panel I/O Ports
1 x DisplayPort
Back Panel I/O Ports
1 x HDMITM port
Back Panel I/O Ports
1 x Realtek 2.5Gb Ethernet port
Back Panel I/O Ports
3 x Audio jacks
Back Panel I/O Ports
1 x BIOS FlashBack™ button
Internal I/O Connectors - Cooling
1 x 4-pin CPU Fan header
Internal I/O Connectors - Cooling
1 x 4-pin CPU OPT Fan header
Internal I/O Connectors - Cooling
1 x 4-pin AIO Pump header
Internal I/O Connectors - Cooling
4 x 4-pin Chassis Fan headers
Internal I/O Connectors - Power
1 x 24-pin Main Power connector
Internal I/O Connectors - Power
2 x 8-pin +12V CPU Power connector
Internal I/O Connectors - Storage
4 x M.2 slots (Key M)
Internal I/O Connectors - Storage
4 x SATA 6Gb/s ports
Internal I/O Connectors - USB
1 x USB 10Gbps connector (supports USB Type-C®)
Internal I/O Connectors - USB
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
Internal I/O Connectors - USB
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors - Miscellaneous
3 x Addressable Gen2 headers
Internal I/O Connectors - Miscellaneous
1 x Aura RGB header
Internal I/O Connectors - Miscellaneous
1 x Clear CMOS header
Internal I/O Connectors - Miscellaneous
1 x COM Port header
Internal I/O Connectors - Miscellaneous
1 x Front Panel Audio header (F_AUDIO)
Internal I/O Connectors - Miscellaneous
1 x S/PDIF Out header
Internal I/O Connectors - Miscellaneous
1 x SPI TPM header (14-1pin)
Internal I/O Connectors - Miscellaneous
1 x 10-1 pin Front System Panel header
Internal I/O Connectors - Miscellaneous
1 x Thunderbolt™ (USB4®) header
Special Features - ASUS 5X PROTECTION III
DIGI+ VRM (- Digital power design with DrMOS)
Special Features - ASUS 5X PROTECTION III
LANGuard
Special Features - ASUS 5X PROTECTION III
Overvoltage Protection
Special Features - ASUS 5X PROTECTION III
SafeSlot
Special Features - ASUS 5X PROTECTION III
Stainless-Steel Back I/O
Special Features - ASUS Q-Design
M.2 Q-Latch
Special Features - ASUS Q-Design
PCIe Slot Q-Release
Special Features - ASUS Q-Design
Q-Dashboard
Special Features - ASUS Q-Design
Q-DIMM
Special Features - ASUS Q-Design
Q-LED Core
Special Features - ASUS Q-Design
Q-Slot
Special Features - ASUS Thermal Solution
M.2 heatsink
Special Features - ASUS Thermal Solution
VRM heatsink design
Special Features - ASUS EZ DIY
BIOS FlashBack™ button
Special Features - ASUS EZ DIY
BIOS FlashBack™ LED
Special Features - ASUS EZ DIY
ProCool
Special Features - ASUS EZ DIY
Pre-mounted I/O shield
Special Features - Aura Sync
Aura RGB header
Special Features - Aura Sync
Addressable Gen2 headers
Software Features - ASUS Exclusive Software
Armoury Crate
Software Features - ASUS Exclusive Software
Aura Creator
Software Features - ASUS Exclusive Software
Aura Sync
Software Features - ASUS Exclusive Software
Fan Xpert 4 (with AI Cooling II)
Software Features - ASUS Exclusive Software
Power Saving
Software Features - ASUS Exclusive Software
ASUS DriverHub
Software Features - ASUS Exclusive Software
ASUS CPU-Z
Software Features - ASUS Exclusive Software
TurboV Core
Software Features - ASUS Exclusive Software
Norton 360 Deluxe (60 Days Free Trial)
Software Features - ASUS Exclusive Software
WinRAR (40 Days Free Trial)
Software Features - UEFI BIOS
ASUS EZ DIY
Software Features - UEFI BIOS
ASUS CrashFree BIOS 3
Software Features - UEFI BIOS
ASUS EZ Flash
Software Features - UEFI BIOS
ASUS UEFI BIOS EZ Mode
Software Features - UEFI BIOS
ASUS MyHotkey
Software Features - UEFI BIOS
NPU Boost (Intel K-series Processors only)
BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories - Cables
2 x SATA 6Gb/s cables
Accessories - Miscellaneous
1 x M.2 rubber package
Accessories - Miscellaneous
2 x Screw packages for M.2 SSD
Accessories - Documentation
1 x Quick start guide
Operating System
Windows 11 (22H2 & later), Windows 10 64-bit (21H2 & later)
Form Factor
ATX Form Factor
Dimensions
12 inch x 9.6inch ( 30.5 cm x 24.4 cm )
