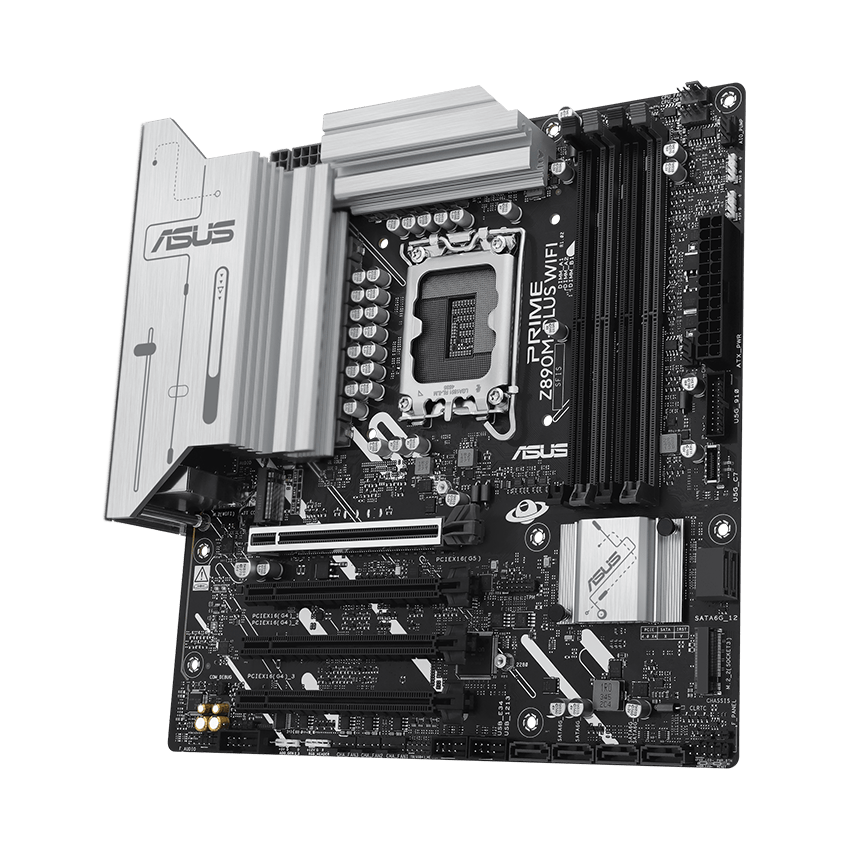

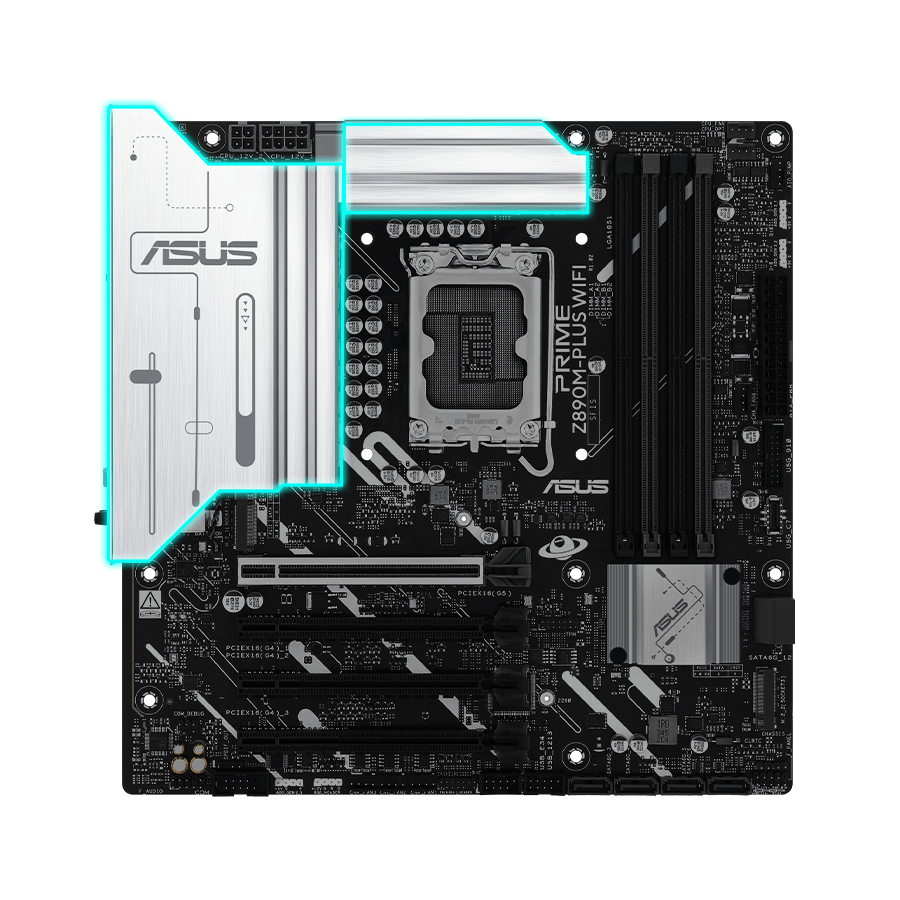

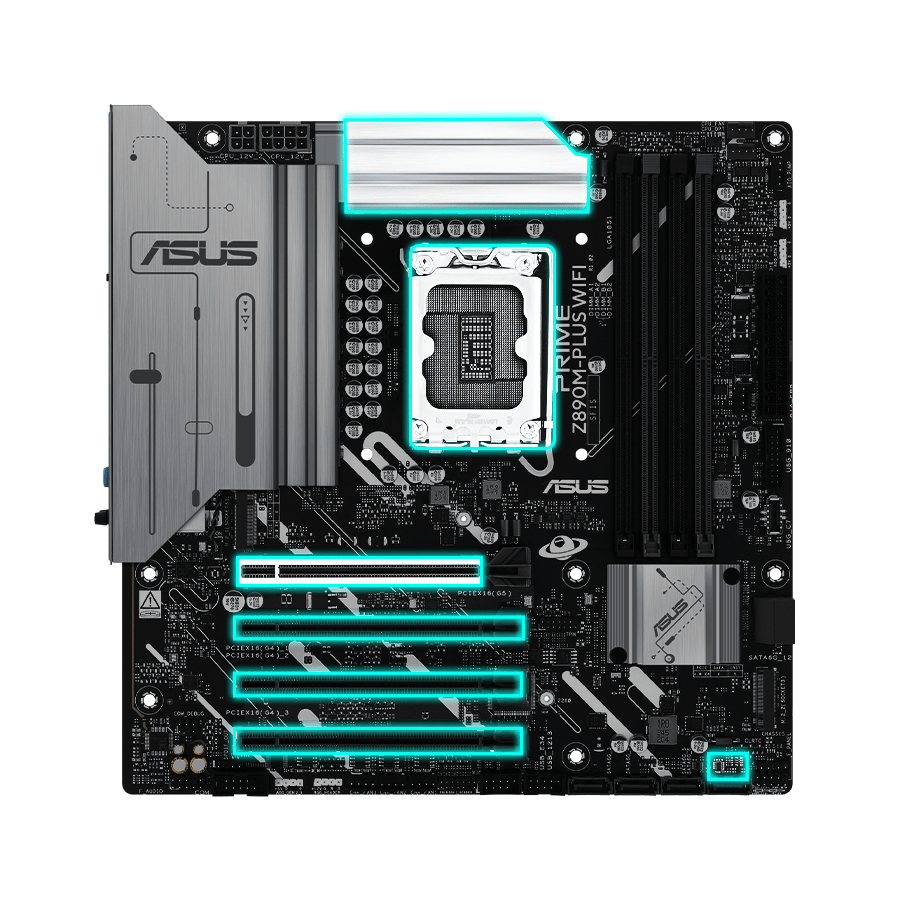

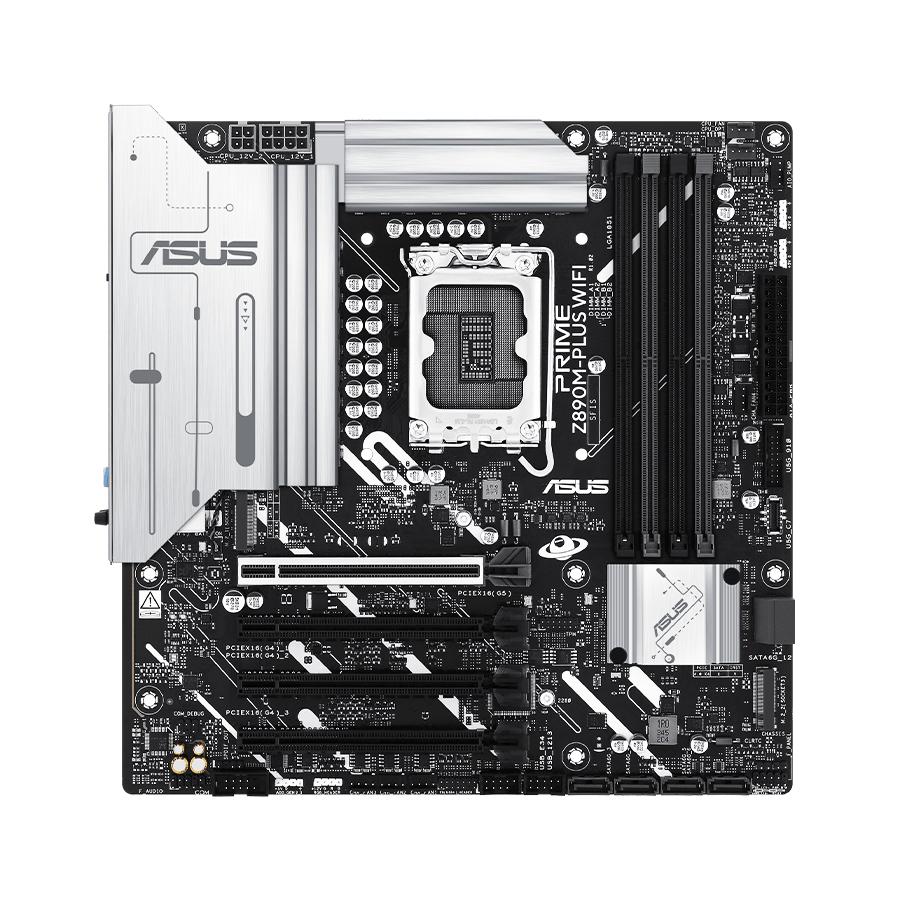

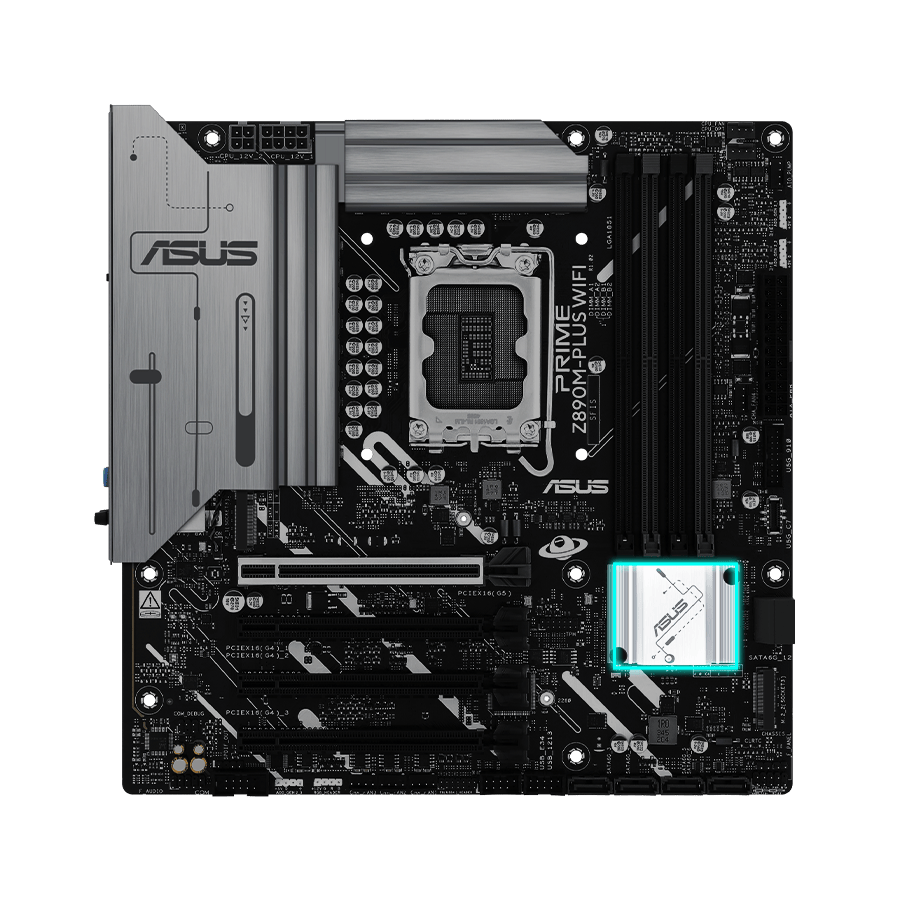

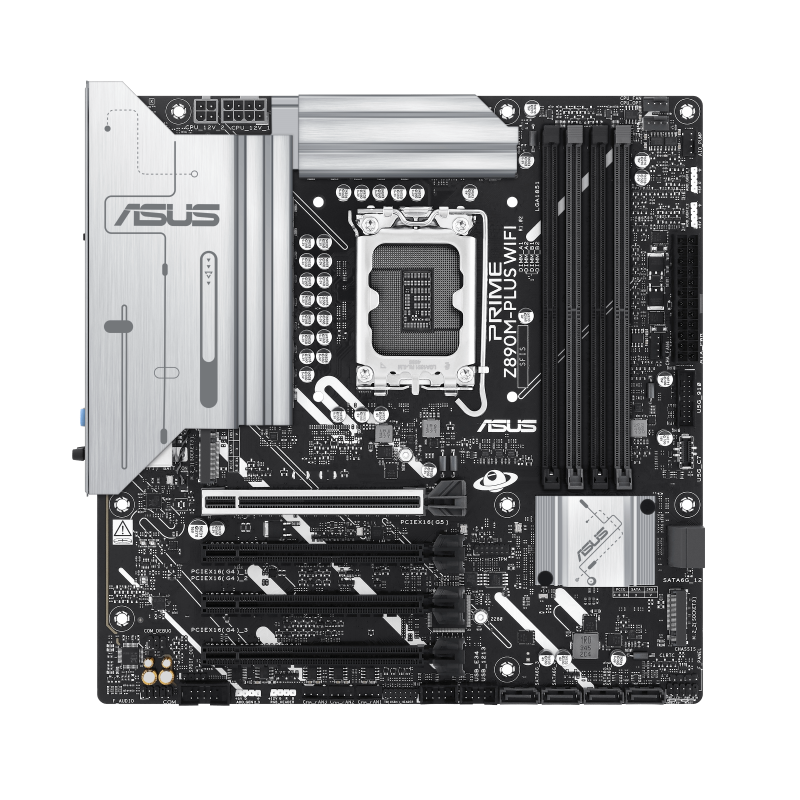

ASUS PRIME Z890M-PLUS WIFI-CSM Motherboard
  • Model:PRIME Z890M-PLUS WIFI-CSM
  • Supports Intel Core Ultra (Series 2) CPUs
  • Intel Z890 chipset, LGA1851 socket, Micro-ATX
  • 4 x DDR5 slots, dual channel support
  • WiFi 7, PCIe 5.0, triple M.2, USB-C
  • 3 Years Warranty from ASUS
₹ 21,950
Next Day Dispatch
1
Model
PRIME Z890M-PLUS WIFI-CSM
CPU
Supports Intel® Core™ Ultra Processors(Series 2), LGA1851*
CPU Technologies
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
CPU Support Note
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
CPU Support Note (Turbo Boost Max)
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Z890 Chipset
Memory Slots
4 x DIMM slots, max. 256GB, DDR5
Memory Speed
Support up to 8666+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Memory Architecture
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP)
Memory Overclocking
ASUS Enhanced Memory Profile III(AEMPIII)
Memory Support Note
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
On-Die ECC Support
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics Output
1 x DisplayPort**
Graphics Output
1 x HDMI™ port***
Graphics Output
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output****
Graphics Support Note
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
DisplayPort Spec
**Supports max. 4K@60Hz as specified in DisplayPort 1.4.
HDMI Spec
***Supports 4K@60Hz as specified in HDMI 2.1.
USB-C DisplayPort Spec
****Supports max. 4K@120Hz as specified in DisplayPort 1.4.
VGA/Resolution Note
***** VGA resolution support depends on processors' or graphic cards' resolution.
Monitor Connection Note
****** While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots (Core Ultra)
1 x PCIe 5.0 x16 slot
Expansion Slots (Chipset)
1 x PCIe 4.0 x16 slot (supports x4 mode)
Expansion Slots (Chipset)
2 x PCIe 4.0 x16 slots (support x1 mode)
PCIe Bifurcation Note
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Peripheral Compatibility Note
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Total Storage Supported
Total supports 3 x M.2 slots and 6 x SATA 6Gb/s ports*
M.2_1 (Core Ultra)
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 (Chipset)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_3 (Chipset)
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
SATA Ports
6 x SATA 6Gb/s ports
RAID Support Note
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Ethernet
1 x Realtek 2.5Gb Ethernet
Ethernet Features
ASUS LANGuard
Wireless
Wi-Fi 7*
Wireless Specification
2x2 Wi-Fi 7 (802.11be)
Wireless Bands
Supports 2.4/5/6GHz frequency band**
Wi-Fi 7 Bandwidth
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Bluetooth Version
Bluetooth® v5.4***
Wireless Note
*Wi-Fi features may vary depending on the operating system
Wireless Windows Note
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
Wi-Fi Band Regulatory Note
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
Bluetooth Version Note
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Rear USB Ports
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
Rear USB Ports
1x USB 10Gbps port (1 x Type-A)
Rear USB Ports
4 x USB 5Gbps ports (4 x Type-A)
Rear USB Ports
2 x USB 2.0 ports (2 x Type-A) **
Front USB Ports
1 x USB 5Gbps connector (supports USB Type-C®)
Front USB Ports
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
Front USB Ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports**
USB-C Power Delivery
* USB Type-C® power delivery output: max. 5V/3A
USB Bandwidth Note
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Audio Codec
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Audio Features
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding- Premium audio capacitors- Dedicated audio PCB layers
HD Audio Note
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

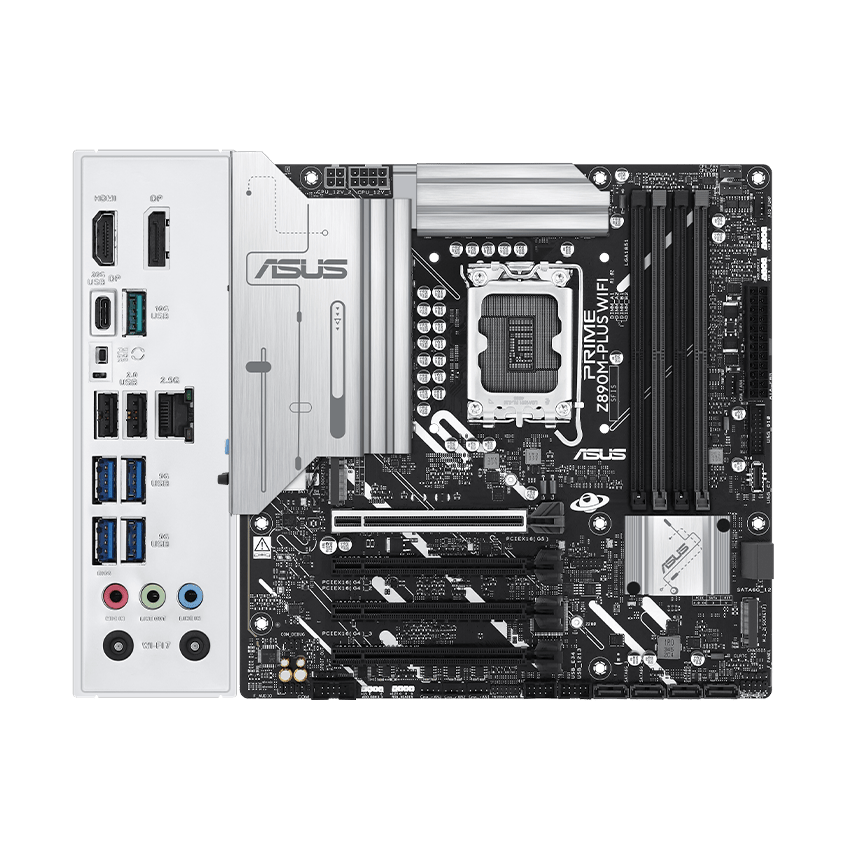

Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
Back Panel I/O Ports
1x USB 10Gbps port (1 x Type-A)
Back Panel I/O Ports
4 x USB 5Gbps ports (4 x Type-A)
Back Panel I/O Ports
2 x USB 2.0 ports (2 x Type-A)
Back Panel I/O Ports
1 x DisplayPort
Back Panel I/O Ports
1 x HDMI™ port
Back Panel I/O Ports
1 x Wi-Fi module
Back Panel I/O Ports
1 x Realtek 2.5Gb Ethernet
Back Panel I/O Ports
3 x Audio jacks
Back Panel I/O Ports
1 x BIOS FlashBack™ button
Internal I/O Connectors (Fan/Cooling)
1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header4 x 4-pin Chassis Fan headers
Internal I/O Connectors (Power)
1 x 24-pin Main Power connector1 x 8-pin +12V CPU Power connector1 x 4-pin +12V CPU Power connector
Internal I/O (Storage)
3 x M.2 slots (Key M)6 x SATA 6Gb/s ports
Internal I/O (USB)
1 x USB 5Gbps connector (supports USB Type-C®)1 x USB 5Gbps header supports 2 additional USB 5Gbps ports2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O (Miscellaneous)
3 x Addressable Gen2 headers1 x Aura RGB header1 x Clear CMOS header1 x Chassis Intrusion header1 x COM Port header1 x Front Panel Audio header (F_AUDIO)1 x S/PDIF Out header1 x SPI TPM header (14-1pin)1 x 10-1 pin Front Panel System header1 x Thunderbolt™ (USB4®) header
Special Features (ASUS 5X PROTECTION III)
- DIGI+ VRM (- Digital power design with DrMOS)- LANGuard- Overvoltage Protection- SafeSlot- Stainless-Steel Back I/O
Special Features (ASUS Q-Design)
- Q-Antenna- Q-Dashboard- Q-DIMM- Q-LED Core- Q-Slot
Special Features (ASUS Thermal Solution)
- VRM heatsink design
Special Features (ASUS EZ DIY)
- BIOS FlashBack™ button- BIOS FlashBack™ LED- ProCool- Pre-mounted I/O shield
Special Features (Aura Sync)
- Aura RGB header- Addressable Gen 2 headers
Software Features (ASUS Exclusive Software)
Armoury Crate- Aura Sync- Fan Xpert 4 (with AI Cooling II)- Power SavingASUS AI AdvisorASUS DriverHubASUS GlideXTurboV CoreASUS CPU-ZNorton 360 for Deluxe (60 Days Free Trial)WinRAR (40 Days Free Trial)
Software Features (UEFI BIOS)
ASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyNPU Boost (Intel K-series Processors only)
BIOS
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories (Cables)
2 x SATA 6Gb/s cables
Accessories (Miscellaneous)
1 x ASUS WiFi Q-Antenna3 x Screw packages for M.2 SSD
Accessories (Documentation)
1 x ACC Express activation key card1 x Quick start guide
Operating System
Windows 11 (22H2 & later)
Form Factor
mATX Form Factor
Dimensions
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
