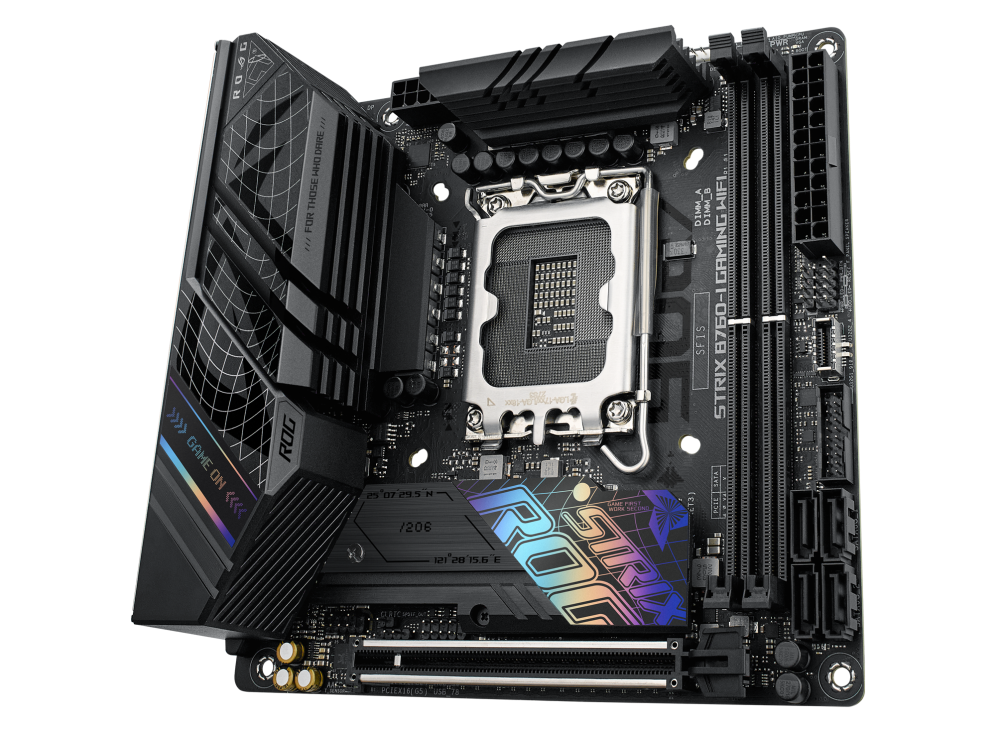

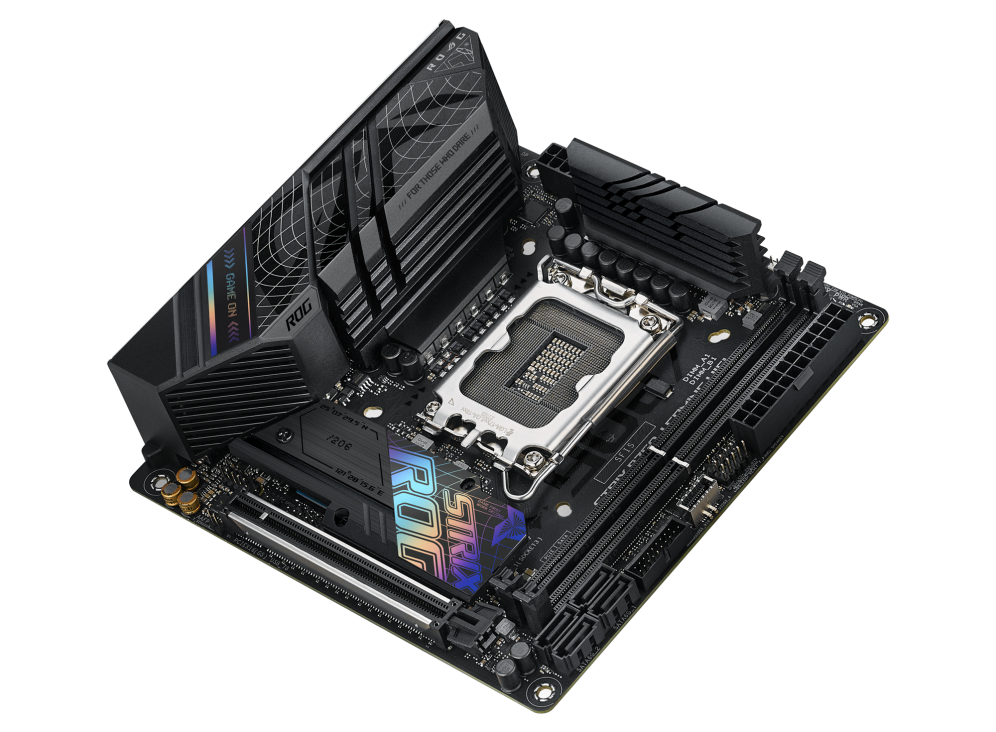

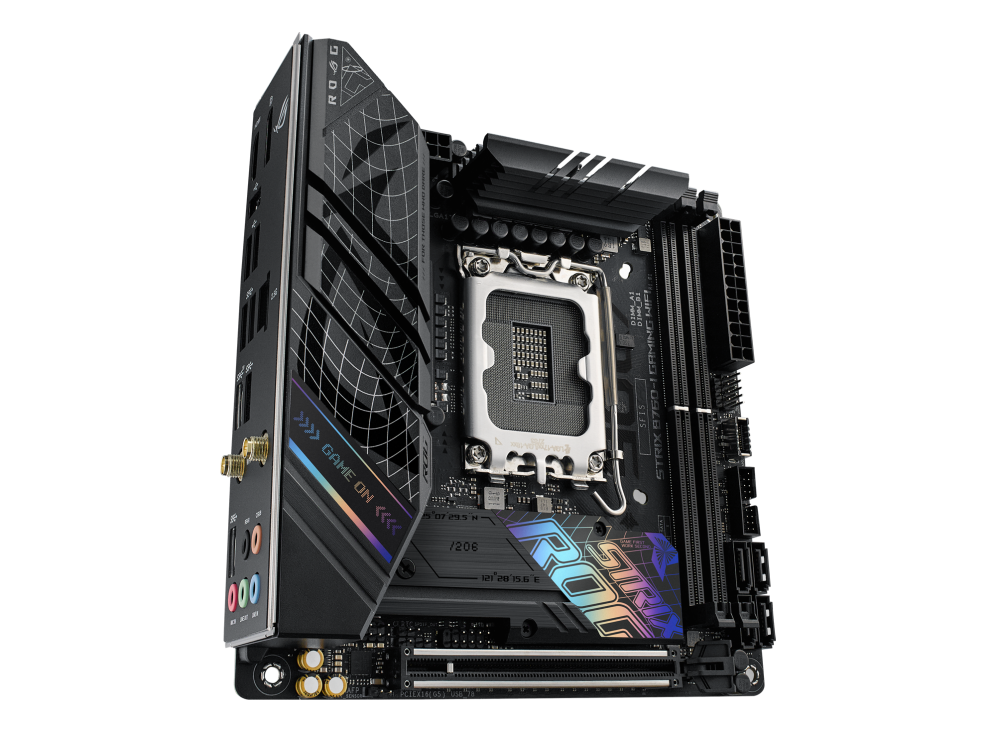

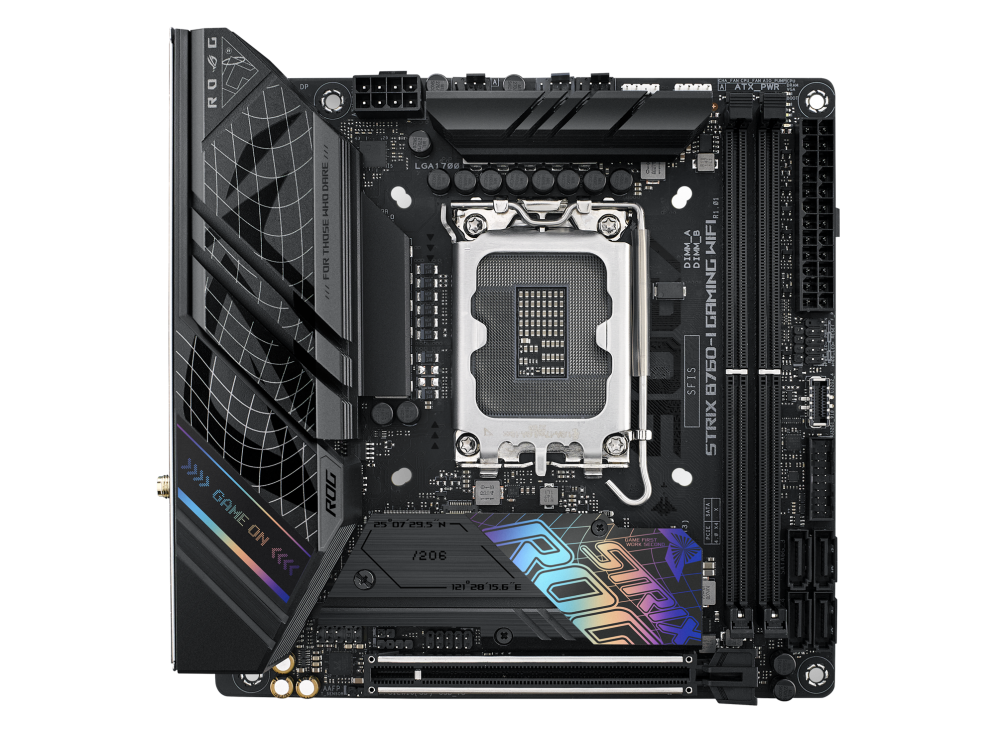

ASUS ROG STRIX B760-I GAMING WIFI Motherboard
  • Model:ROG STRIX B760-I GAMING WIFI
  • Supports Intel 14th/13th/12th Gen CPUs
  • Intel B760 chipset, LGA 1700, Mini-ITX
  • DDR5 memory up to 7600 MT/s supported
  • PCIe 5.0 x16, WiFi 6E, two M.2, USB 3.2 Gen2x2
  • 3 Years Warranty from ASUS
₹ 19,650
Out Of Stock
1
Model
ROG STRIX B760-I GAMING WIFI
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors
CPU Features
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
CPU Notes
* Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
2 x DIMM, Max. 96GB, DDR5 7600(OC)/ 7466(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Memory Architecture
Dual Channel Memory Architecture
Memory Features
Supports Intel® Extreme Memory Profile (XMP) OptiMem II
Memory Notes
* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Graphics Ports
1 x DisplayPort** 1 x HDMI®***
Graphics Notes
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. ** Support 4K@60Hz as specified in DisplayPort 1.4 *** Support 4K@60Hz as specified in HDMI 2.1.
Expansion Slots (Intel® 14th & 13th & 12th Gen Processors*)
1 x PCIe 5.0 x16 slot - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage (Total)
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Storage (Intel® 14th & 13th & 12th Gen Processors)
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
Storage (Intel® B760 Chipset***)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Storage Notes
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Intel® 2.5Gb Ethernet ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth® v5.3
Wireless Notes
* WiFi 6E 6GHz regulatory may vary between countries.
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports  (3 x Type-A +1 x USB Type-C®) 3 x USB 2.0 ports  (3 x Type-A)
Front USB (Total 5 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports
Audio
ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology - Savitech SV3H712 AMP - Premium audio capacitors
Audio Notes
* Due to limitations in HAD bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

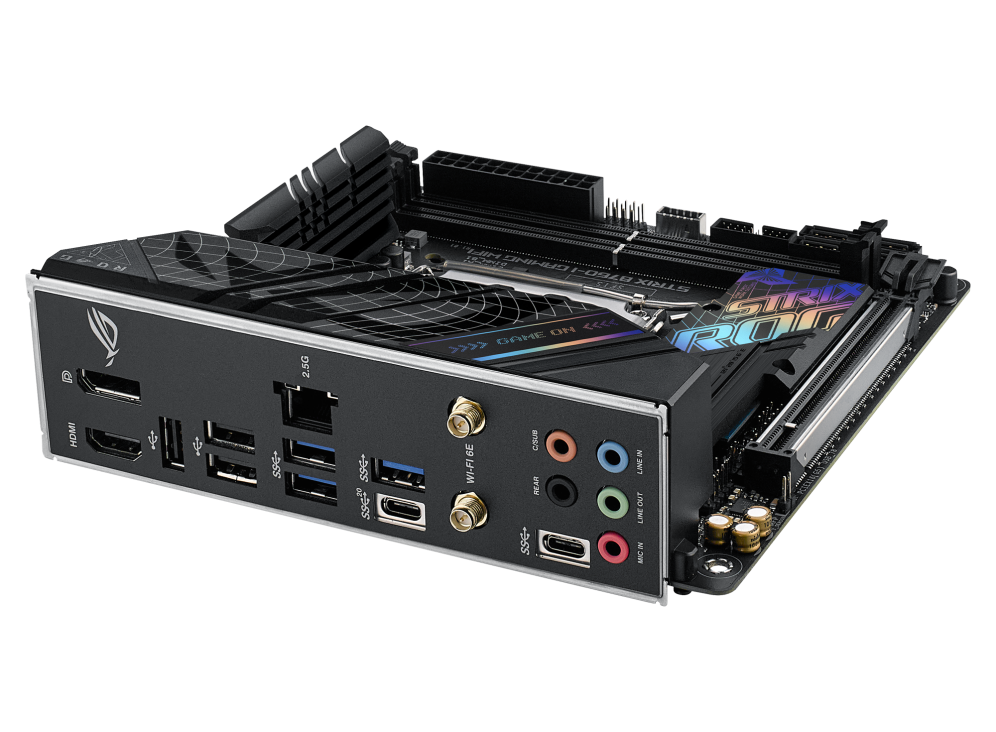

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C®) 3 x USB 2.0 ports (3 x Type-A) 1 x HDMI® port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel® 2.5Gb Ethernet 5 x Audio jacks
Internal I/O Connectors (Fan and Cooling related)
1 x 4-pin CPU Fan header 1 x 4-pin Chasis Fan header 1 x 4-pin AIO Pump header
Internal I/O Connectors (Power related)
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector
Internal I/O Connectors (Storage related)
2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
Internal I/O Connectors (USB)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers support additional 2 USB 2.0 ports
Internal I/O Connectors (Miscellaneous)
1 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Special Features (Extreme Engine Digi+)
- 5K Black Metallic Capacitors
Special Features (ASUS Q-Design)
- M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot
Special Features (ASUS Thermal Solution)
- M.2 heatsink backplate
Special Features (ASUS EZ DIY)
-CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM
Special Features (AURA Sync)
- Aura RGB header - Addressable Gen 2 header
Software Features (ROG Exclusive Software)
- GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound
Software Features (ASUS Exclusive Software)
Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation - Power Saving
Software Features (AI Suite 3)
- Performance And Power Saving Utility
Software Features (PC Cleaner)
-
Software Features (DIGI+ VRM)
-
Software Features (MyAsus)
-
Software Features (Norton 360 for Gamers)
-
Software Features (WinRAR)
-
UEFI BIOS
ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories (Cables)
2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel cable
Accessories (Additional Cooling Kit)
1 x Thermal pad for M.2
Accessories (Miscellaneous)
1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Rubber Package 2 x Screw packages for M.2 SSD 1 x M.2 bracket 1 x ROG key chain 1 x ROG STRIX stickers 1 x ROG STRIX thank you card
Accessories (Documentation)
1 x User manual
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
Mini-ITX Form Factor 6.7 inch x 6.7 inch ( 17 cm x 17 cm )
