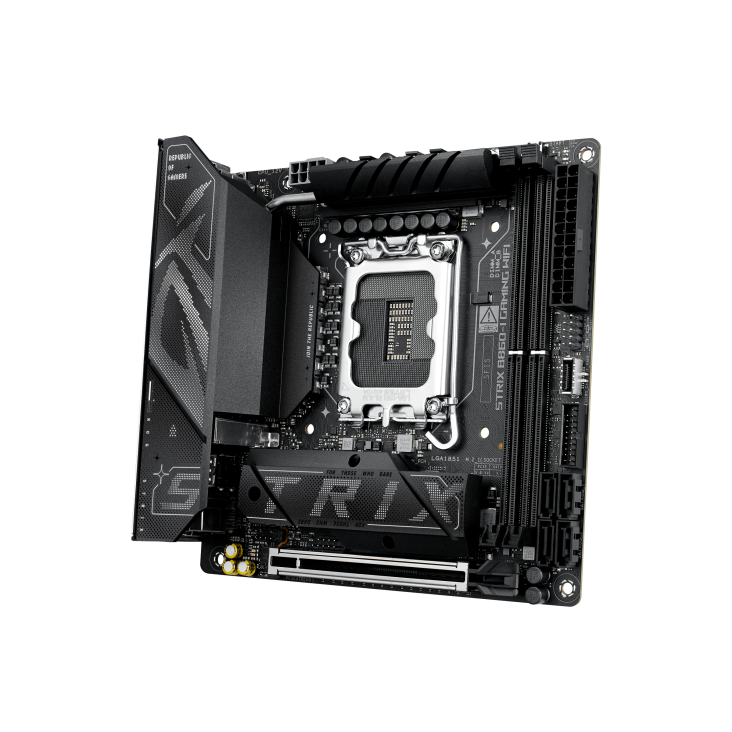

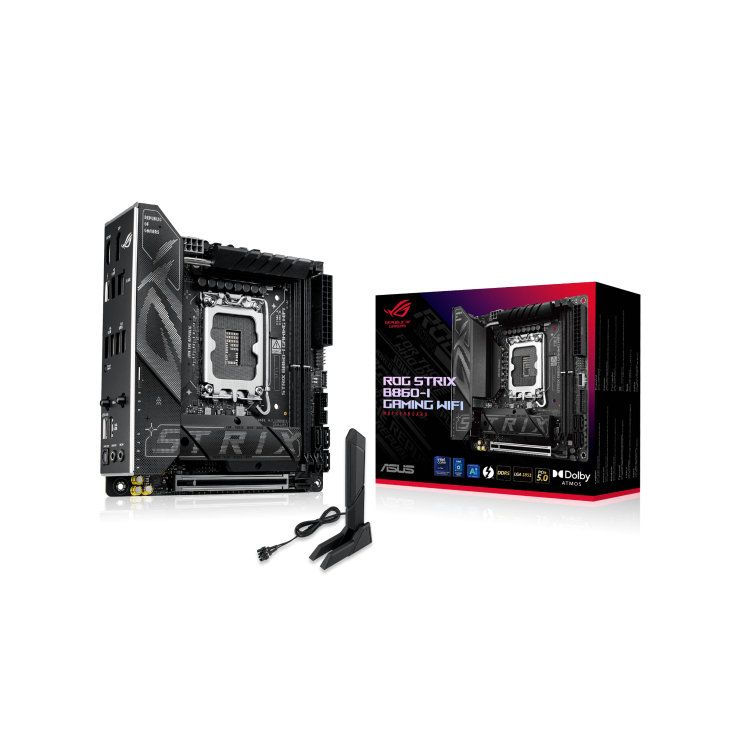

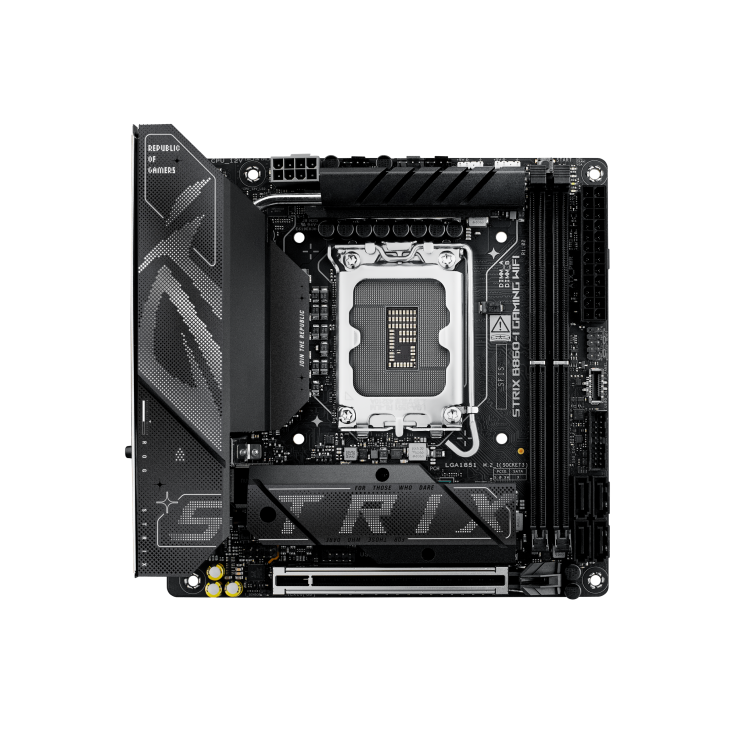

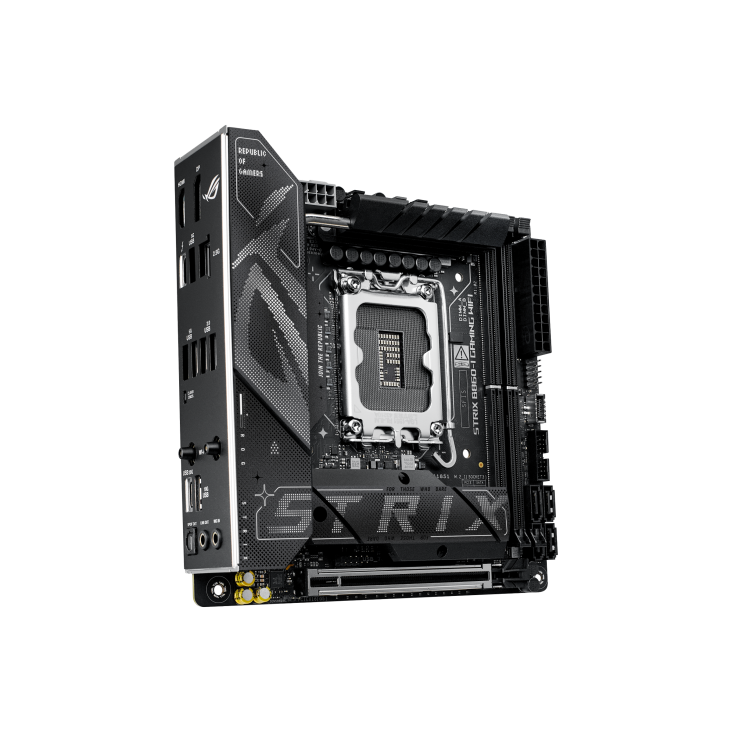

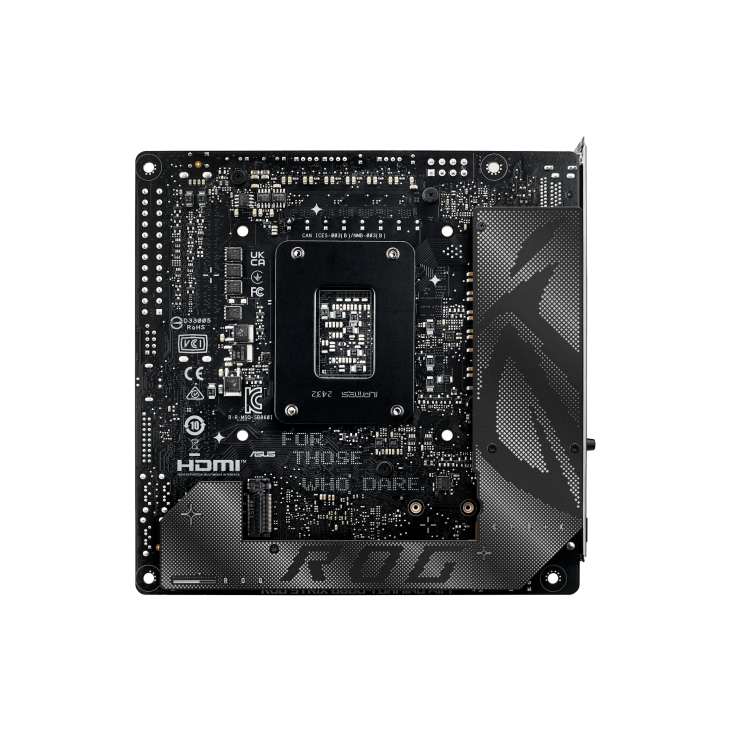

ASUS ROG STRIX B860-I GAMING WIFI Motherboard
  • Model:ROG STRIX B860-I GAMING WIFI
  • Supports Intel Core Ultra 200 Series CPUs
  • Intel B860 chipset, LGA 1851, Mini-ITX form
  • DDR5 memory support up to 128GB
  • PCIe 5.0, Thunderbolt 4, WiFi 7, USB-C
  • 3 Years Warranty from ASUS
₹ 24,800
Next Day Dispatch
1
Model
ROG STRIX B860-I GAMING WIFI
CPU Support
Intel® Core™ Ultra Processors (Series 2)
CPU Technologies
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
Chipset
Intel® B860 Chipset
Memory Slots
2 x DIMM slots, max. 128GB, DDR5
Memory Speed
Supports up to 9066+MT/s (OC), Non-ECC Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
Memory Architecture
Dual channel memory architecture
DIMM Fit
DIMM Fit
XMP Support
Supports Intel® Extreme Memory Profile (XMP) memory module
AEMP III
ASUS Enhanced Memory Profile III (AEMP III)
Graphics - DisplayPort
1 x DisplayPort
Graphics - HDMI
1 x HDMI™ port
Graphics - Thunderbolt
1 x Intel® Thunderbolt™ 4 supports DisplayPort and Thunderbolt™ video outputs
Graphics - Max Resolution (DisplayPort)
Supports max. 4K@60Hz as specified in DisplayPort 1.4
Graphics - Max Resolution (HDMI)
Supports 4K@60Hz as specified in HDMI 2.1
Graphics - Max Resolution (Thunderbolt)
Supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps (see DisplayPort 2.1 specs)
Expansion Slots (CPU)
1 x PCIe 5.0 x16 slot (for Intel® Core™ Ultra Processors Series 2)
Storage - Total
2 x M.2 slots and 4 x SATA 6Gb/s ports
Storage - M.2_1 (CPU Path)
M.2_1 slot (Key M), type 2260/2280 (supports PCIe 5.0 x4 mode)
Storage - M.2_2 (Chipset Path)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage - SATA
4 x SATA 6Gb/s ports
SATA RAID Support
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
Ethernet
1 x Intel® 2.5Gb Ethernet
Ethernet Features
ASUS LANGuard
Wireless
Wi-Fi 7 (2x2, 802.11be)
Wireless Bands Supported
Supports 2.4/5/6GHz frequency band
Wi-Fi Bandwidth
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate
Bluetooth
Bluetooth® v5.4
Rear USB Ports
1 x Thunderbolt™ 4 port (USB Type-C®), 1 x USB 20Gbps (Type-C®), 1 x USB 10Gbps (Type-A), 3 x USB 5Gbps (Type-A), 2 x USB 2.0 (Type-A)
Front USB Ports
1 x USB 10Gbps connector (USB Type-C®), 1 x USB 5Gbps header (supports 2 additional USB 5Gbps ports), 1 x USB 2.0 header (supports 2 additional USB 2.0 ports)
USB Power Delivery
USB Type-C® power delivery output: max. 5V/3A
Audio CODEC
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
Audio Features
Impedance sense for front and rear headphone outputs, Internal audio Amplifier to enhance quality for headphone and speakers, Jack-detection, Multi-streaming, Front Panel Jack-retasking, High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in), Supports up to 32-Bit/192 kHz playback
Audio - Additional Features
SupremeFX Shielding Technology, Savitech SV3H712 AMP, Rear optical S/PDIF out port, Premium audio capacitors, Dedicated audio PCB layers

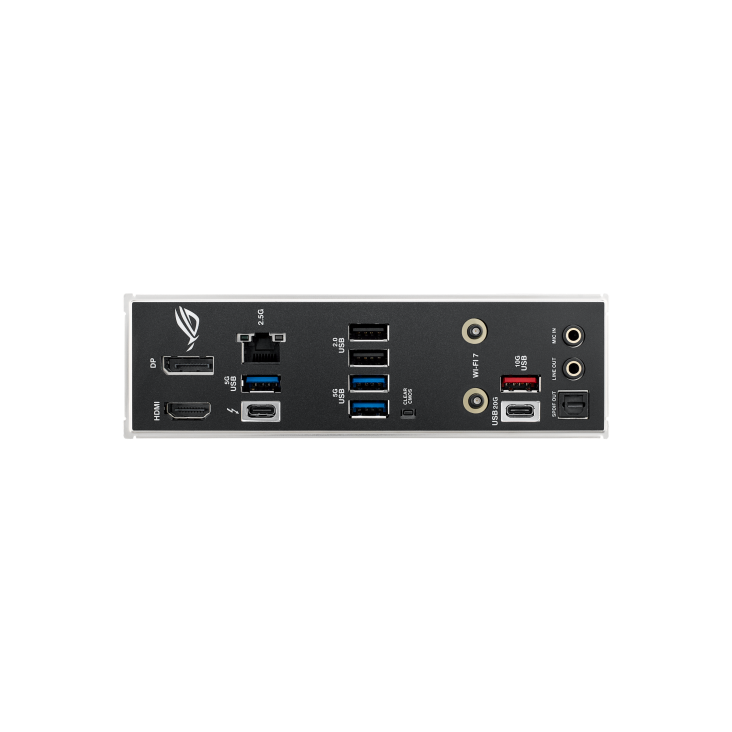

Back Panel I/O Ports
1 x Thunderbolt™ 4 port (USB Type-C®), 1 x USB 20Gbps port (USB Type-C®), 1 x USB 10Gbps (Type-A), 3 x USB 5Gbps (Type-A), 2 x USB 2.0 (Type-A), 1 x DisplayPort, 1 x HDMI™ port, 1 x Wi-Fi module, 1 x Intel® 2.5Gb Ethernet port, 2 x Audio jacks, 1 x Optical S/PDIF out port, 1 x Clear CMOS button
Internal I/O - Fan/ Cooling
1 x 4-pin CPU Fan header, 1 x 4-pin AIO Pump header, 1 x 4-pin Chassis Fan headers
Internal I/O - Power
1 x 24-pin Main Power connector, 1 x 8-pin +12V CPU Power connector
Internal I/O - Storage
2 x M.2 slots (Key M), 4 x SATA 6Gb/s ports
Internal I/O - USB
1 x USB 10Gbps connector (USB Type-C®), 1 x USB 5Gbps header (supports 2 ports), 1 x USB 2.0 header (supports 2 ports)
Internal I/O - Miscellaneous
2 x Addressable Gen2 headers, 1 x Front Panel Audio header (F_AUDIO), 1 x 10-1 pin Front System Panel header, 1 x Thermal Sensor header
Extreme Engine Digi+
5K Black metallic capacitors
ASUS Q-Design
PCIe Slot Q-Release Slim (with PCIe SafeSlot), M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]), Q-Slot
ASUS Thermal Solution
M.2 heatsink backplate, M.2 heatsink, VRM heatsink design
ASUS EZ DIY
Clear CMOS button, CPU Socket lever protector, ProCool, Pre-mounted I/O shield, SafeSlot, SafeDIMM
Aura Sync
Addressable Gen2 headers
ROG Exclusive Software
ROG CPU-Z, Dolby Atmos
ASUS Exclusive Software
Armoury Crate, Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, Power Saving, AIDA64 Extreme (60 days free trial), HWiNFO, ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, TurboV Core, Adobe Creative Cloud (Free Trial), Norton 360 for Gamers (60 Days Free Trial), WinRAR (40 Days Free Trial)
UEFI BIOS Features
ASUS EZ DIY (CrashFree BIOS 3, EZ Flash, UEFI BIOS EZ Mode, MyHotkey), NPU Boost
BIOS
256Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, UEFI PXE
Accessories - Cables
2 x SATA 6Gb/s cables, 1 x ROG USB2.0 splitter cable, 1 x Panel cable
Accessories - Miscellaneous
1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x Screw package for M.2 SSD, 1 x M.2 Bracket, 1 x ROG key chain, 1 x ROG Strix stickers
Accessories - Documentation
1 x Quick start guide
Operating System
Windows 11 (22H2 & later)
Form Factor
Mini-ITX Form Factor, 6.7 inch x 6.7 inch (17 cm x 17 cm)
