ASUS ROG STRIX Z890-E GAMING WIFI Motherboard
  • Model:ROG STRIX Z890-E GAMING WIFI
  • Compatible with Intel Core Ultra (LGA 1851)
  • Intel Z890 chipset, ATX form factor
  • Supports DDR5, up to 192GB RAM
  • PCIe 5.0, WiFi 7, Thunderbolt 4, 7x M.2 slots
  • 3 Years Warranty from ASUS
₹ 43,950
Next Day Dispatch
1
Model
ROG STRIX Z890-E GAMING WIFI
CPU
Intel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)Supports Intel®Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
CPU Support Note
* Refer to https://www.asus.com/support/download-center/ for CPU support list.** Intel®Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Z890 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP) memory moduleSupports DIMM FlexNitroPath DRAM TechnologyDIMM FitASUS Enhanced Memory Profile III (AEMP III)
Memory Notes
*Adjustments will be made based on the specifications of mass-produced memory products available on the market.* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function
Graphics
1 x DisplayPort**1 x HDMI® port***2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs****
Graphics Notes
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports max. 8K@60Hz as specified in DisplayPort 1.4.*** Supports max. 8K@60Hz as specified in HDMI 2.1.**** In ThunderboltTM   4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs.***** In DP alt mode, Only one USB Type-C® port supports up to UHBR20 at a time.****** VGA resolution support depends on processors' or graphic cards' resolution.*******While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots (CPU)
1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
Expansion Slots (Chipset)
1 x PCIe 4.0 x16 slot (supports x4 mode)
Expansion Slot Notes
* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage (Total)
Total supports 7 x M.2 slots and 4 x SATA 6Gb/s ports*
Storage (CPU)
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)**
Storage (Chipset)
M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)4 x SATA 6Gb/s ports
Storage Notes
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.** M.2_3 & M.2_4 slots share bandwidth with PCIEX16(G5). When M.2_3 & M.2_4 are occupied with SSD devices, PCIEX16(G5) will run x8 only.
Ethernet
1 x Realtek 5Gb EthernetASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7*2x2 Wi-Fi 7 (802.11be)Supports 2.4/5/6GHz frequency band**Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.Bluetooth® v5.4***
Wireless & Bluetooth Notes
*Wi-Fi features may vary depending on the operating systemFor Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.For Windows 10, only Wi-Fi 6 is supported.** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB (Rear Total)
14 ports2 x Thunderbolt™ 4 (2 x USB Type-C®)9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)**3 x USB 5Gbps ports (3 x Type-A)
USB (Front Total)
11 ports1 x USB 20Gbps connector (supports USB Type-C®)2 x USB 5Gbps headers support additional 4 USB 5Gbps ports3 x USB 2.0 headers support additional 6 USB 2.0 ports
USB Notes
* USB Type-C® power delivery output: 5V/3A** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2A.
Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080*- Impedance sense for front and rear headphone outputs- Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking- High quality 120 dB SNR stereo playback output and 110 dB SNR recording input- Supports up to 32-Bit/384 kHz playback on front panel
Audio Features
- Audio Shielding- Savitech SV3H712 AMP- Gold-plated audio jacks- Rear optical S/PDIF out port- Premium audio capacitors- Audio cover
Audio Notes
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.

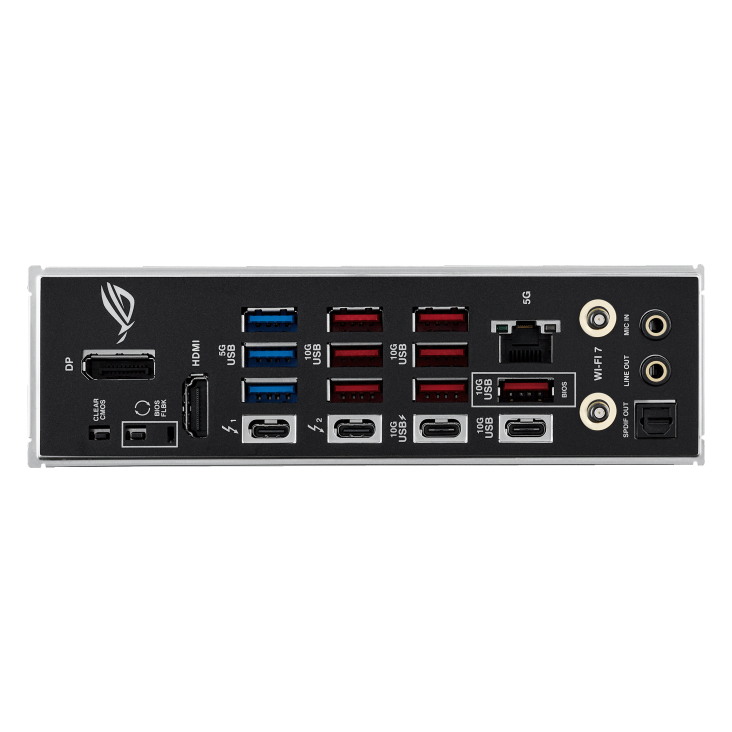

Back Panel I/O Ports
2 x Thunderbolt™ 4 (2 x USB Type-C®)9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C® + 1 x USB Type-C® with up to 30W PD Fast-charge)3 x USB 5Gbps ports (3 x Type-A)1 x DisplayPort1 x HDMI® port1 x Wi-Fi Module1 x Realtek 5Gb Ethernet2 x Gold-plated audio jacks1 x Optical S/PDIF out port1 x BIOS FlashBack™  button1 x Clear CMOS button
Internal I/O Connectors - Fan and Cooling related
1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header5 x 4-pin Chassis Fan headers
Internal I/O Connectors - Power related
1 x 24-pin Main Power connector2 x 8-pin +12V CPU Power connectors
Internal I/O Connectors - Storage related
7 x M.2 slots (Key M)4 x SATA 6Gb/s ports
Internal I/O Connectors - USB
1 x USB 20Gbps connector (supports USB Type-C®)2 x USB 5Gbps headers support additional 4 USB 5Gbps ports3 x USB 2.0 headers support additional 6 USB 2.0 ports
Internal I/O Connectors - Miscellaneous
3 x Addressable Gen2 headers1 x Chassis Intrusion header1 x CPU Over Voltage jumper1 x FlexKey button1 x Front Panel Audio header (F_AUDIO)1 x Start button1 x 10-1 pin System Panel header1 x Alteration PCIe mode switch1 x Thermal Sensor header1 x Thunderbolt™ (USB4®) header
Special Features - Extreme Engine Digi+
- 5K Black Metallic Capacitors
Special Features - ASUS Q-Design
- M.2 Q-Latch- M.2 Q-Release- M.2 Q-Slide- PCIe Slot Q-Release Slim (with PCIe SafeSlot)- Q-Antenna- Q-Code- Q-Dashboard- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-Slot
Special Features - ASUS Thermal Solution
- M.2 heatsinks- M.2 heatsink backplate- VRM heatsink design
Special Features - ASUS EZ DIY
- BIOS FlashBack™ button- BIOS FlashBack™ LED- Clear CMOS button- ProCool II- Pre-mounted I/O shield- SafeSlot- SafeDIMM
Special Features - Aura Sync
- Addressable Gen2 headers
Software Features - ROG Exclusive Software
- ROG CPU-Z- Dolby Atmos
Software Features - ASUS Exclusive Software
Armoury Crate- AIDA64 Extreme (60 days free trial)- Aura Creator- Aura Sync- Fan Xpert 4 (with AI Cooling II)- GameFirst- HWiNFO- Power SavingASUS Driver HubASUS GlideXTurboV CoreUSB Wattage WatcherAdobe Creative Cloud (Free Trial)Norton 360 for Gamers (60 Days Free Trial)WinRAR (40 Days Free Trial)
Software Features - UEFI BIOS
AI Overclocking GuideASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash- ASUS UEFI BIOS EZ Mode- ASUS MyHotkeyNPU BoostFlexKey
BIOS
256 Mb  Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories - Cables
2 x SATA 6Gb/s cables
Accessories - Additional Cooling Kit
1 x Thermal pad for M.2 22110
Accessories - Miscellaneous
1 x ASUS Wi-Fi Q-Antenna1 x Cable ties pack1 x M.2 Q-Latch package2 x M.2 Q-Slides1 x ROG key chain1 x ROG Strix stickers7 x M.2 Rubbers
Accessories - Documentation
1 x Quick start guide
Operating System
Windows® 11 (22H2 & later)
Form Factor
ATX Form Factor12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
