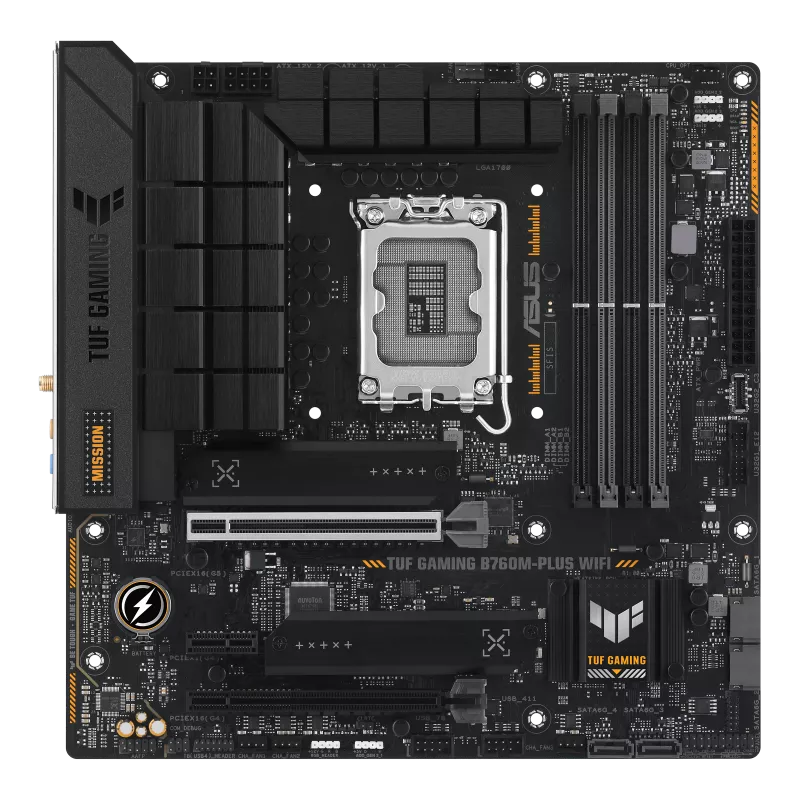

ASUS TUF GAMING B760M-PLUS WIFI Motherboard
  • Model:TUF GAMING B760M-PLUS WIFI
  • Supports Intel 14th/13th/12th Gen CPUs
  • B760 chipset, LGA1700, Micro-ATX form factor
  • DDR5 memory, PCIe 5.0 x16, 2x M.2 slots
  • WiFi 6, 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C
  • 3 Years Warranty from ASUS
₹ 19,650
Next Day Dispatch
1
Model
TUF GAMING B760M-PLUS WIFI
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0*** Refer to www.asus.com for CPU support list.** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
4 x DIMM slots, Max. 192GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*Dual Channel Memory ArchitectureSupports Intel® Extreme Memory Profile (XMP)OptiMem II* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics
1 x DisplayPort**1 x HDMI™port**** Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.** Supports max. 4K@60Hz as specified in DisplayPort 1.4.***Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots
Intel® 14th& 13th & 12th Gen Processors1 x PCIe 5.0 x16 slotIntel® B760 Chipset1 x PCIe 4.0 x16 slot (supports x4 mode)1 x PCIe 4.0 x1 slot- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*Intel® 14th &13th & 12th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)Intel® B760 ChipsetM.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)4 x SATA 6Gb/s ports* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb EthernetTUF LANGuard
Wireless & Bluetooth
Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth® v5.2**The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB
Rear USB (Total 8 ports)1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)2 x USB 3.2 Gen 2 ports (2 x Type-A)3 x USB 3.2 Gen 1 ports (3 x Type-A)2 x USB 2.0 ports (2 x Type-A)Front USB (Total 7 ports)1 x USB 3.2 Gen 2 connector (supports USB Type-C®)*1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports**
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking- Supports up to 24-Bit/192 kHz playbackAudio Features- Audio Shielding- Rear optical S/PDIF out port- Premium audio capacitors- Dedicated audio PCB layers
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)2 x USB 3.2 Gen 2 ports (2 x Type-A)3 x USB 3.2 Gen 1 ports (3 x Type-A)2 x USB 2.0 ports (2 x Type-A)1 x DisplayPort1 x HDMI™ port1 x Wi-Fi Module1 x Realtek 2.5Gb Ethernet port5 x Audio jacks1 x Optical S/PDIF out port
Internal I/O Connectors
I/O Connectors  Fan and Cooling related1 x 4-pin CPU Fan header1 x 4-pin CPU OPT Fan header1 x 4-pin AIO Pump header3 x 4-pin Chassis Fan headersPower related1 x 24-pin Main Power connector1 x 8-pin +12V Power connector1 x 4-pin +12V Power connectorStorage related2 x M.2 slots (Key M)4 x SATA 6Gb/s portsUSB1 x USB 3.2 Gen 2 connector (supports USB Type-C®)1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 portsMiscellaneous3 x Addressable Gen 2 headers1 x AURA RGB header1 x Clear CMOS header1 x Front Panel Audio header (AAFP)1 x 20-3 pin System Panel header with Chassis intrude function1 x Thunderbolt™ (USB4®) header
Special Features
ASUS TUF PROTECTION- DIGI+ VRM (- Digital power design with DrMOS)- ESD Guards- TUF LANGuard- Overvoltage Protection- SafeSlot Core+- Stainless-Steel Back I/OASUS Q-Design- M.2 Q-Latch- Q-DIMM- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])- Q-SlotASUS Thermal Solution- M.2 heatsink- VRM heatsink designASUS EZ DIY- CPU Socket lever protector- ProCool- Pre-mounted I/O shield- SafeDIMMAURA Sync- AURA RGB header- Addressable Gen 2 headers
Software Features
ASUS Exclusive SoftwareArmoury Crate- AURA Creator- AURA Sync- Fan Xpert 2+- Power Saving- Two-Way AI Noise CancelationAI Suite 3DIGI+ VRM- PC CleanerTUF GAMING CPU-ZDTS Audio ProcessingMyASUSNorton 360 for GamersWinRARUEFI BIOSASUS EZ DIY- ASUS CrashFree BIOS 3- ASUS EZ Flash 3- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables2 x SATA 6Gb/s cablesMiscellaneous1 x ASUS Wi-Fi moving antennas1 x M.2 Rubber Package1 x Screw package for M.2 SSD1 x TUF Gaming stickerDocumentation1 x TUF Certification card1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
mATX Form Factor9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
