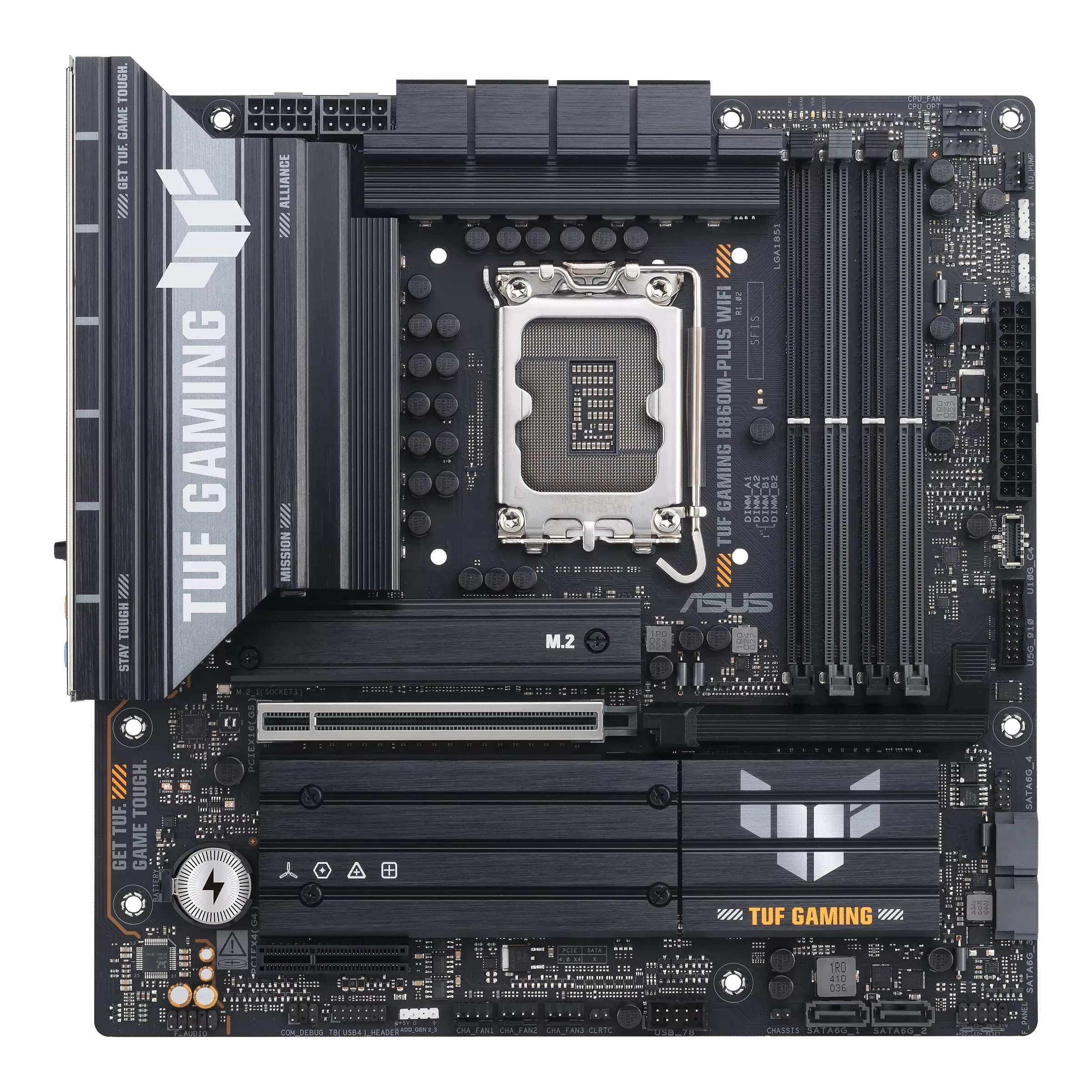

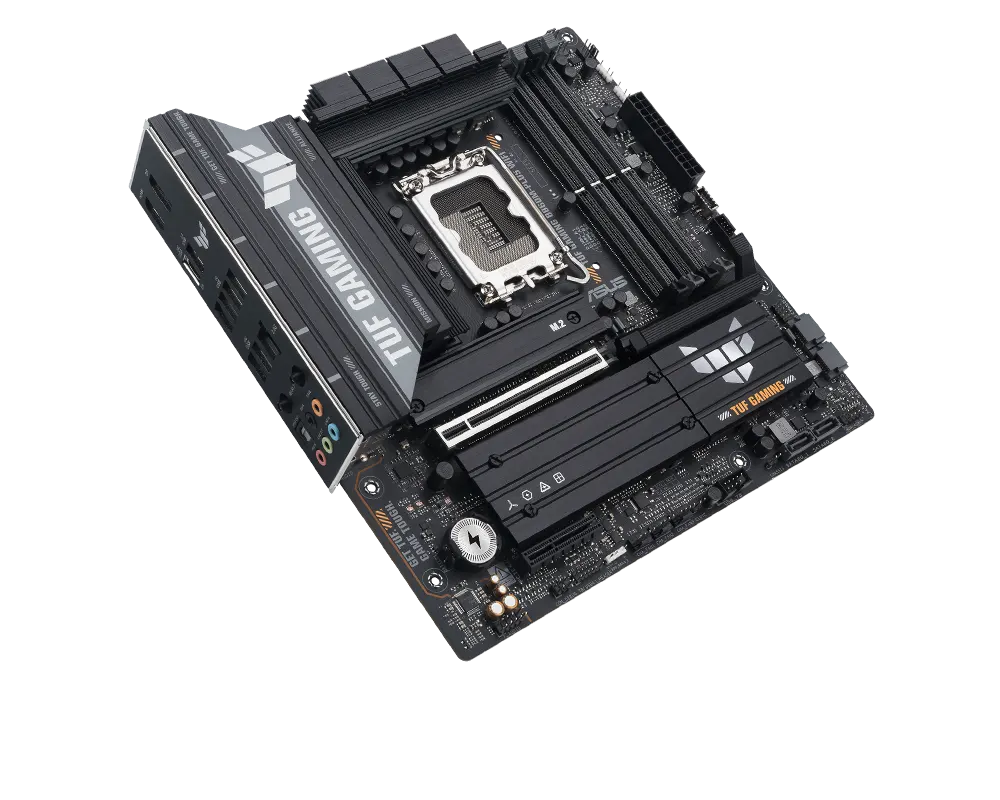

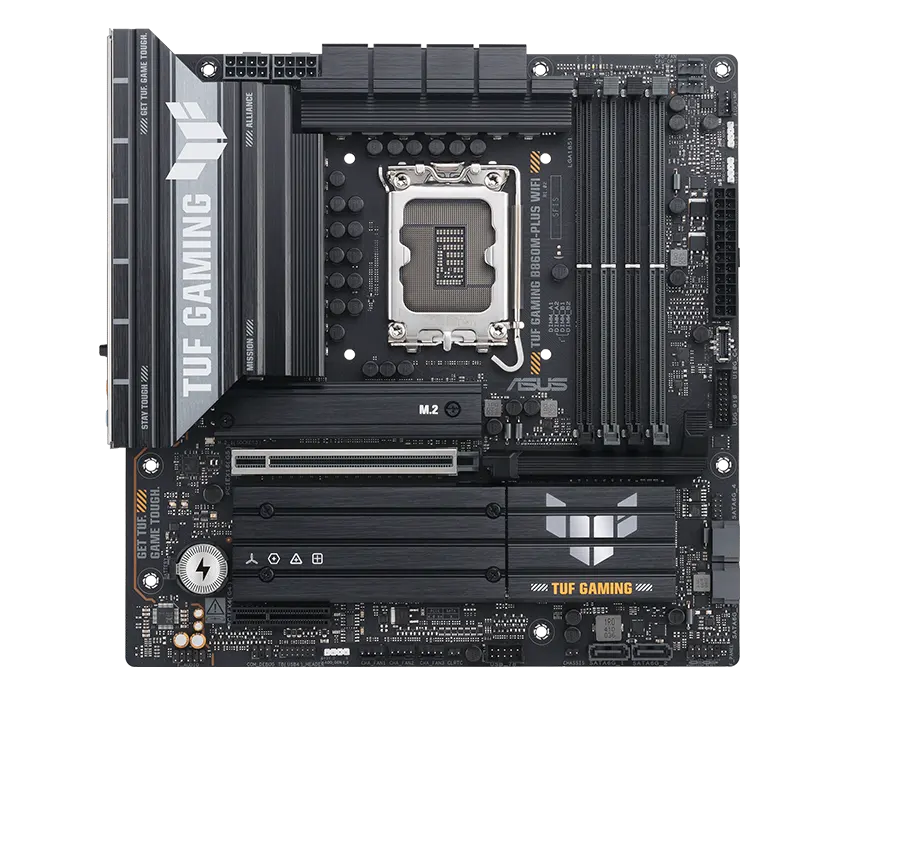

ASUS TUF GAMING B860M-PLUS WIFI Motherboard
  • Model:TUF GAMING B860M-PLUS WIFI
  • Supports Intel Core Ultra 200 Series CPUs
  • Intel B860 chipset, LGA1700 socket, Micro-ATX
  • Up to 128GB DDR5 memory support
  • PCIe 5.0 slots, WiFi 7, USB-C connectivity
  • 3 Years Warranty from ASUS
₹ 22,250
Next Day Dispatch
1
Model
TUF GAMING B860M-PLUS WIFI
CPU
Support Intel® Core™ Ultra Processors (Series 2), LGA1851*
CPU Features
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
CPU Note *
Refer to https://www.asus.com/support/download-center/ for CPU support list.
CPU Note **
Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B860 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5
Memory Speed Support
Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Memory Architecture
Dual Channel Memory Architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
AEMPIII
ASUS Enhanced Memory Profile III(AEMPIII)
Memory Note *
Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Memory ECC
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Graphics Ports
1 x DisplayPort** 1 x HDMI™ port*** 1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output**
Graphics Note *
Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
DisplayPort Specification
Supports max. 4K@60Hz as specified in DisplayPort 1.4.
HDMI Specification
Supports 4K@60Hz as specified in HDMI 2.1.
VGA Resolution Note
VGA resolution support depends on processors' or graphic cards' resolution.
Operating System Video Output Note
While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots (Intel® CoreTM Ultra Processors(Series 2)*)
1 x PCIe 5.0 x16 slot
Expansion Slots (Intel® B860 Chipset)
1 x PCIe 4.0 x4 slot
Expansion Slots Note
To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Storage for Intel® Core™ Ultra Processors(Series 2)*
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
Storage for Intel® B860 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports
Storage RAID Support
Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
Ethernet Features
TUF LANGuard
Wireless & Bluetooth
Wi-Fi 7* 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band** Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. Bluetooth® v5.4***
Wi-Fi Note *
Wi-Fi features may vary depending on the operating system
Wi-Fi Windows Version Support
For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
Wi-Fi Note **
Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
Bluetooth Note ***
The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB (Rear)
Total 8 ports: 1 x USB 20Gbps port (1 x USB Type-C®) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1x Type-A)
USB (Front)
Total 5 ports: 1 x USB 10Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
USB Type-C® Power Delivery Output
Max. 5V/3A
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers
Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode) 2 x USB 10Gbps port (2 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port
Internal I/O Connectors - Fan and Cooling related
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers
Internal I/O Connectors - Power related
1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors
Internal I/O Connectors - Storage related
3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
Internal I/O Connectors - USB
1 x USB 10Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports
Internal I/O Connectors - Miscellaneous
3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x Front panel audio header (F_AUDIO) 1 x 10-1 pin Front System Panel header 1 x Thunderbolt™ (USB4®) header
Special Features - ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O
Special Features - ASUS Q-Design
- M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Special Features - ASUS Thermal Solution
- M.2 heatsinks - VRM heatsink design
Special Features - ASUS EZ DIY
- CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM
Special Features - AURA Sync
- Addressable Gen 2 headers
Software Features - ASUS Exclusive Software
Armoury Crate - AURA Creator - AURA Sync - Fan Xpert 2+ - Power Saving ASUS DriverHub ASUS GlideX TurboV Core TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers (60 Days Free Trial) WinRAR (40 Days Free Trial)
Software Features - UEFI BIOS
ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost
BIOS
2 x 128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories - Cables
2 x SATA 6Gb/s cables
Accessories - Miscellaneous
1 x ASUS WiFi Q-Antenna 2 x M.2 Rubber Packages 1 x TUF Gaming sticker 1 x Screw package for M.2 SSD
Accessories - Documentation
1 x Quick start guide
Operating System
Windows 11 (22H2 & later)
Form Factor
mATX Form Factor 9.6inch x 9.6 inch (24.4 cm x 24.4 cm)
