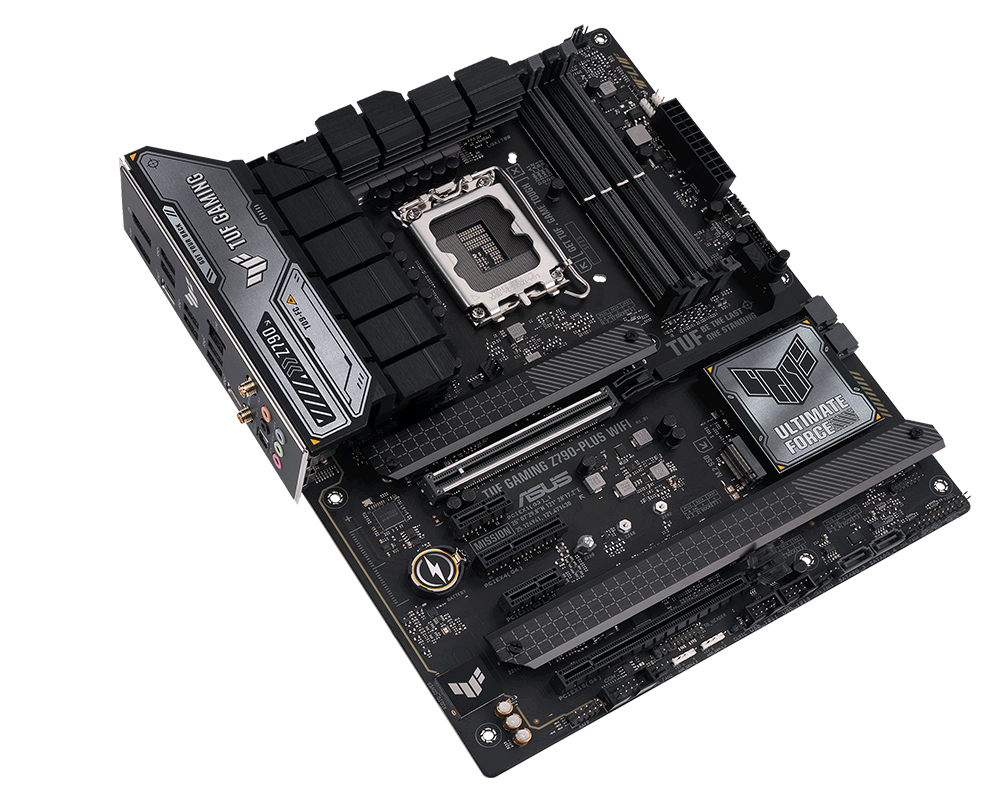

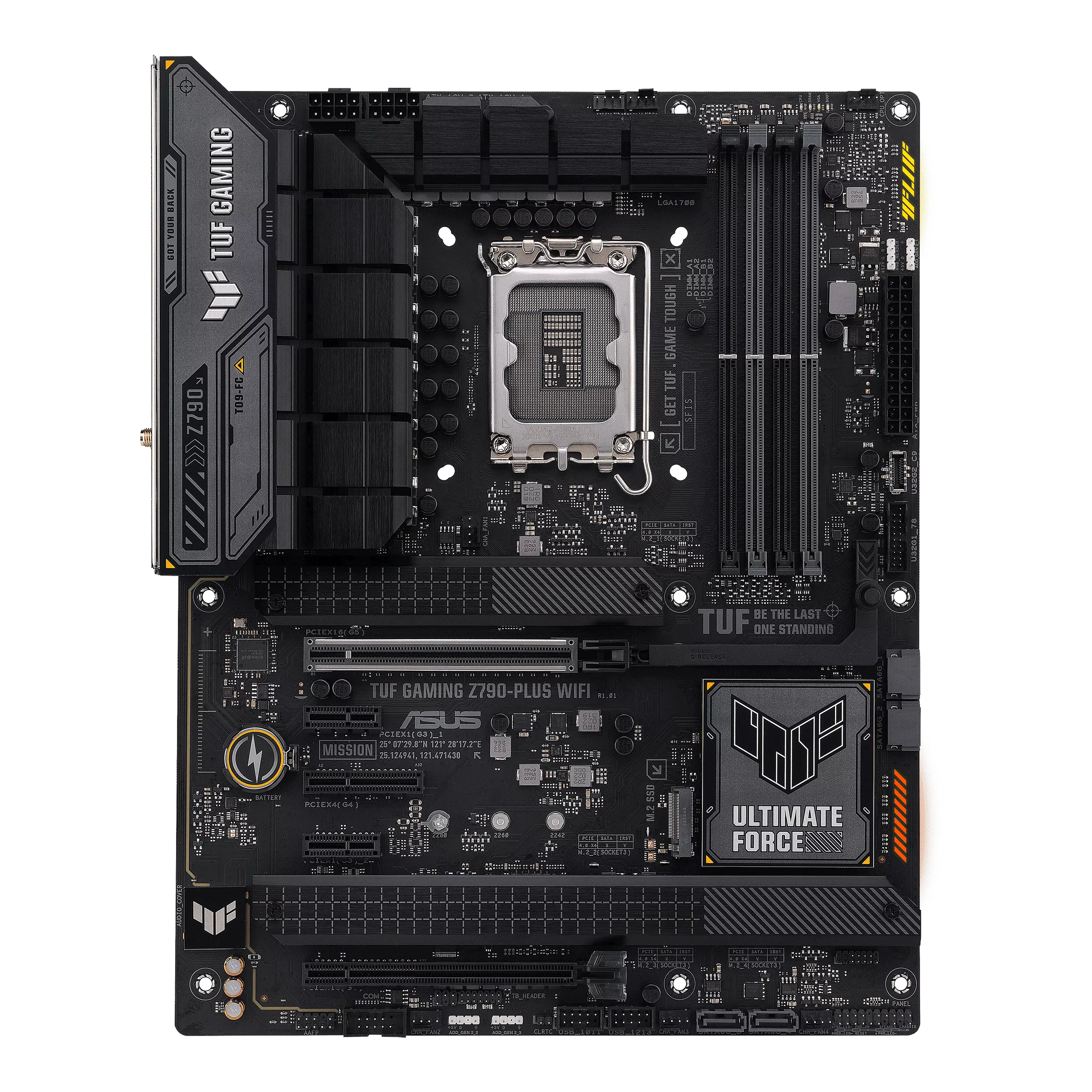

ASUS TUF GAMING Z790-PLUS WIFI Motherboard
  • Model:TUF GAMING Z790-PLUS WIFI
  • Supports Intel 14th/13th/12th Gen CPUs
  • Intel Z790 chipset, LGA1700 socket, ATX size
  • DDR5 memory up to 7200+ MT/s
  • PCIe 5.0, WiFi 6E, USB 3.2 Gen 2x2 support
  • 3 Years Warranty from ASUS
₹ 26,800
Out Of Stock
1
Model
TUF GAMING Z790-PLUS WIFI
CPU
Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors*
CPU Support Technologies
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
CPU Notes
* Refer to www.asus.com for CPU support list.
CPU Notes
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Z790 Chipset
Memory
4 x DIMM, Max. 192GB, DDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Memory Architecture
Dual Channel Memory Architecture
Memory Features
Supports Intel® Extreme Memory Profile (XMP)
Memory Features
OptiMem II
Memory Notes
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
Graphics
1 x DisplayPort**
Graphics
1 x HDMI® port***
Graphics Notes
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Graphics Notes
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Graphics Notes
*** Supports 4K@60Hz as specified in HDMI 2.1.
Graphics Notes
**** VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots (Intel® Core™ Processors 14th & 13th & 12th Gen)*
1 x PCIe 5.0 x16 slot
Expansion Slots (Intel® Z790 Chipset)
1 x PCIe 4.0 x16 slot (supports x4 mode)
Expansion Slots (Intel® Z790 Chipset)
1 x PCIe 4.0 x4 slot
Expansion Slots (Intel® Z790 Chipset)
2 x PCIe 3.0 x1 slots
Expansion Slots Notes
* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
Expansion Slots Notes
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Storage (Intel® Core™ Processors 14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280/22110- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode
Storage (Intel® Z790 Chipset)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage (Intel® Z790 Chipset)
M.2_3 slot (Key M), type 2242/2260/2280/22110  (supports PCIe 4.0 x4 mode)
Storage (Intel® Z790 Chipset)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Storage (Intel® Z790 Chipset)
4 x SATA 6Gb/s ports
Storage Notes
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Ethernet
1 x Intel® 2.5Gb Ethernet
Ethernet Features
TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6E
Wireless Features
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Wireless Features
Supports 2.4/5/6GHz frequency band*
Bluetooth
Bluetooth® v5.3**
Wireless/Bluetooth Notes
* WiFi 6E 6GHz regulatory may vary between countries.
Wireless/Bluetooth Notes
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB (Rear, Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
USB (Rear, Total 8 ports)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
USB (Rear, Total 8 ports)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
USB (Front, Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
USB (Front, Total 7 ports)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
USB (Front, Total 7 ports)
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
Audio Feature
- Impedance sense for front and rear headphone outputs
Audio Feature
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
Audio Feature
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Feature
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Audio Feature
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
Audio Features
- Rear optical S/PDIF out port
Audio Features
- Premium audio capacitors
Audio Features
- Dedicated audio PCB layers
Audio Features
- Audio Cover
Audio Notes
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
Back Panel I/O Ports
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
Back Panel I/O Ports
1 x DisplayPort
Back Panel I/O Ports
1 x HDMI® port
Back Panel I/O Ports
1 x Wi-Fi Module
Back Panel I/O Ports
1 x Intel® 2.5Gb Ethernet port
Back Panel I/O Ports
5 x Audio jacks
Back Panel I/O Ports
1 x Optical S/PDIF out port
Internal I/O Connectors - Fan and Cooling
1 x 4-pin CPU Fan header
Internal I/O Connectors - Fan and Cooling
1 x 4-pin CPU OPT Fan header
Internal I/O Connectors - Fan and Cooling
1 x 4-pin AIO Pump header
Internal I/O Connectors - Fan and Cooling
4 x 4-pin Chassis Fan headers
Internal I/O Connectors - Power
1 x 24-pin Main Power connector
Internal I/O Connectors - Power
2 x 8-pin +12V Power connectors
Internal I/O Connectors - Storage
4 x M.2 slots (Key M)
Internal I/O Connectors - Storage
4 x SATA 6Gb/s ports
Internal I/O Connectors - USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
Internal I/O Connectors - USB
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
Internal I/O Connectors - USB
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Internal I/O Connectors - Miscellaneous
3 x Addressable Gen 2 headers
Internal I/O Connectors - Miscellaneous
1 x Aura RGB header
Internal I/O Connectors - Miscellaneous
1 x Clear CMOS header
Internal I/O Connectors - Miscellaneous
1 x COM Port header
Internal I/O Connectors - Miscellaneous
1 x Front Panel Audio header (AAFP)
Internal I/O Connectors - Miscellaneous
1 x 20-3 pin System Panel header with Chassis intrude function
Internal I/O Connectors - Miscellaneous
1 x Thunderbolt™ (USB4®) header
Special Features - ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
Special Features - ASUS TUF PROTECTION
- ESD Guards
Special Features - ASUS TUF PROTECTION
- TUF LANGuard
Special Features - ASUS TUF PROTECTION
- Overvoltage Protection
Special Features - ASUS TUF PROTECTION
- Safeslot
Special Features - ASUS TUF PROTECTION
- Stainless-Steel Back I/O
Special Features - ASUS Q-Design
- M.2 Q-Latch
Special Features - ASUS Q-Design
- PCIe Slot Q-Release
Special Features - ASUS Q-Design
- Q-DIMM
Special Features - ASUS Q-Design
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Special Features - ASUS Q-Design
- Q-Slot
Special Features - ASUS Thermal Solution
- M.2 heatsink
Special Features - ASUS Thermal Solution
- VRM heatsink design
Special Features - ASUS EZ DIY
- CPU Socket lever protector
Special Features - ASUS EZ DIY
- ProCool
Special Features - ASUS EZ DIY
- Pre-mounted I/O shield
Special Features - ASUS EZ DIY
- SafeDIMM
Special Features - AURA Sync
- Aura RGB header
Special Features - AURA Sync
- Addressable Gen 2 headers
Software Features - ASUS Exclusive Software
Armoury Crate
Software Features - ASUS Exclusive Software
- Aura Creator
Software Features - ASUS Exclusive Software
- Aura Sync
Software Features - ASUS Exclusive Software
- Fan Xpert 4 (with AI Cooling II)
Software Features - ASUS Exclusive Software
- Two-Way AI Noise Cancelation
Software Features - ASUS Exclusive Software
- Power Saving
Software Features - AI Suite 3
- TurboV EVO
Software Features - AI Suite 3
- DIGI+ VRM
Software Features - AI Suite 3
- PC Cleaner
Software Features
TUF GAMING CPU-Z
Software Features
DTS Audio Processing
Software Features
MyAsus
Software Features
Norton 360 for Gamers
Software Features
WinRAR
Software Features - UEFI BIOS
ASUS EZ DIY
Software Features - UEFI BIOS
- ASUS CrashFree BIOS 3
Software Features - UEFI BIOS
- ASUS EZ Flash 3
Software Features - UEFI BIOS
- ASUS UEFI BIOS EZ Mode
BIOS
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories - Cables
2 x SATA 6Gb/s cables
Accessories - Miscellaneous
1 x ASUS Wi-Fi moving antenna
Accessories - Miscellaneous
1 x TUF GAMING sticker
Accessories - Miscellaneous
2 x M.2 Rubber Packages
Accessories - Miscellaneous
1 x Screw package for M.2 SSD
Accessories - Documentation
1 x TUF Certification card
Accessories - Documentation
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor
Dimensions
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
