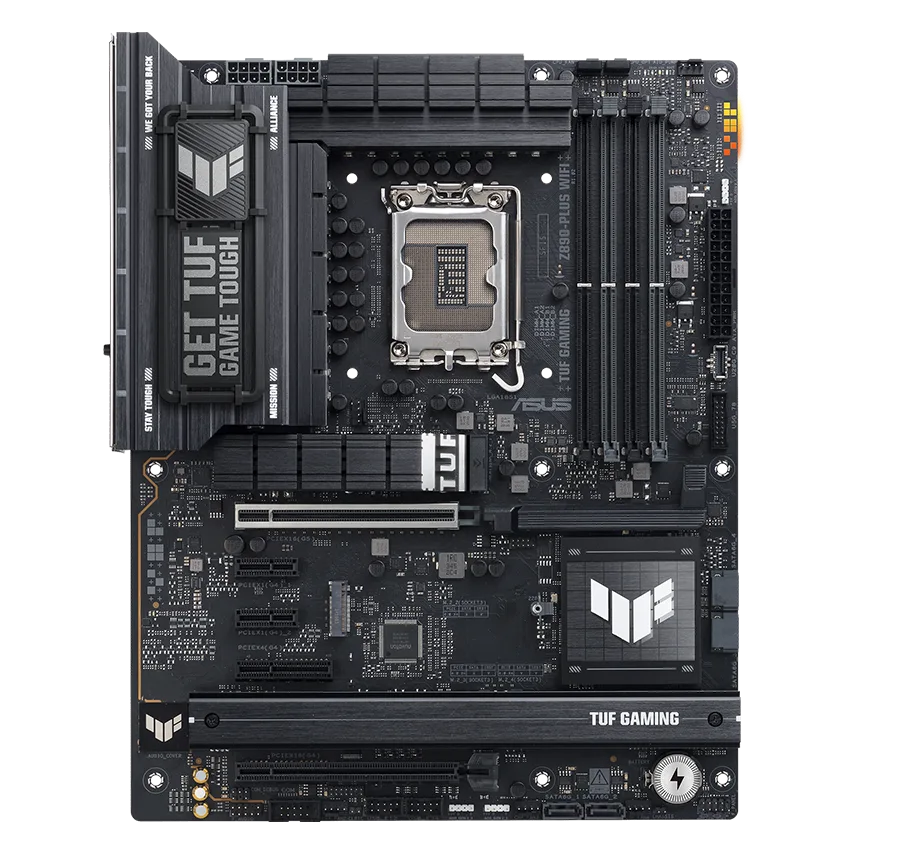

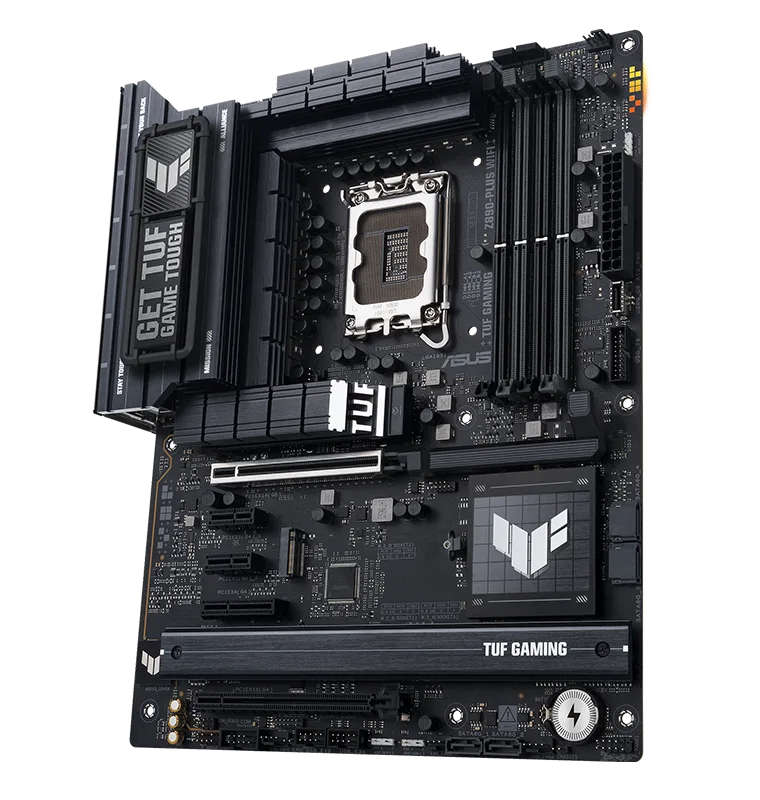

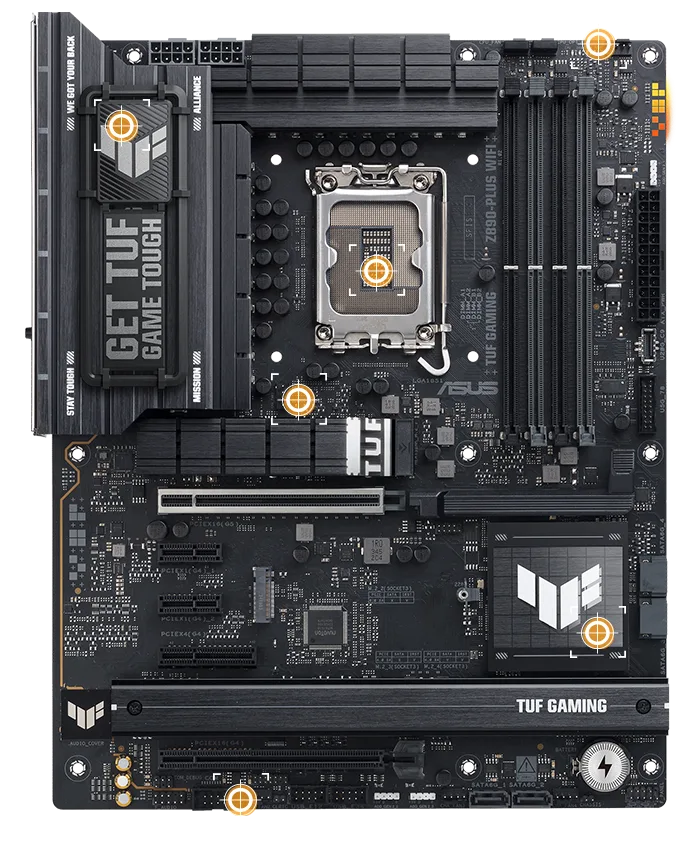

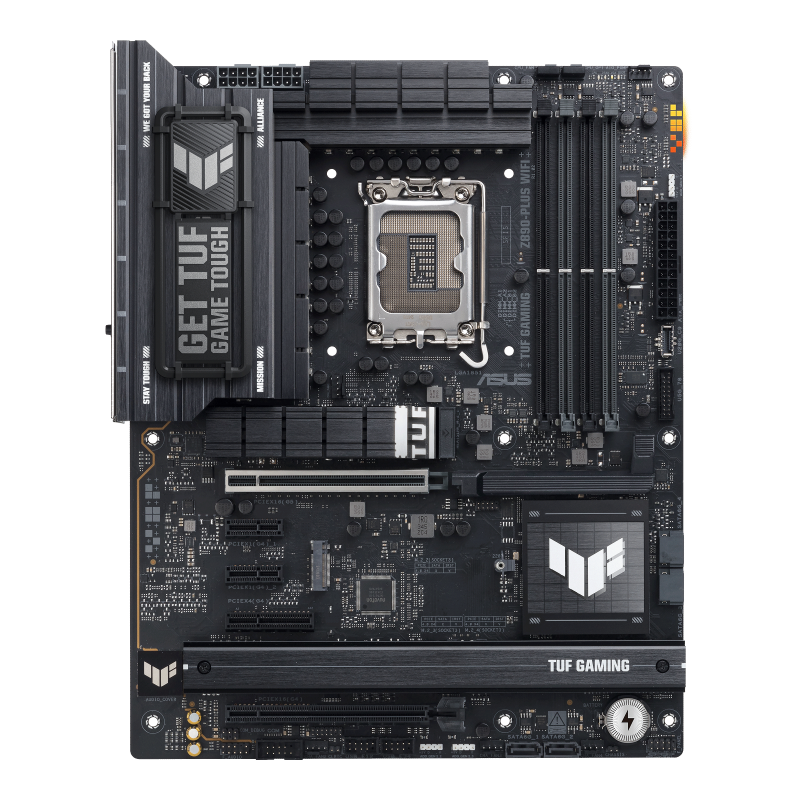

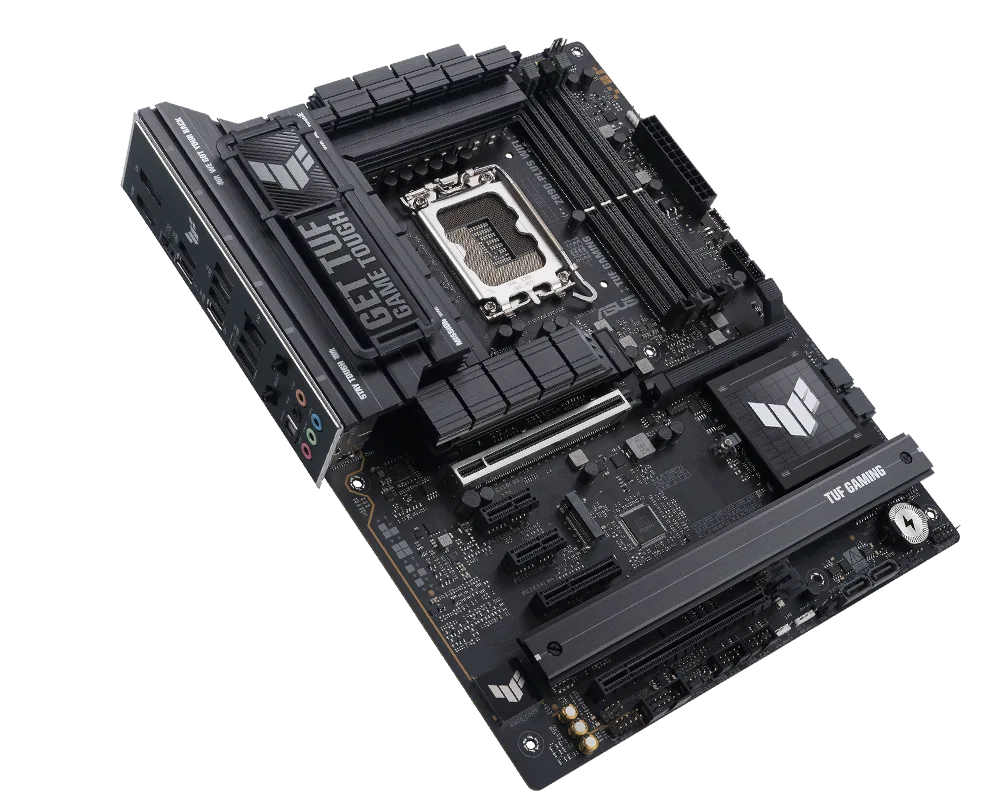

ASUS TUF GAMING Z890-PLUS WIFI Motherboard
  • Model:TUF GAMING Z890-PLUS WIFI
  • Supports Intel Core Ultra 200 series CPUs
  • Intel Z890 chipset, LGA1851 socket, ATX form
  • DDR5 memory support, 4 DIMM slots
  • PCIe 5.0 graphics, WiFi 7, Thunderbolt 4
  • 3 Years Warranty from ASUS
₹ 29,250
Next Day Dispatch
1
Model
TUF GAMING Z890-PLUS WIFI
CPU
Support Intel® Core™ Ultra Processors (Series 2), LGA1851*
CPU - Additional Support
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
CPU - Note 1
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
CPU - Note 2
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® Z890 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5
Memory - Speed
Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Memory - Architecture
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
Memory - Enhanced Profile
ASUS Enhanced Memory Profile III(AEMPIII)
Memory - Note 1
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
Memory - Note 2
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Memory - Note 3
*** Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Graphics
1 x DisplayPort**
Graphics
1 x HDMI™ port***
Graphics
1 x Intel® Thunderbolt™ 4 port (USB Type-C®) supports DisplayPort and Thunderbolt™ video outputs****
Graphics
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output*****
Graphics - Note 1
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
Graphics - Note 2
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Graphics - Note 3
*** Supports 4K@60Hz as specified in HDMI 2.1.
Graphics - Note 4
****In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC, maximum total bandwidth up to 23.8Gbps, for resolution support please check DisplayPort 2.1 specs.
Graphics - Note 5
***** In DP alt mode, supports up to UHBR20.
Graphics - Note 6
****** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
Graphics - Note 7
******* VGA resolution support depends on processors' or graphic cards' resolution.
Graphics - Note 8
********While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics card.
Expansion Slots (CPU)
1 x PCIe 5.0 x16 slot
Expansion Slots (Chipset)
1 x PCIe 4.0 x16 slot (supports x4 mode)
Expansion Slots (Chipset)
1 x PCIe 4.0 x4 slot
Expansion Slots (Chipset)
2 x PCIe 4.0 x1 slots
Expansion Slots - Note 1
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Expansion Slots - Note 2
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage - Total
Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Storage (CPU)
M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)
Storage (CPU)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Storage (Chipset)
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
Storage (Chipset)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
Storage (Chipset)
4 x SATA 6Gb/s ports
Storage - Note
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only support RAID 0/1/5.
Ethernet
1 x Intel® 2.5Gb Ethernet
Ethernet
TUF LANGuard
Wireless & Bluetooth
Wi-Fi 7*
Wireless & Bluetooth
2x2 Wi-Fi 7 (802.11be)
Wireless & Bluetooth
Supports 2.4/5/6GHz frequency band**
Wireless & Bluetooth
Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
Wireless & Bluetooth
Bluetooth® v5.4***
Wireless & Bluetooth - Note 1
*Wi-Fi features may vary depending on the operating system
Wireless & Bluetooth - Note 2
For Windows 11, Wi-Fi 7 will require  24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only support Wi-Fi 6E.
Wireless & Bluetooth - Note 3
For Windows 10, please note that no driver is available , please refer to the Wi-Fi chipset vendor's website for details.
Wireless & Bluetooth - Note 4
** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries.
Wireless & Bluetooth - Note 5
*** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
USB (Rear)
1 x Thunderbolt™ 4 port (1 x USB Type-C®)
USB (Rear)
1 x USB 20Gbps port (1 x USB Type-C®)
USB (Rear)
3 x USB 10Gbps ports (3 x Type-A)
USB (Rear)
3 x USB 5Gbps ports (3 x Type-A)
USB (Front)
1 x USB 20Gbps connector (supports USB Type-C®)
USB (Front)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
USB (Front)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
USB Power
USB Type-C® power delivery output: max. 5V/3A
Audio
Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
Audio
- Impedance sense for front and rear headphone outputs
Audio
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
Audio
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Audio
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
Audio Features
- Rear optical S/PDIF out port
Audio Features
- Premium audio capacitors
Audio Features
- Dedicated audio PCB layers
Audio Features
- Audio cover
Audio Features
- Unique de-pop circuit
Audio - Note
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Back Panel I/O Ports
1 x Thunderbolt™ 4 USB Type-C® port
Back Panel I/O Ports
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
Back Panel I/O Ports
3 x USB 10Gbps ports (3 x Type-A)
Back Panel I/O Ports
3 x USB 5Gbps ports (3 x Type-A)
Back Panel I/O Ports
1 x DisplayPort
Back Panel I/O Ports
1 x HDMI™ port
Back Panel I/O Ports
1 x Wi-Fi module
Back Panel I/O Ports
1 x Intel® 2.5Gb Ethernet port
Back Panel I/O Ports
5 x Audio jacks
Back Panel I/O Ports
1 x Optical S/PDIF out port
Back Panel I/O Ports
1 x BIOS FlashBack™ button
Internal I/O Connectors - Fan and Cooling Related
1 x 4-pin CPU Fan header
Internal I/O Connectors - Fan and Cooling Related
1 x 4-pin CPU OPT Fan header
Internal I/O Connectors - Fan and Cooling Related
1 x 4-pin AIO Pump header
Internal I/O Connectors - Fan and Cooling Related
4 x 4-pin Chassis Fan headers
Internal I/O Connectors - Power Related
1 x 24-pin Main Power connector
Internal I/O Connectors - Power Related
2 x 8-pin +12V CPU Power connector
Internal I/O Connectors - Storage Related
4 x M.2 slots (Key M)
Internal I/O Connectors - Storage Related
4 x SATA 6Gb/s ports
Internal I/O Connectors - USB
1 x USB 20Gbps connector (supports USB Type-C® )
Internal I/O Connectors - USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
Internal I/O Connectors - USB
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors - Miscellaneous
3 x Addressable RGB Gen 2 headers
Internal I/O Connectors - Miscellaneous
1 x Clear CMOS header
Internal I/O Connectors - Miscellaneous
1 x Chassis Intrusion header
Internal I/O Connectors - Miscellaneous
1 x COM Port header
Internal I/O Connectors - Miscellaneous
1 x Front Panel Audio header (F_AUDIO)
Internal I/O Connectors - Miscellaneous
1 x 10-1 pin Front System Panel header
Internal I/O Connectors - Miscellaneous
1 x Thunderbolt™ (USB4®) header
Special Features - ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
Special Features - ASUS TUF PROTECTION
- ESD Guards
Special Features - ASUS TUF PROTECTION
- TUF LANGuard
Special Features - ASUS TUF PROTECTION
- Overvoltage protection
Special Features - ASUS TUF PROTECTION
- SafeSlot
Special Features - ASUS TUF PROTECTION
- Stainless-steel back I/O
Special Features - ASUS Q-Design
- M.2 Q-Latch
Special Features - ASUS Q-Design
- M.2 Q-Release
Special Features - ASUS Q-Design
- M.2 Q-Slide
Special Features - ASUS Q-Design
- PCIe Slot Q-Release
Special Features - ASUS Q-Design
- Q-Antenna
Special Features - ASUS Q-Design
- Q-Dashboard
Special Features - ASUS Q-Design
- Q-DIMM
Special Features - ASUS Q-Design
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Special Features - ASUS Q-Design
- Q-Slot
Special Features - ASUS Thermal Solution
- M.2 heatsink backplate
Special Features - ASUS Thermal Solution
- M.2 heatsink
Special Features - ASUS Thermal Solution
- VRM heatsink design
Special Features - ASUS EZ DIY
- BIOS FlashBack™ button
Special Features - ASUS EZ DIY
- BIOS FlashBack™ LED
Special Features - ASUS EZ DIY
- CPU Socket lever protector
Special Features - ASUS EZ DIY
- ProCool
Special Features - ASUS EZ DIY
- Pre-mounted I/O shield
Special Features - ASUS EZ DIY
- SafeDIMM
Special Features - Aura Sync
- Addressable Gen 2 headers
Software Features - ASUS Exclusive Software
Armoury Crate
Software Features - ASUS Exclusive Software
- Aura Creator
Software Features - ASUS Exclusive Software
- Aura Sync
Software Features - ASUS Exclusive Software
- Fan Xpert 4 (with AI Cooling II)
Software Features - ASUS Exclusive Software
- Power Saving
Software Features
ASUS DriverHub
Software Features
ASUS GlideX
Software Features
TurboV Core
Software Features
TUF GAMING CPU-Z
Software Features
DTS Audio Processing
Software Features
Adobe Creative Cloud (Free Trial)
Software Features
Norton 360 for Gamers (60 Days Free Trial)
Software Features
WinRAR (40 Days Free Trial)
Software Features - UEFI BIOS
ASUS EZ DIY
Software Features - UEFI BIOS
- ASUS CrashFree BIOS 3
Software Features - UEFI BIOS
- ASUS EZ Flash
Software Features - UEFI BIOS
- ASUS UEFI BIOS EZ Mode
Software Features - UEFI BIOS
- ASUS MyHotkey
Software Features - NPU Boost
NPU Boost
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories - Cables
2 x SATA 6Gb/s cables
Accessories - Miscellaneous
1 x ASUS WiFi Q-Antenna
Accessories - Miscellaneous
1 x M.2 Q-Slide package
Accessories - Miscellaneous
2 x M.2 rubber packages
Accessories - Miscellaneous
1 x Screw package for M.2 SSD
Accessories - Miscellaneous
1 x TUF GAMING sticker
Accessories - Miscellaneous
1 x TUF GAMING removable nameplate
Accessories - Documentation
1 x Quick start guide
Operating System
Windows 11  (22H2 & later)
Form Factor
ATX Form Factor
Dimensions
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
