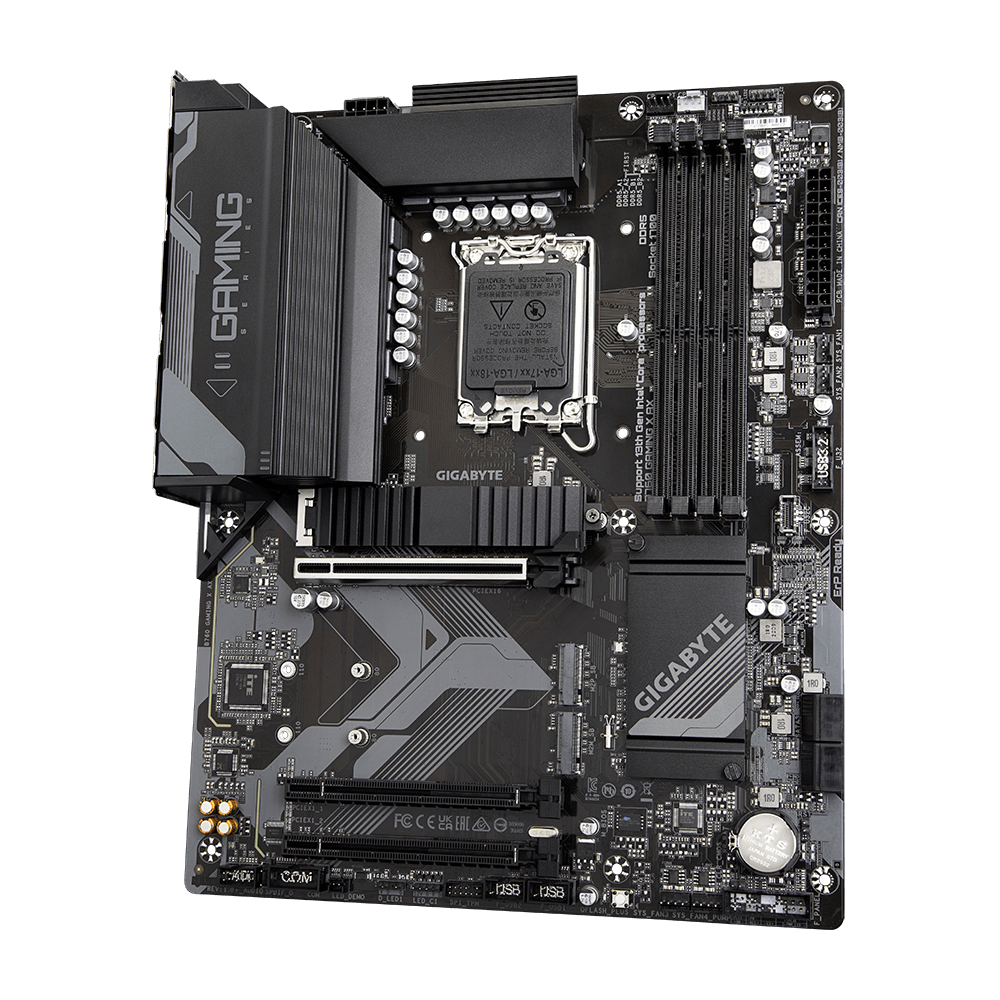

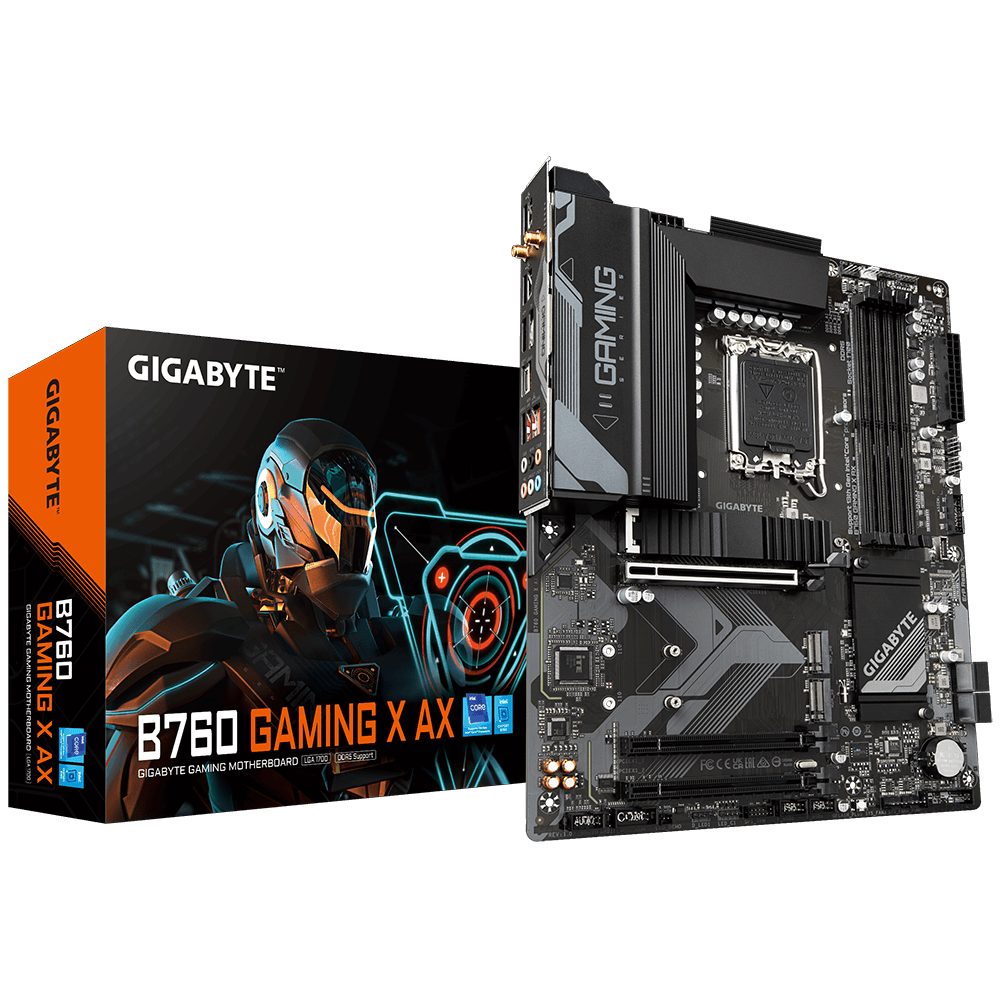

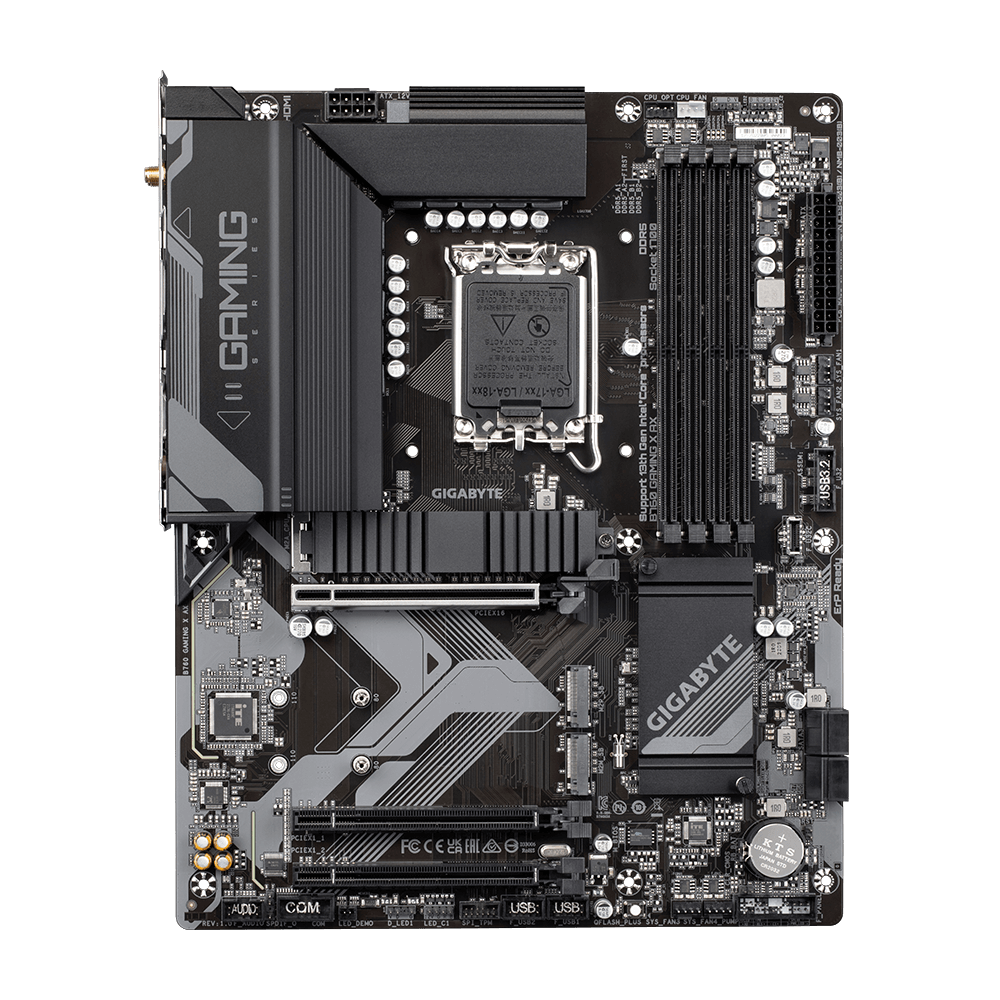

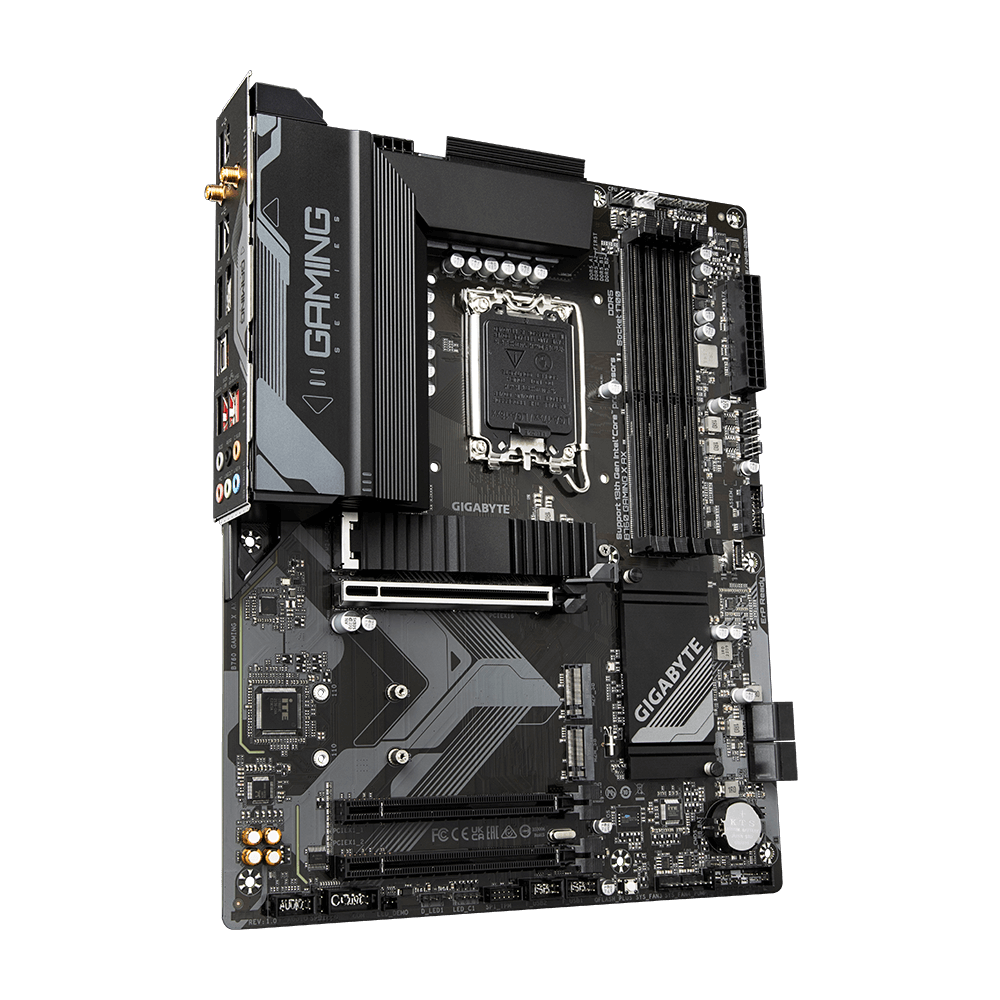

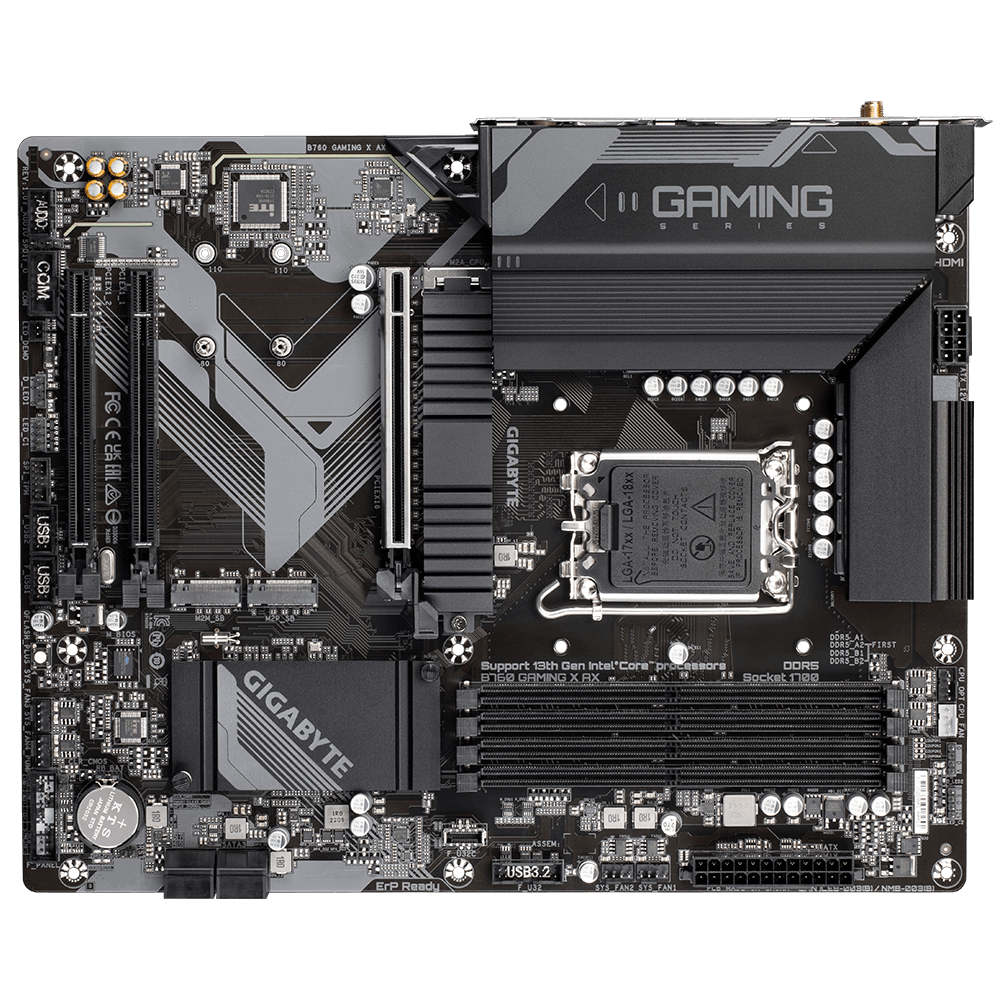

Gigabyte B760 GAMING X AX Motherboard
  • Model:B760 GAMING X AX
  • Supports Intel Core 12th/13th/14th CPUs
  • Intel B760, LGA 1700, ATX Form Factor
  • Dual Channel DDR5, 4 DIMMs, XMP Support
  • PCIe 4.0 x16, 3x M.2, Wi-Fi 6E, USB-C
  • 3 Years Warranty from Gigabyte
₹ 18,900
Out Of Stock
1
CPU
1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors2. L3 cache varies with CPU(Please refer "CPU Support List" for more information.)
Chipset
1. Intel® B760 Express Chipset
Memory
1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory3. Dual channel memory architecture4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules6. Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.32. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU support.)
Audio
1. Realtek® Audio CODEC2. High Definition Audio3. 2/4/5.1/7.1-channel4. Support for S/PDIF Out* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
AMD Wi-Fi 6E RZ608 (MT7921K) (PCB rev. 1.0)1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands2. BLUETOOTH 5.23. Support for 11ax 80MHz wireless standardIntel® Wi-Fi 6E AX210 (PCB rev. 1.1)1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands2. BLUETOOTH 5.33. Support for 11ax 160MHz wireless standardIntel® Wi-Fi 6E AX211 (PCB rev. 1.2)1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands2. BLUETOOTH 5.33. Support for 11ax 160MHz wireless standardRealtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.3)1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands2. BLUETOOTH 5.33. Support for 11ax 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1. 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)
Storage Interface
CPU:1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)2. 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:1. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header2. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel3. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support4. 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)5. 1 x USB 2.0/1.1 port on the back panelChipset+2 USB 2.0 Hubs:1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
01. 1 x 24-pin ATX main power connector02. 1 x 8-pin ATX 12V power connector03. 1 x CPU fan header04. 1 x CPU fan/water cooling pump header05. 3 x system fan headers06. 1 x system fan/water cooling pump header07. 2 x addressable LED strip headers08. 2 x RGB LED strip headers09. 3 x M.2 Socket 3 connectors10. 4 x SATA 6Gb/s connectors11. 1 x front panel header12. 1 x front panel audio header13. 1 x S/PDIF Out header14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support15. 1 x USB 3.2 Gen 1 header16. 2 x USB 2.0/1.1 headers17. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)18. 1 x serial port header19. 1 x Q-Flash Plus button20. 1 x reset jumper21. 1 x Clear CMOS jumper

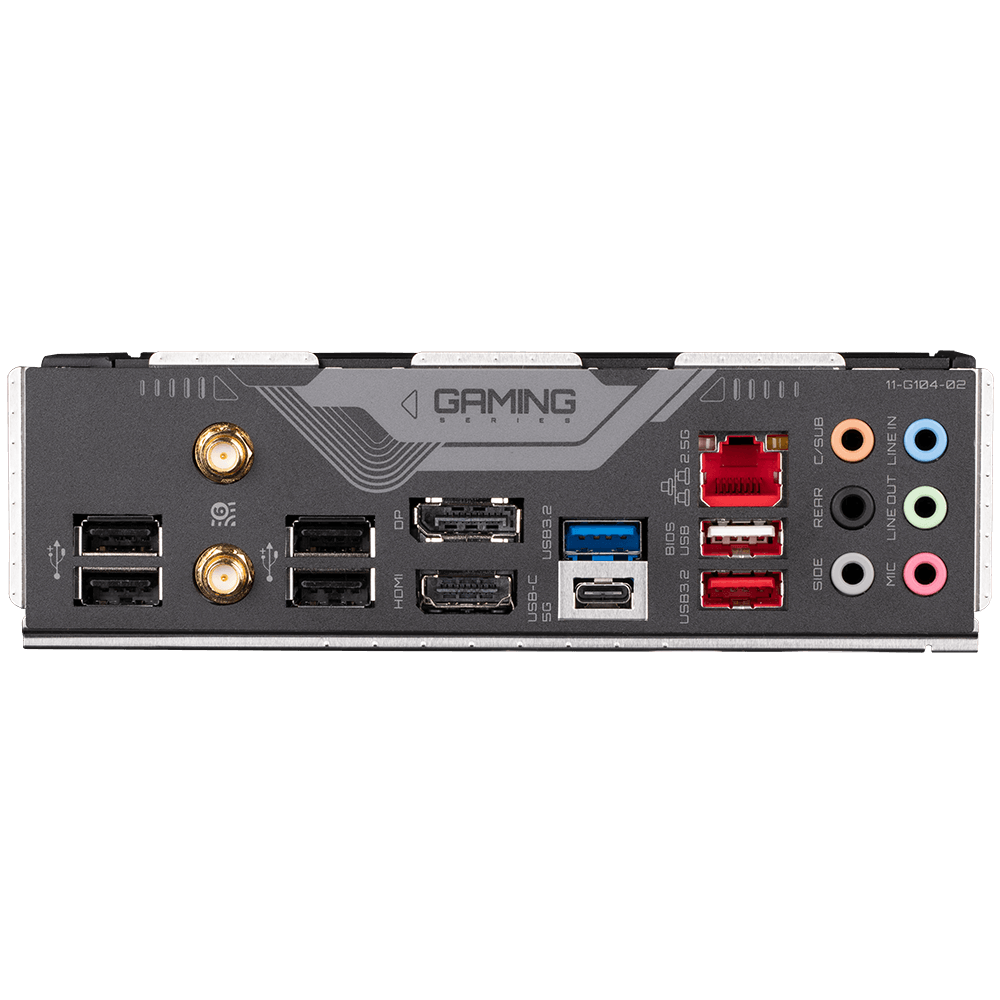

Back Panel Connectors
1. 1 x USB 3.2 Gen 2 Type-A port (red)2. 1 x USB Type-C® port, with USB 3.2 Gen 1 support3. 1 x USB 3.2 Gen 1 port4. 5 x USB 2.0/1.1 ports5. 2 x SMA antenna connectors (2T2R)6. 1 x DisplayPort7. 1 x HDMI port8. 1 x RJ-45 port9. 6 x audio jacks
I/O Controller
1. iTE® I/O Controller Chip
H/W Monitoring
1. Voltage detection2. Temperature detection3. Fan speed detection4. Water cooling flow rate detection5. Fan fail warning6. Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 1 x 256 Mbit flash2. Use of licensed AMI UEFI BIOS3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.2. Support for Q-Flash3. Support for Q-Flash Plus
Bundled Software
1. Norton® Internet Security (OEM version)2. LAN bandwidth management software
Operating System
1. Support for Windows 11 64-bit2. Support for Windows 10 64-bit
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
