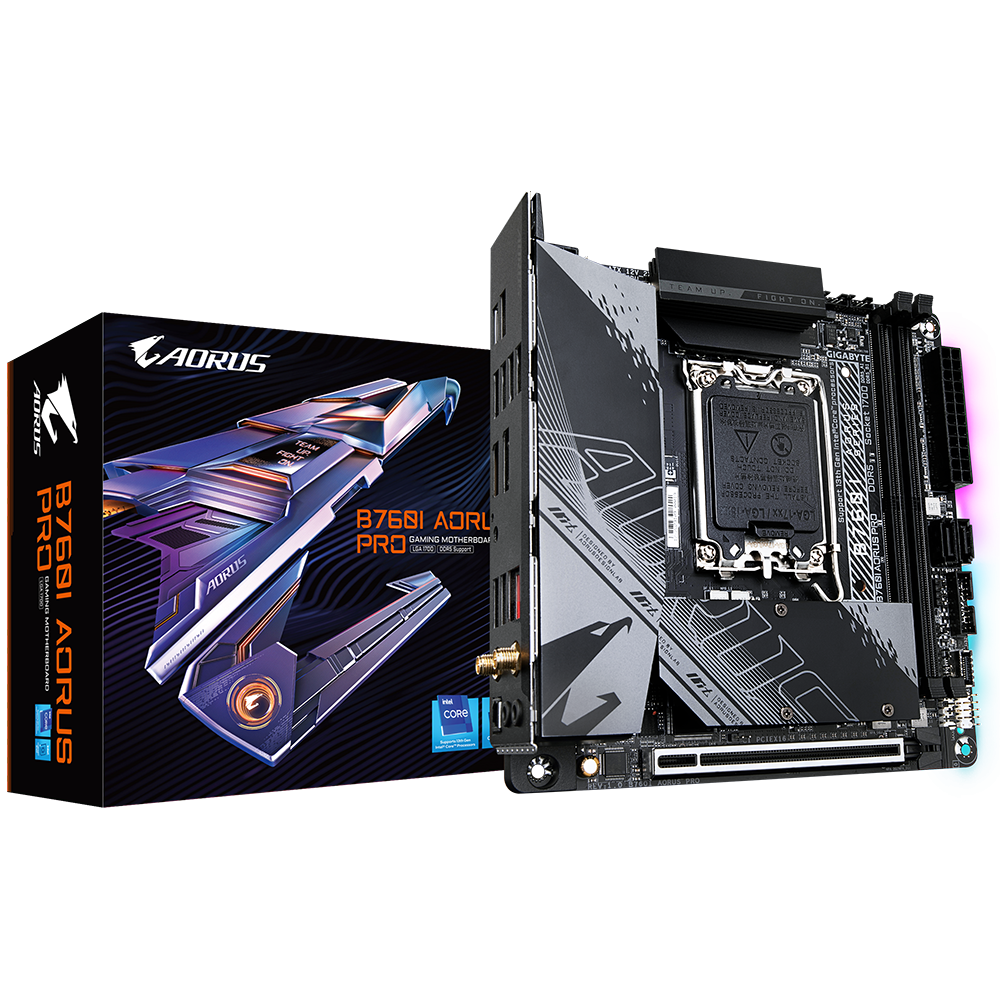

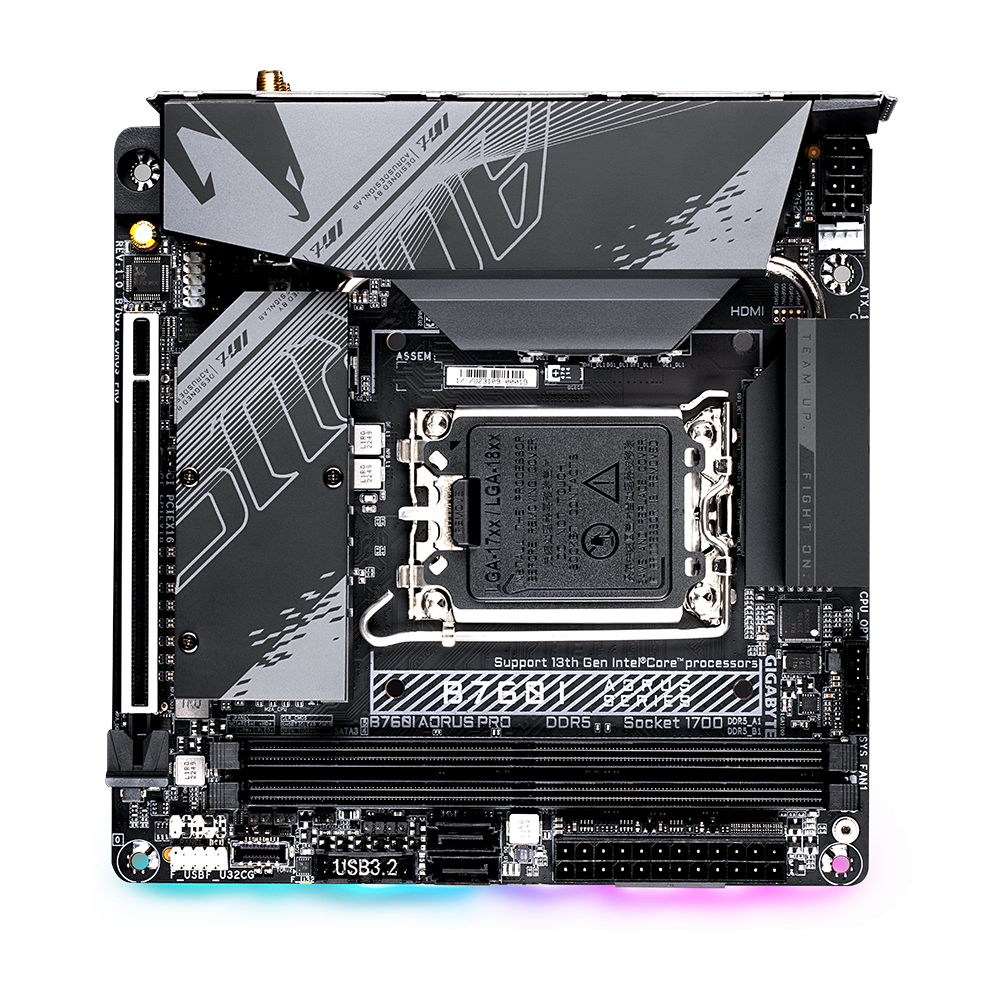

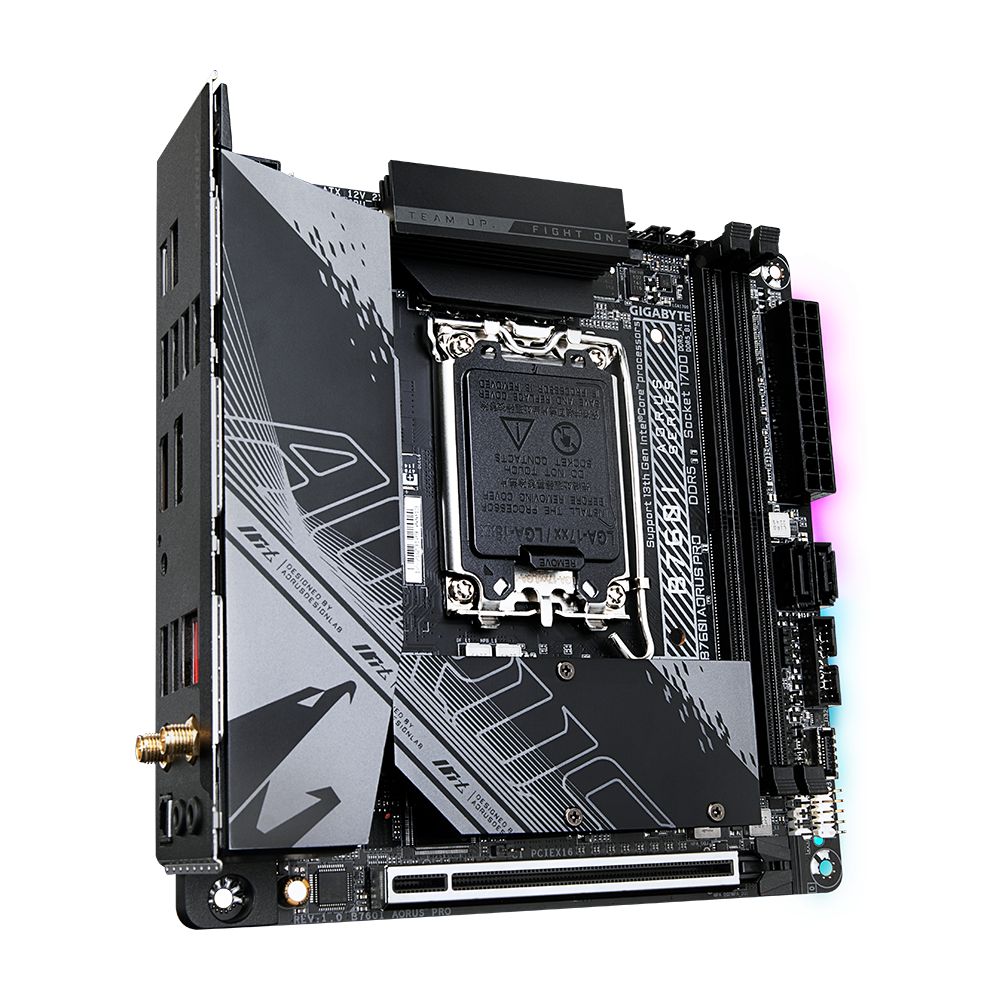

Gigabyte B760I AORUS PRO Motherboard

  • Model:B760I AORUS PRO
  • Supports Intel Core 12th/13th/14th Gen CPUs
  • Intel B760, LGA 1700, Mini-ITX Form Factor
  • Dual Channel DDR5 with XMP 3.0 Support
  • Wi-Fi 6E, 2 PCIe 4.0 x4 M.2 Slots, USB-C
  • 3 Years Warranty from Gigabyte
₹ 24,450
Next Day Dispatch
1
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
CPU
L3 cache varies with CPU
CPU
* Please refer to "CPU Support List" for more information.
Chipset
Intel® B760 Express Chipset
Memory
Support for DDR5 8000(O.C.) /7800(O.C.) /7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Memory
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Memory
Dual channel memory architecture
Memory
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory
Support for Extreme Memory Profile (XMP) memory modules
Memory
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
Onboard Graphics
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Onboard Graphics
* Support for DisplayPort 1.2 version and HDCP 2.3
Onboard Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Onboard Graphics
* Support for HDMI 2.1 version and HDCP 2.3.
Onboard Graphics
** Support native HDMI 2.1 TMDS compatible ports.
Onboard Graphics
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
Audio
High Definition Audio
Audio
2/4/5.1/7.1-channel
Audio
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio
Support for S/PDIF Out
LAN
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi 6E AX211 (For PCB rev. 1.0)
Wireless Communication module
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless Communication module
BLUETOOTH 5.3
Wireless Communication module
Support for 11ax 160MHz wireless standard
Wireless Communication module
Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.1)
Wireless Communication module
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless Communication module
BLUETOOTH 5.3
Wireless Communication module
Support for 11ax 160MHz wireless standard
Wireless Communication module
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
CPU:
Expansion Slots
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Expansion Slots
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage Interface
CPU:
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Storage Interface
Chipset:
Storage Interface
1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Storage Interface
2 x SATA 6Gb/s connectors
Storage Interface
RAID 0 and RAID 1 support for SATA storage devices
USB
Chipset:
USB
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
USB
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
USB
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
USB
2 x USB 3.2 Gen 1 ports available through the internal USB header
USB
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
USB
Chipset+USB 3.2 Gen 1 Hub:
USB
4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 8-pin ATX 12V power connector
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
1 x CPU fan/water cooling pump header
Internal I/O Connectors
1 x system fan header
Internal I/O Connectors
1 x addressable LED strip header
Internal I/O Connectors
1 x RGB LED strip header
Internal I/O Connectors
2 x M.2 Socket 3 connectors
Internal I/O Connectors
2 x SATA 6Gb/s connectors
Internal I/O Connectors
1 x front panel header
Internal I/O Connectors
1 x front panel audio header
Internal I/O Connectors
1 x speaker header
Internal I/O Connectors
1 x USB Type-C® header, with USB 3.2 Gen 1 support
Internal I/O Connectors
1 x USB 3.2 Gen 1 header
Internal I/O Connectors
1 x USB 2.0/1.1 header
Internal I/O Connectors
1 x reset jumper
Internal I/O Connectors
1 x Clear CMOS jumper
Internal I/O Connectors
1 x chassis intrusion header

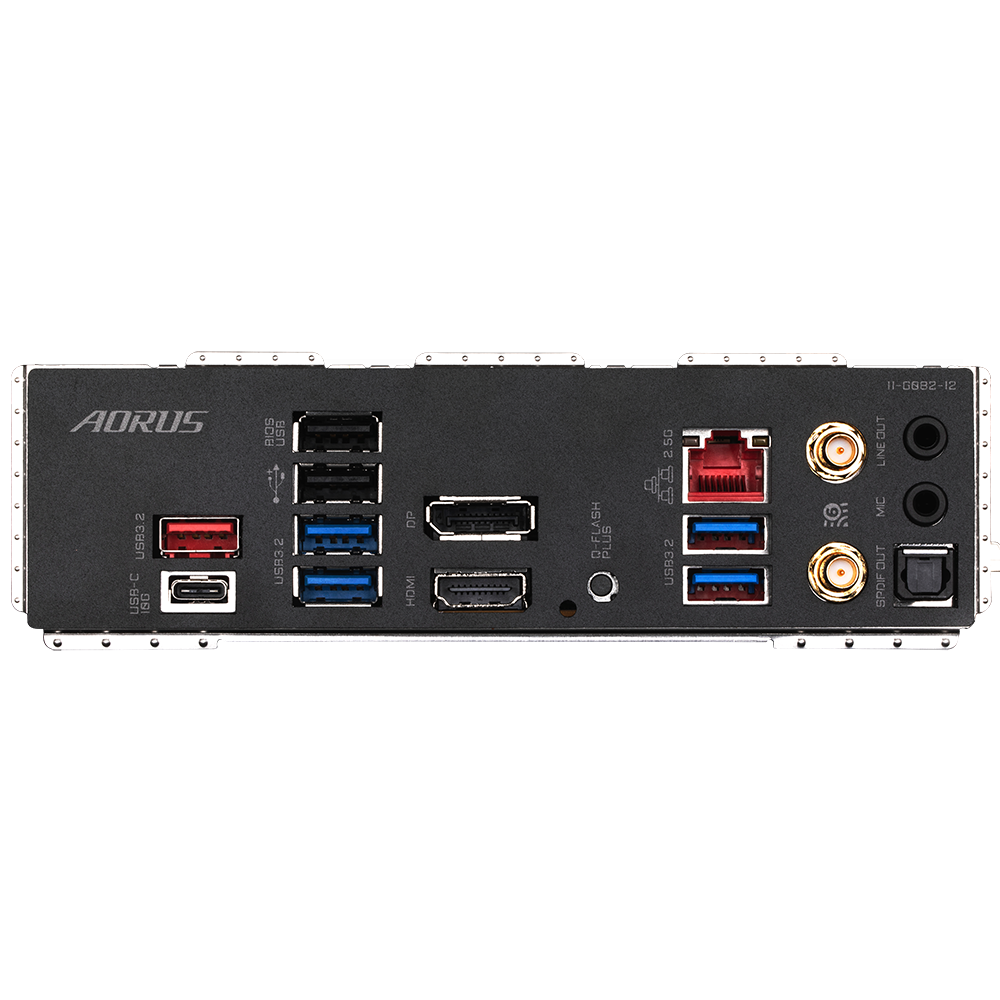

Back Panel Connectors
1 x USB Type-C® port, with USB 3.2 Gen 2 support
Back Panel Connectors
1 x USB 3.2 Gen 2 Type-A port (red)
Back Panel Connectors
4 x USB 3.2 Gen 1 ports
Back Panel Connectors
2 x USB 2.0/1.1 ports
Back Panel Connectors
1 x DisplayPort
Back Panel Connectors
1 x HDMI port
Back Panel Connectors
1 x Q-Flash Plus button
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
2 x SMA antenna connectors (2T2R)
Back Panel Connectors
1 x optical S/PDIF Out connector
Back Panel Connectors
2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
H/W Monitoring
Temperature detection
H/W Monitoring
Fan speed detection
H/W Monitoring
Water cooling flow rate detection
H/W Monitoring
Fan fail warning
H/W Monitoring
Fan speed control
H/W Monitoring
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Unique Features
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Unique Features
Support for Q-Flash
Unique Features
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Operating System
Support for Windows 10 64-bit
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
