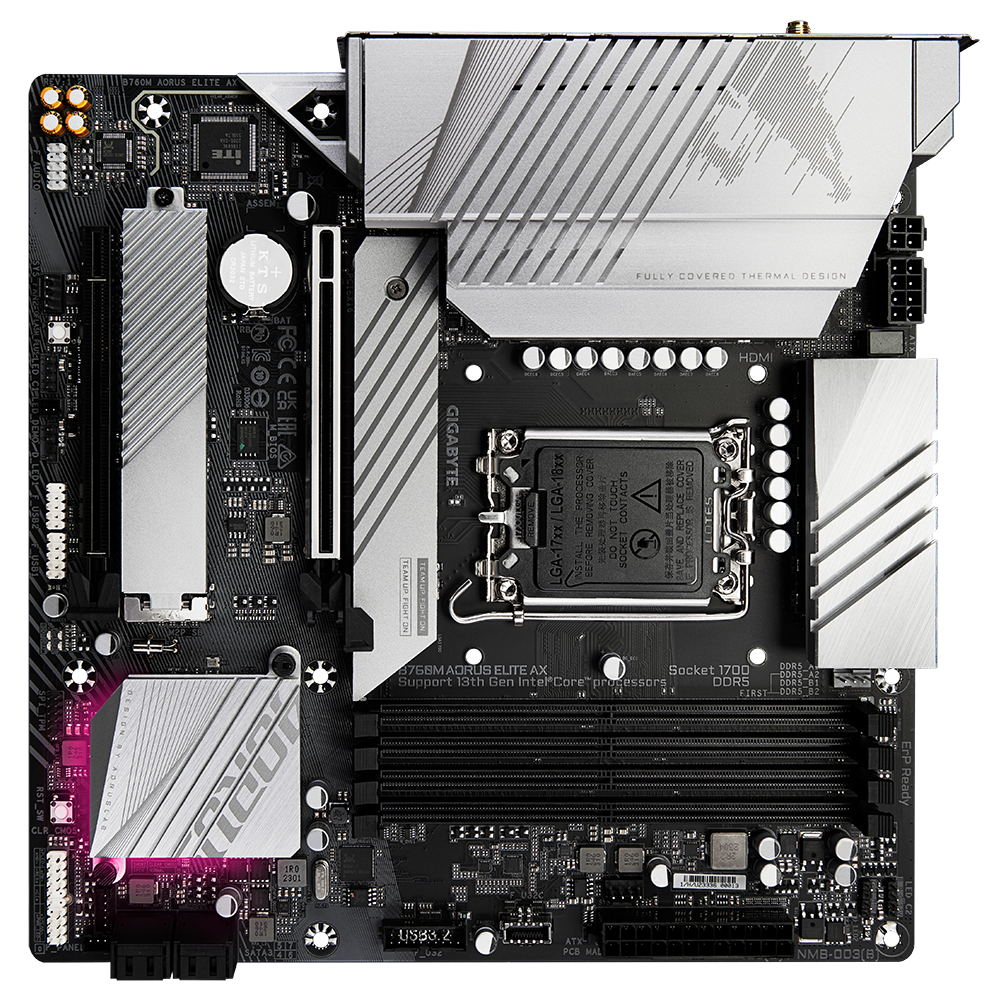

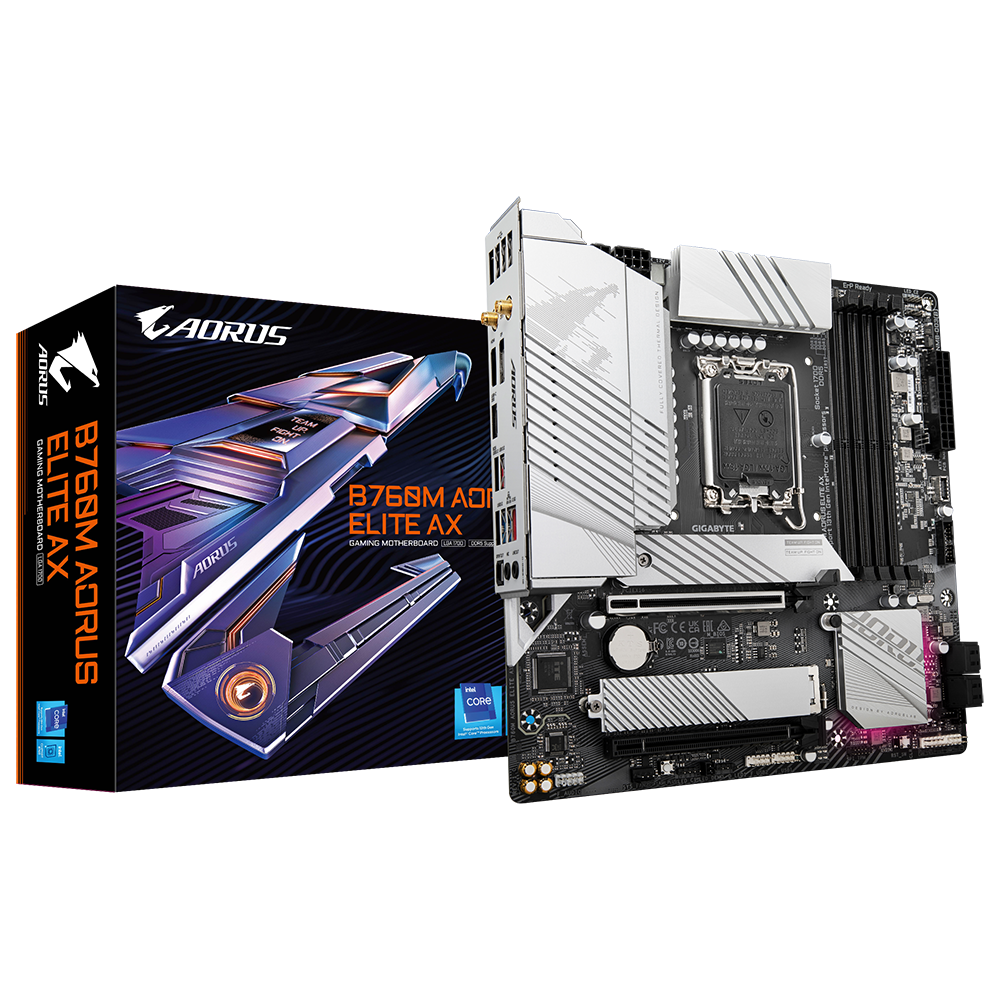

Gigabyte B760M AORUS ELITE AX Motherboard

  • Model:B760M AORUS ELITE AX
  • Supports Intel Core 12th/13th/14th Gen CPUs
  • Intel B760 chipset, LGA 1700, Micro-ATX form factor
  • Dual Channel DDR5 memory support with XMP 3.0
  • 2 PCIe 4.0 x4 M.2, Wi-Fi 6E, USB-C ports
  • 3 Years Warranty from Gigabyte
₹ 19,100
Out Of Stock
1
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
CPU
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Memory
Support for DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory
Dual channel memory architecture
Memory
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
Onboard Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Onboard Graphics
Support for HDMI 2.1 version and HDCP 2.3.
Onboard Graphics
Support native HDMI 2.1 TMDS compatible ports.
Onboard Graphics
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Onboard Graphics
Support for DisplayPort 1.2 version and HDCP 2.3
Audio
Realtek® Audio CODEC
Audio
High Definition Audio
Audio
2/4/5.1/7.1-channel
Audio
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio
Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module (PCB rev. 1.3)
Intel® Wi-Fi 6E AX211
Wireless Communication module (PCB rev. 1.3)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless Communication module (PCB rev. 1.3)
BLUETOOTH 5.3
Wireless Communication module (PCB rev. 1.3)
Support for 11ax 160MHz wireless standard
Wireless Communication module (PCB rev. 1.2)
Realtek® Wi-Fi 6E RTL8852CE
Wireless Communication module (PCB rev. 1.2)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless Communication module (PCB rev. 1.2)
BLUETOOTH 5.3
Wireless Communication module (PCB rev. 1.2)
Support for 11ax 160MHz wireless standard
Expansion Slots (CPU)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
Expansion Slots (CPU)
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion Slots (Chipset)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Expansion Slots
Support for AMD CrossFireX™ technology
Storage Interface (CPU)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Storage Interface (Chipset)
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Storage Interface (Chipset)
4 x SATA 6Gb/s connectors
Storage Interface
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB (Chipset)
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
USB (Chipset)
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
USB (Chipset)
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
USB (Chipset)
1 x USB 3.2 Gen 1 port on the back panel
USB (Chipset)
4 x USB 2.0/1.1 ports available through the internal USB headers
USB (Chipset+USB 3.2 Gen 1 Hub)
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
USB (Chipset+USB 2.0 Hub)
4 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 8-pin ATX 12V power connector
Internal I/O Connectors
1 x 4-pin ATX 12V power connector
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
3 x system fan headers
Internal I/O Connectors
2 x addressable LED strip headers
Internal I/O Connectors
2 x RGB LED strip headers
Internal I/O Connectors
2 x M.2 Socket 3 connectors
Internal I/O Connectors
4 x SATA 6Gb/s connectors
Internal I/O Connectors
1 x front panel header
Internal I/O Connectors
1 x front panel audio header
Internal I/O Connectors
1 x USB Type-C® header, with USB 3.2 Gen 2 support
Internal I/O Connectors
1 x USB 3.2 Gen 1 header
Internal I/O Connectors
2 x USB 2.0/1.1 headers
Internal I/O Connectors
2 x Thunderbolt™ add-in card connectors
Internal I/O Connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Internal I/O Connectors
1 x Q-Flash Plus button
Internal I/O Connectors
1 x reset button
Internal I/O Connectors
1 x reset jumper
Internal I/O Connectors
1 x Clear CMOS jumper

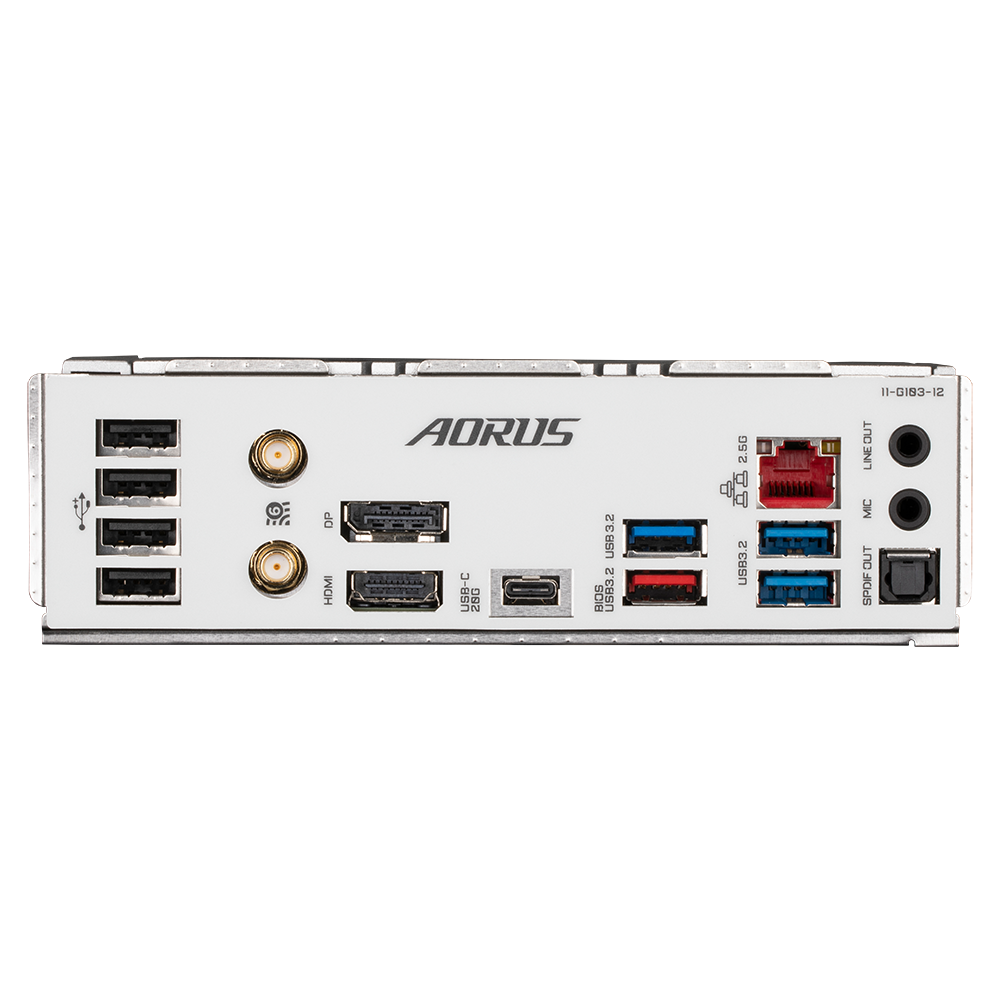

Back Panel Connectors
2 x SMA antenna connectors (2T2R)
Back Panel Connectors
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
Back Panel Connectors
1 x USB 3.2 Gen 2 Type-A port (red)
Back Panel Connectors
3 x USB 3.2 Gen 1 ports
Back Panel Connectors
4 x USB 2.0/1.1 ports
Back Panel Connectors
1 x HDMI port
Back Panel Connectors
1 x DisplayPort
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
1 x optical S/PDIF Out connector
Back Panel Connectors
2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
H/W Monitoring
Temperature detection
H/W Monitoring
Fan speed detection
H/W Monitoring
Water cooling flow rate detection
H/W Monitoring
Fan fail warning
H/W Monitoring
Fan speed control
H/W Monitoring
Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 256 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Unique Features
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Unique Features
Support for Q-Flash
Unique Features
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
