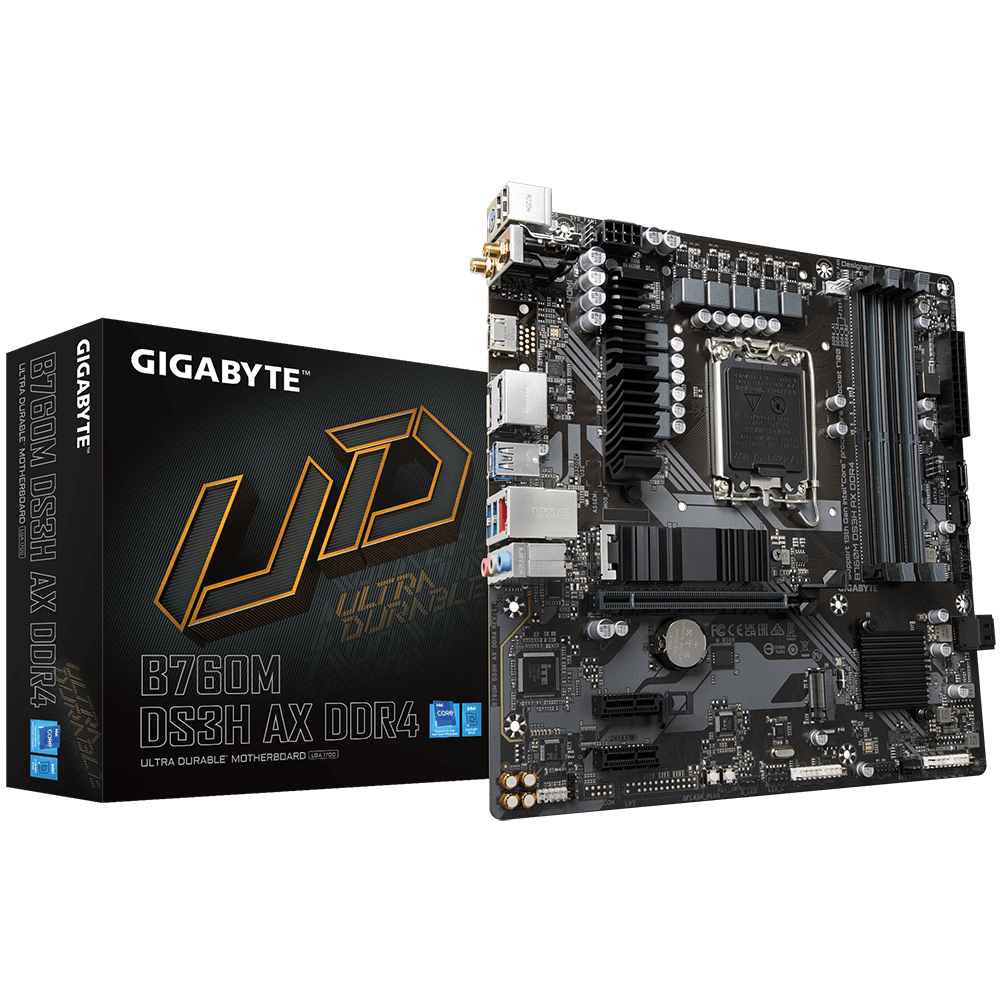

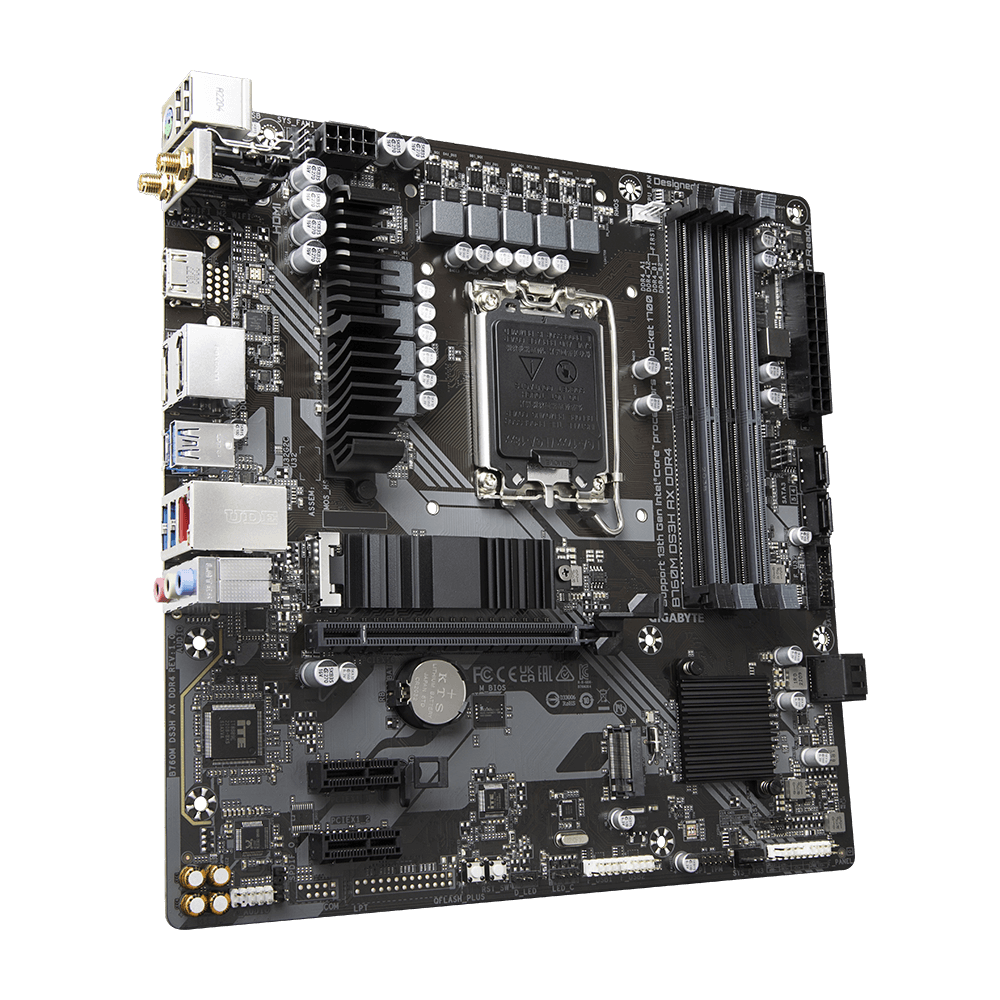

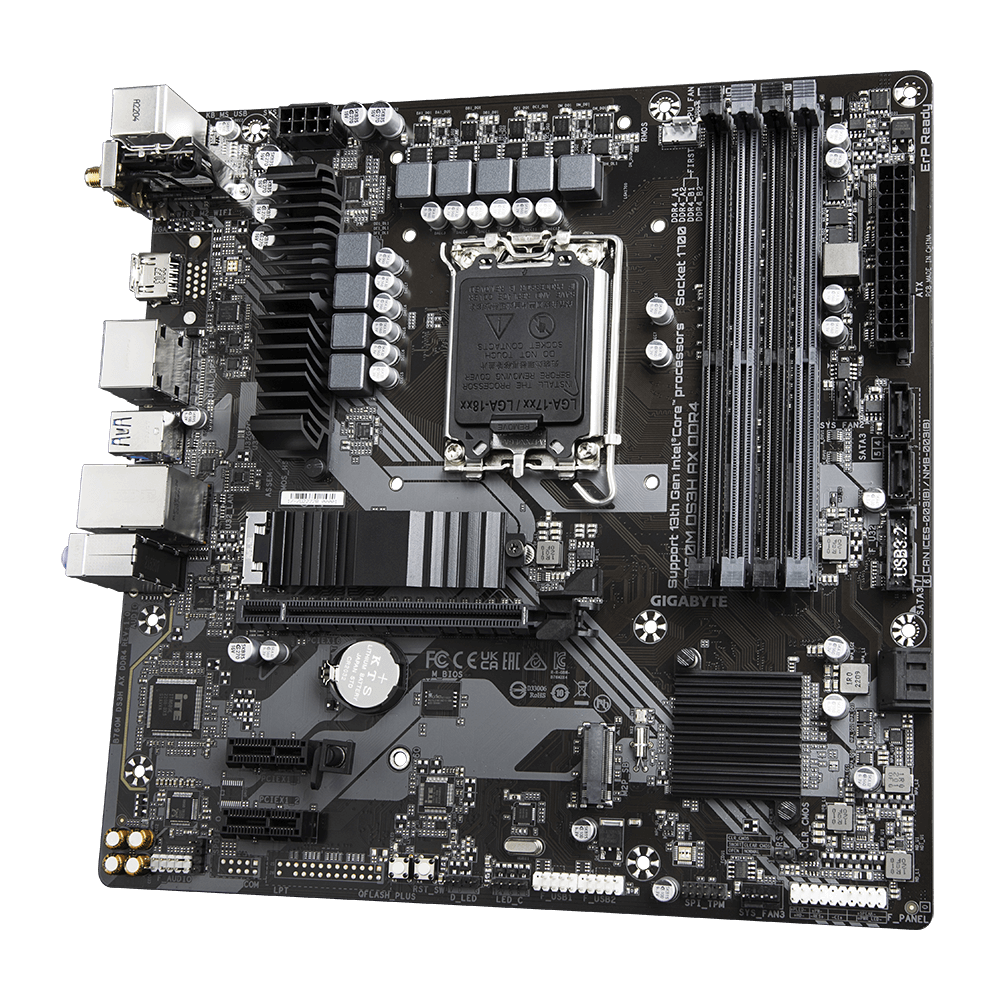

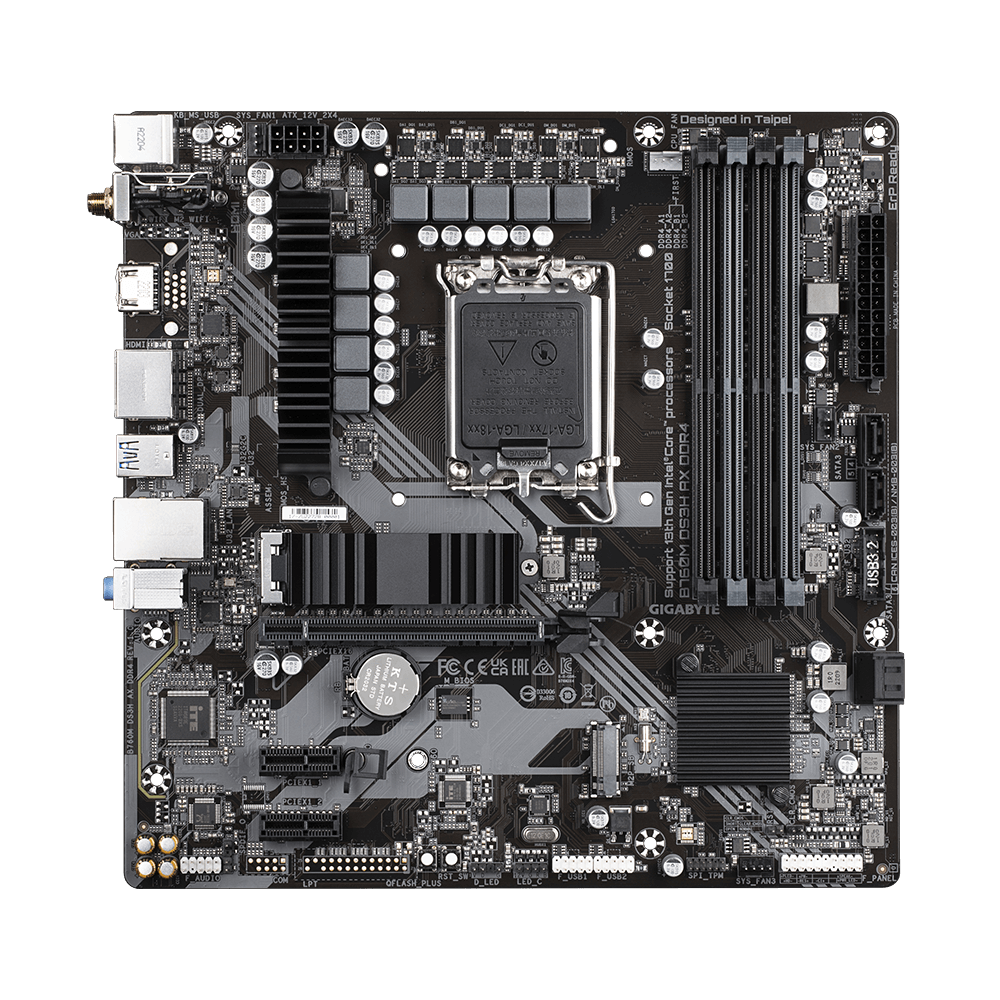

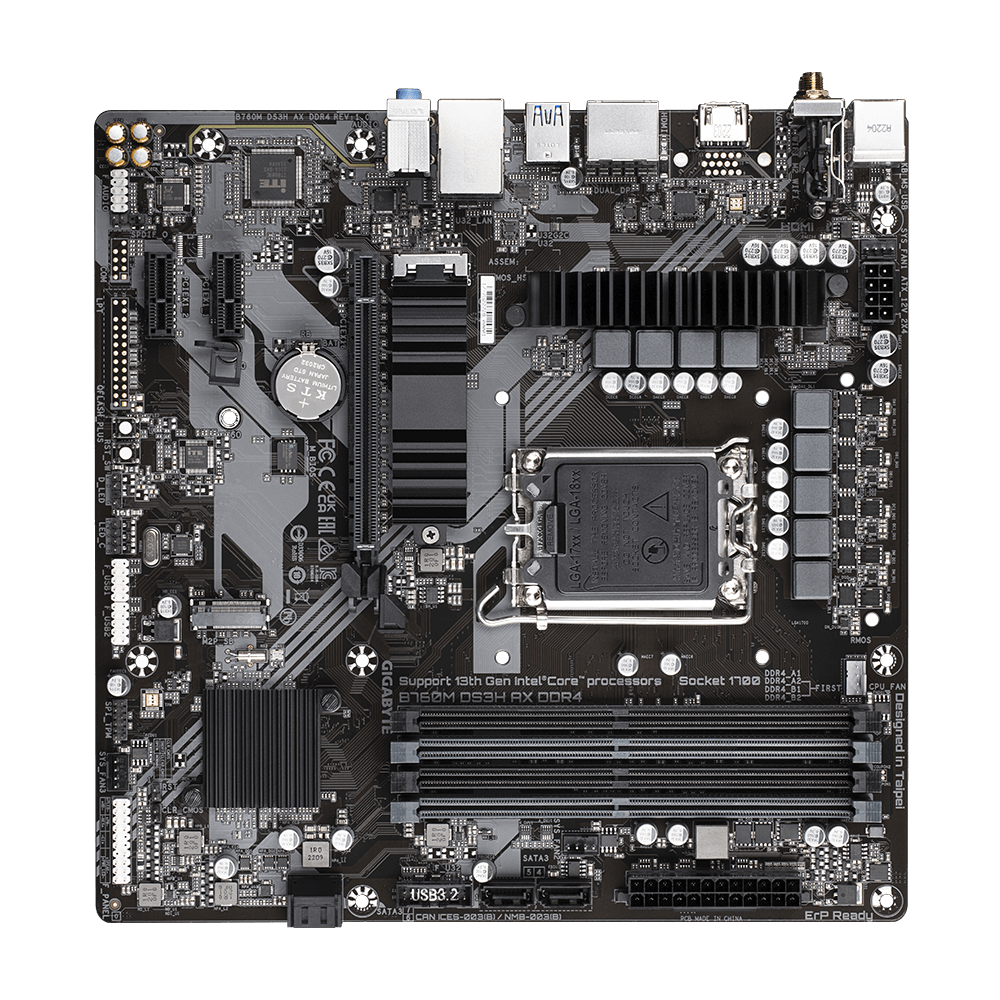

Gigabyte B760M DS3H AX DDR4 Motherboard
  • Model:B760M DS3H AX DDR4
  • Supports Intel 14th/13th/12th Gen CPUs
  • Intel B760 chipset, LGA 1700, Micro-ATX Form Factor
  • Dual Channel DDR4 memory support
  • PCIe 4.0, WiFi 6E, USB-C 10Gb/s connectivity
  • 3 Years Warranty from Gigabyte
₹ 14,550
Out Of Stock
1
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
CPU
L3 cache varies with CPU
Chipset
Intel® B760 Express Chipset
Memory
Support for DDR4 5333(O.C.)/ 5133(O.C.)/ 5000(O.C.)/ 4933(O.C.)/ 4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 3000/ 2933/ 2666/ 2400/ 2133 MT/s memory modules
Memory
4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Memory
Dual channel memory architecture
Memory
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
Onboard Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Onboard Graphics
Support for HDMI 2.1 version and HDCP 2.3.
Onboard Graphics
Support native HDMI 2.1 TMDS compatible ports.
Onboard Graphics
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Onboard Graphics
Support for DisplayPort 1.2 version and HDCP 2.3
Onboard Graphics
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Onboard Graphics
Support for DisplayPort 1.2 version.
Onboard Graphics
Support for up to triple-display at the same time
Audio
Realtek® Audio CODEC
Audio
High Definition Audio
Audio
2/4/5.1/7.1-channel
Audio
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio
Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.0)
Wireless Communication module
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless Communication module
BLUETOOTH 5.2
Wireless Communication module
Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
Wireless Communication module
Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
Wireless Communication module
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless Communication module
BLUETOOTH 5.3
Wireless Communication module
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Wireless Communication module
Intel® Wi-Fi 6E AX211 (For PCB rev. 1.2)
Wireless Communication module
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless Communication module
BLUETOOTH 5.3
Wireless Communication module
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Wireless Communication module
Realtek® Wi-Fi 6E RTL8852CE (For PCB rev. 1.3)
Wireless Communication module
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless Communication module
BLUETOOTH 5.3
Wireless Communication module
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Wireless Communication module
Actual data rate may vary depending on environment and equipment.
Expansion Slots (CPU)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Expansion Slots (CPU)
The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Expansion Slots (Chipset)
2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
Storage Interface (CPU)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Storage Interface (Chipset)
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
Storage Interface (Chipset)
4 x SATA 6Gb/s connectors
Storage Interface
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB (Chipset)
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
USB (Chipset)
5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
USB (Chipset)
2 x USB 2.0/1.1 ports on the back panel
USB (Chipset+2 USB 2.0 Hubs)
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 8-pin ATX 12V power connector
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
3 x system fan headers
Internal I/O Connectors
1 x addressable LED strip header
Internal I/O Connectors
1 x RGB LED strip header
Internal I/O Connectors
2 x M.2 Socket 3 connectors
Internal I/O Connectors
4 x SATA 6Gb/s connectors
Internal I/O Connectors
1 x front panel header
Internal I/O Connectors
1 x front panel audio header
Internal I/O Connectors
1 x USB 3.2 Gen 1 header
Internal I/O Connectors
2 x USB 2.0/1.1 headers
Internal I/O Connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Internal I/O Connectors
1 x S/PDIF Out header
Internal I/O Connectors
1 x Q-Flash Plus button
Internal I/O Connectors
1 x reset button
Internal I/O Connectors
1 x reset jumper
Internal I/O Connectors
1 x Clear CMOS jumper

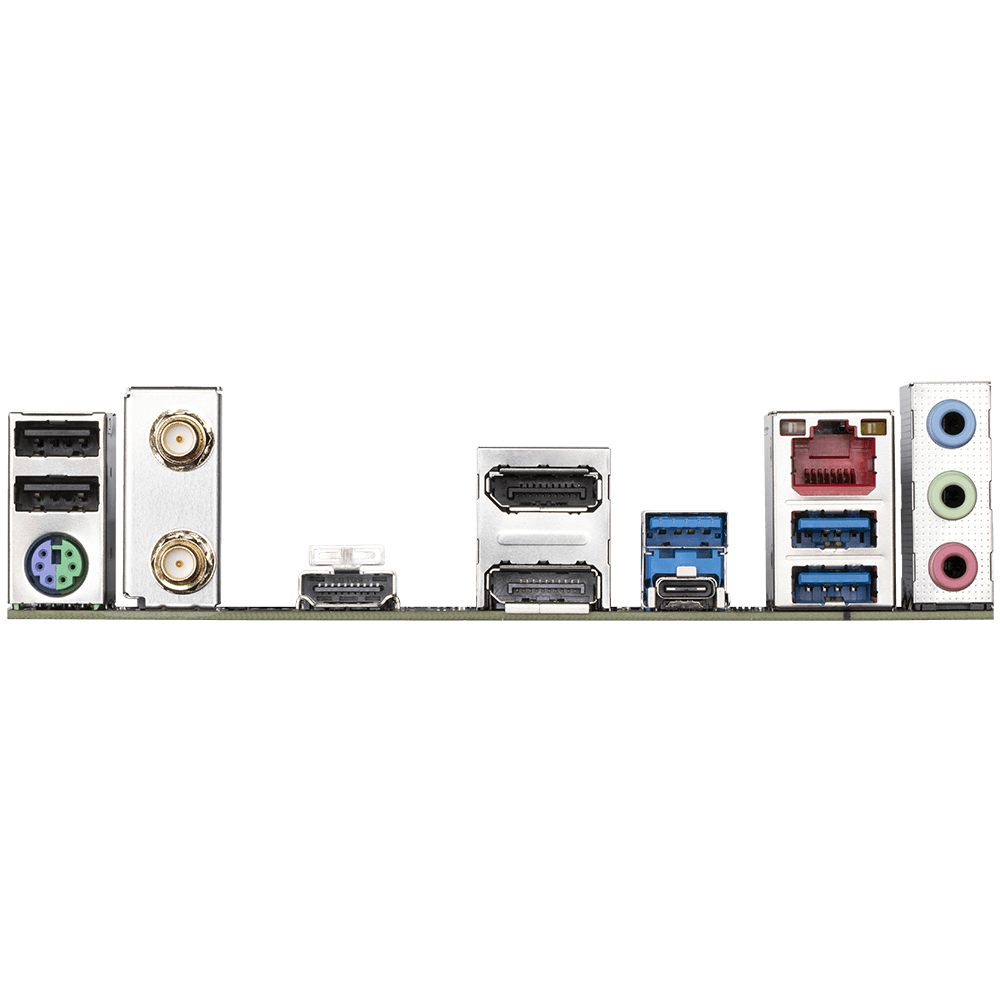

Back Panel Connectors
2 x USB 2.0/1.1 ports
Back Panel Connectors
1 x PS/2 keyboard/mouse port
Back Panel Connectors
2 x SMA antenna connectors (2T2R)
Back Panel Connectors
1 x HDMI port
Back Panel Connectors
2 x DisplayPorts
Back Panel Connectors
3 x USB 3.2 Gen 1 ports
Back Panel Connectors
1 x USB Type-C® port, with USB 3.2 Gen 2 support
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
H/W Monitoring
Temperature detection
H/W Monitoring
Fan speed detection
H/W Monitoring
Water cooling flow rate detection
H/W Monitoring
Fan fail warning
H/W Monitoring
Fan speed control
H/W Monitoring
Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 128 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Unique Features
Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Unique Features
Support for Q-Flash
Unique Features
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
