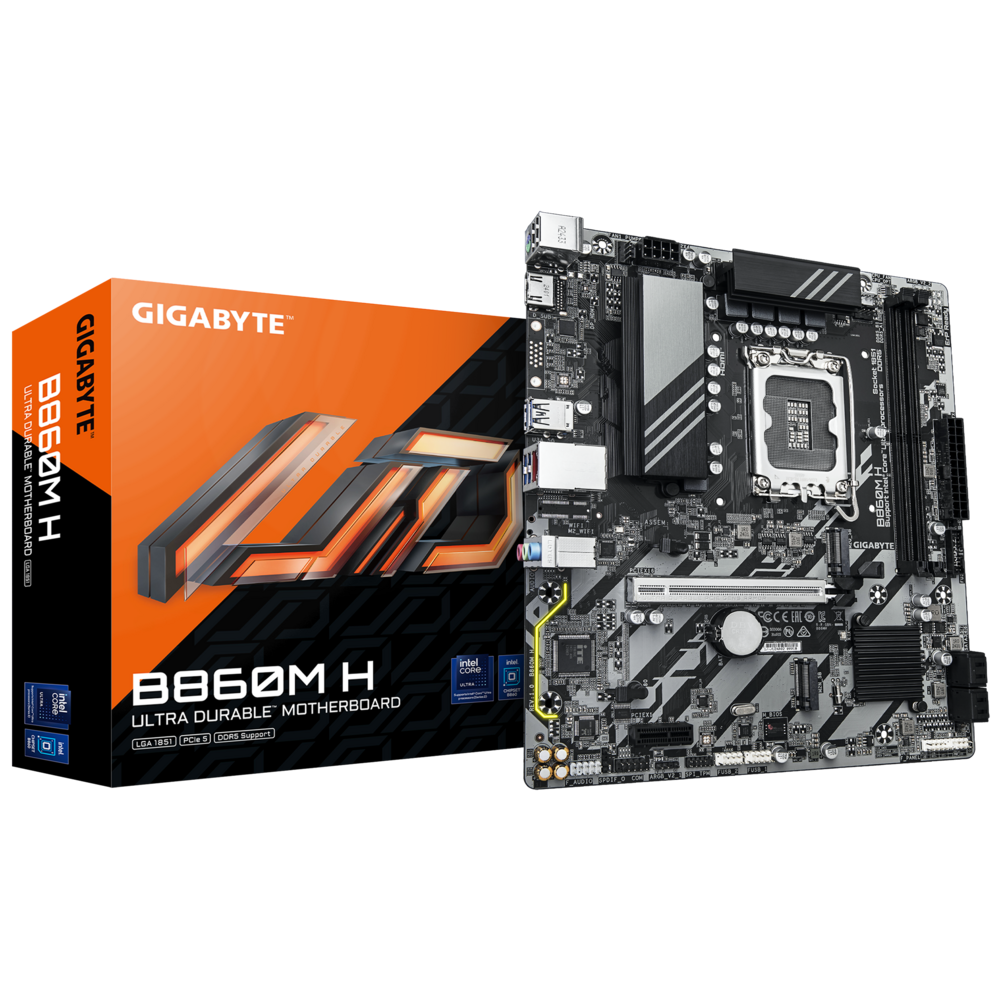

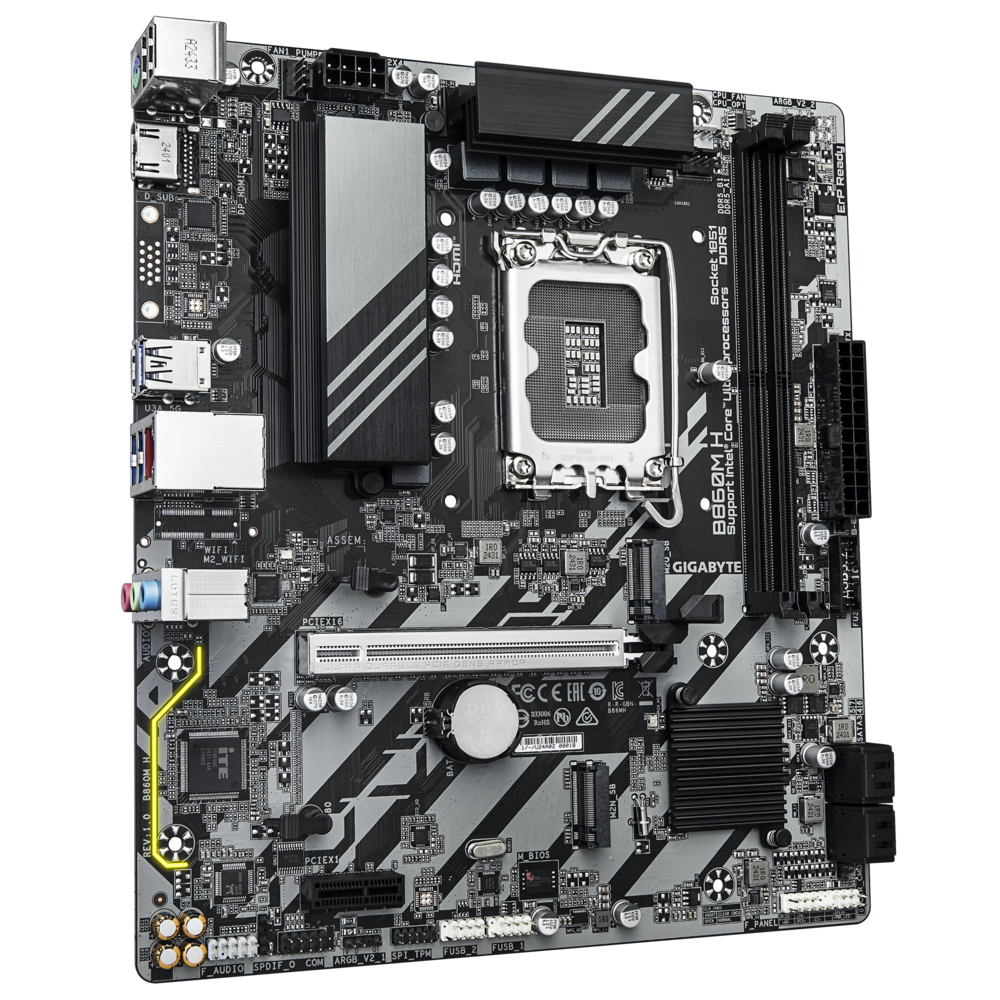

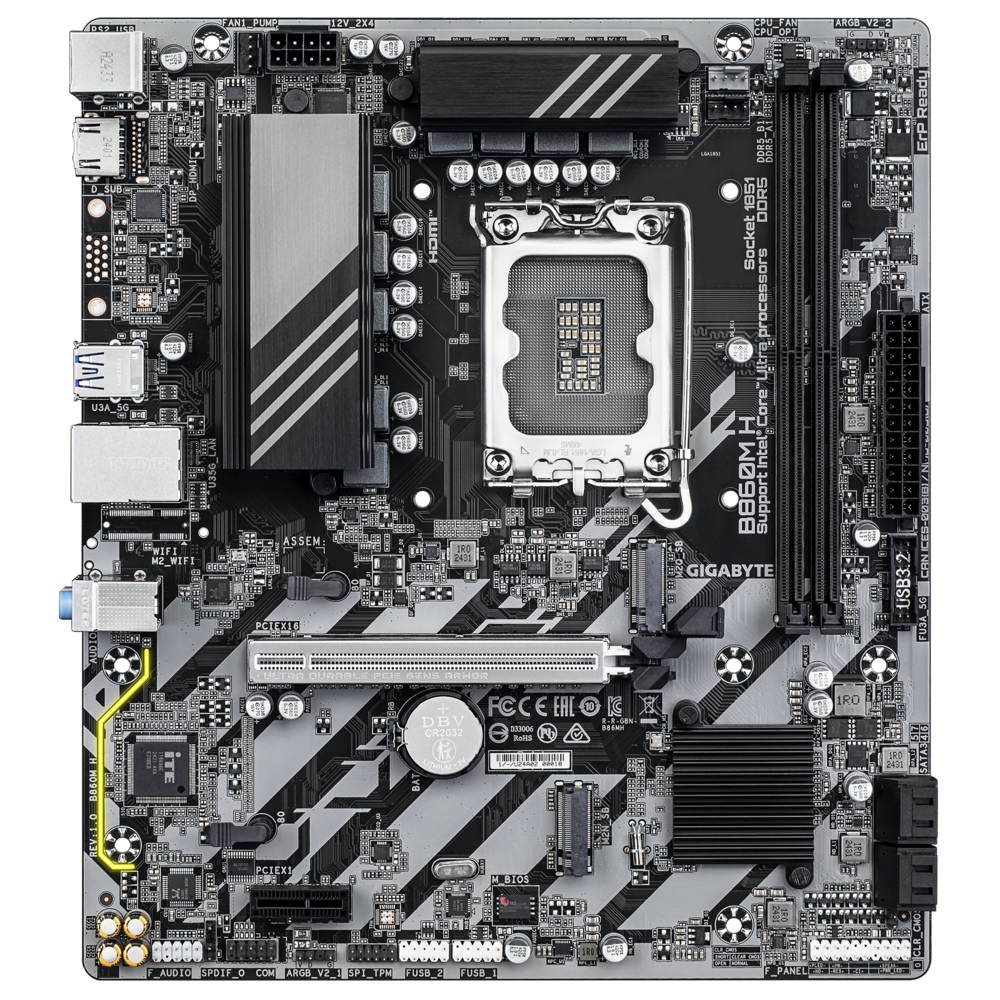

Gigabyte B860M H Motherboard
  • Model:B860M H
  • Supports Intel Core Ultra CPUs
  • Intel B860, LGA 1700, Micro-ATX Form Factor
  • DDR5 Memory with XMP 3.0 Support
  • PCIe 5.0 x16, 2.5GbE LAN, HDMI Output
  • 3 Years Warranty from Gigabyte
₹ 9,450
Next Day Dispatch
1
CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors(Go to GIGABYTE's website for the latest CPU support list.)L3 cache varies with CPU
Chipset
Intel® B860 Express Chipset
Memory
Support for DDR5 8800(O.C) / 8600(O.C) / 8400(O.C) / 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot can only support a graphics card or an NVMe SSD.Chipset:- 1 x PCI Express x1 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
Storage Interface
Chipset:- 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2N_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)- 2 x USB 2.0/1.1 ports on the back panelChipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header1 x CPU fan/water cooling pump header1 x system fan/water cooling pump header2 x addressable RGB Gen2 LED strip headers2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)1 x serial port header1 x Clear CMOS jumper

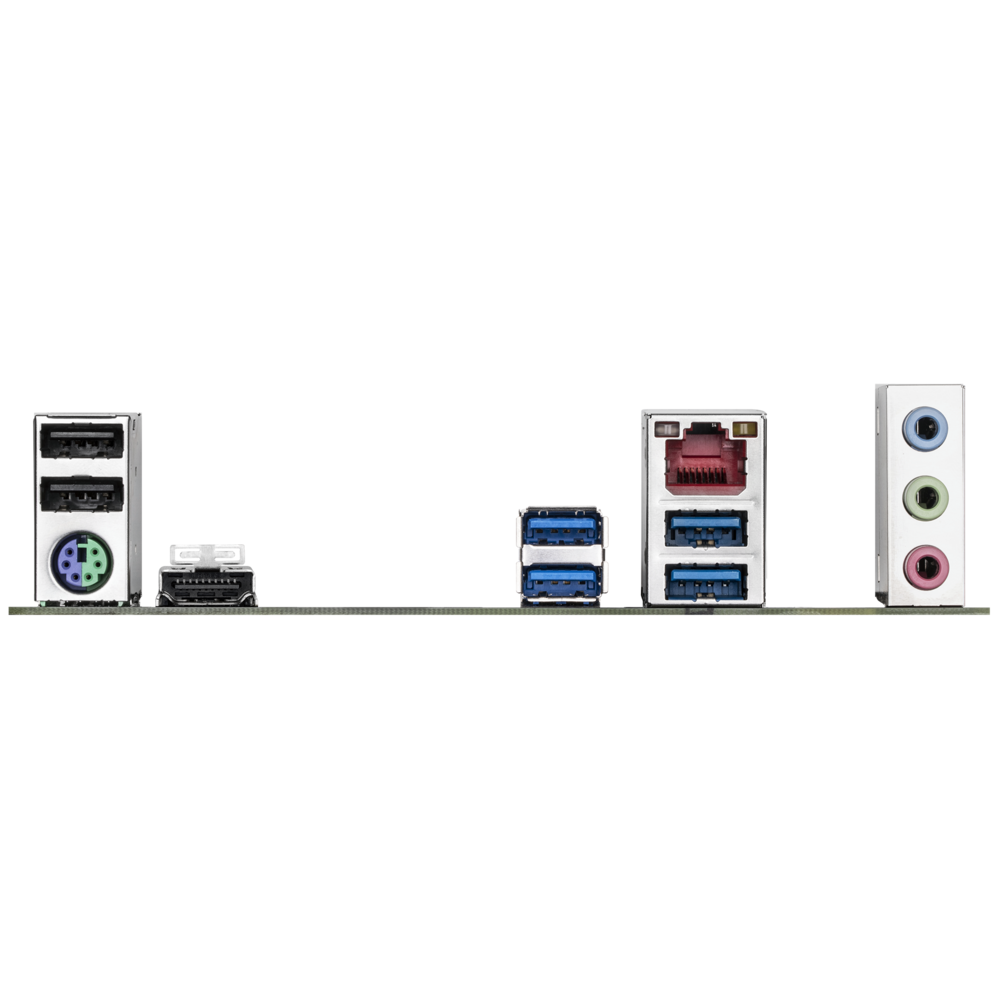

Back Panel Connectors
2 x USB 2.0/1.1 ports1 x PS/2 keyboard/mouse port1 x HDMI port*4 x USB 3.2 Gen 1 ports1 x RJ-45 port3 x audio jacks* Actual support may vary by CPU.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit* The Intel® NPU driver is only supported on Windows 11.
Form Factor
Micro ATX Form Factor; 24.4cm x 21.5cm* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.* All trademarks and logos are the properties of their respective holders.* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
