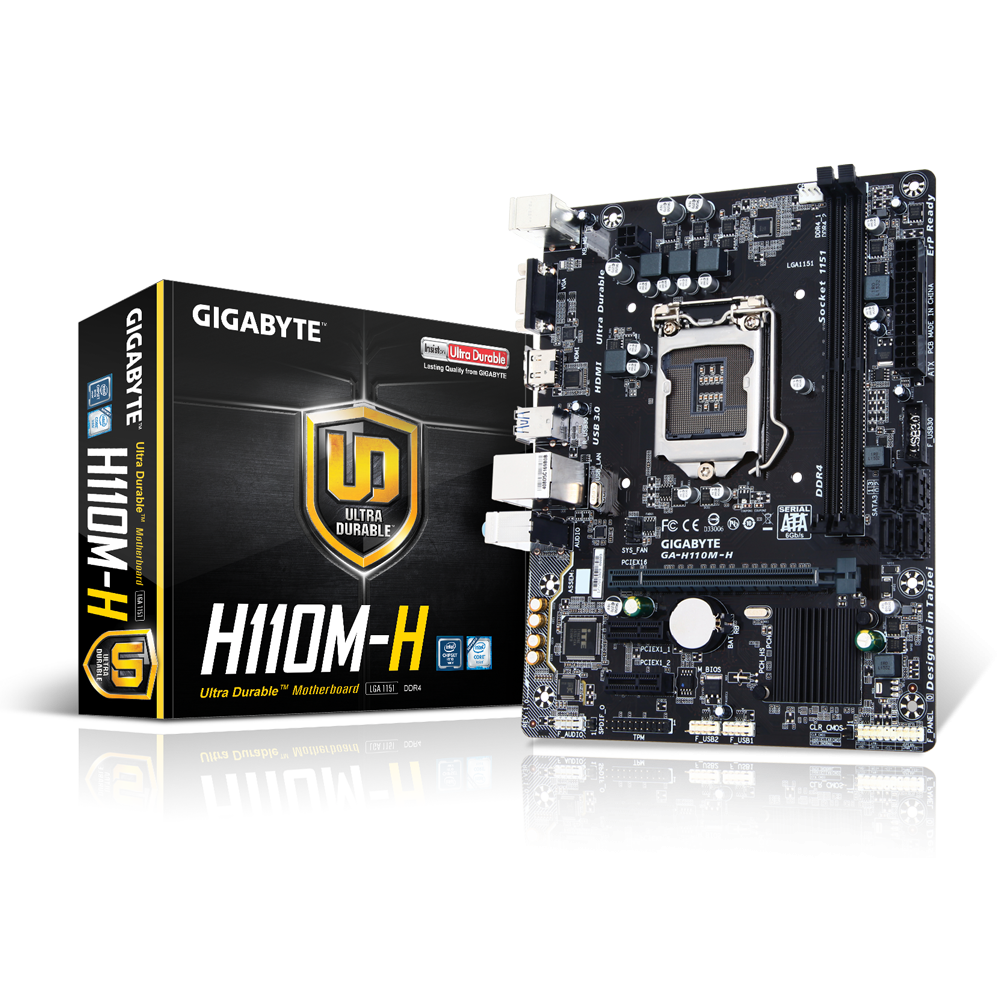

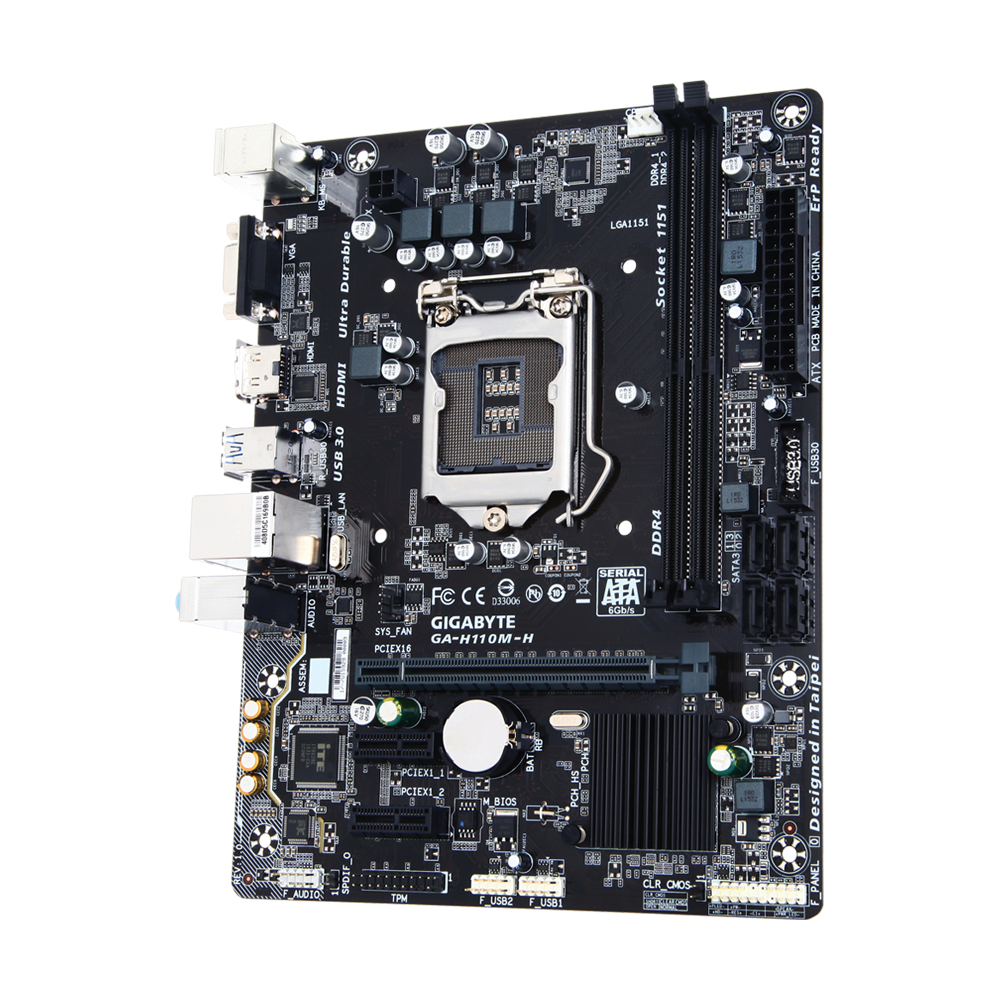

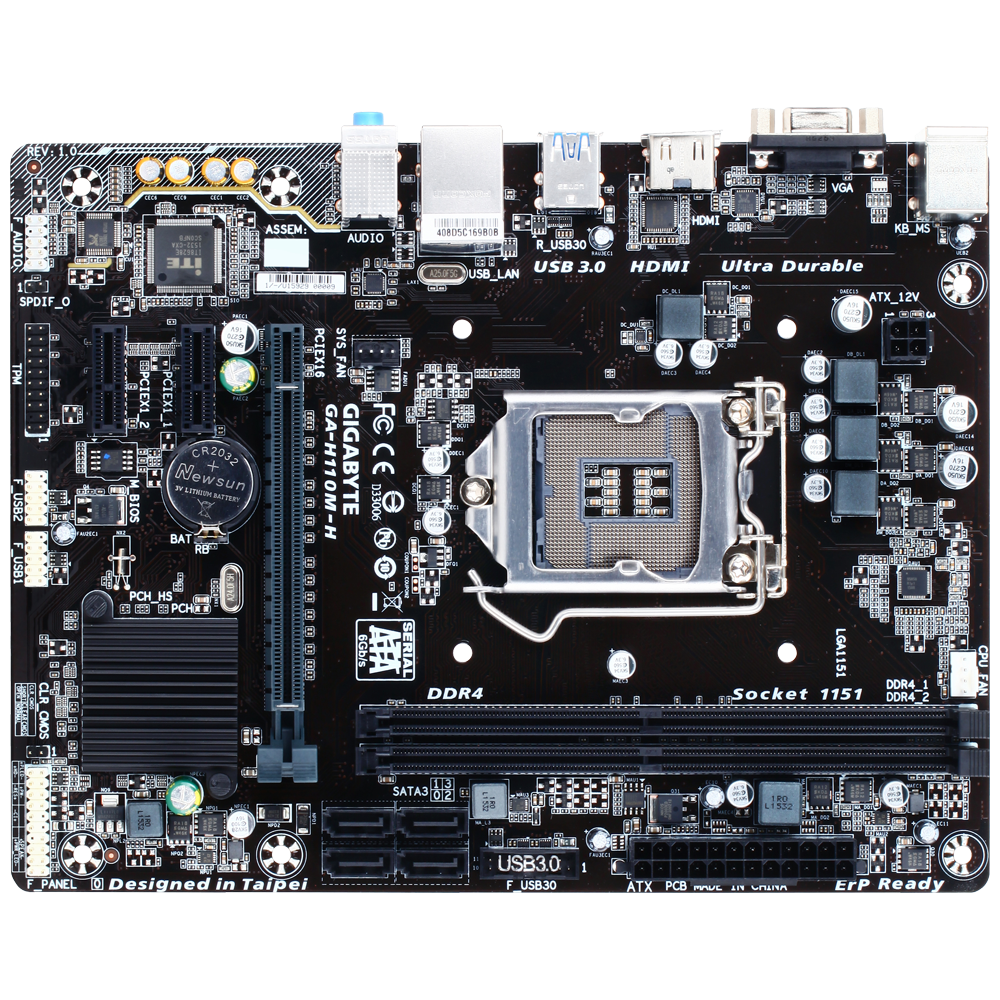

Gigabyte GA-H110M-H Motherboard
  • Model:GA-H110M-H
  • Supports 6th and 7th Gen Intel Core CPUs
  • Intel H110 chipset, LGA 1151, Micro-ATX Form Factor
  • Dual Channel DDR4 Memory Support
  • HDMI and D-sub ports for multiple display
  • 3 Years Warranty from Gigabyte
₹ 7,300
Next Day Dispatch
1
CPU
Support for 7th/6th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package* For 7th Generation Intel® Core™ processors support need to update the latest BIOS.
CPU
L3 cache varies with CPU
Chipset
Intel® H110 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 32 GB of system memory* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.
Memory
Dual channel memory architecture
Memory
Support for DDR4 2400/2133 MHz memory modules
Memory
Support for ECC UDIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory
Support for non-ECC UDIMM 1Rx8/2Rx8/1Rx16 memory modules
Onboard Graphics
Integrated Graphics Processor - Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Onboard Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@24 Hz* Support for HDMI 1.4 version.
Onboard Graphics
Maximum shared memory of 1024 MB
Audio
Realtek® Audio CODEC
Audio
High Definition Audio
Audio
2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Audio
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (1 Gbit/100 Mbit)
Expansion Slots
1 x PCI Express x16 slot, running at x16(The PCI Express x16 slot conform to PCI Express 3.0 standard.)
Expansion Slots
2 x PCI Express x1 slots(All of the PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage Interface
4 x SATA 6Gb/s connectors
USB
4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)
USB
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 4-pin ATX 12V power connector
Internal I/O Connectors
4 x SATA 6Gb/s connectors
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
1 x system fan header
Internal I/O Connectors
1 x front panel header
Internal I/O Connectors
1 x front panel audio header
Internal I/O Connectors
1 x S/PDIF Out header
Internal I/O Connectors
1 x USB 3.0/2.0 header
Internal I/O Connectors
2 x USB 2.0/1.1 headers
Internal I/O Connectors
1 x Trusted Platform Module (TPM) header
Internal I/O Connectors
1 x Clear CMOS jumper

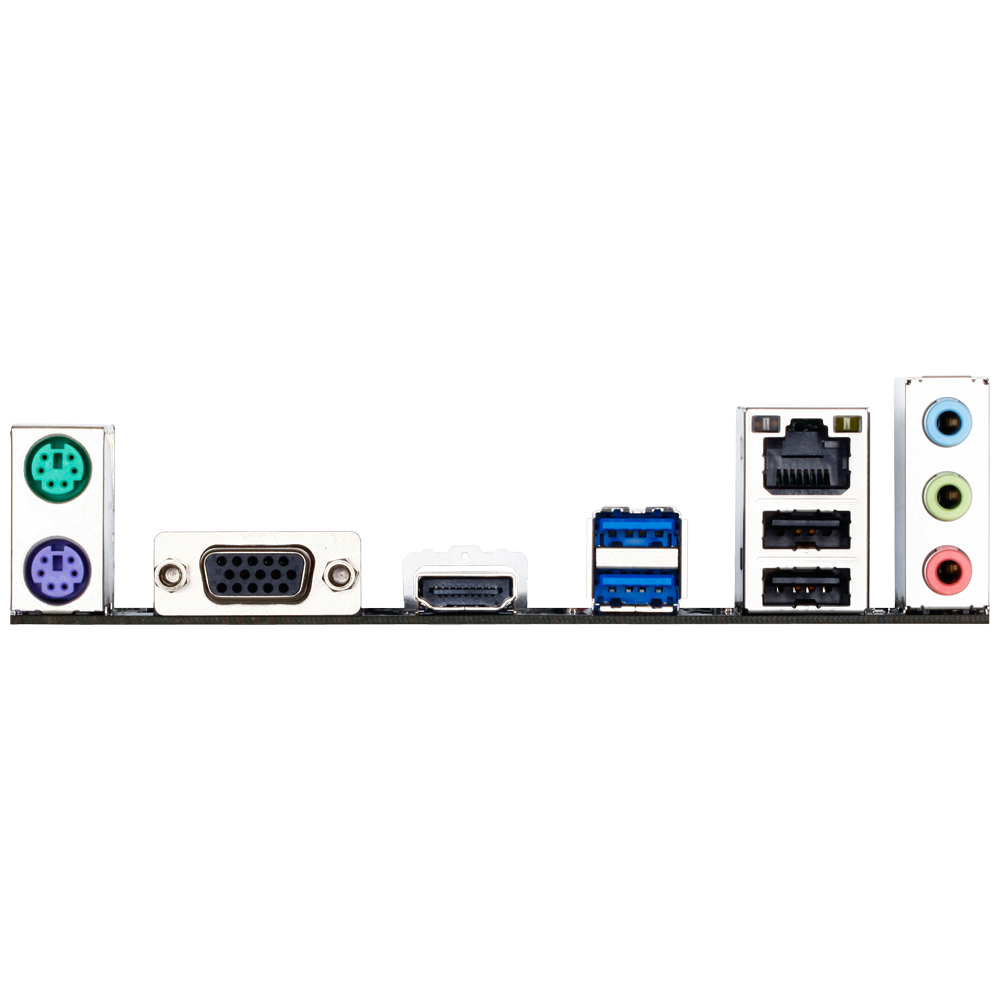

Back Panel Connectors
1 x PS/2 mouse port
Back Panel Connectors
1 x PS/2 Keyboard port
Back Panel Connectors
1 x D-Sub port
Back Panel Connectors
1 x HDMI port
Back Panel Connectors
2 x USB 3.0/2.0 ports
Back Panel Connectors
2 x USB 2.0/1.1 ports
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
System voltage detection
H/W Monitoring
CPU/System temperature detection
H/W Monitoring
CPU/System fan speed detection
H/W Monitoring
CPU/System overheating warning
H/W Monitoring
CPU/System fan fail warning
H/W Monitoring
CPU/System fan speed control* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1 x 64 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.3D OSD@BIOSAutoGreenCloud StationEasyTuneFast BootSmart TimeLockSmart KeyboardSmart BackupSystem Information ViewerUSB Blocker
Unique Features
Support for Q-Flash
Unique Features
Support for Smart Switch
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
LAN bandwidth management software
Operating System
Windows® 10 64-bit (for 7th Generation Intel® Processors)
Operating System
Windows® 10 64-bit / Windows® 8.1 64-bit / Windows® 7 32-bit / 64-bits (for 6th Generation Intel® Processors)* Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm
Remark
Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
Remark
Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
