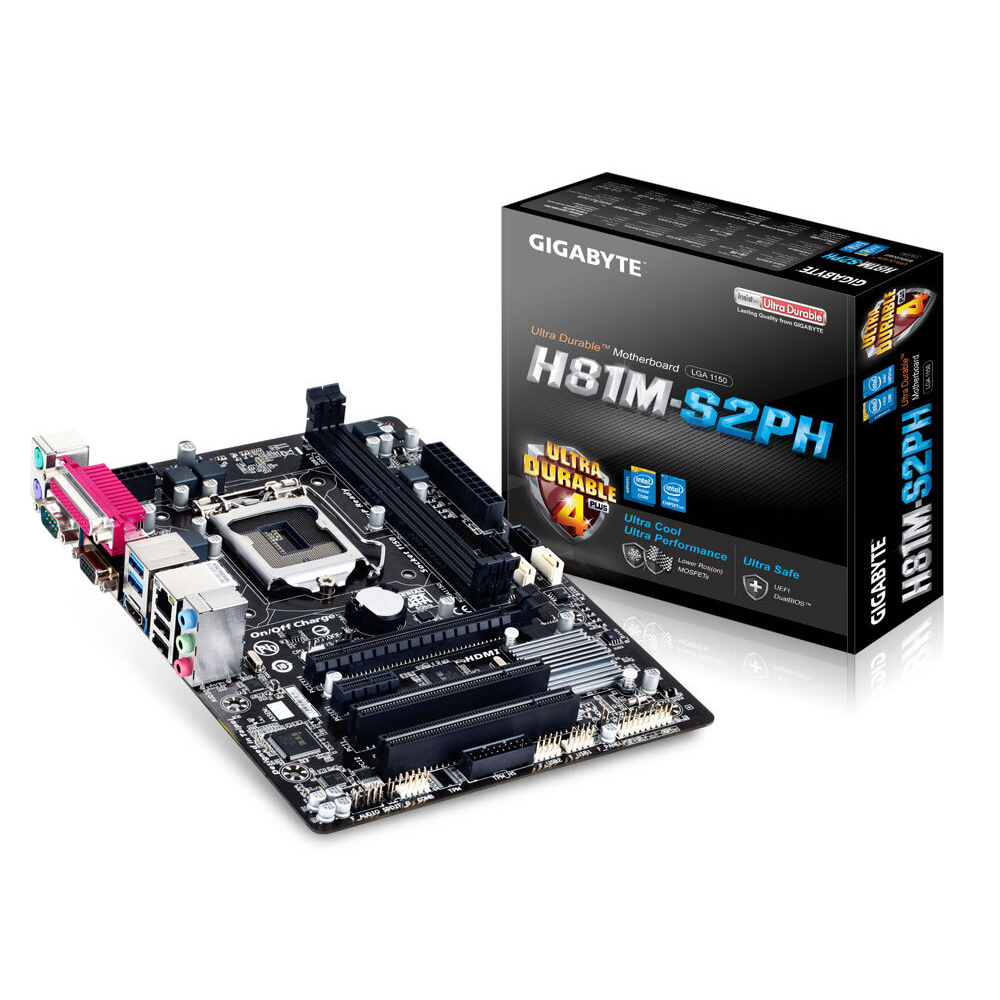

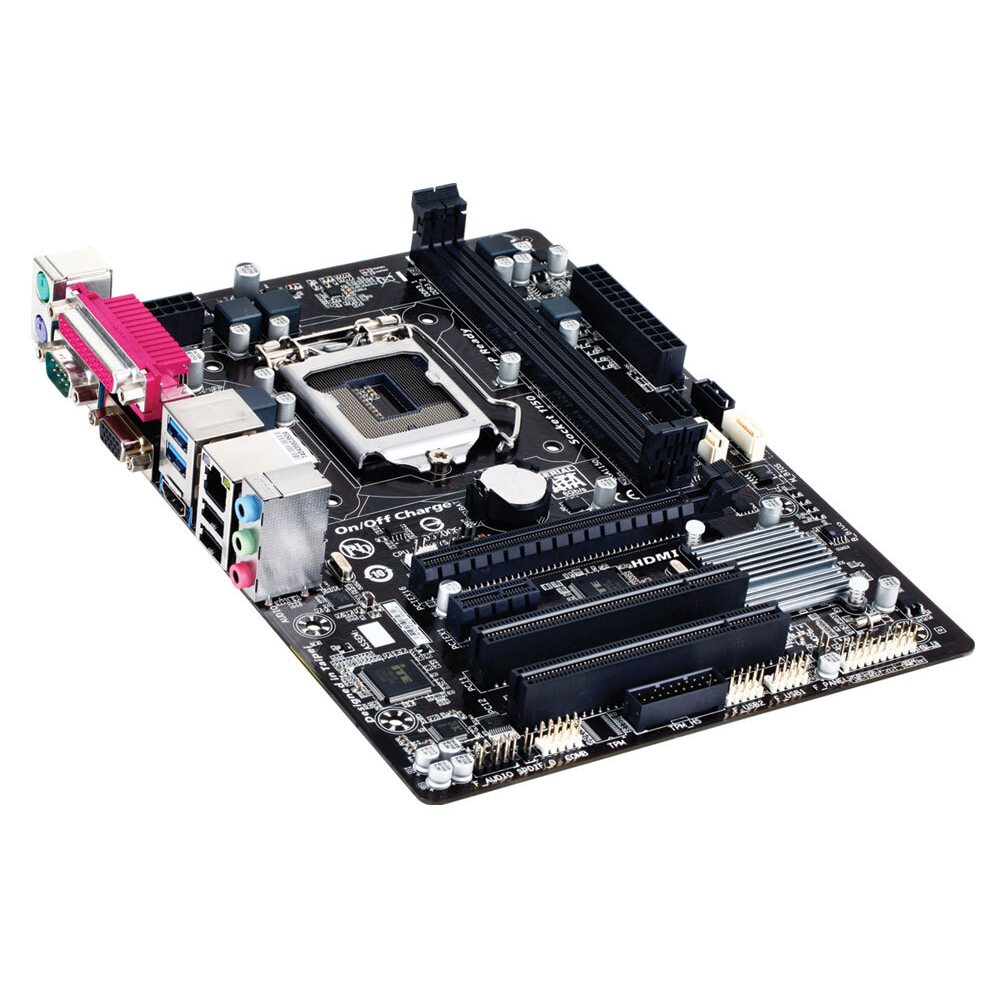

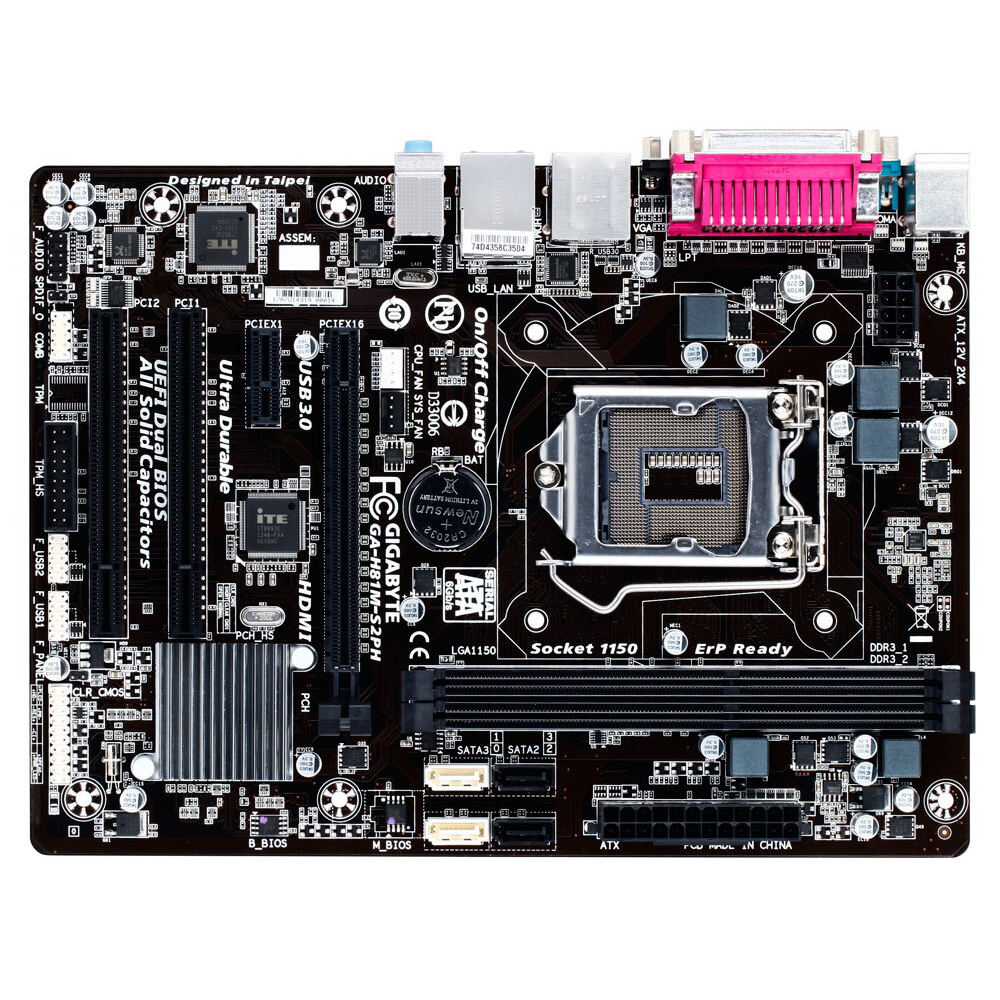

Gigabyte GA-H81M-S2PH Motherboard

  • Model:GA-H81M-S2PH
  • Supports 4th Generation Intel Core CPUs
  • Intel H81 Chipset, LGA 1150, Micro-ATX Form Factor
  • DDR3 Memory Support up to 1600 MHz
  • HDMI, USB 3.0, PCIe Expansion Slots
  • 3 Years Warranty from Gigabyte
₹ 7,550
Out Of Stock
1
CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package
CPU (L3 Cache)
L3 cache varies with CPU
Chipset
Intel® H81 Express Chipset
Memory
2 x DDR3 DIMM sockets supporting up to 16 GB of system memory
Memory
Dual channel memory architecture
Memory
Support for DDR3 1600/1333 MHz memory modules
Memory
Support for non-ECC memory modules
Memory
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics (Integrated GPU)
Intel® HD Graphics support
Onboard Graphics (D-Sub port)
1 x D-Sub port, supporting a maximum resolution of 1920x1200
Onboard Graphics (HDMI port)
1 x HDMI port, supporting a maximum resolution of 4096x2160
Onboard Graphics (HDMI Version)
Support for HDMI 1.4a version.
Onboard Graphics (Max Shared Memory)
Maximum shared memory of 1 GB
Audio
Realtek® Audio CODEC
Audio
High Definition Audio
Audio
2/4/5.1/7.1-channel
Audio (Jack Reconfiguration)
You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio
Support for S/PDIF Out
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
1 x PCI Express x16 slot, running at x16
Expansion Slots
1 x PCI Express x1 slot
Expansion Slots
The PCI Express slots conform to PCI Express 2.0 standard.
Expansion Slots
2 x PCI slots
Storage Interface
2 x SATA 6Gb/s connectors (SATA3 0/1)
Storage Interface
2 x SATA 3Gb/s connectors (SATA2 2/3)
USB
2 x USB 3.0/2.0 ports on the back panel
USB
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 8-pin ATX 12V power connector
Internal I/O Connectors
2 x SATA 6Gb/s connectors
Internal I/O Connectors
2 x SATA 3Gb/s connectors
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
1 x system fan header
Internal I/O Connectors
1 x front panel header
Internal I/O Connectors
1 x front panel audio header
Internal I/O Connectors
1 x S/PDIF Out header
Internal I/O Connectors
2 x USB 2.0/1.1 header
Internal I/O Connectors
1 x serial port header
Internal I/O Connectors
1 x Clear CMOS jumper
Internal I/O Connectors
1 x Trusted Platform Module (TPM) header

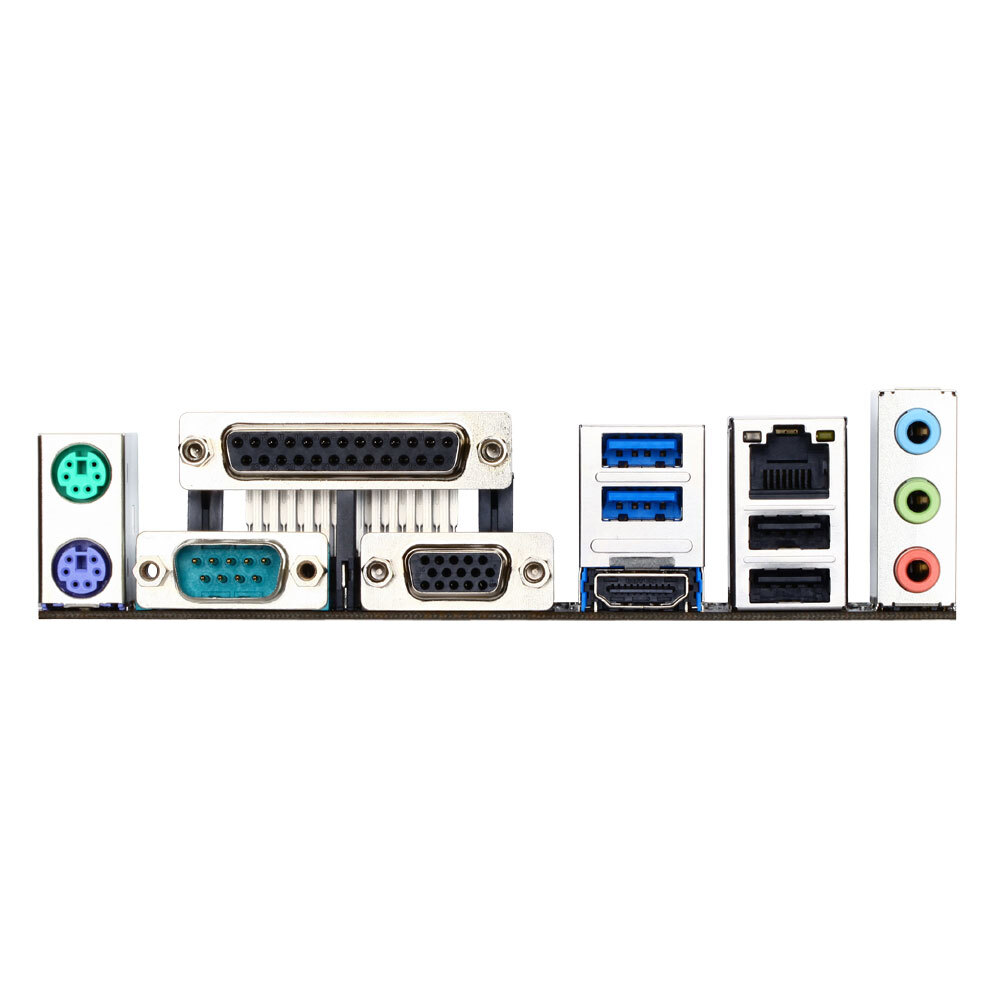

Back Panel Connectors
1 x PS/2 keyboard port
Back Panel Connectors
1 x PS/2 mouse port
Back Panel Connectors
1 x parallel port
Back Panel Connectors
1 x serial port
Back Panel Connectors
1 x D-Sub port
Back Panel Connectors
1 x HDMI port
Back Panel Connectors
2 x USB 3.0/2.0 ports
Back Panel Connectors
2 x USB 2.0/1.1 ports
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
System voltage detection
H/W Monitoring
Temperature detection
H/W Monitoring
Fan speed detection
H/W Monitoring
Overheating warning
H/W Monitoring
Fan fail warning
H/W Monitoring
Fan speed control
H/W Monitoring (Fan Support)
Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
2 x 32 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
Support for DualBIOS™
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for Q-Flash
Unique Features
Support for APP Center
Unique Features (APP Center Applications)
Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
Unique Features (Included Apps)
@BIOS
Unique Features (Included Apps)
EasyTune
Unique Features (Included Apps)
EZ Setup
Unique Features (Included Apps)
USB Blocker
Unique Features
Support for ON/OFF Charge
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
LAN bandwidth management software
Operating System
Support for Windows 10/8.1/8/7
Form Factor
Micro ATX Form Factor; 24.4cm x 18.0cm
