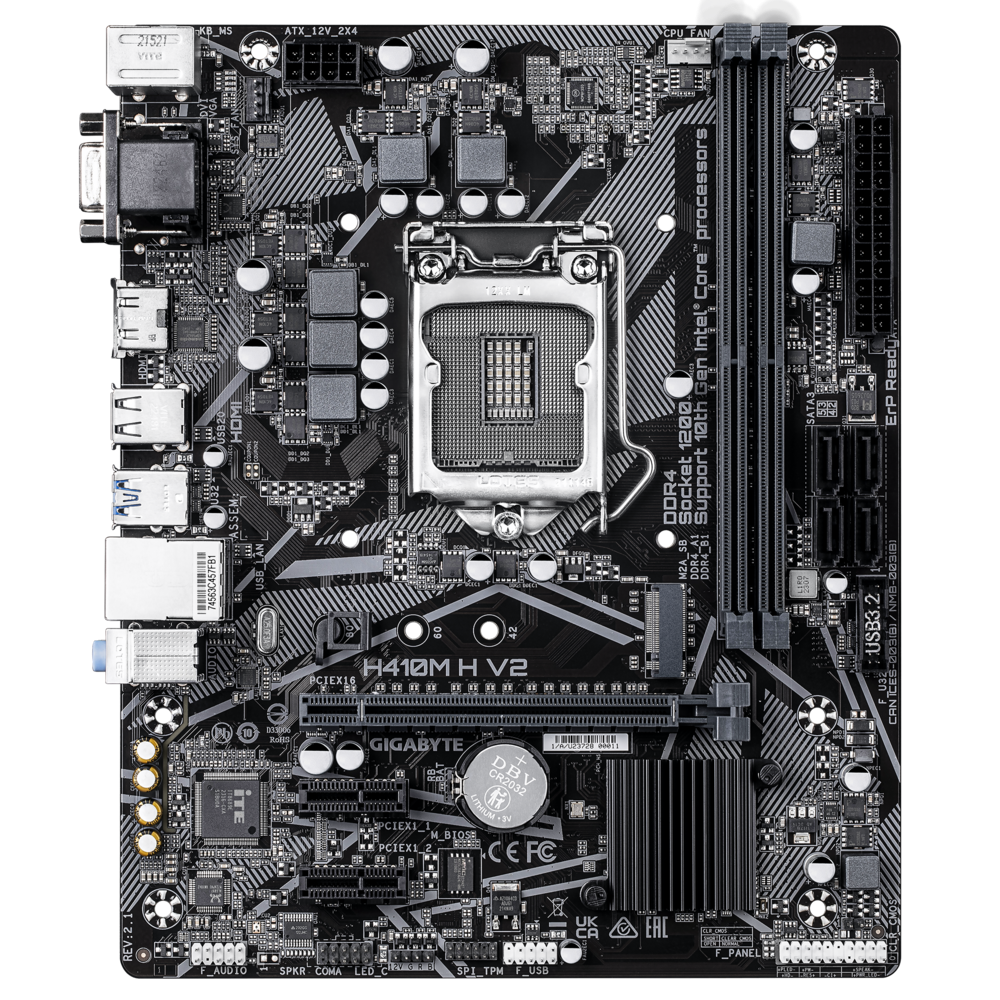

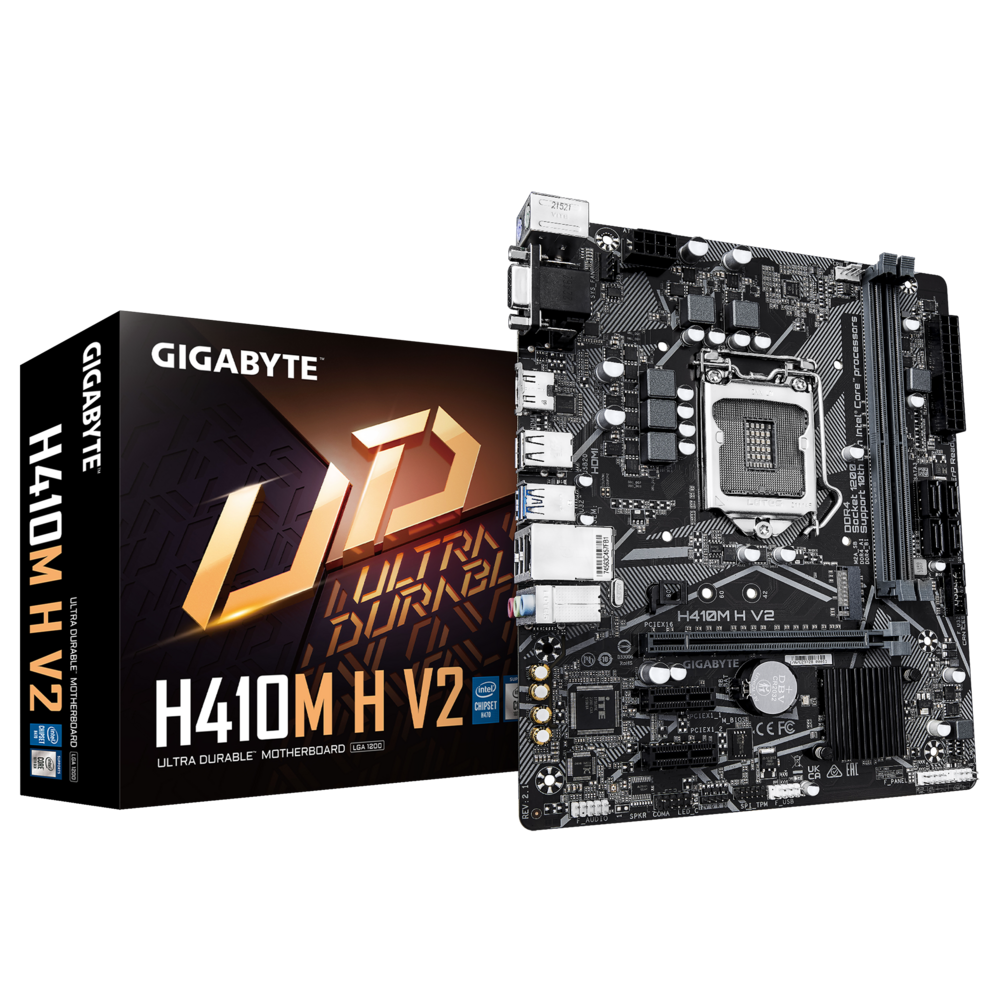

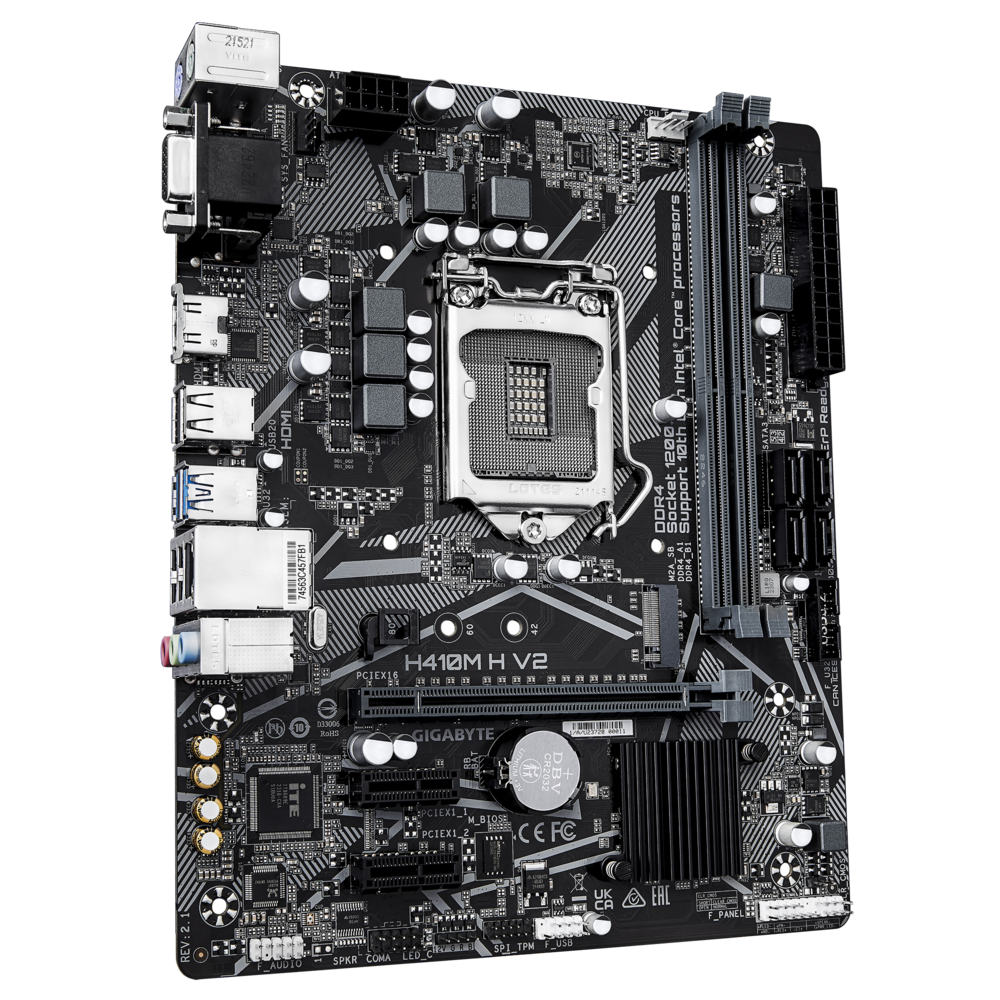

Gigabyte H410M H V2 Motherboard
  • Model:H410M H V2
  • Supports Intel 10th Gen Core CPUs
  • Intel H410, LGA 1200, Micro-ATX Form Factor
  • Dual Channel DDR4 Memory Support
  • NVMe PCIe Gen3 M.2 Connector, GbE LAN
  • 3 Years Warranty from Gigabyte
₹ 5,700
Out Of Stock
1
CPU
1. Support for 10th Generation Intel® Core™ i9/i7/i5/i3 processors/Intel® Pentium®/Celeron® processors in the LGA1200 package2. L3 cache varies with CPU
Chipset
Intel® H410 Express Chipset
Memory
1. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory2. Dual channel memory architecture3. Support for DDR4 2933/2666/2400/2133 MHz memory modules4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules* Refer to "Memory Support List" on the GIGABYTE website for more information.
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz* Support for HDMI 1.4 version and HDCP 2.33. Maximum shared memory of 512 MB* Actual support may vary by CPU.
Audio
Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
1. 1 x PCI Express x16 slot, running at x162. 2 x PCI Express x1 slots(The PCI Express slots conform to PCI Express 3.0 standard.)
Storage Interface
Chipset:1. 4 x SATA 6Gb/s connectors
Internal Connectors
1. 1 x 24-pin ATX main power connector2. 1 x 8-pin ATX 12V power connector3. 4 x SATA 6Gb/s connectors4. 1 x CPU fan header5. 1 x system fan header6. 1 x RGB LED strip header7. 1 x M.2 Socket 1 connector for the wireless communication module8. 1 x speaker header9. 1 x front panel header10. 1 x front panel audio header11. 1 x S/PDIF Out header12. 1 x USB 2.0/1.1 header13. 1 x USB 3.2 Gen 1 header14. 1 x Clear CMOS jumper

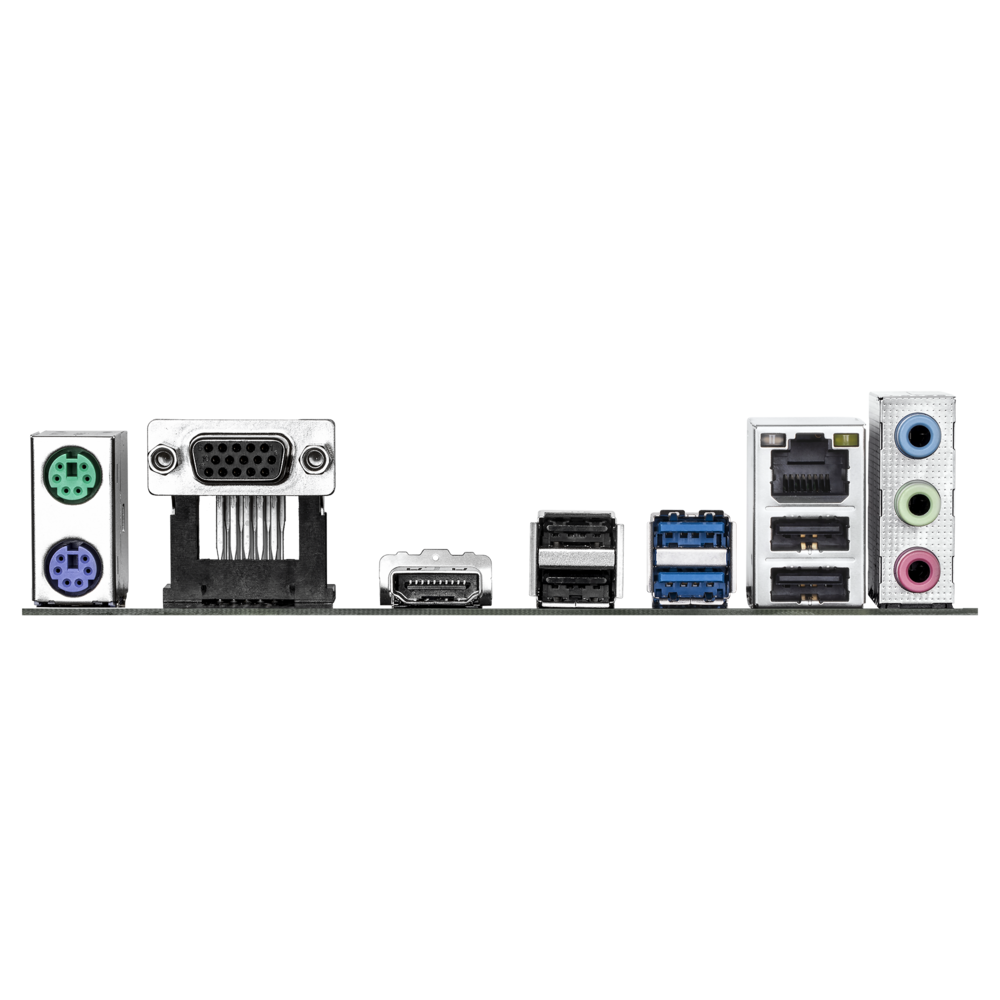

Back Panel Connectors
1. 1 x PS/2 keyboard port2. 1 x PS/2 mouse port3. 1 x D-Sub port4. 1 x HDMI port5. 4 x USB 3.2 Gen 1 ports6. 2 x USB 2.0/1.1 ports7. 1 x RJ-45 port8. 3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
1. System voltage detection2. CPU/System temperature detection3. CPU/System fan speed detection4. CPU/System overheating warning5. CPU/System fan fail warning6. CPU/System fan speed control* Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
1. 1 x 128 Mbit flash2. Licensed AMI UEFI BIOS3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.2. @BIOS3. EasyTune4. Fast Boot5. Game Boost6. ON/OFF Charge7. Smart Backup8. System Information Viewer9. Support for Q-Flash10. Support for Xpress Install
Bundled Software
1. Norton® Internet Security (OEM version)2. Realtek® 8111 Gigabit LAN driver3. Realtek® HD Audio driver
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.6cm x 17.4cm
