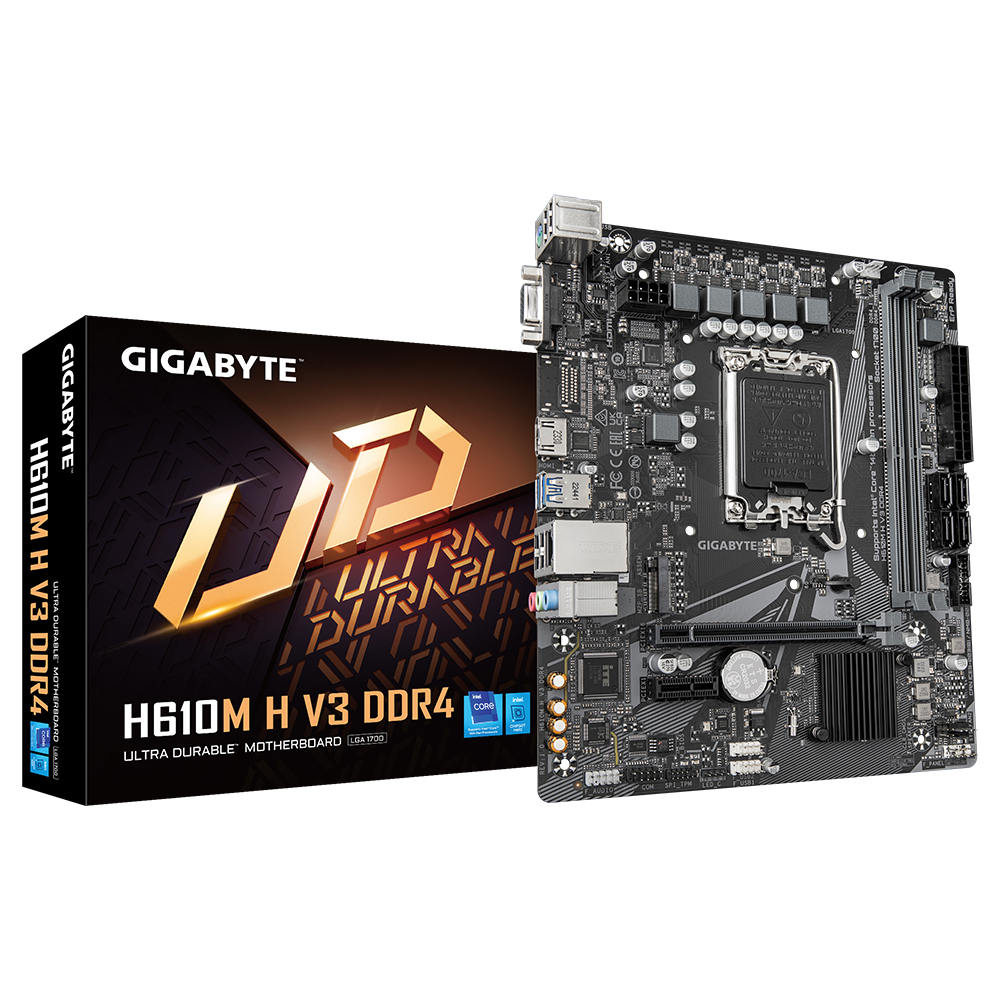

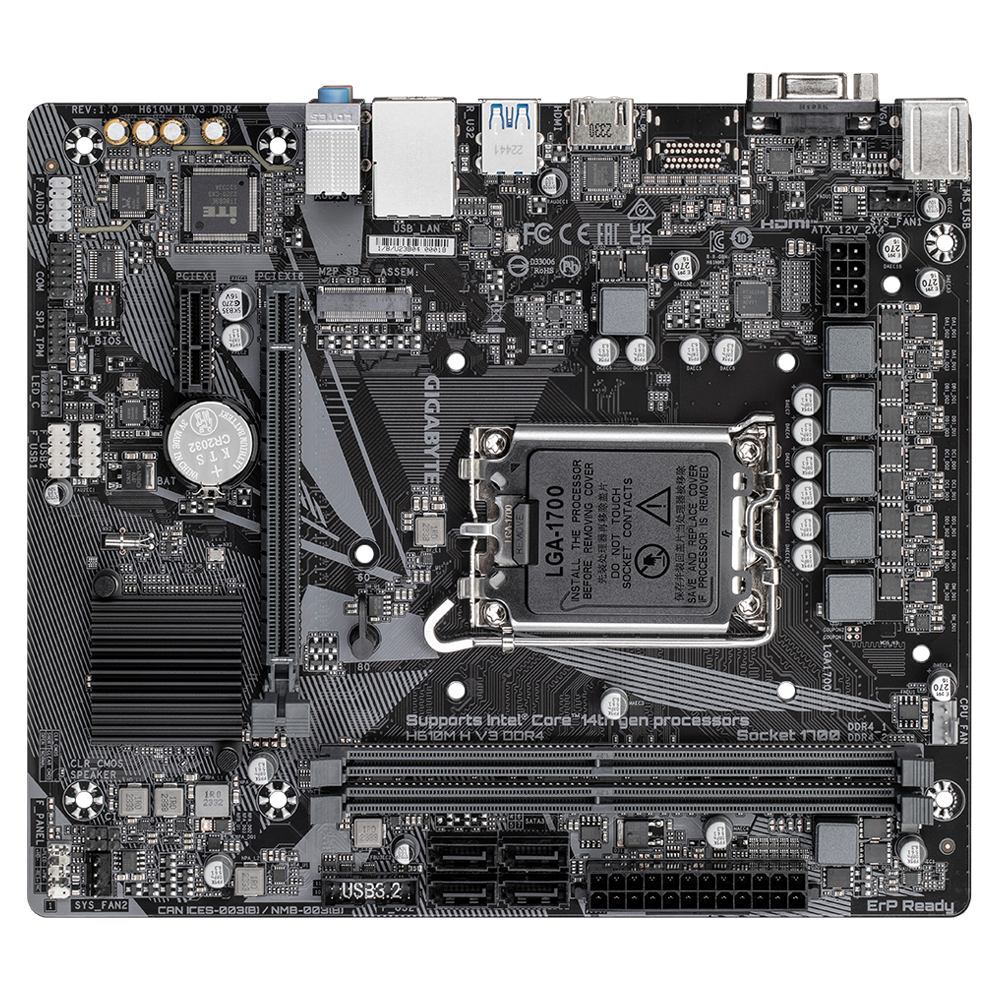

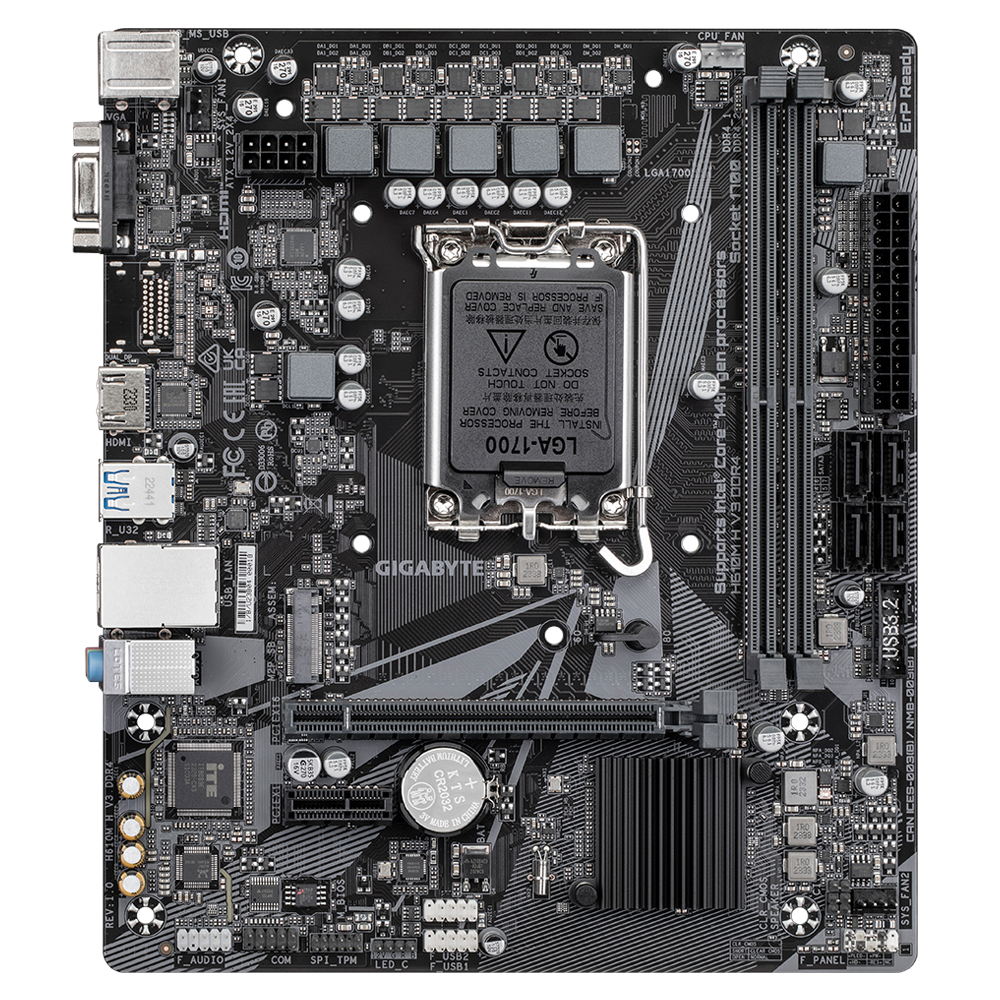

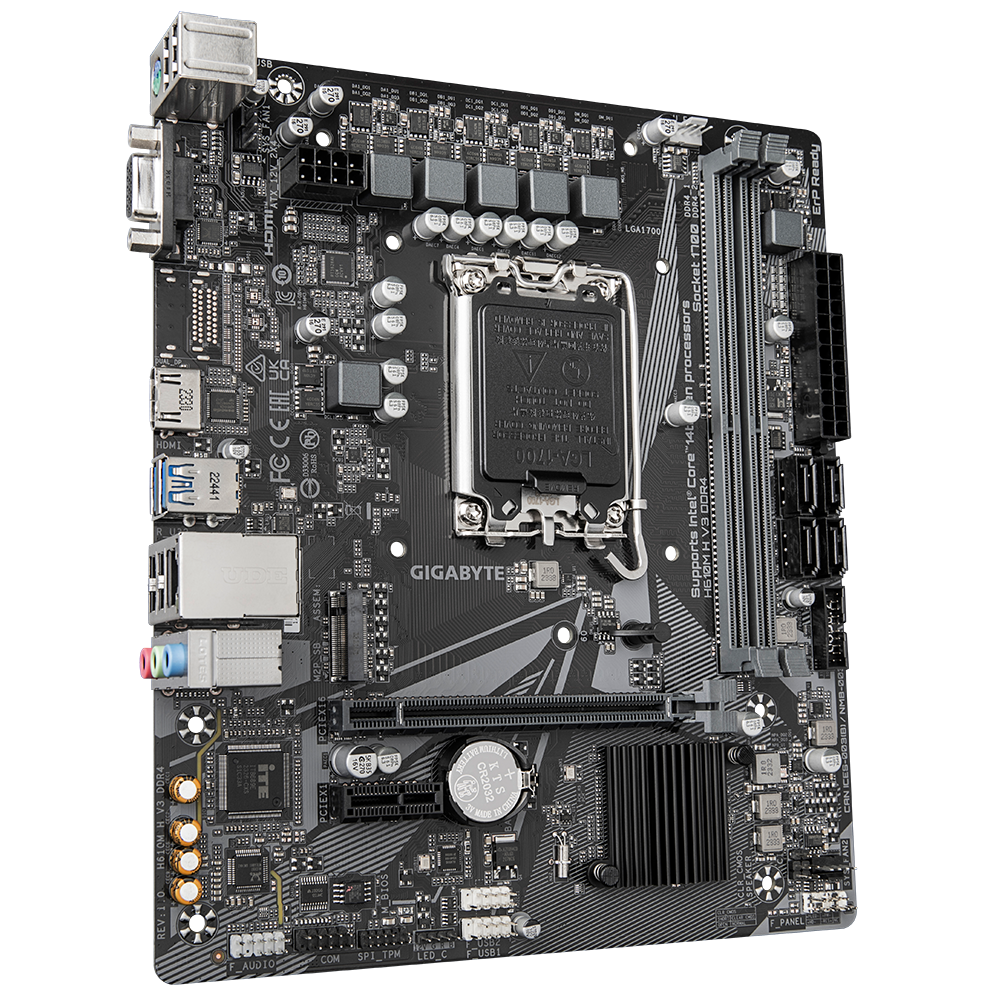

Gigabyte H610M H V3 DDR4 Motherboard

  • Model:H610M H V3 DDR4
  • Supports Intel Core 14th/13th/12th Gen CPUs
  • Intel H610 chipset, LGA 1700, Micro-ATX form factor
  • Dual Channel DDR4 Memory, 2 DIMMs
  • PCIe 4.0, GbE LAN, M.2 NVMe Slot
  • 3 Years Warranty from Gigabyte
₹ 6,350
Next Day Dispatch
1
Chipset
Intel® H610 Express Chipset
CPU
1 x LGA1700 socket (Support for 12th and 13th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*)
Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Memory Type
DDR4 3200/2933/2666 MHz memory modules
Graphics
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for up to 3 displays at the same time
Audio
Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channel
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
1 x PCI Express x16 slot2 x PCI Express x1 slots(PCIEX16 slot: PCIe 4.0 support; PCIEX1 slots: PCIe 3.0 support)
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)4 x SATA 6Gb/s connectors
USB
Rear Panel:2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 portsInternal:2 x USB 2.0/1.1 headers supporting 4 extra ports
Internal I/O Connectors
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector4 x SATA 6Gb/s connectors1 x M.2 Socket 3 connector1 x CPU fan header1 x System fan header1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x Clear CMOS jumper1 x Front panel audio header1 x Front panel header1 x Speaker header1 x Chassis Intrusion header

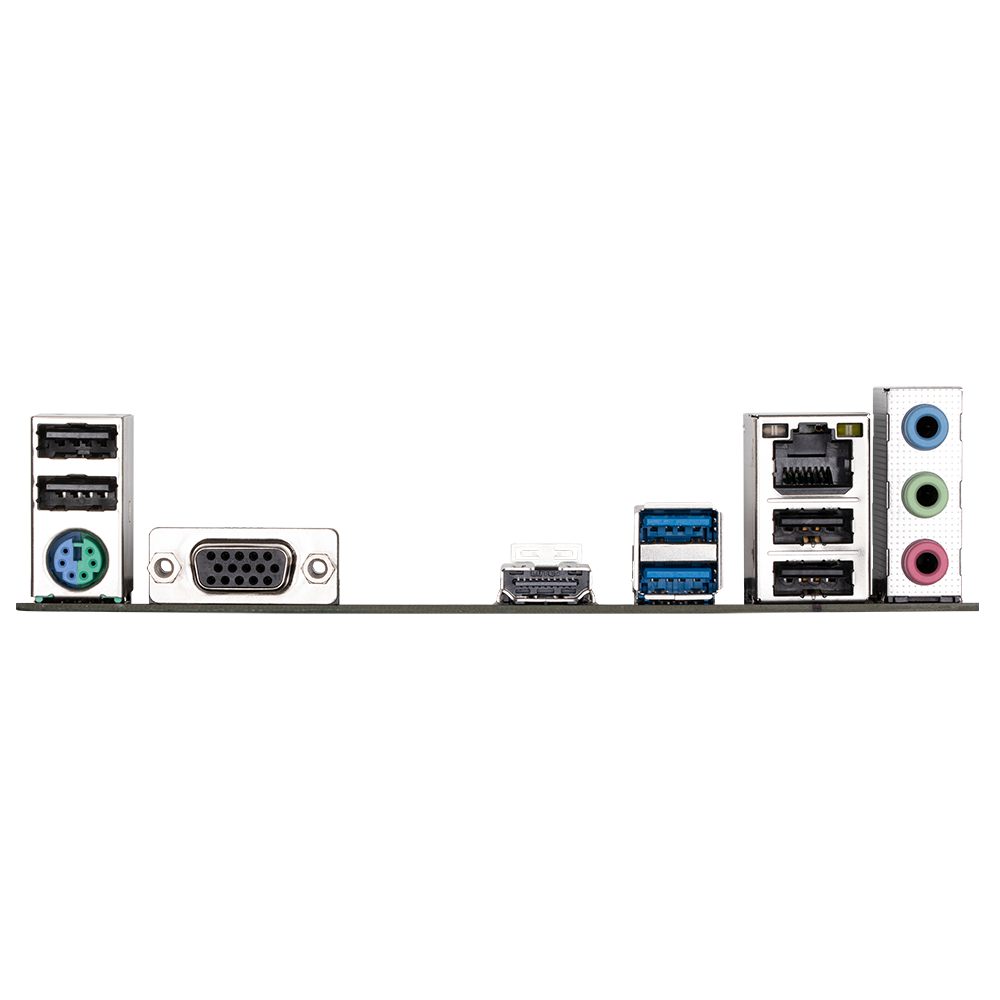

Back Panel Connectors
1 x PS/2 keyboard port1 x PS/2 mouse port1 x D-Sub port1 x HDMI port2 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks
H/W Monitoring
System voltage detectionCPU/System temperature detectionCPU/System fan speed detectionCPU/System overheating warningCPU/System fan fail warningCPU/System fan speed control
BIOS
1 x 128 Mbit flashUse of licensed AMI UEFI BIOS
Unique Features
Support for APP CenterSupport for Q-FlashSupport for Xpress Install
Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm
