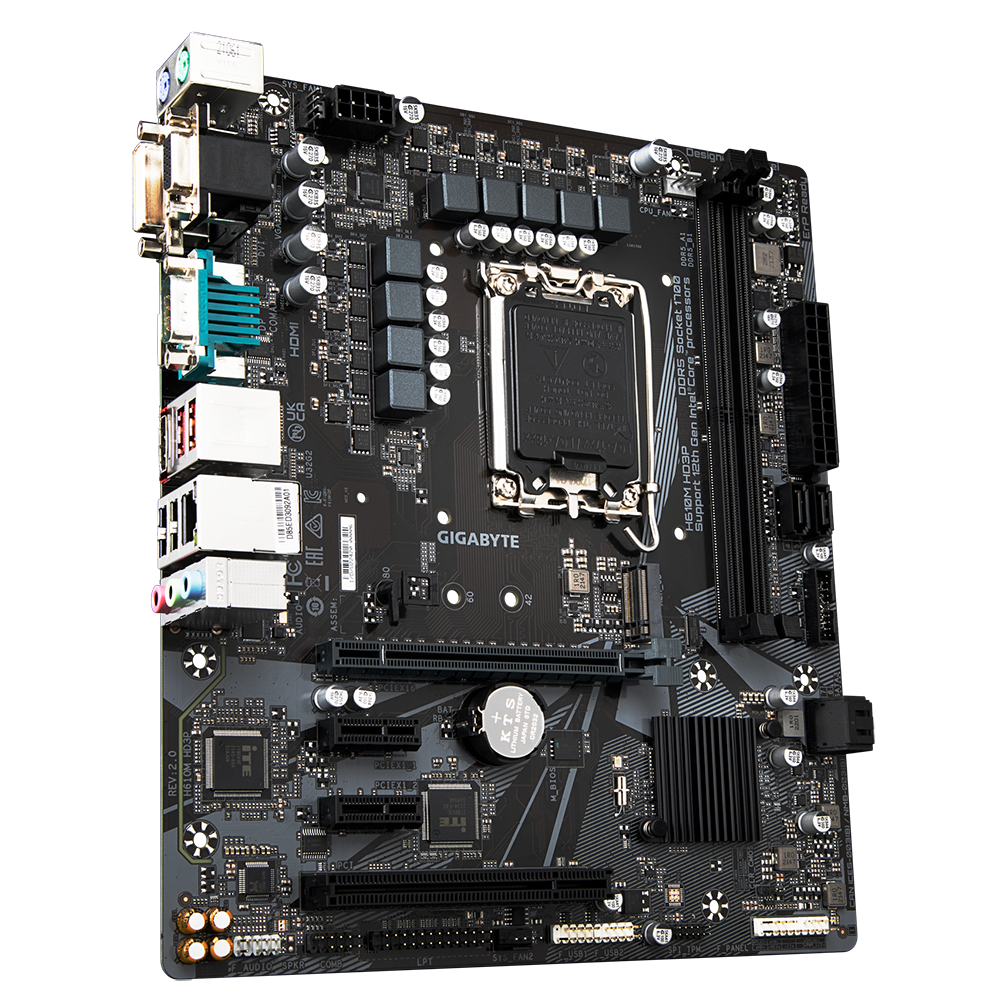

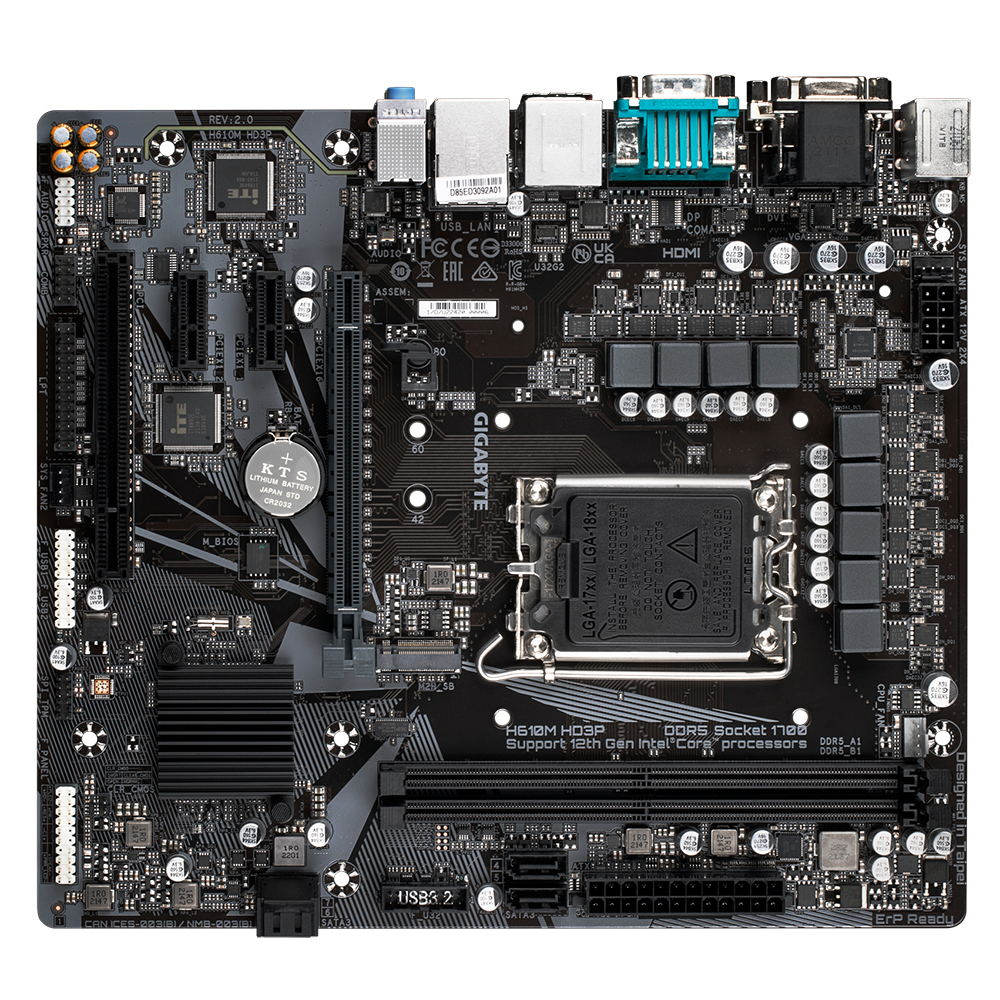

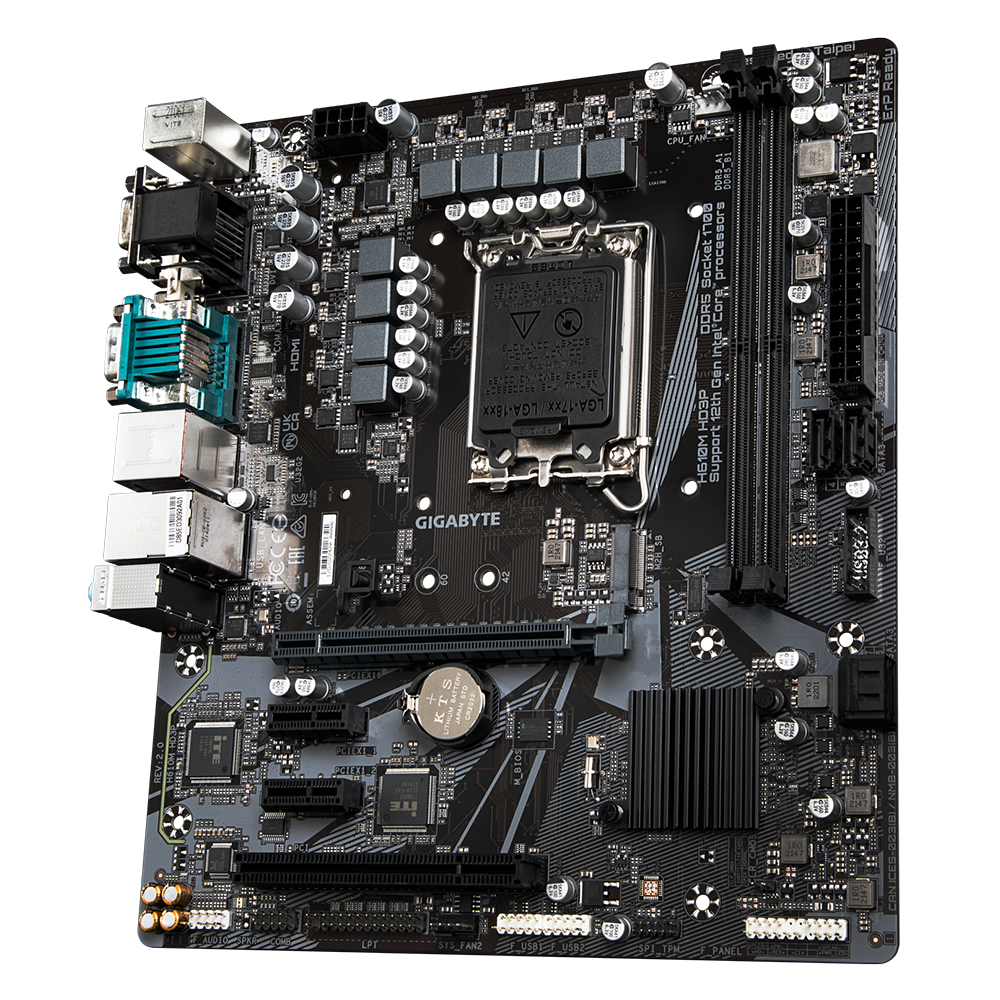

Gigabyte H610M HD3P Motherboard
  • Model:H610M HD3P
  • Supports Intel Core 12th/13th/14th Gen CPUs
  • Intel H610, LGA 1700, Micro-ATX Form Factor
  • Dual Channel DDR5, 2 DIMMs support
  • PCIe 4.0, HDMI/DVI-D/D-Sub ports
  • 3 Years Warranty from Gigabyte
₹ 8,750
Out Of Stock
1
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
CPU
L3 cache varies with CPU
CPU
* Please refer to "CPU Support List" for more information.
Chipset
Intel® H610 Express Chipset
Memory
Support for DDR5 4800/4000 MHz memory modules
Memory
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Memory
Dual channel memory architecture
Memory
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory
Support for Extreme Memory Profile (XMP) memory modules
Memory
(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
Onboard Graphics
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Onboard Graphics
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
Onboard Graphics
* The DVI-D port does not support D-Sub connection by adapter.
Onboard Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Onboard Graphics
* Support for HDMI 2.1 version and HDCP 2.3.
Onboard Graphics
** Support native HDMI 2.1 TMDS compatible ports
Onboard Graphics
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
Onboard Graphics
* Support for DisplayPort 1.2 version and HDCP 2.3
Onboard Graphics
(Graphics specifications may vary depending on CPU support.)
Onboard Graphics
Support for up to 3 displays at the same time
Audio
Realtek® Audio CODEC
Audio
High Definition Audio
Audio
2/4/5.1/7.1-channel
Audio
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
LAN
Intel® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)
Expansion Slots
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion Slots
(The PCIEX16 slot conforms to PCI Express 4.0 standard.)
Expansion Slots
2 x PCI Express x1 slots
Expansion Slots
(The PCIEX1 slots conform to PCI Express 3.0 standard.)
Expansion Slots
1 x PCI slot
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Storage Interface
4 x SATA 6Gb/s connectors
Storage Interface
* Refer to "2-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
USB
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
USB
2 x USB 3.2 Gen 1 ports, available through the internal USB header
USB
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 8-pin ATX 12V power connector
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
2 x system fan headers
Internal I/O Connectors
1 x M.2 Socket 3 connector
Internal I/O Connectors
4 x SATA 6Gb/s connectors
Internal I/O Connectors
1 x front panel header
Internal I/O Connectors
1 x front panel audio header
Internal I/O Connectors
1 x USB 3.2 Gen 1 header
Internal I/O Connectors
2 x USB 2.0/1.1 headers
Internal I/O Connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Internal I/O Connectors
1 x serial port header
Internal I/O Connectors
1 x parallel port header
Internal I/O Connectors
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard port
Back Panel Connectors
1 x PS/2 mouse port
Back Panel Connectors
2 x USB 3.2 Gen 2 Type-A ports (red)
Back Panel Connectors
2 x USB 2.0/1.1 ports
Back Panel Connectors
1 x D-Sub port
Back Panel Connectors
1 x DVI-D port
Back Panel Connectors
1 x serial port
Back Panel Connectors
1 x DisplayPort
Back Panel Connectors
1 x HDMI 2.0 port
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
H/W Monitoring
Temperature detection
H/W Monitoring
Fan speed detection
H/W Monitoring
Fan fail warning
H/W Monitoring
Fan speed control
H/W Monitoring
* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Unique Features
* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Unique Features
@BIOS
Unique Features
EasyTune
Unique Features
Smart Backup
Unique Features
System Information Viewer
Unique Features
Support for Q-Flash
Unique Features
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 21.5cm
