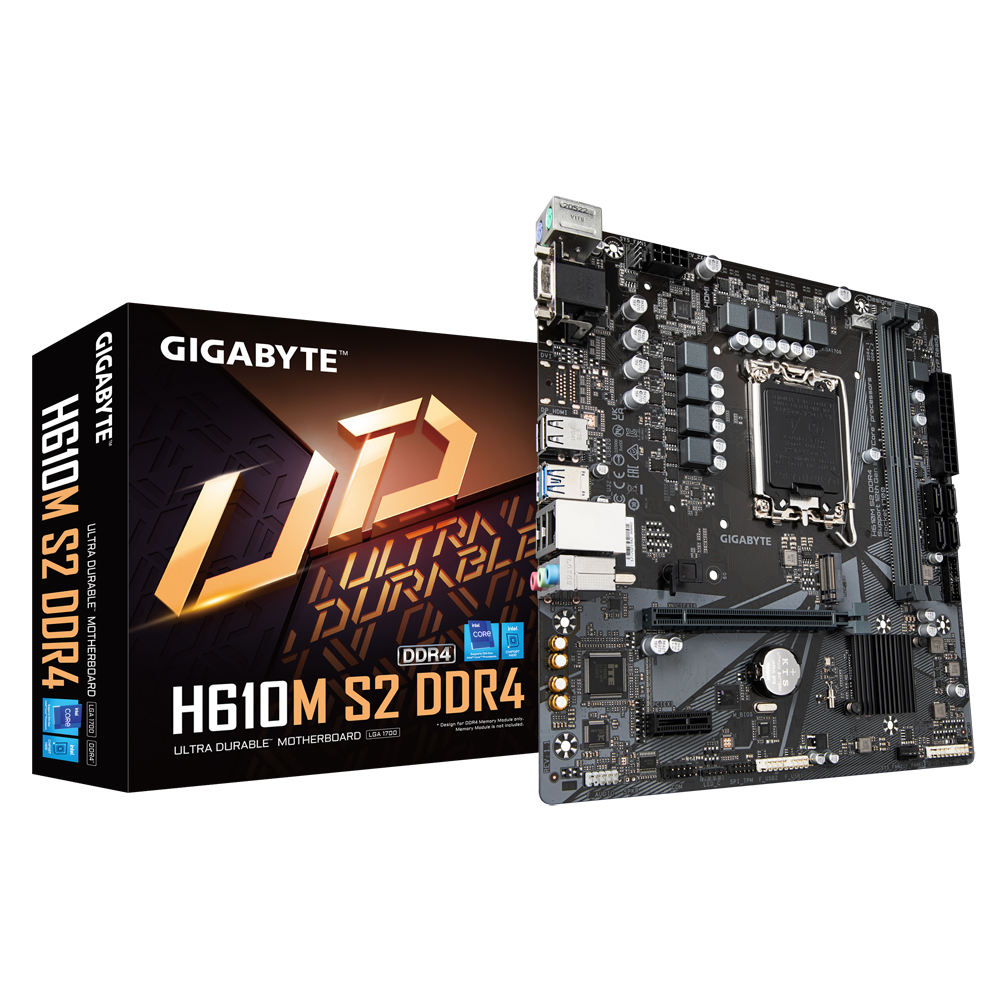

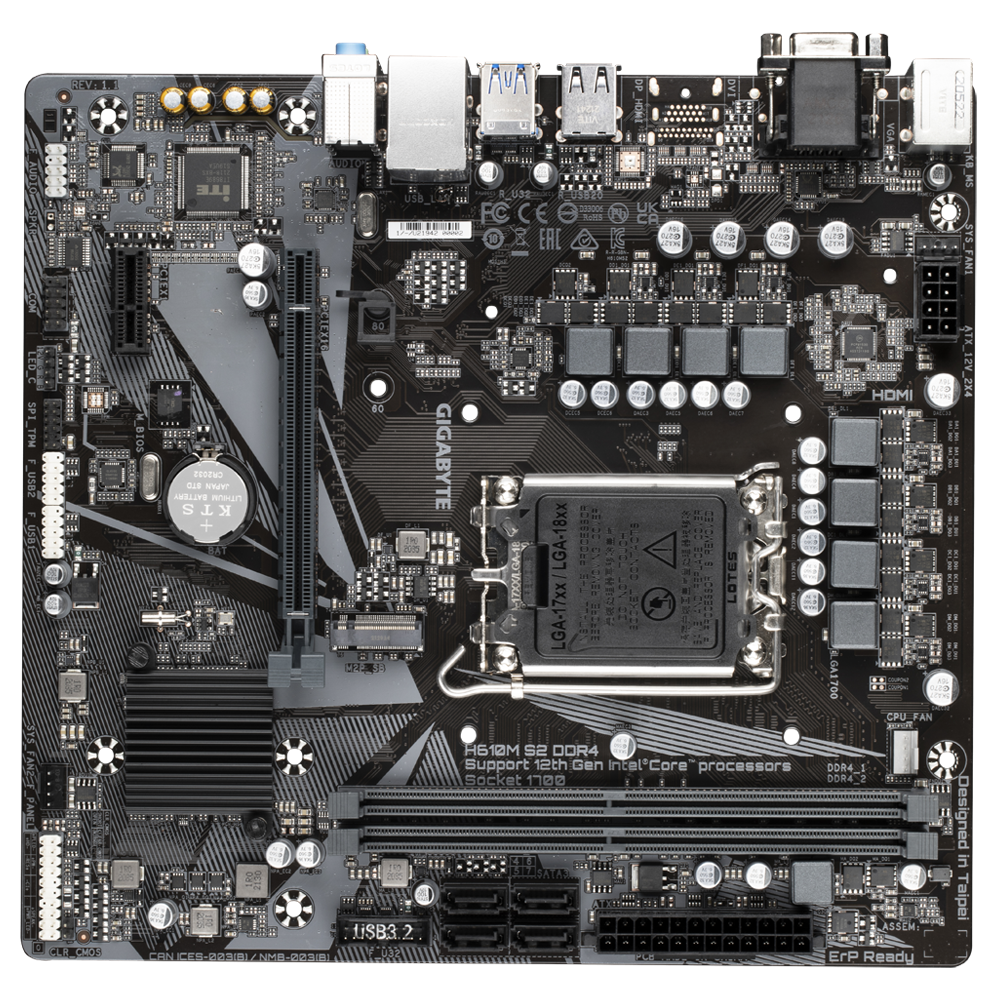

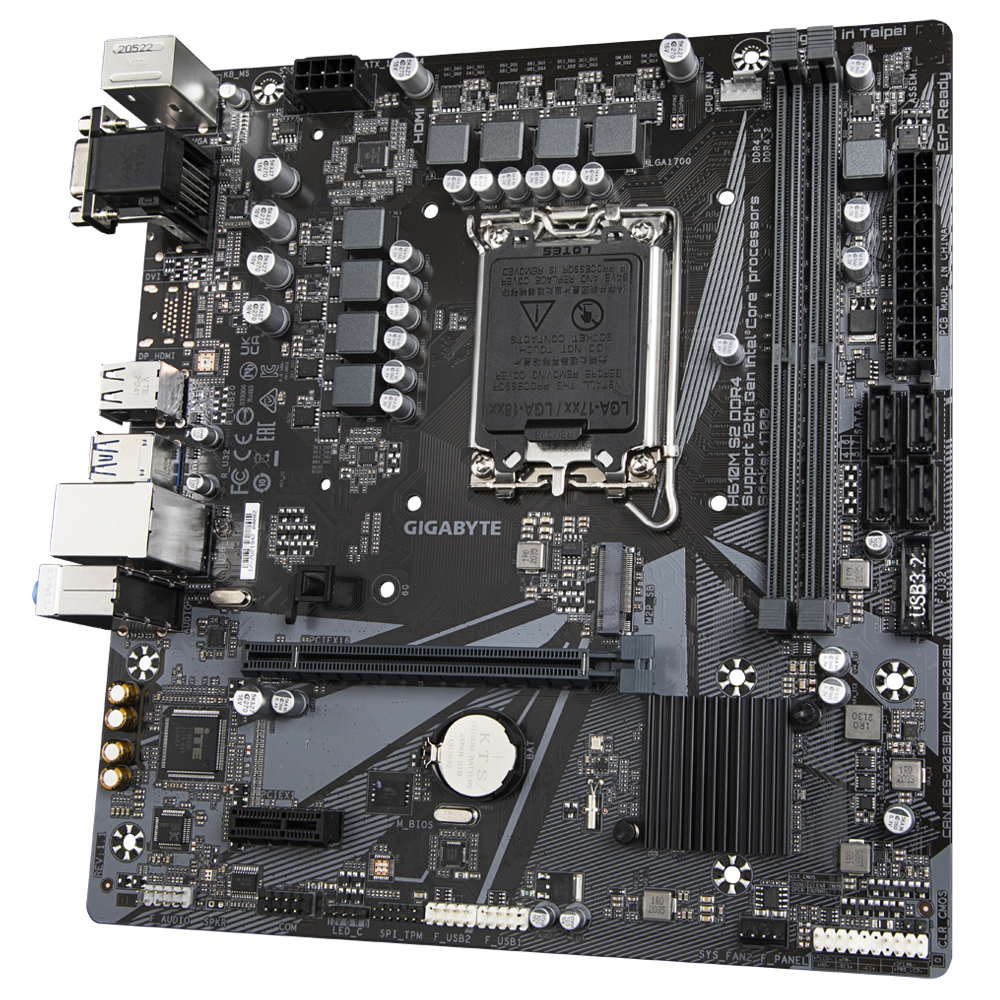

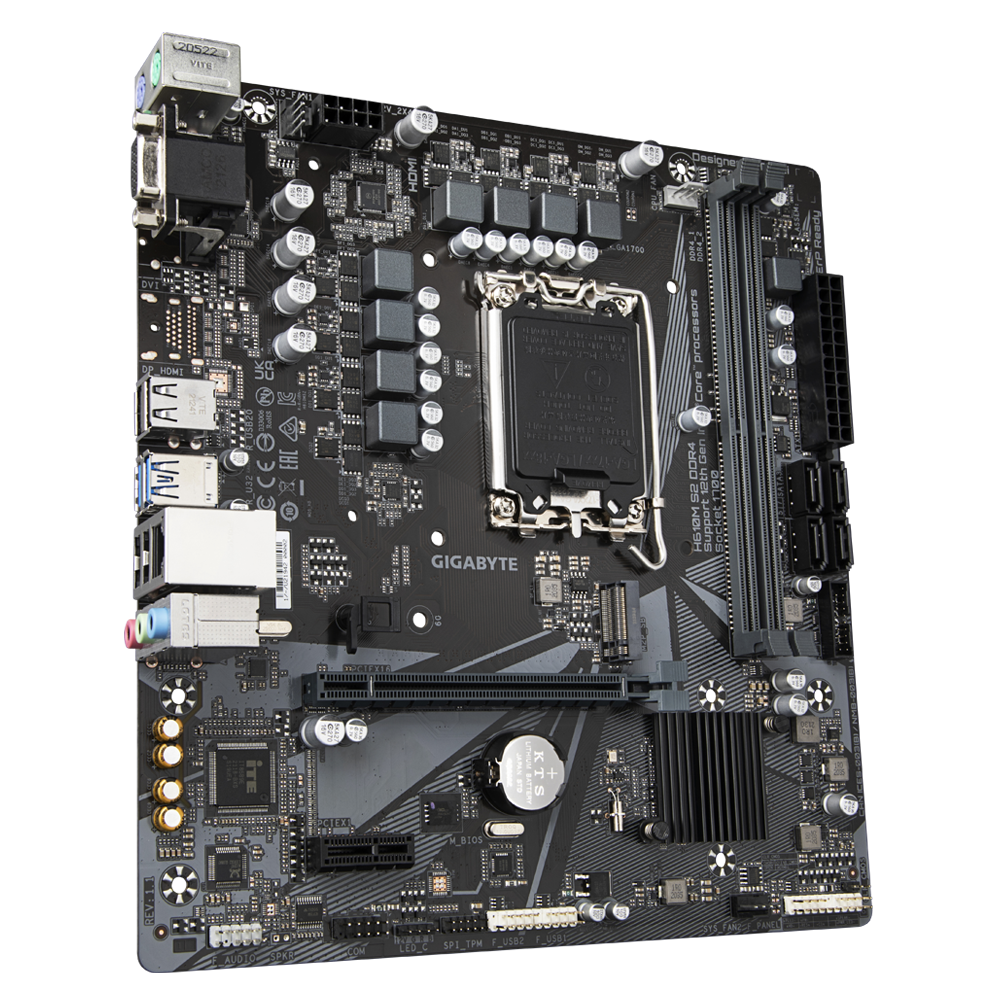

Gigabyte H610M S2 DDR4 Motherboard
  • Model:H610M S2 DDR4
  • Supports Intel 12th/13th Gen CPUs
  • Intel H610, LGA 1700, Micro-ATX form factor
  • Dual Channel DDR4, 2 DIMMs up to 64GB
  • PCIe 4.0 x16, M.2 NVMe slot, GbE LAN
  • 3 Years Warranty from Gigabyte
₹ 5,700
Out Of Stock
1
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*
CPU
L3 cache varies with CPU
Chipset
Intel® H610 Express Chipset
Memory
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules
Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Memory
Dual channel memory architecture
Memory
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Memory
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory
Support for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
Onboard Graphics
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
Audio
Realtek® Audio CODEC
Audio
High Definition Audio
Audio
2/4/5.1/7.1-channel
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
1 x PCI Express x16 slot, running at x16
Expansion Slots
1 x PCI Express x1 slot
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 3.0 x4/x2 SSD support)
Storage Interface
4 x SATA 6Gb/s connectors
USB
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
USB
4 x USB 2.0/1.1 ports on the back panel
USB
4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 8-pin ATX 12V power connector
Internal I/O Connectors
1 x M.2 Socket 3 connector
Internal I/O Connectors
4 x SATA 6Gb/s connectors
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
2 x system fan headers
Internal I/O Connectors
1 x RGB LED strip header
Internal I/O Connectors
1 x front panel header
Internal I/O Connectors
1 x front panel audio header
Internal I/O Connectors
1 x USB 3.2 Gen 1 header
Internal I/O Connectors
2 x USB 2.0/1.1 headers
Internal I/O Connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Internal I/O Connectors
1 x serial port header
Internal I/O Connectors
1 x Clear CMOS jumper
Back Panel Connectors
1 x PS/2 keyboard port
Back Panel Connectors
1 x PS/2 mouse port
Back Panel Connectors
1 x D-Sub port
Back Panel Connectors
2 x USB 3.2 Gen 1 ports
Back Panel Connectors
4 x USB 2.0/1.1 ports
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
H/W Monitoring
Temperature detection
H/W Monitoring
Fan speed detection
H/W Monitoring
Overheating warning
H/W Monitoring
Fan fail warning
H/W Monitoring
Fan speed control
BIOS
1 x 256 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center
Unique Features
Support for Q-Flash
Unique Features
Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 23.0cm x 21.5cm
