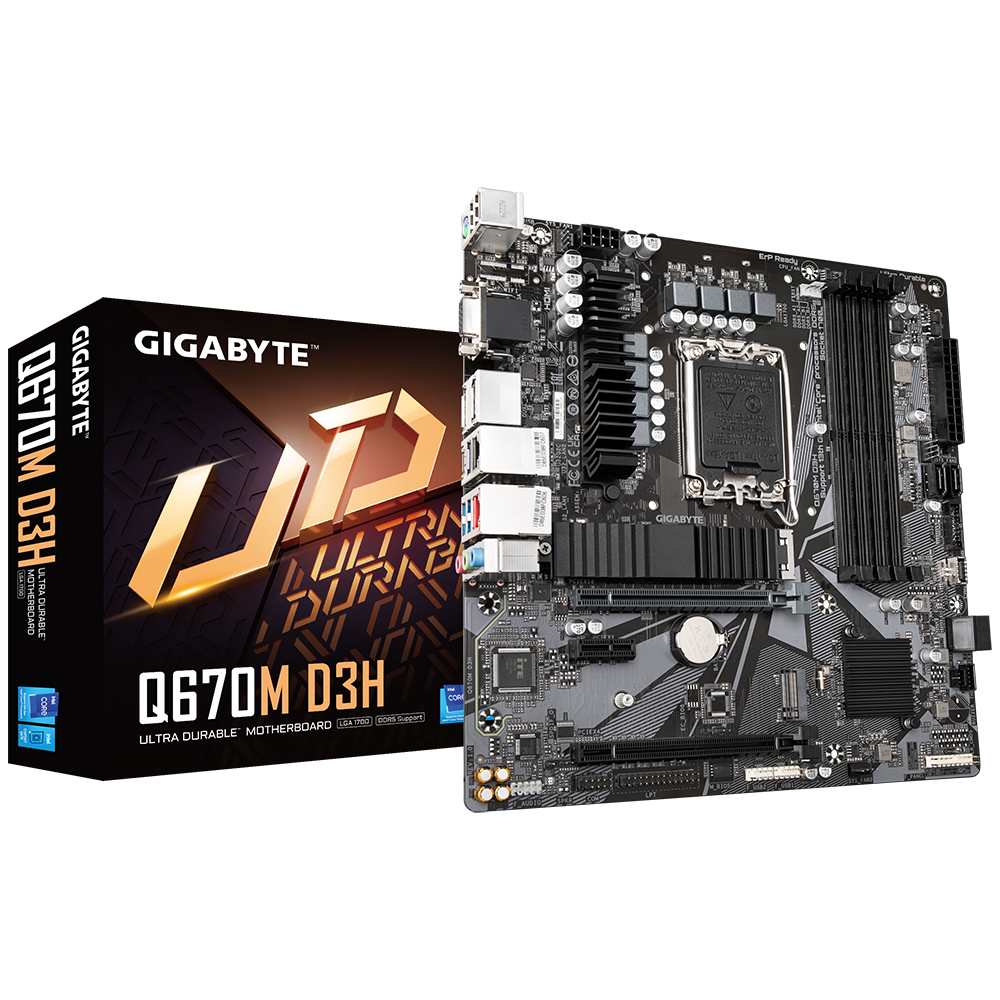

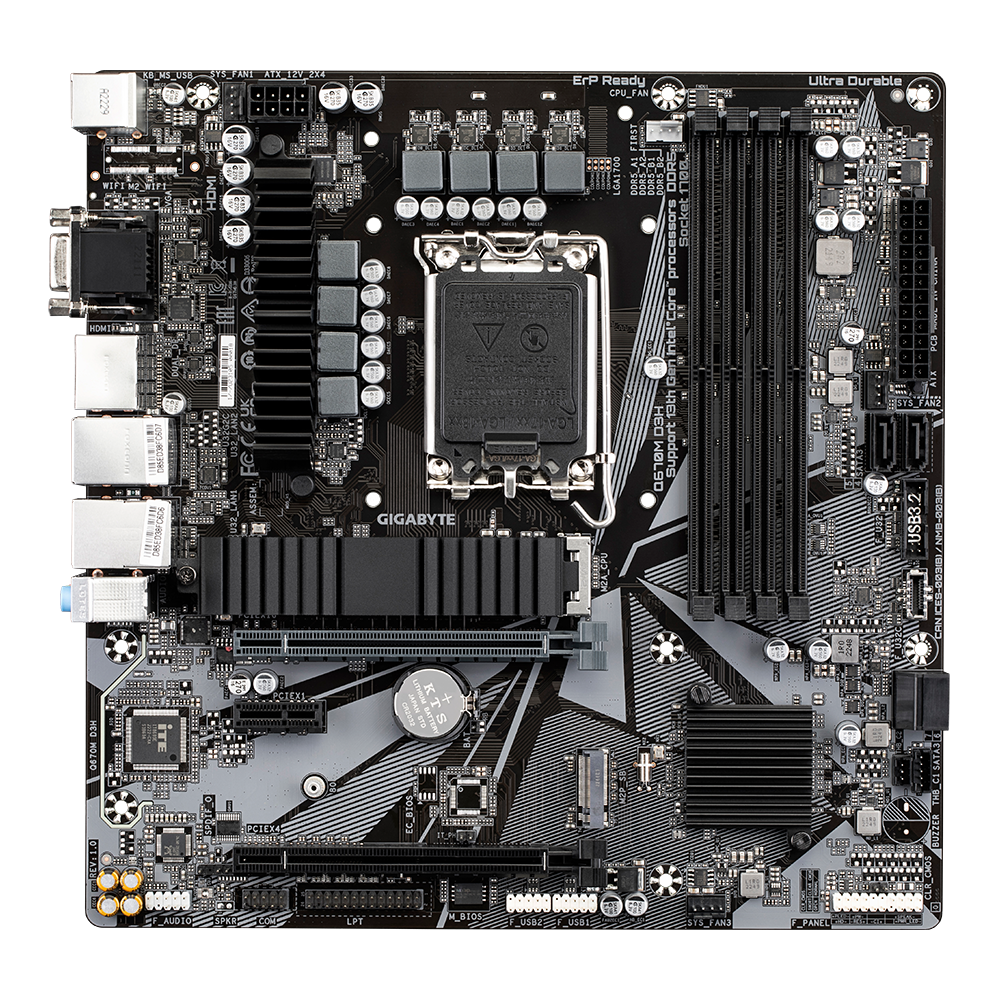

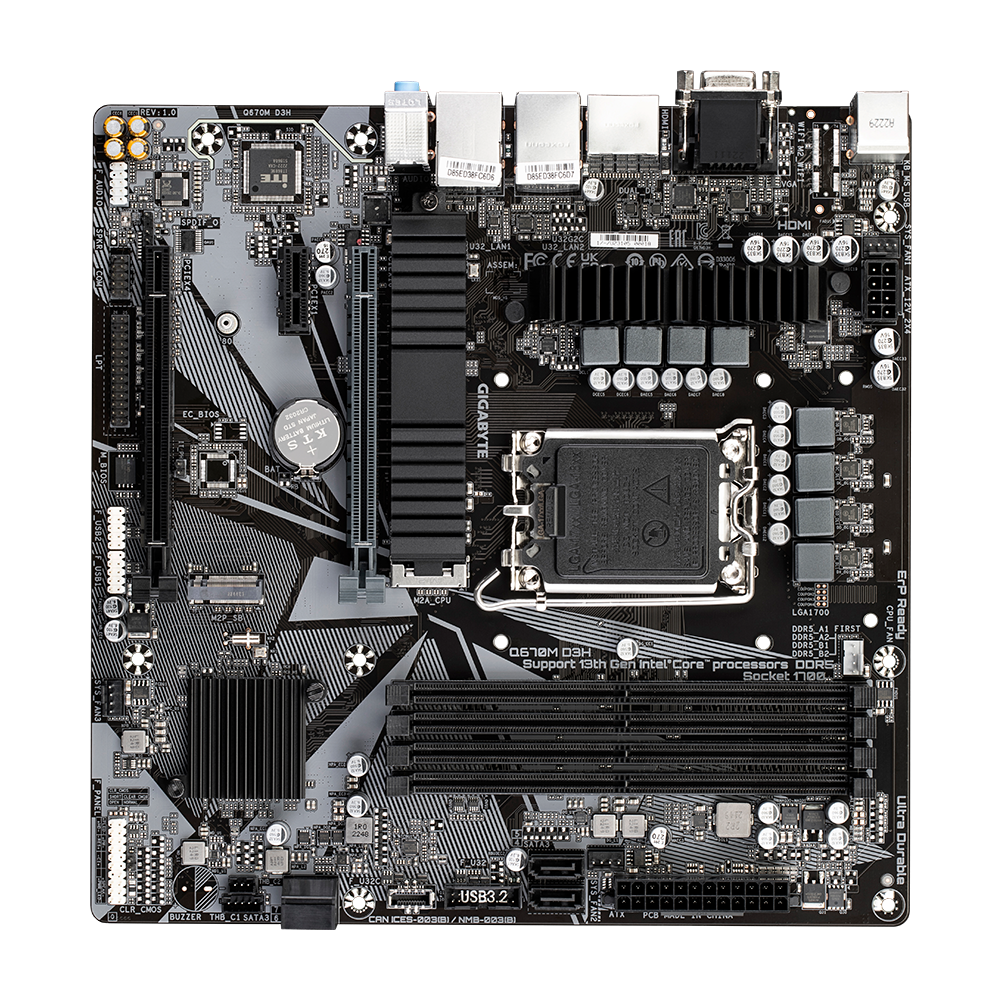

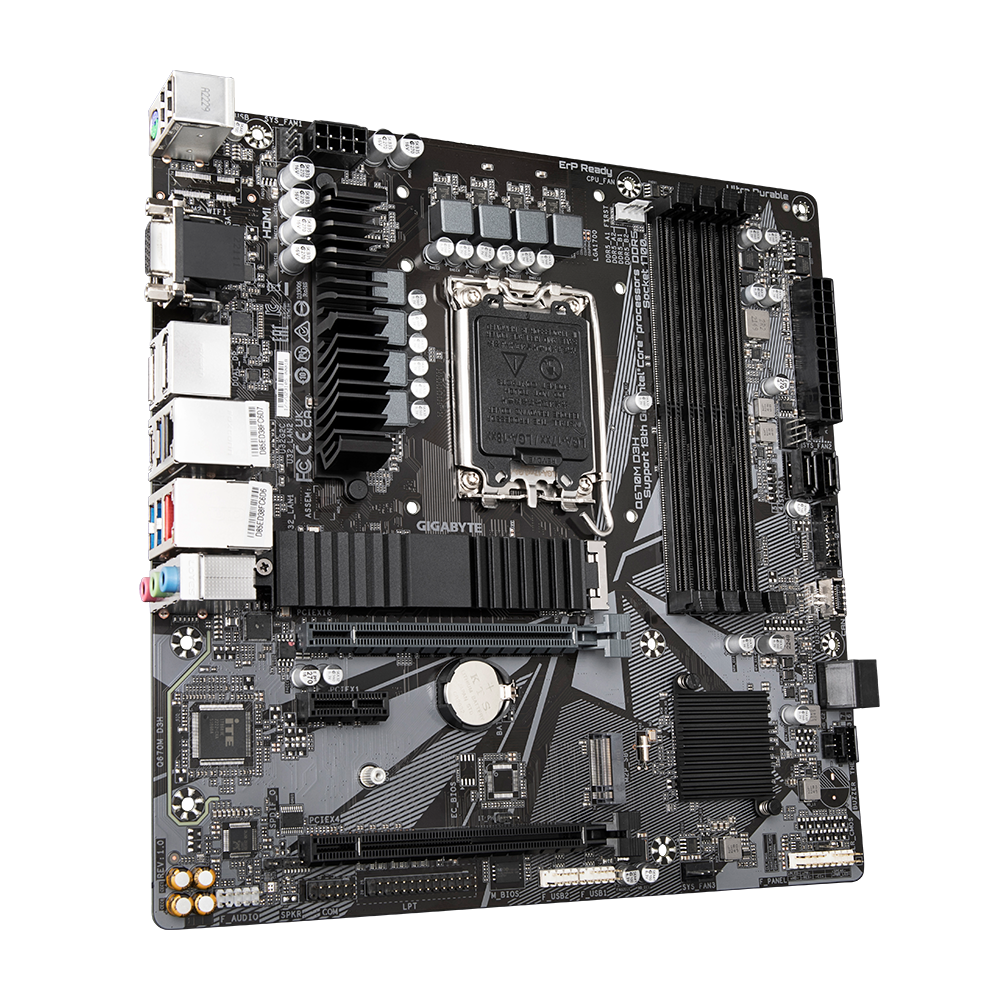

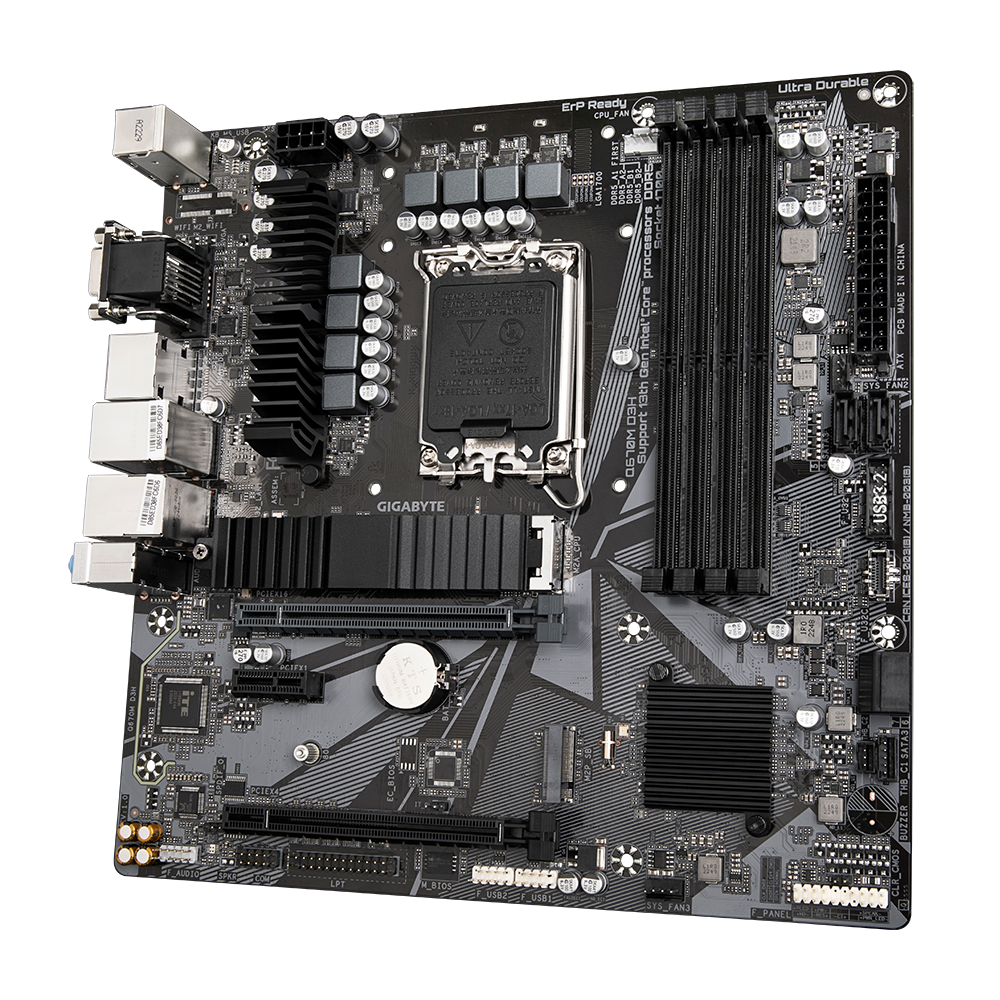

Gigabyte Q670M D3H Motherboard

  • Model:Q670M D3H
  • Supports Intel Core 14th/13th/12th Gen CPUs
  • Intel Q670, LGA 1700, Micro-ATX Form Factor
  • Dual Channel DDR5, 4 DIMMs support
  • PCIe 4.0 x16 slot, 2x PCIe 4.0 M.2 slots
  • 3 Years Warranty from Gigabyte
₹ 14,600
Next Day Dispatch
1
CPU
1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors*2. L3 cache varies with CPU* Please refer to "CPU Support List" for more information.
Chipset
1. Intel® Q670 Express Chipset
Memory
1. Support for 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory3. Dual channel memory architecture4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules6. Support for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:1. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz2. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.0 version and HDCP 2.3.3. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version and HDCP 2.34. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz* Support for DisplayPort 1.2 version(Graphics specifications may vary depending on CPU support.)Support for up to 4 displays at the same time
Audio
1. Realtek® Audio CODEC2. High Definition Audio3. 2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.4. Support for S/PDIF Out
LAN
1. Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) (LAN1)2. Intel® GbE LAN chip (1 Gbps/100 Mbps) (LAN2)
TPM
1. Infineon chip, supporting TPM 2.0
Expansion Slots
CPU:1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)2. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Storage Interface
CPU:1. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2P_SB)2. 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, and RAID 5 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support2. 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header3. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)4. 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
01. 1 x 24-pin ATX main power connector02. 1 x 8-pin ATX 12V power connector03. 1 x CPU fan header04. 3 x system fan headers05. 2 x M.2 Socket 3 connectors06. 4 x SATA 6Gb/s connectors07. 1 x front panel header08. 1 x front panel audio header09. 1 x S/PDIF Out header10. 1 x USB Type-C® header, with USB 3.2 Gen 1 support11. 1 x USB 3.2 Gen 1 header12. 2 x USB 2.0/1.1 headers13. 2 x Thunderbolt™ add-in card connectors14. 1 x serial port header15. 1 x parallel port header16. 1 x Clear CMOS jumper

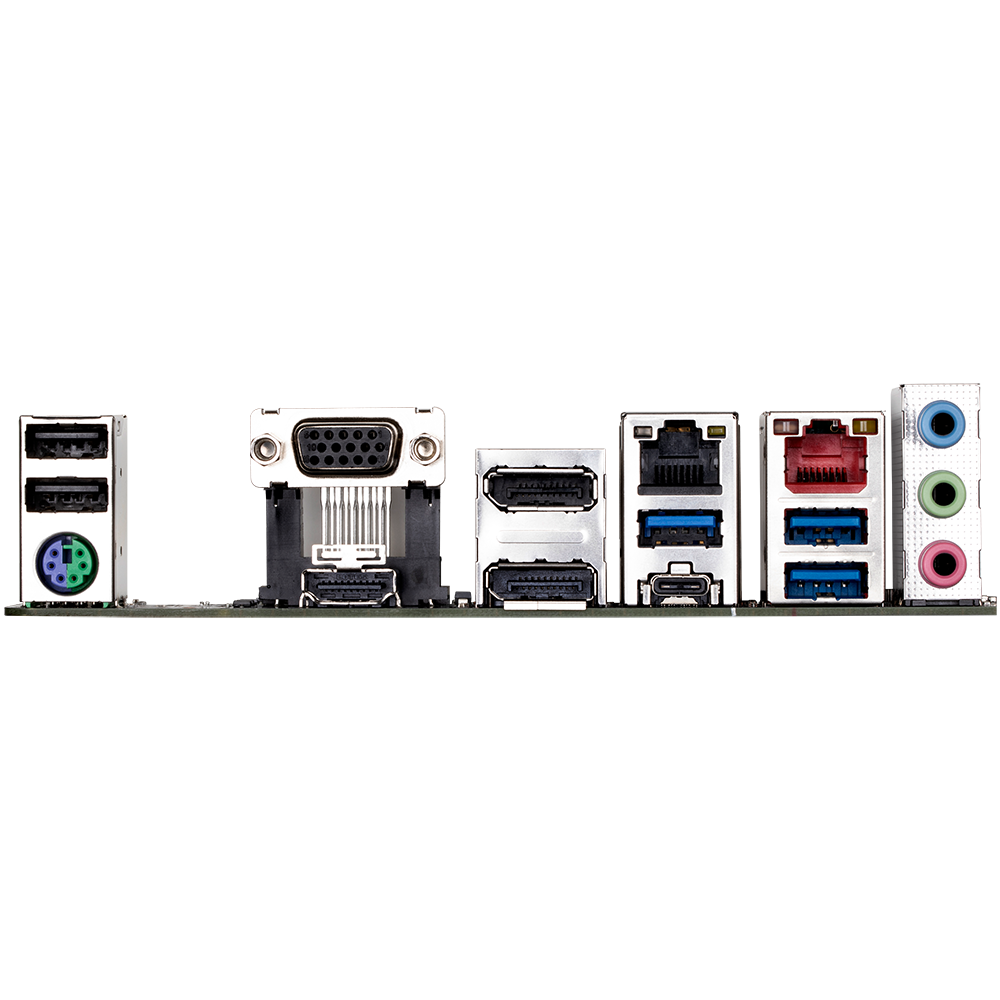

Back Panel Connectors
1. 1 x PS/2 keyboard/mouse port2. 1 x D-Sub port3. 1 x HDMI port4. 2 x DisplayPorts5. 1 x USB Type-C® port, with USB 3.2 Gen 2 support6. 3 x USB 3.2 Gen 1 ports7. 2 x USB 2.0/1.1 ports8. 2 x RJ-45 ports9. 3 x audio jacks
I/O Controller
1. iTE® I/O Controller Chip
H/W Monitoring
1. Voltage detection2. Temperature detection3. Fan speed detection4. Water cooling flow rate detection5. Fan fail warning6. Fan speed control* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1. 1 x 256 Mbit flash2. Use of licensed AMI UEFI BIOS3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.2. Support for Q-Flash
Bundled Software
1. Norton® Internet Security (OEM version)2. LAN bandwidth management software
Operating System
1. Support for Windows 11 64-bit2. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 24.4cm x 24.4cm
