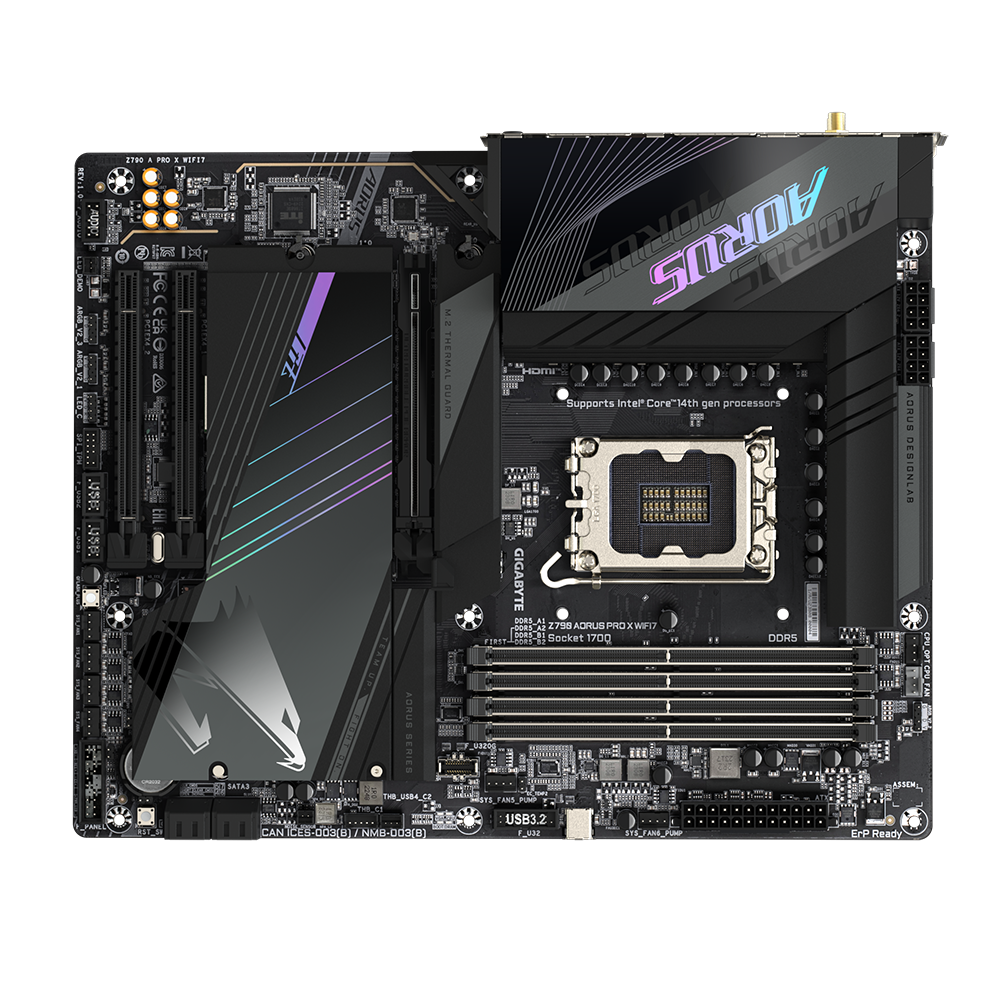

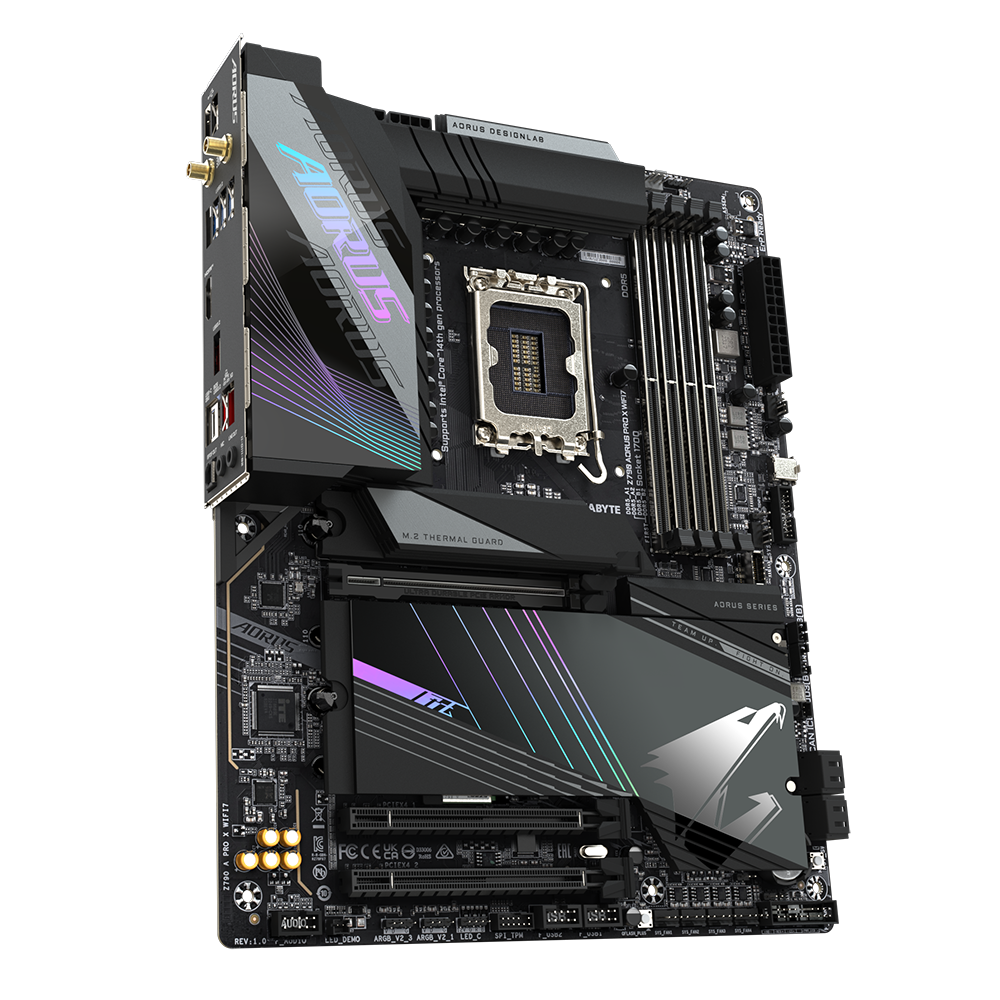

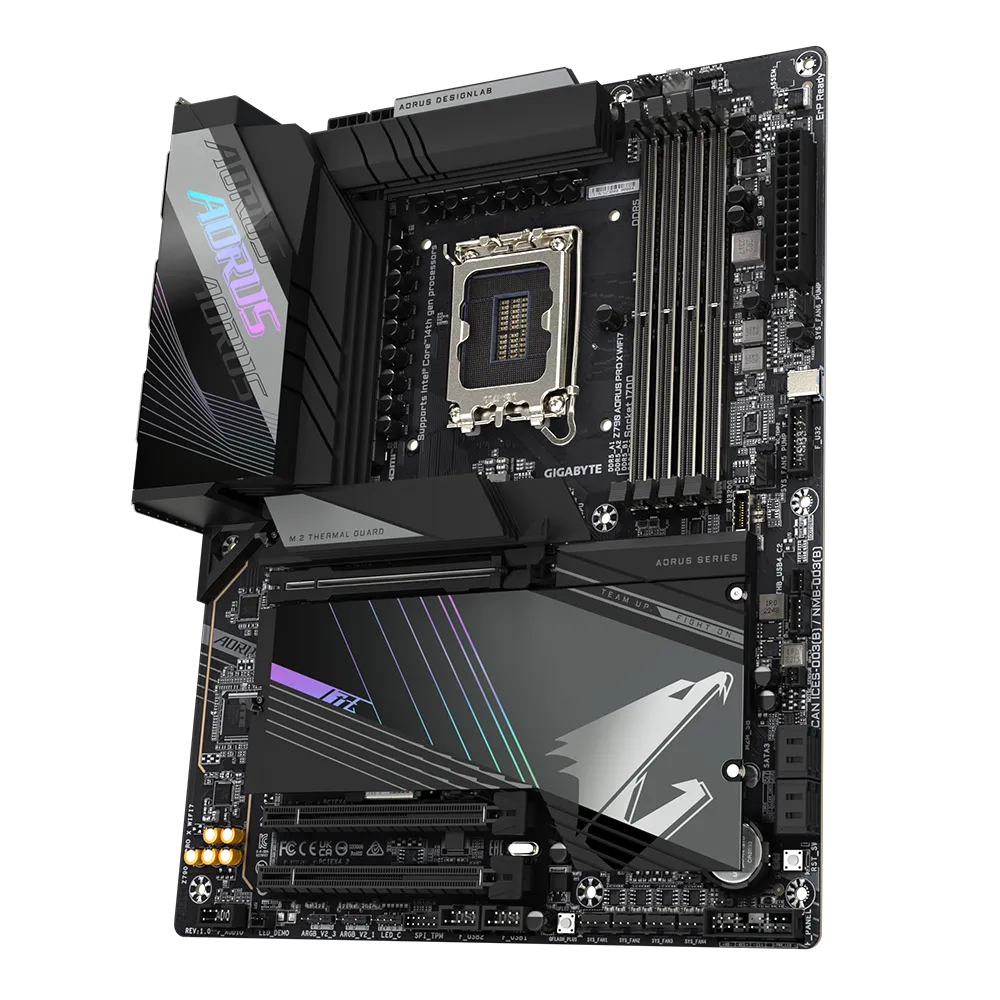

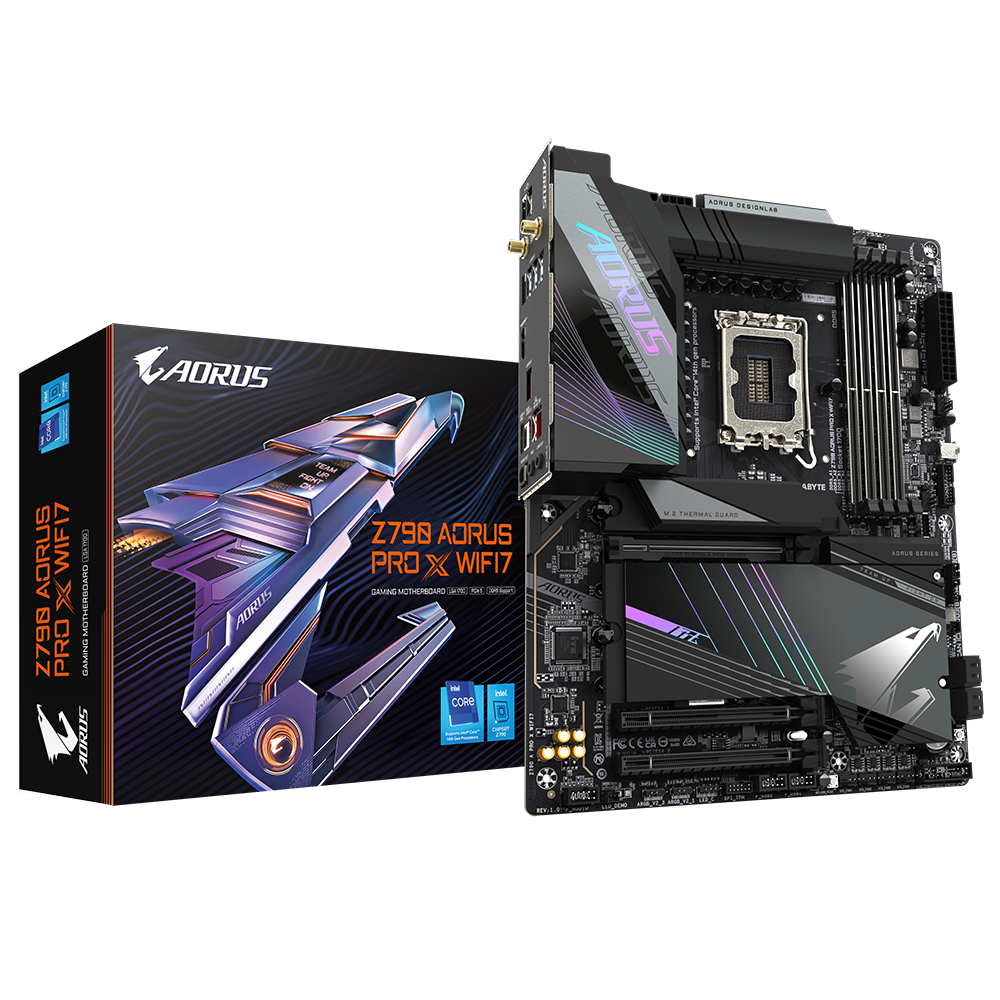

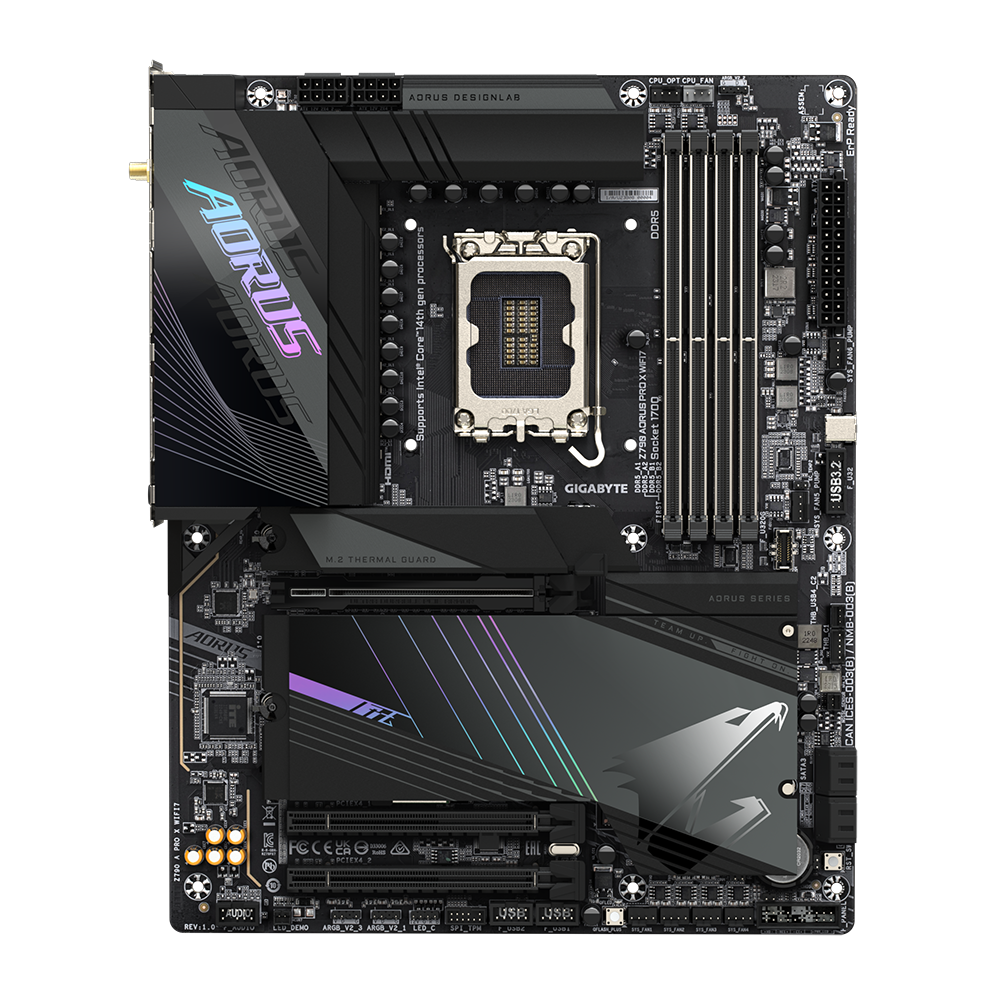

Gigabyte Z790 AORUS PRO X WIFI7 Motherboard
  • Model:Z790 AORUS PRO X WIFI7
  • Supports Intel Core 14th Gen processors
  • Intel Z790 chipset, LGA 1700, ATX form factor
  • DDR5 memory support up to 8266 MT/s
  • PCIe 5.0, WiFi 7, USB-C, 5 GbE LAN
  • 3 Years Warranty from Gigabyte
₹ 35,050
Out Of Stock
1
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsL3 cache varies with CPU* Please refer to "CPU Support List" for more information.
Chipset
Intel® Z790 Express Chipset
Memory
Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory Dual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:- 1 x USB Type-C® port, supporting USB 2.0 and DisplayPort video outputs and a maximum resolution of 1920x1080@30 Hz- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support for native HDMI 2.1 TMDS compatible ports.(Graphics specifications may vary depending on CPU or graphics card support.)
Audio
Realtek® ALC1220-VB CODEC* The back panel line out jack supports DSD audio.High Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.Support for S/PDIF Out
LAN
Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi 7 BE200 (For PCB rev. 1.0)- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands- BLUETOOTH 5.3- Support for 11be 320MHz wireless standard(Actual data rate may vary depending on environment and equipment.)Note:Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10)Wi-Fi 7 channels on 6GHz band availability depends on individual country's regulations.
Expansion Slots
CPU:- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)* The PCIEX16 slot shares bandwidth with the M2C_CPU connectors. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface
CPU:- 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)- 4 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:- 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header)- 1 x USB Type-C® port onboard, with USB 2.0 support (Only available with the Intel® HD Graphics Processors.)- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel- 2 x USB 3.2 Gen 1 ports available through the internal USB header- 2 x USB 2.0/1.1 ports on the back panelChipset+USB 3.2 Gen 1 Hub:- 4 x USB 3.2 Gen 1 ports on the back panelChipset+USB 2.0 Hub:- 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector2 x 8-pin ATX 12V power connectors1 x CPU fan header1 x CPU fan/water cooling pump header4 x system fan headers2 x system fan/water cooling pump headers3 x addressable RGB Gen2 LED strip headers1 x RGB LED strip header5 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support1 x USB Type-C® port (DisplayPort), with USB 2.0 support (Only available with the Intel® HD Graphics Processors.)1 x USB 3.2 Gen 1 header2 x USB 2.0/1.1 headers1 x noise detection header2 x Thunderbolt™ add-in card connectors1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)1 x Q-Flash Plus button1 x reset button1 x reset jumper2 x temperature sensor headers1 x Clear CMOS jumper

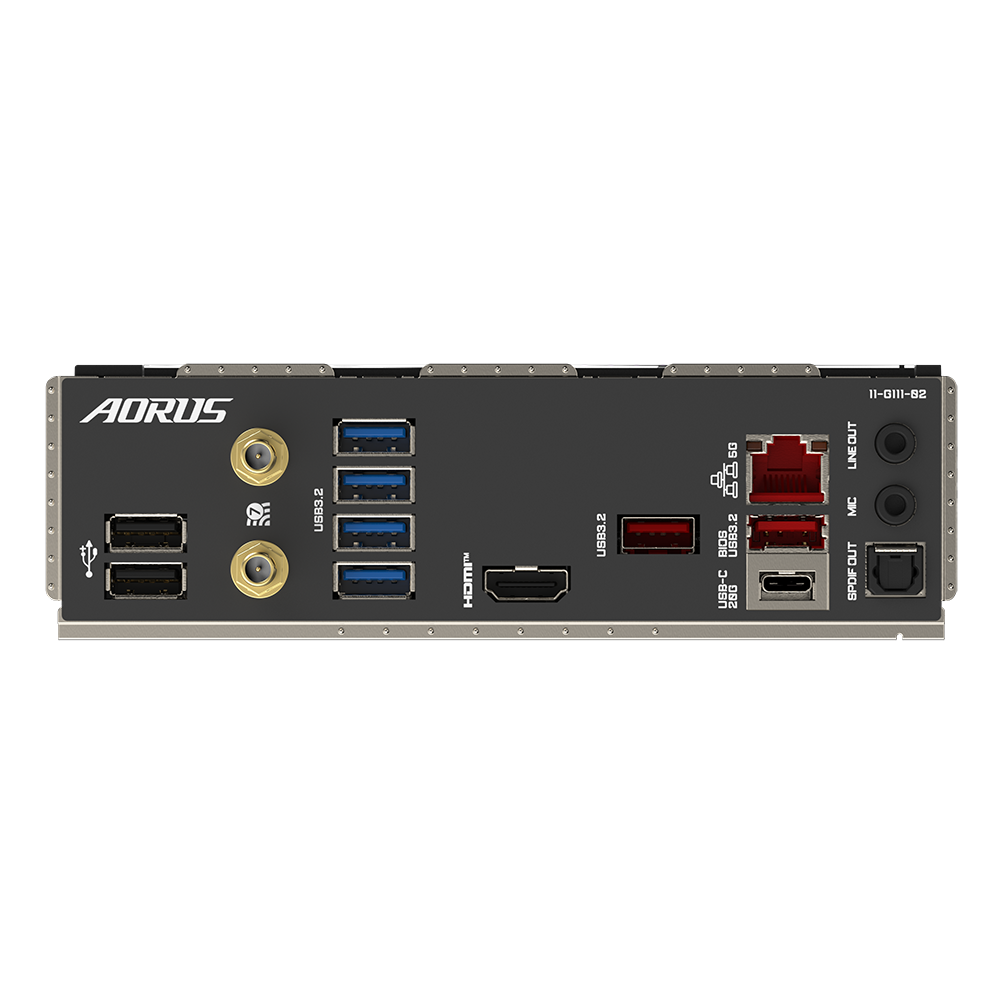

Back Panel Connectors
2 x USB 2.0/1.1 ports2 x SMA antenna connectors (2T2R)4 x USB 3.2 Gen 1 ports1 x DisplayPort In port (Note)1 x HDMI port2 x USB 3.2 Gen 2 Type-A ports (red)1 x USB Type-C® port, with USB 3.2 Gen 2x2 support1 x RJ-45 port1 x optical S/PDIF Out connector2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionWater cooling flow rate detectionFan fail warningFan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.Noise detection
BIOS
1 x 256 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.Support for Q-FlashSupport for Q-Flash PlusSupport for Smart Backup
Bundled Software
Norton® Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm![](https://www.gigabyte.com/FileUpload/global/Other/11/Photo/hdmi_logo.png)* The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.* All trademarks and logos are the properties of their respective holders.* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.
