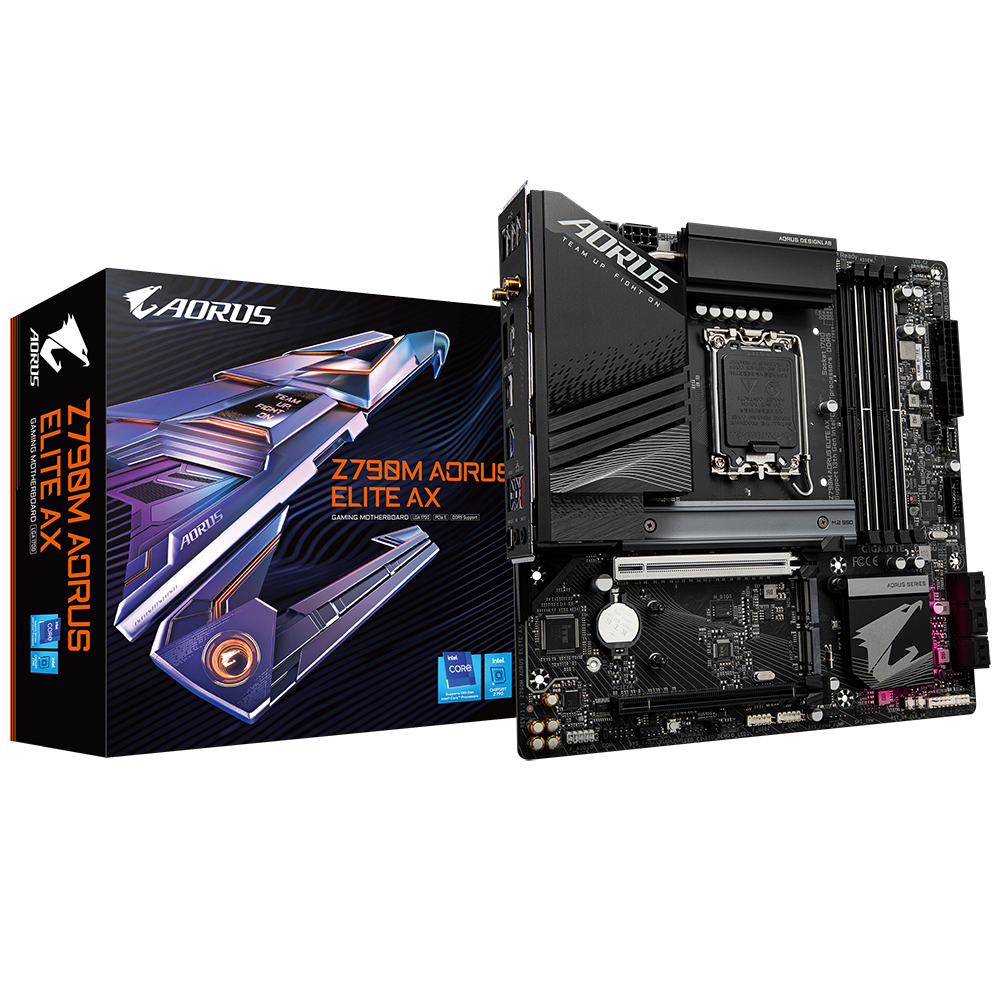

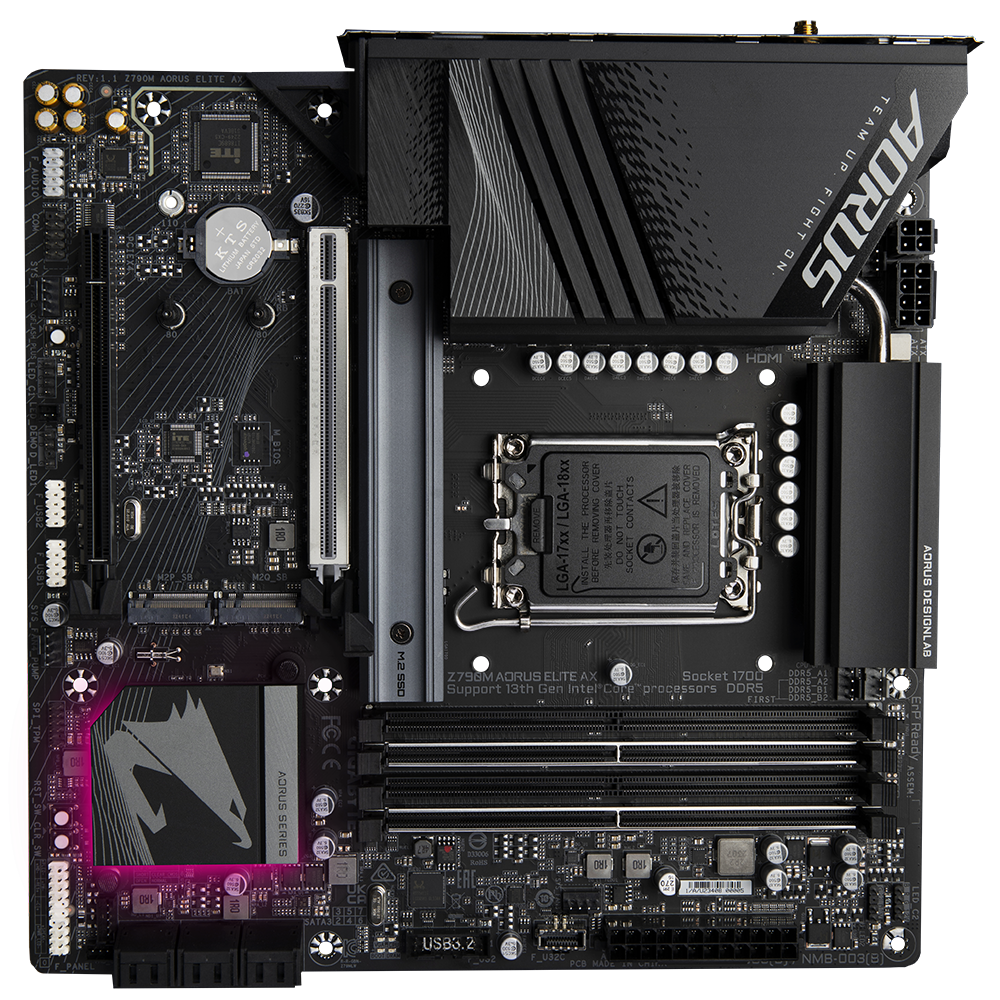

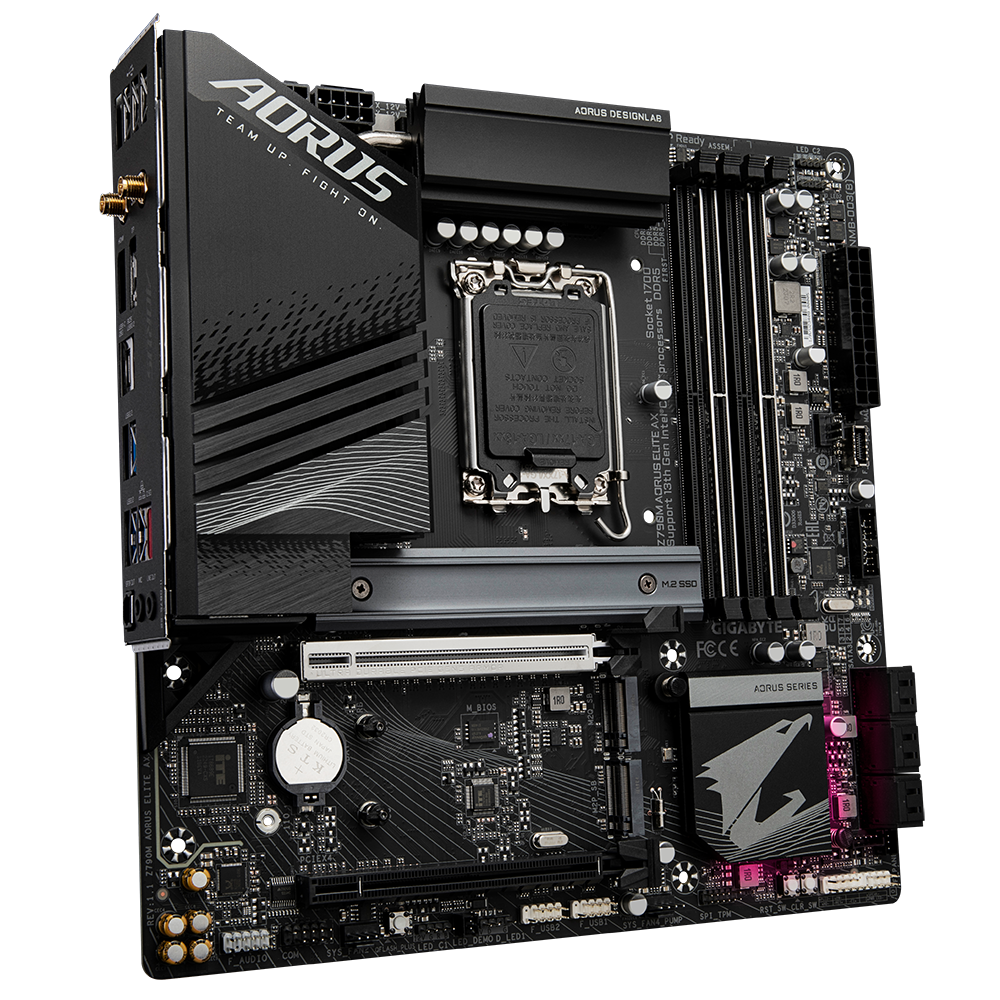

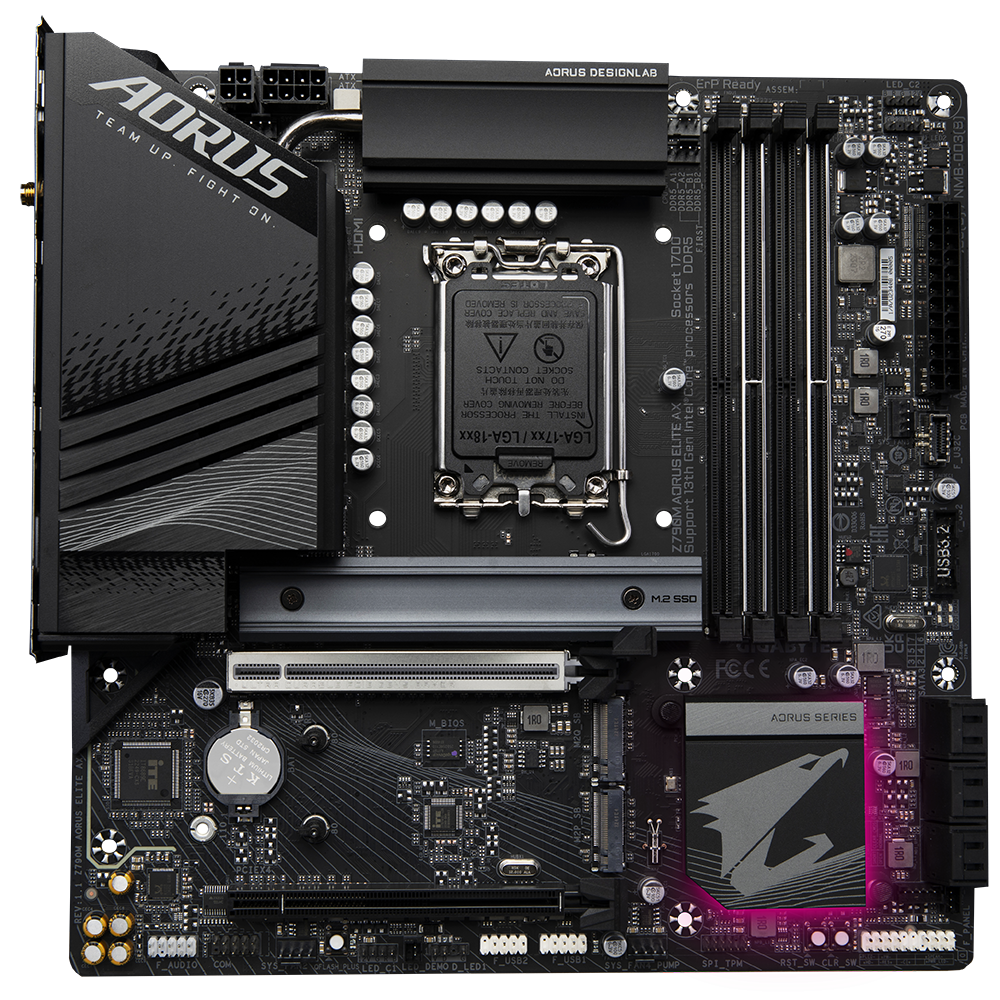

Gigabyte Z790M AORUS ELITE AX Motherboard
  • Model:Z790M AORUS ELITE AX
  • Supports Intel 12th and 13th Gen Core CPUs
  • Intel Z790 chipset, LGA 1700, mATX form factor
  • Dual channel DDR5 memory support
  • PCIe 5.0, WiFi 6E, USB-C connectivity
  • 3 Years Warranty from Gigabyte
₹ 20,350
Next Day Dispatch
1
CPU
1. LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors2. L3 cache varies with CPU(Please refer "CPU Support List" for more information.)
Chipset
1. Intel® Z790 Express Chipset
Memory
1. Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules2. 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory3. Dual channel memory architecture4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules6. Support for Extreme Memory Profile (XMP) memory modules(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz   * Support for HDMI 2.1 version and HDCP 2.3.   ** Support native HDMI 2.1 TMDS compatible ports.2. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60   * Support for DisplayPort 1.2 version and HDCP 2.3(Graphics specifications may vary depending on CPU support.)
Audio
1. Realtek® ALC1220 CODEC   * The back panel line out jack supports DSD audio.2. High Definition Audio3. 2/4/5.1/7.1-channel   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.4. Support for S/PDIF Out
LAN
1. Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi 6E AX2111. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands2. BLUETOOTH 5.33. Support for 11ax 160MHz wireless standard* Actual data rate may vary depending on environment and equipment.
Expansion Slots
CPU:1. 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)   * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.Chipset:1. 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface
CPU:1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)Chipset:1. 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)2. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)3. 6 x SATA 6Gb/s connectorsRAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devicesRAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB
Chipset:1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header3. 1 x USB 3.2 Gen 2 Type-A port (red) on the back panelChipset+2 USB 2.0 Hubs:1. 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)Chipset+2 USB 2.0 Hubs:1. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
01. 1 x 24-pin ATX main power connector02. 1 x 8-pin ATX 12V power connector03. 1 x 4-pin ATX 12V power connector04. 1 x CPU fan header05. 1 x water cooling CPU fan header06. 3 x system fan headers07. 1 x system fan/water cooling pump header08. 2 x addressable LED strip headers09. 2 x RGB LED strip headers10. 3 x M.2 Socket 3 connectors11. 6 x SATA 6Gb/s connectors12. 1 x front panel header13. 1 x front panel audio header14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support15. 1 x USB 3.2 Gen 1 header16. 2 x USB 2.0/1.1 headers17. 2 x Thunderbolt™ add-in card connectors18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)19. 1 x serial port header20. 1 x reset button21. 1 x Q-Flash Plus button22. 1 x Clear CMOS button23. 1 x reset jumper

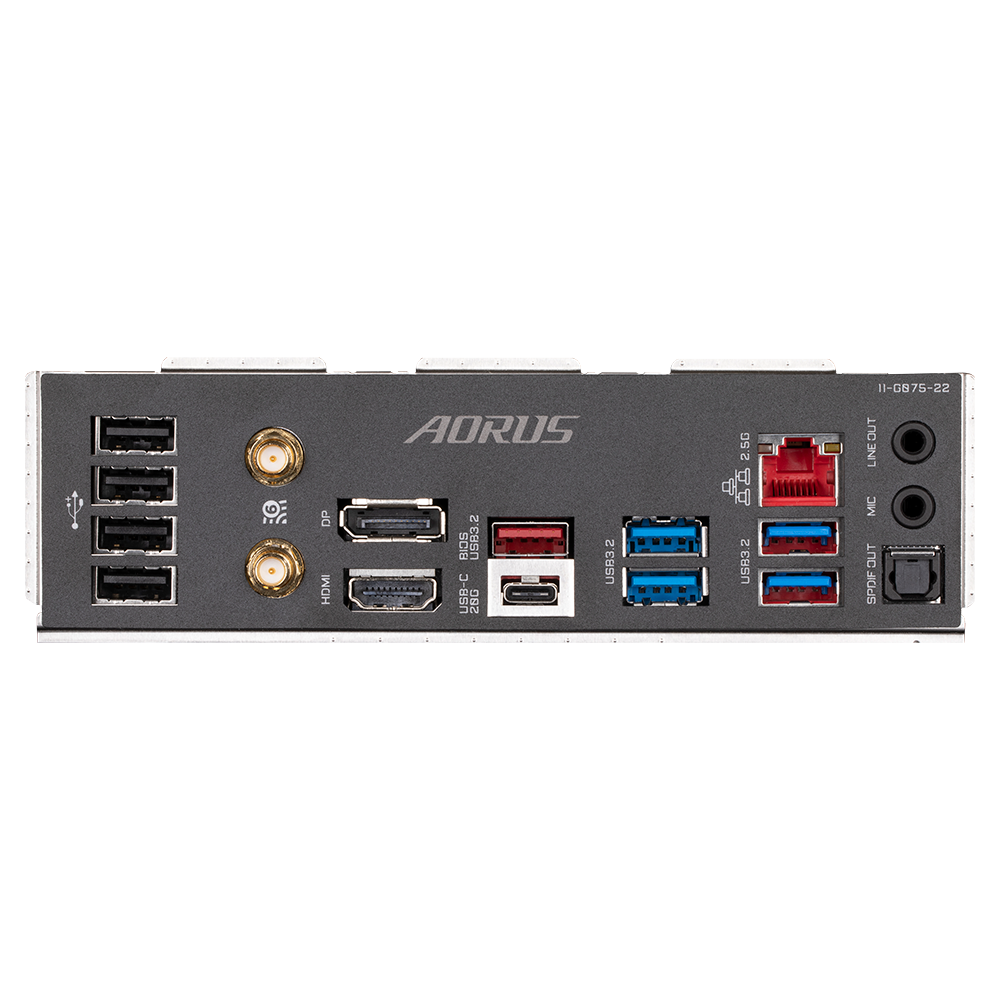

Back Panel Connectors
01. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support02. 1 x USB 3.2 Gen 2 Type-A port (red)03. 4 x USB 3.2 Gen 1 ports04. 4 x USB 2.0/1.1 ports05. 2 x SMA antenna connectors (2T2R)06. 1 x HDMI 2.0 port07. 1 x DisplayPort08. 1 x RJ-45 port09. 1 x optical S/PDIF Out connector10. 2 x audio jacks
I/O Controller
1. iTE® I/O Controller Chip
H/W Monitoring
1. Voltage detection2. Temperature detection3. Fan speed detection4. Water cooling flow rate detection5. Fan fail warning6. Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1. 1 x 256 Mbit flash2. Use of licensed AMI UEFI BIOS3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
1. Support for GIGABYTE Control Center (GCC)   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.2. Support for Q-Flash3. Support for Q-Flash Plus4. Support for Smart Backup
Bundled Software
1. Norton® Internet Security (OEM version)2. LAN bandwidth management software
Operating System
1. Support for Windows 11 64-bit2. Support for Windows 10 64-bit
Form Factor
1. Micro ATX Form Factor; 24.4cm x 24.4cm
