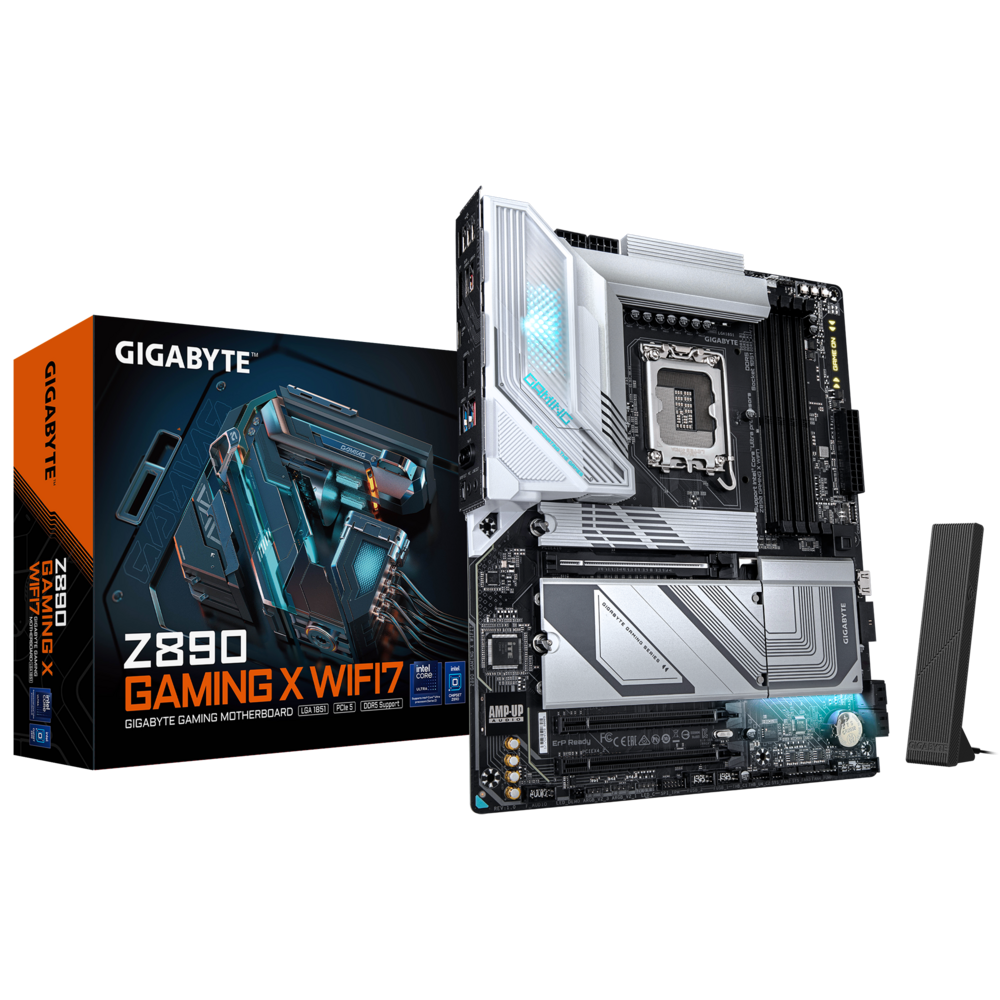

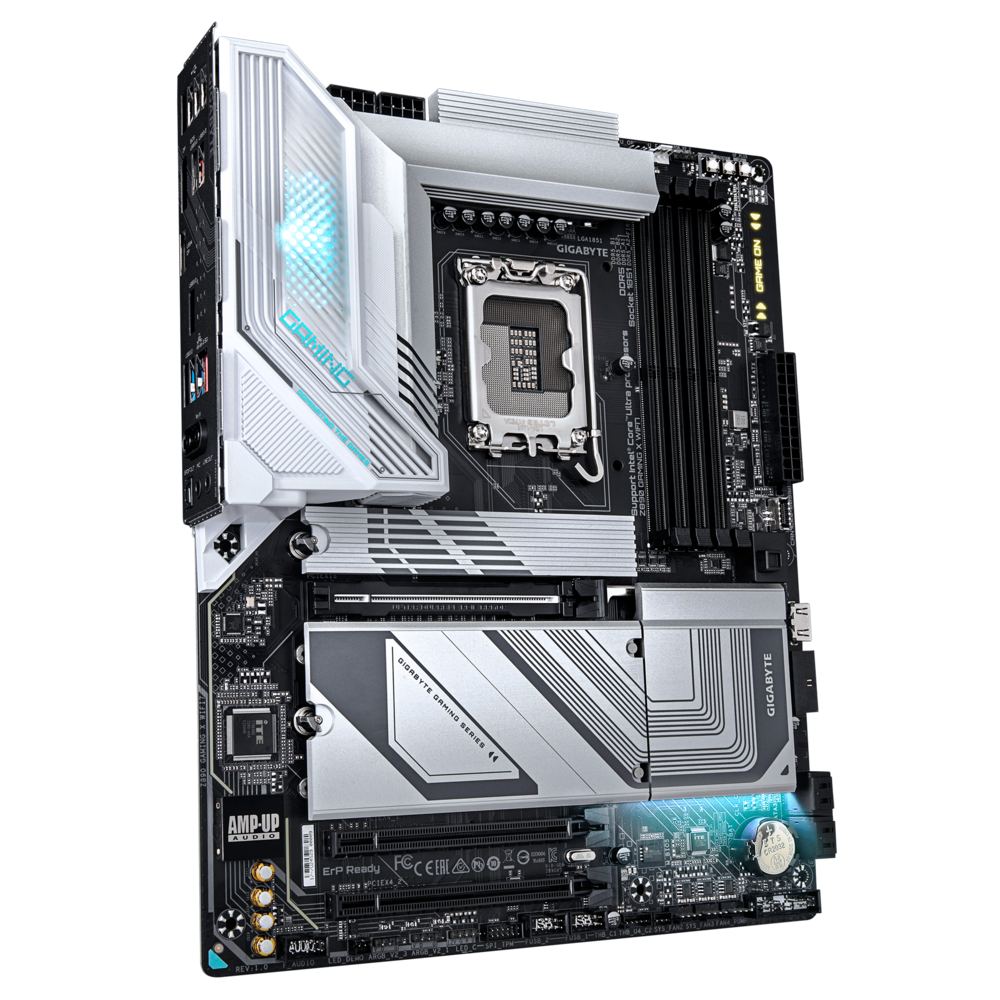

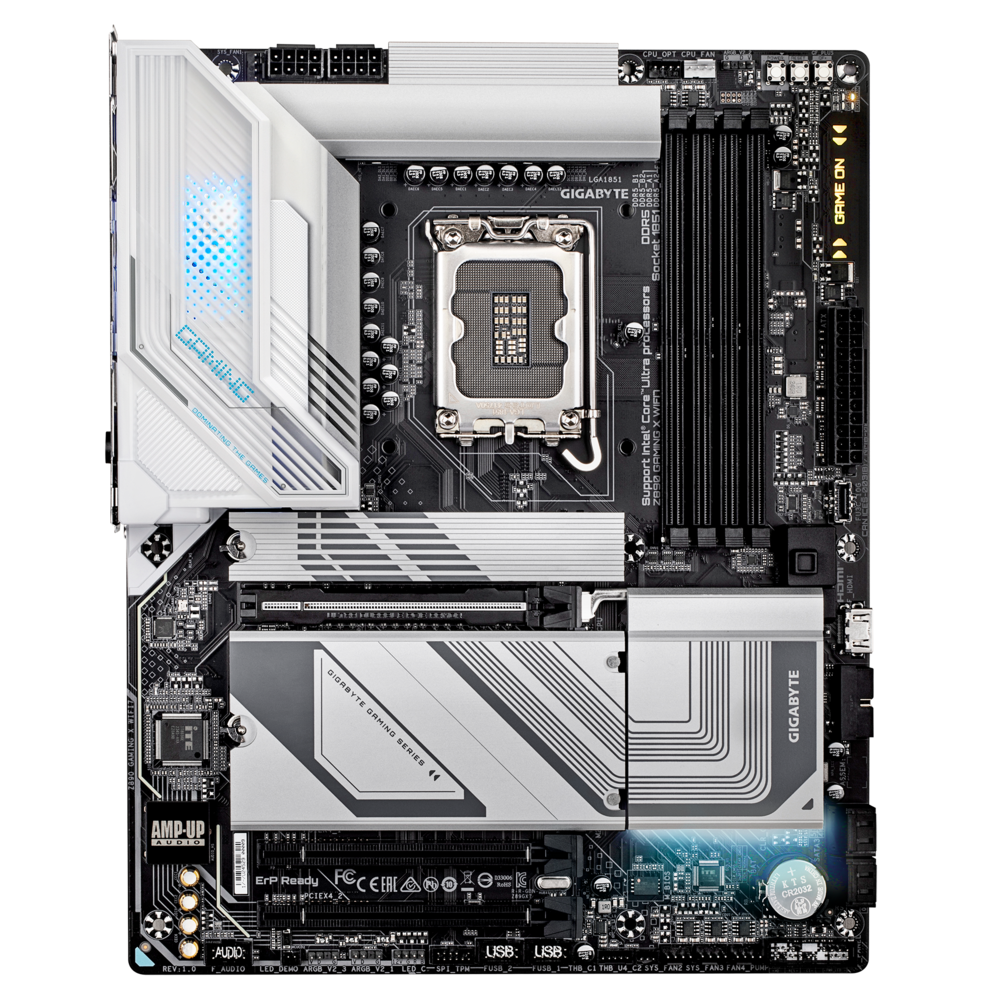

Gigabyte Z890 GAMING X WIFI7 Motherboard

  • Model:Z890 GAMING X WIFI7
  • Supports Intel Core Ultra CPUs
  • Intel Z890, LGA 1851, ATX Form Factor
  • DDR5 with XMP Memory Support
  • PCIe 5.0, WiFi 7, USB4 Type-C
  • 3 Years Warranty from Gigabyte
₹ 25,600
Next Day Dispatch
1
CPU
Support for 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® ProcessorsLGA1700 package
Chipset
Intel® Z890 Express Chipset
Memory
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memoryDual channel memory architectureSupport for DDR5 8000(OC) / 7900(OC) / 7800(OC) / 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor-Intel® HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Audio
Realtek® Audio CODECHigh Definition Audio2/4/5.1/7.1-channelSupport for S/PDIF Out
LAN
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel® Wi-Fi 7 moduleSupports 802.11a/b/g/n/ac/ax/be, 2.4/5/6GHz bandsSupports Bluetooth 5.4
Expansion Slots
1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x161 x PCI Express x16 slot, supporting PCIe 4.0 and running at x42 x PCI Express x1 slots, supporting PCIe 3.0
Storage Interface
CPU:1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2)Chipset:3 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2)4 x SATA 6Gb/s connectorsSupport for RAID 0, RAID 1, RAID 10, and RAID 5
USB
Chipset:Back Panel:1 x USB Type-C® port, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 2 Type-A ports (red)4 x USB 2.0/1.1 portsInternal:1 x USB Type-C® port, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header, supporting 2 ports2 x USB 2.0/1.1 headers, supporting 4 ports
Internal I/O Connectors
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x 4-pin ATX 12V power connector1 x CPU fan header1 x water cooling CPU fan header5 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers4 x SATA 6Gb/s connectors4 x M.2 Socket 3 connectors1 x front panel header1 x front panel audio header1 x USB Type-C® header, with USB 3.2 Gen 2x2 support1 x USB 3.2 Gen 1 header, supporting 2 USB 3.2 Gen 1 ports2 x USB 2.0/1.1 headers, supporting 4 USB 2.0/1.1 ports1 x noise detection header1 x speaker header1 x reset header1 x Clear CMOS header1 x chassis intrusion header
Back Panel Connectors
1 x HDMI port1 x USB Type-C® port, with USB 3.2 Gen 2x2 support2 x USB 3.2 Gen 2 Type-A ports (red)4 x USB 2.0/1.1 ports1 x RJ-45 port2 x SMA antenna connectors (2T2R)3 x audio jacks
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
