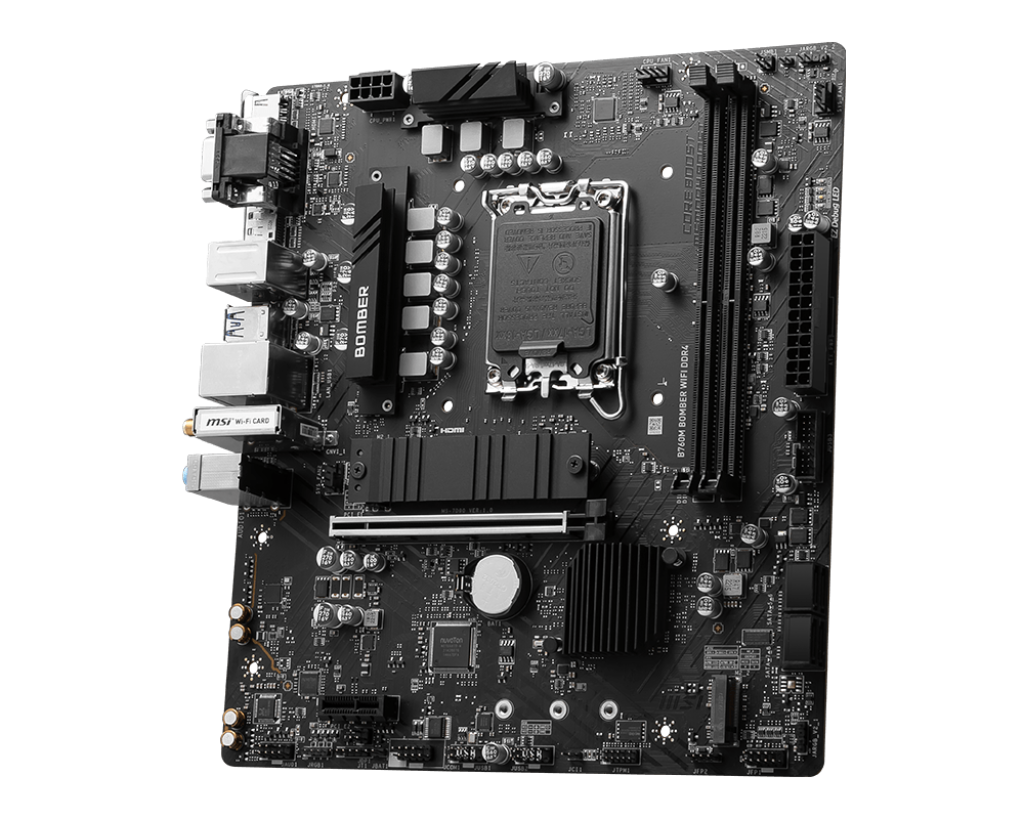

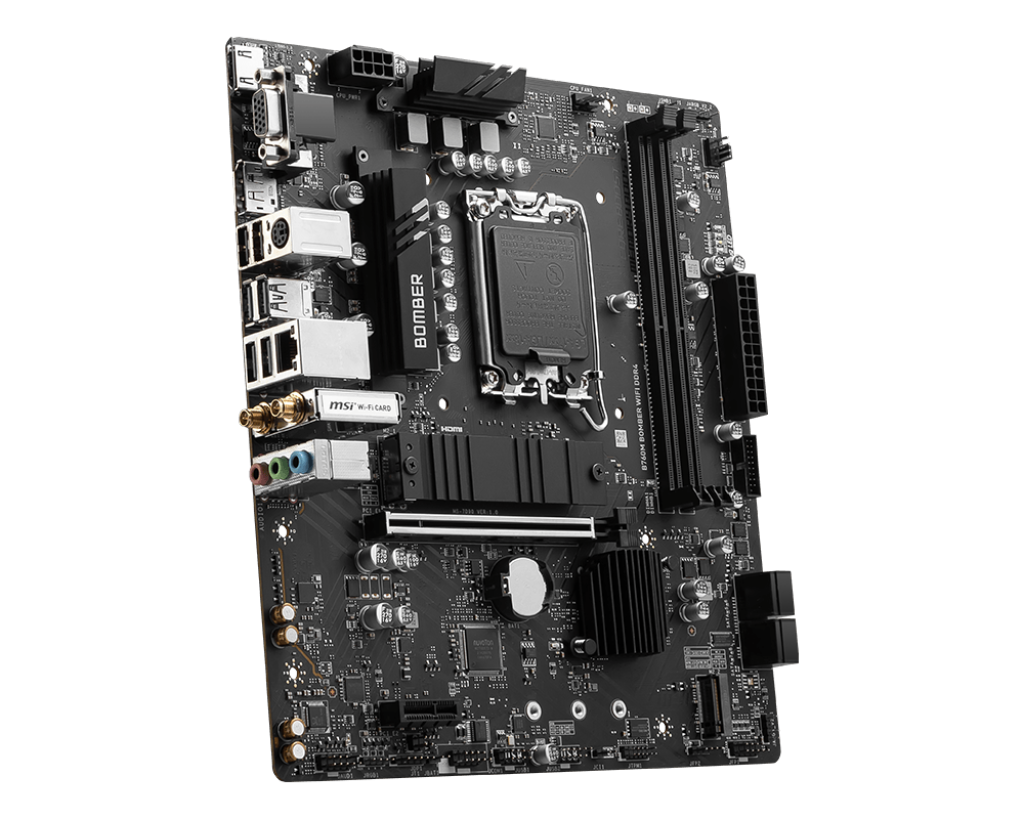

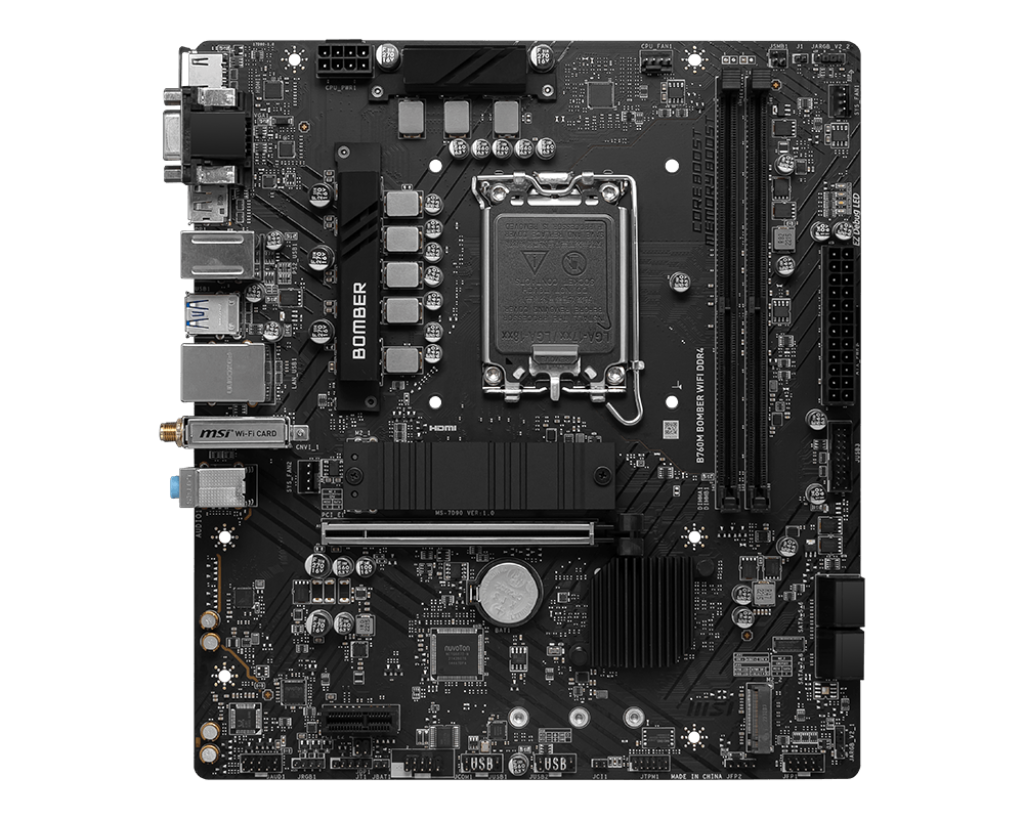

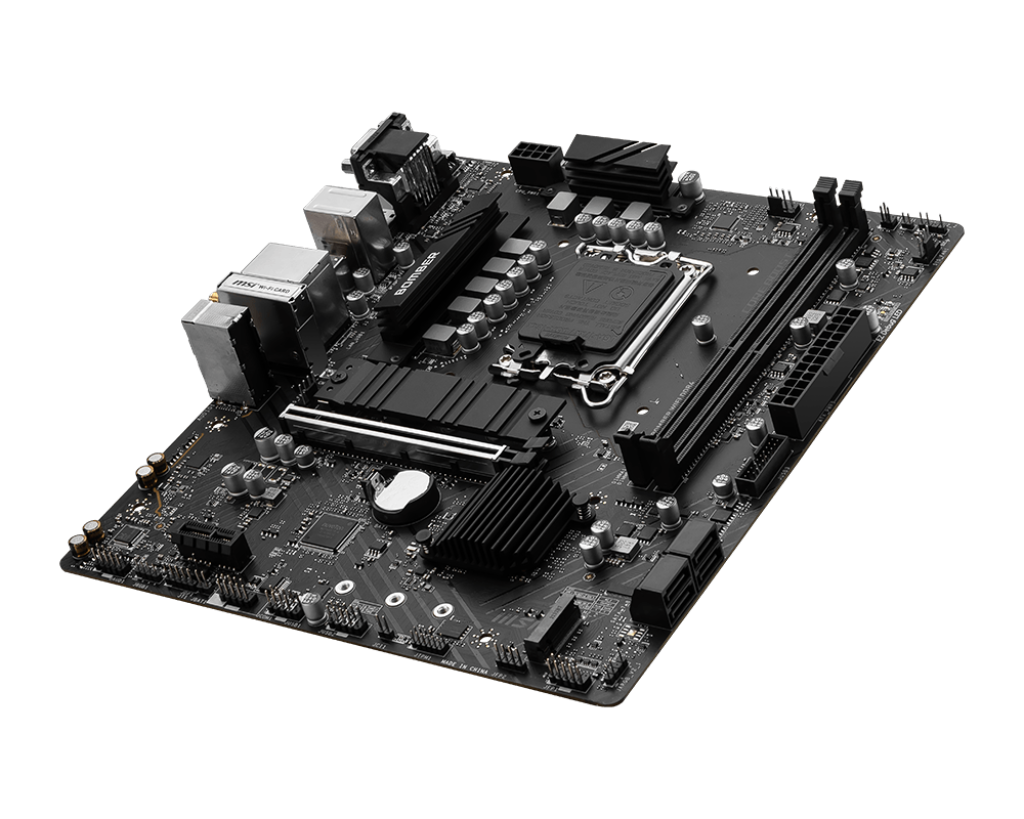

MSI B760M BOMBER WIFI DDR4 Motherboard
  • Model:B760M BOMBER WIFI DDR4
  • Supports Intel 14th/13th/12th Gen CPUs
  • Intel B760 chipset, LGA 1700, Micro-ATX
  • Dual Channel DDR4-4800+MHz memory support
  • PCIe 4.0, 2.5G LAN, Wi-Fi 6E connectivity
  • 3 Years Warranty from MSI
₹ 11,550
Next Day Dispatch
1
Chipset
INTEL B760
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700
Memory
2x DDR4, Maximum Memory Capacity 64GB Memory Support 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC) Max. overclocking frequency: • 1DPC 1R Max speed up to 4800+ MHz • 1DPC 2R Max speed up to 4600+ MHz Supports Dual-Channel mode Supports Dnon-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Onboard Graphics
1x HDMI™ Support HDMI™ 2.1 with HDR, maximum resolution of 4K 60Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x D-Sub Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz _*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed._
Slot
1x PCI-E x16 slot (Qty) 1x PCI-E x1 slot (Qty) PCI_E1 Gen PCIe 4.0 supports up to (From CPU) PCI_E2 Gen PCIe 4.0 supports up to (From Chipset)
Audio
Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage
2x M.2 (Qty) M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G (Qty) _* SATA7 will be unavailable when installing M.2 SATA SSD in the M2_2 slot._
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front)
LAN
Realtek® RTL8125B 2.5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 2x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports
WIRELESS LAN & BLUETOOTH
Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.3, FIPS, FISMA _* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11._ _** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11._
LED FEATURE
4x EZ Debug LED

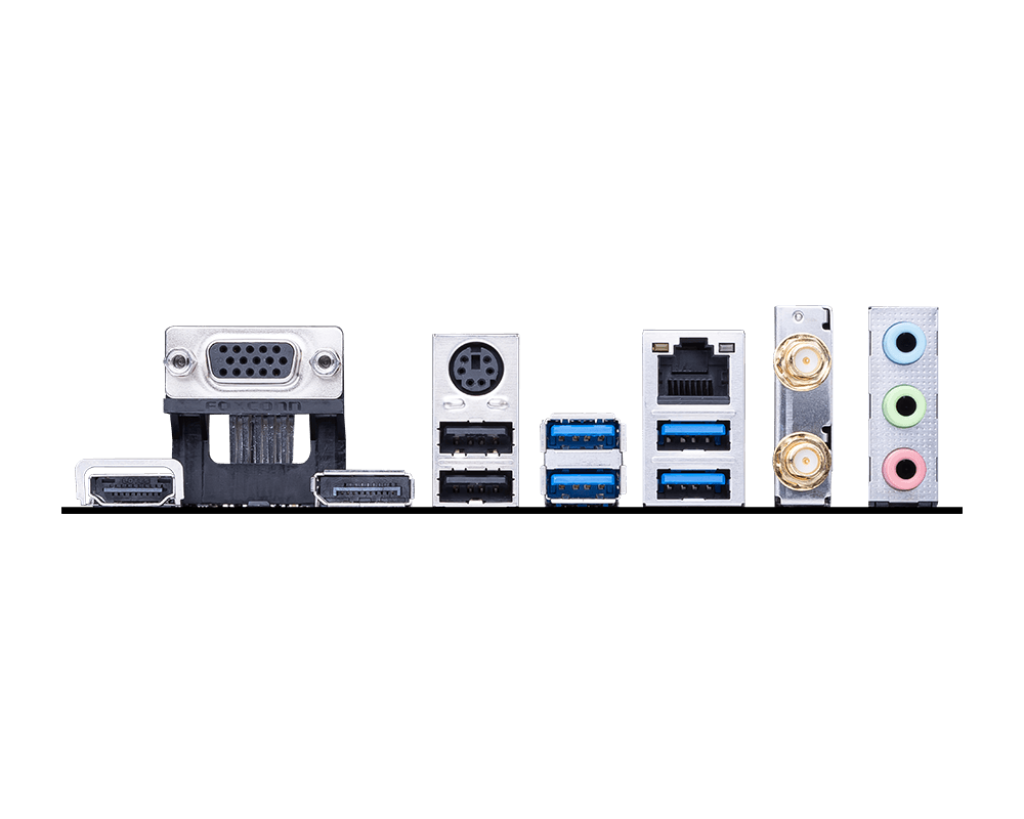

BACK PANEL PORTS
1. HDMI™ 2. VGA 3. DisplayPort 4. Keyboard / Mouse 5. 2.5G LAN 6. Wi-Fi / Bluetooth 7. Audio Connectors 8. USB 2.0 9. USB 3.2 Gen 1 5Gbps (Type-A)
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
mATX 220mmx243.84mm
