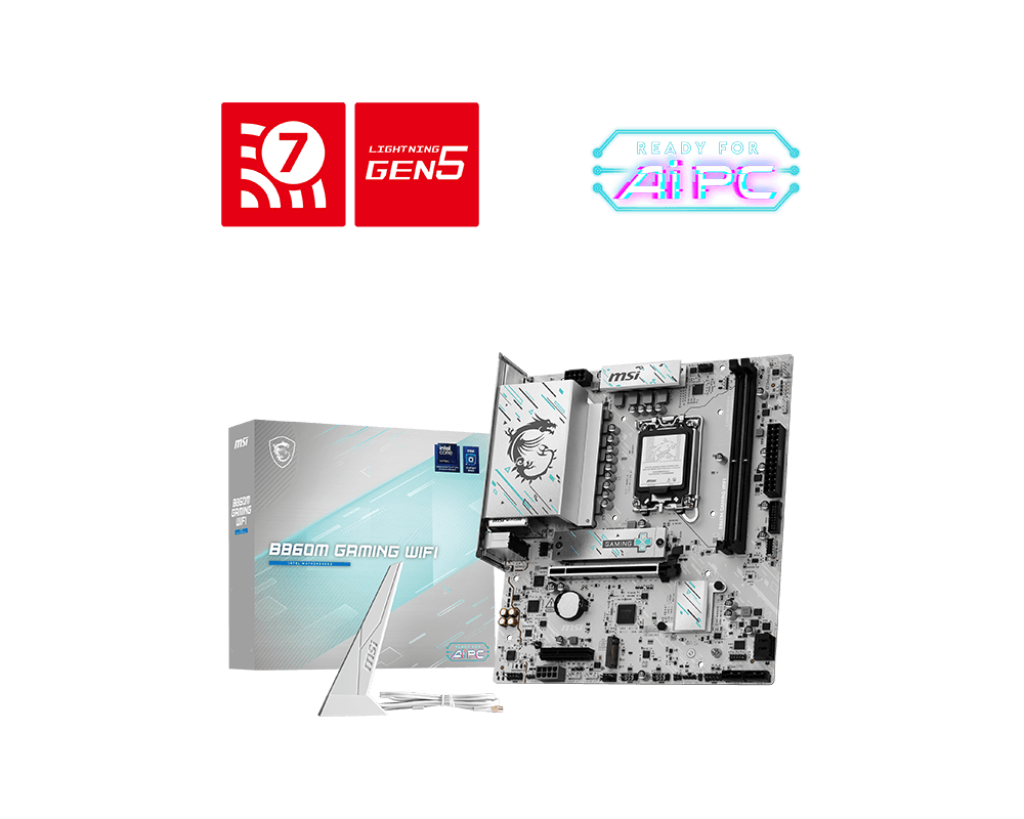

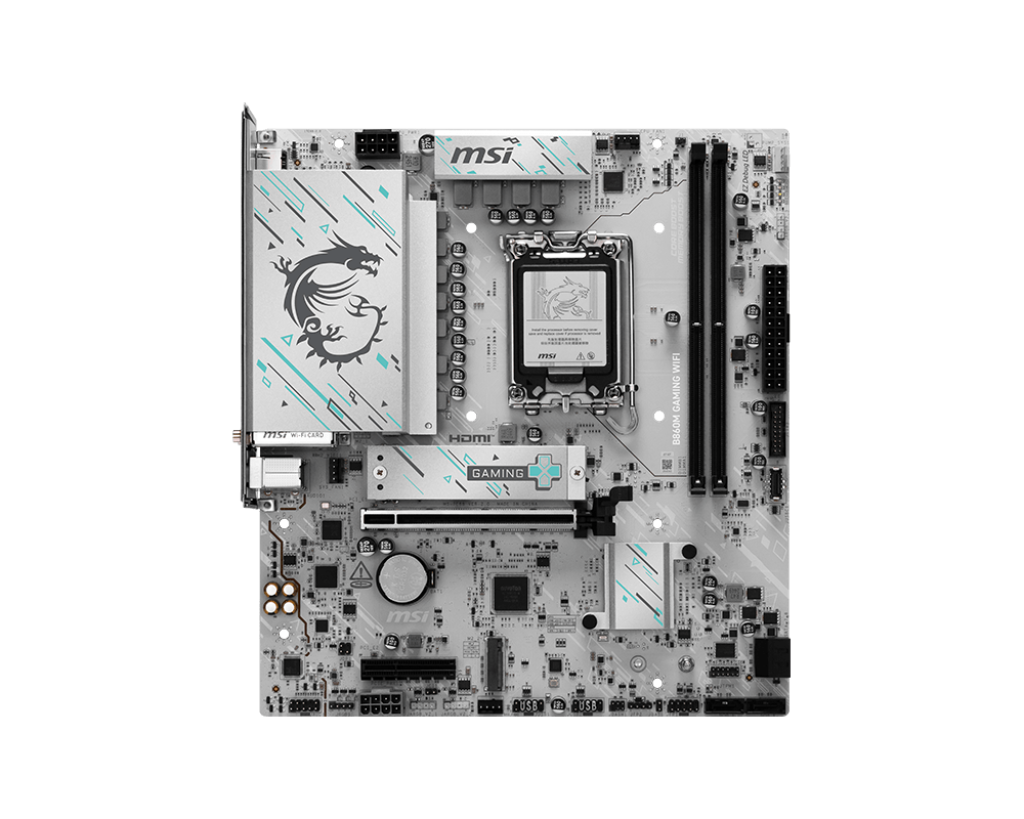

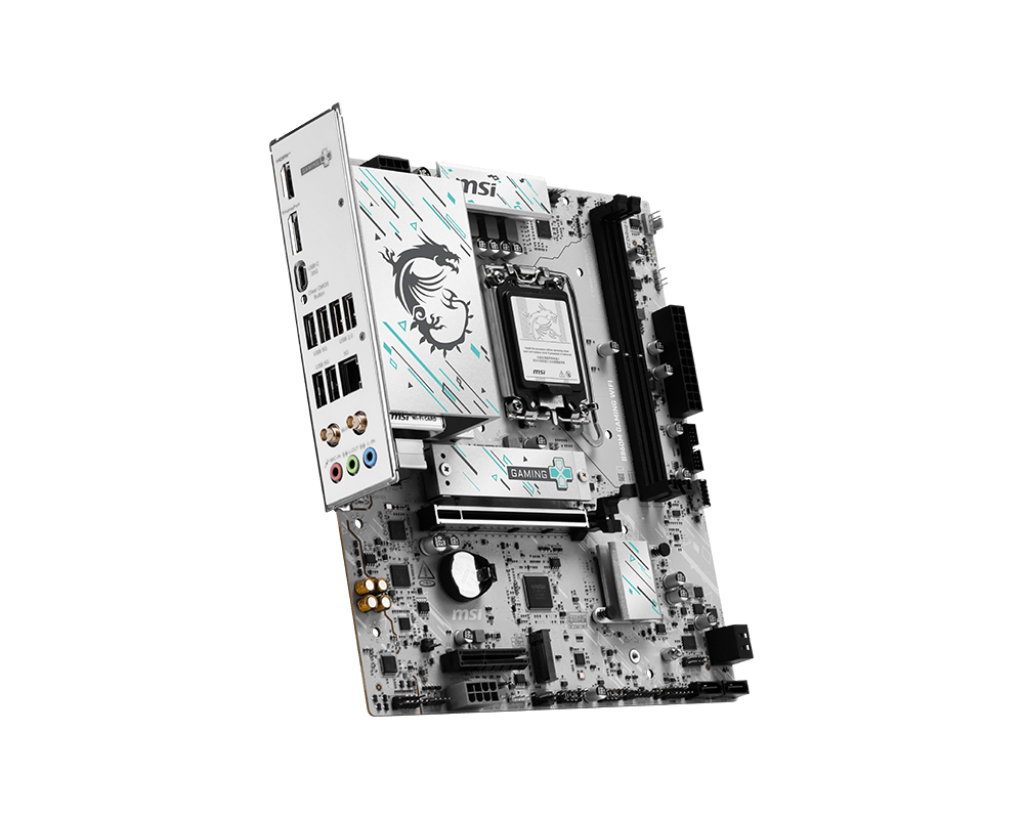

MSI B860M GAMING WIFI Motherboard
  • Model:B860M GAMING WIFI
  • Supports Intel Core Ultra Processors (LGA 1851)
  • Intel B860 chipset, Micro-ATX form factor
  • Dual Channel DDR5-9066+ MT/s memory support
  • PCIe 5.0, WiFi 7, USB 20G Type-C connectivity
  • 3 Years Warranty from MSI
₹ 14,800
In Stock
1
Chipset
INTEL B860
CPU
Supports Intel® Core™ Ultra Processors (Series 2)LGA 1851
Memory
2x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 9066+ MT/s• 1DPC 2R Max speed up to 7200+ MT/sSupports Intel® POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel® XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM_• The DIMM slots on this motherboard only have single-sided latches.__• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/._
Onboard Graphics
1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz*_*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed._
Slot
1x PCI-E x16 slot1x PCI-E x4 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Realtek® ALC897 Codec7.1-Channel High Definition Audio
Storage
2x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G_*Please refer to the manual for M.2 SSD heatsink restrictions._
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
USB
2x USB 2.0 (Rear)4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type A (Front)1x USB 20Gbps Type C (Rear)
LAN
Realtek® 8126 5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Wi-Fi 7 moduleThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.9GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM _\* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.__\*\* The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan._
LED FEATURE
4x EZ Debug LED1x EZ Memory Detection LED

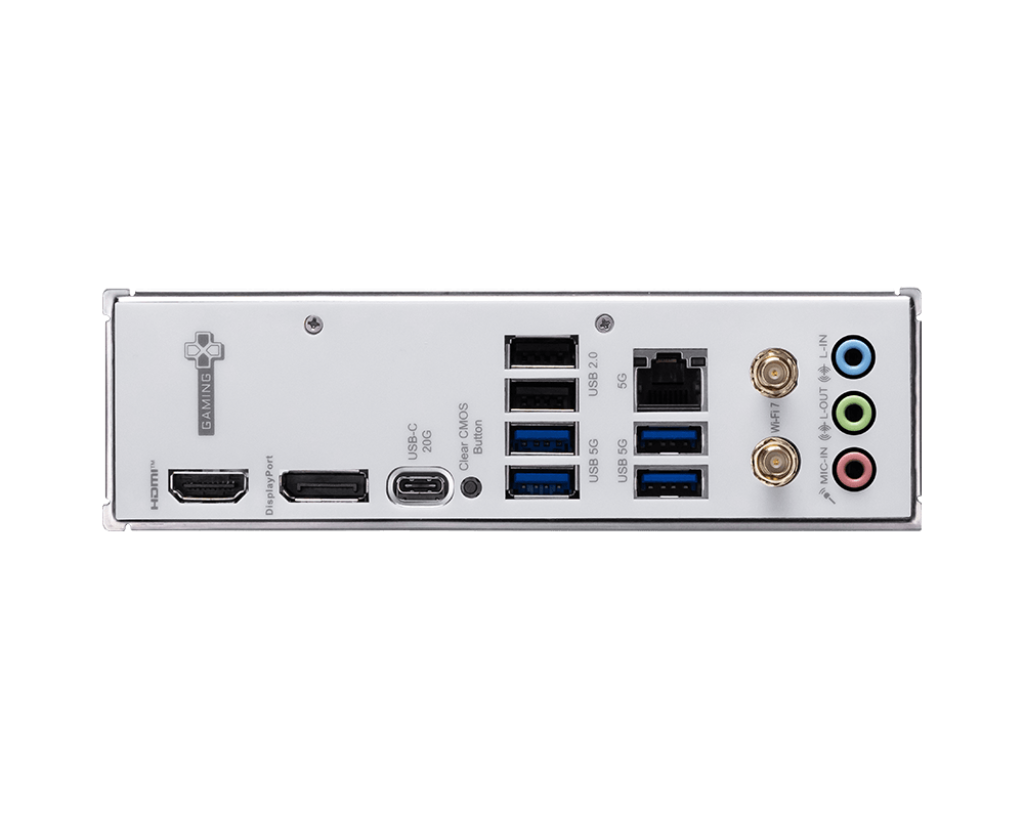

BACK PANEL PORTS
1. USB 2.02. 5G LAN3. Wi-Fi / Bluetooth4. HDMI™5. Display Port6. USB 20Gbps (Type-C)7. Clear CMOS Button8. USB 5Gbps (Type-A)9. Audio Connectors
OPERATING SYSTEM
Support for Windows® 11 64-bit
PCB Info
mATX220mmx243.84mm
