MSI H310M PRO-M2 Motherboard
  • Model:H310M PRO-M2
  • Supports 9th/8th Gen Intel Core
  • Intel H310 chipset, LGA 1151
  • Dual channel DDR4 support
  • PCIe x16 and M.2 slot available
  • 3 Years Warranty from MSI
₹ 5,600
Next Day Dispatch
1
Socket
1151
Chipset
Intel® H310 Chipset
Memory Channel
Dual
DIMM Slots
2
Max Memory (GB)
32
PCI-E x16
1
PCI-E Gen
Gen3
PCI-E x1
2
SATAIII
4
M.2 Slot
1
TPM (header)
1
USB 3.1 ports (Front)
2(Gen1, Type A)
USB 3.1 ports (Rear)
2(Gen1, Type A)
USB 2.0 ports (Front)
2
USB 2.0 ports (Rear)
4
Serial ports(Front)
1
Audio ports (Rear)
Realtek® ALC887 Codec
DVI-D
1
VGA
1
HDMI
1
DirectX
12
CPU Support
Support for Windows® 10 64-bit
Form Factor
M-ATX
Processor
Supports 9th / 8th Gen Intel® Core™ / Pentium® Gold / Celeron® processors for LGA 1151 socket
Memory
2 x DDR4 memory slots, support up to 32GB; Supports DDR4 2666/ 2400/ 2133 MHz; Dual channel memory architecture; Supports non-ECC, un-buffered memory; Supports Intel® Extreme Memory Profile (XMP)
Slots
1 x PCIe 3.0 x16 slot; 2 x PCIe 2.0 x1 slots
Onboard Graphics
1x VGA port, supports a maximum resolution of 2048x1536@50Hz, 2048x1280@60Hz, 1920x1200@60Hz[1](https://www.msi.com/Motherboard/H310M-PRO-M2/Specification#ref1); 1x DVI-D port, supports a maximum resolution of 1920x1200@60Hz[1](https://www.msi.com/Motherboard/H310M-PRO-M2/Specification#ref1); 1x HDMI™ port 1.4, supports a maximum resolution of 4096x2160@30Hz[1](https://www.msi.com/Motherboard/H310M-PRO-M2/Specification#ref1)
Storage
4 x SATA 6Gb/s ports; 1 x M.2 slot (Key M); Support up to PCIe 2.0 x4 and SATA 6Gb/s; Supports 2242/ 2260 /2280 storage devices
USB
4 x USB 3.1 Gen1 (SuperSpeed USB) ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connectors); 6 x USB 2.0 (High-speed USB) ports (4 Type-A ports on the back panel, 2 ports available through the internal USB connectors)
Audio
Realtek® ALC887 Codec; 7.1-Channel High Definition Audio
LAN
1 x Intel I219-V Gigabit LAN controller
Internal connectors
1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 4 x SATA 6Gb/s connectors; 1 x USB 3.1 Gen1 connector (supports additional 2 USB 3.1 Gen1 ports); 1 x USB 2.0 connector (supports additional 2 USB 2.0 ports); 1 x 4-pin CPU fan connector; 1 x 4-pin system fan connector; 1 x Front panel audio connector; 1 x Serial port connector; 2 x Front panel connectors; 1 x TPM module connector; 1 x Chassis Intrusion connector; 1 x Clear CMOS jumper

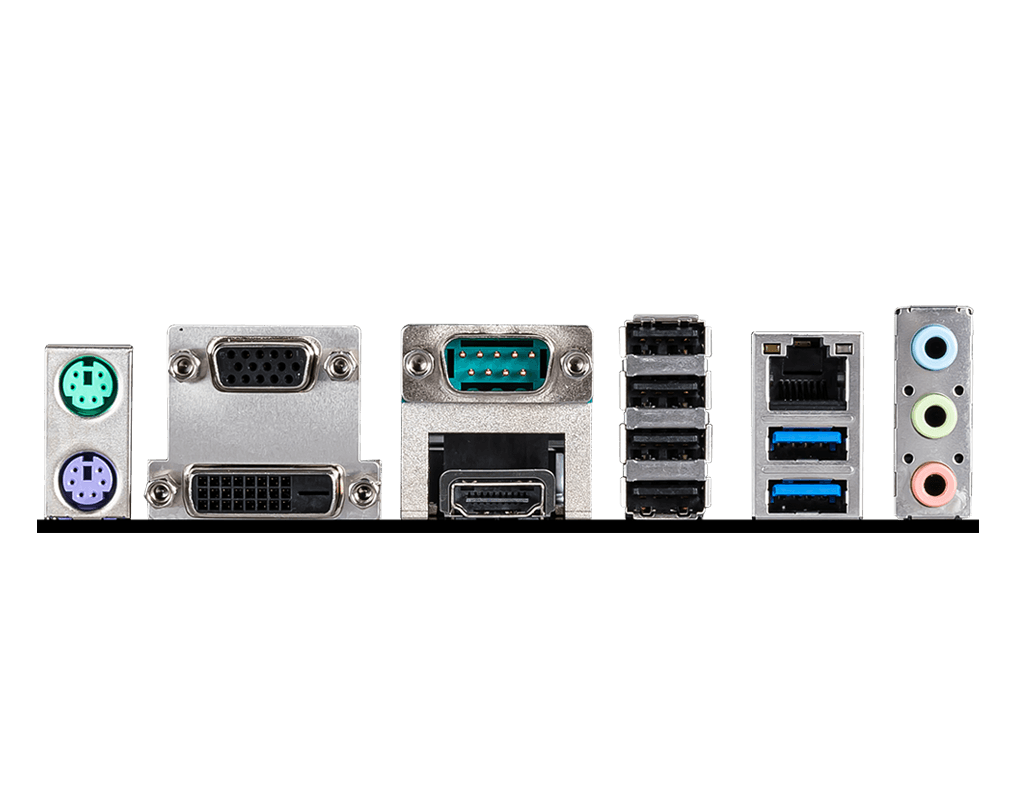

Back panel ports
PS/2 Combo Port; VGA Port; HDMI™ Port; USB 3.1 Gen1; LAN Port; HD Audio Connectors; USB 2.0 Port; DVI-D Port; USB 2.0 Port
Dimensions
9.1 in. x 7.3 in. (23.0 cm x 18.5 cm); m-ATX Form Factor
Mounting
6 mounting holes
Operating System
Support for Windows® 10 64-bit
