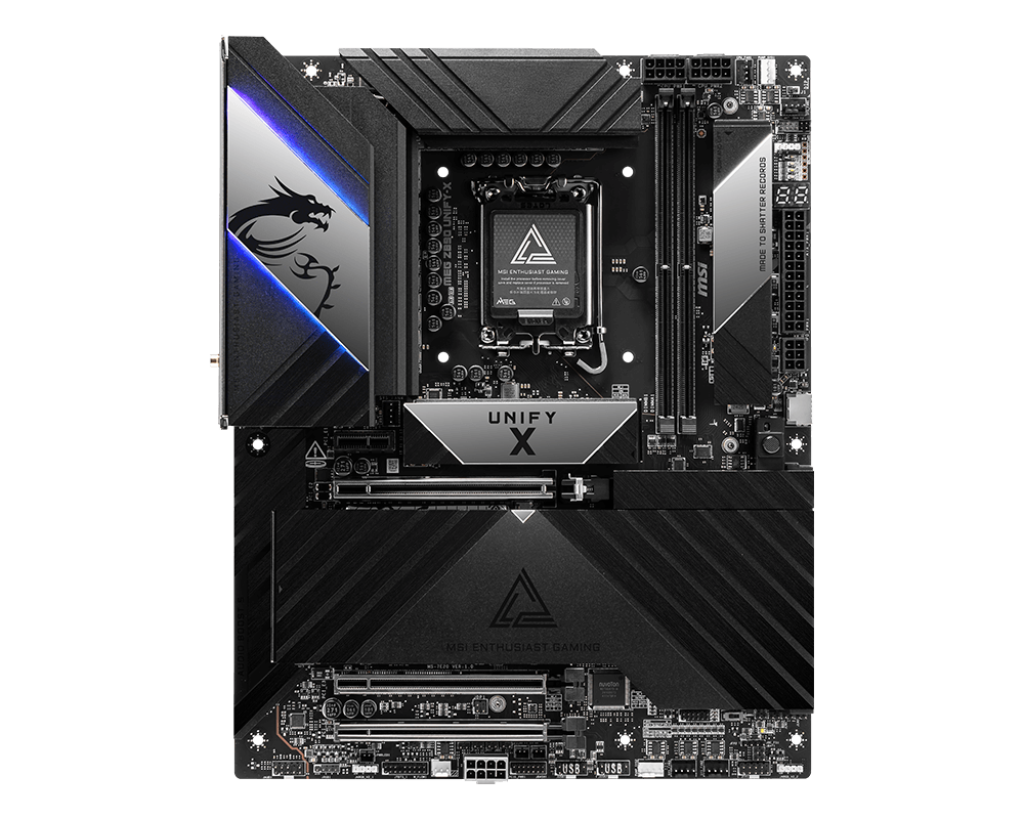

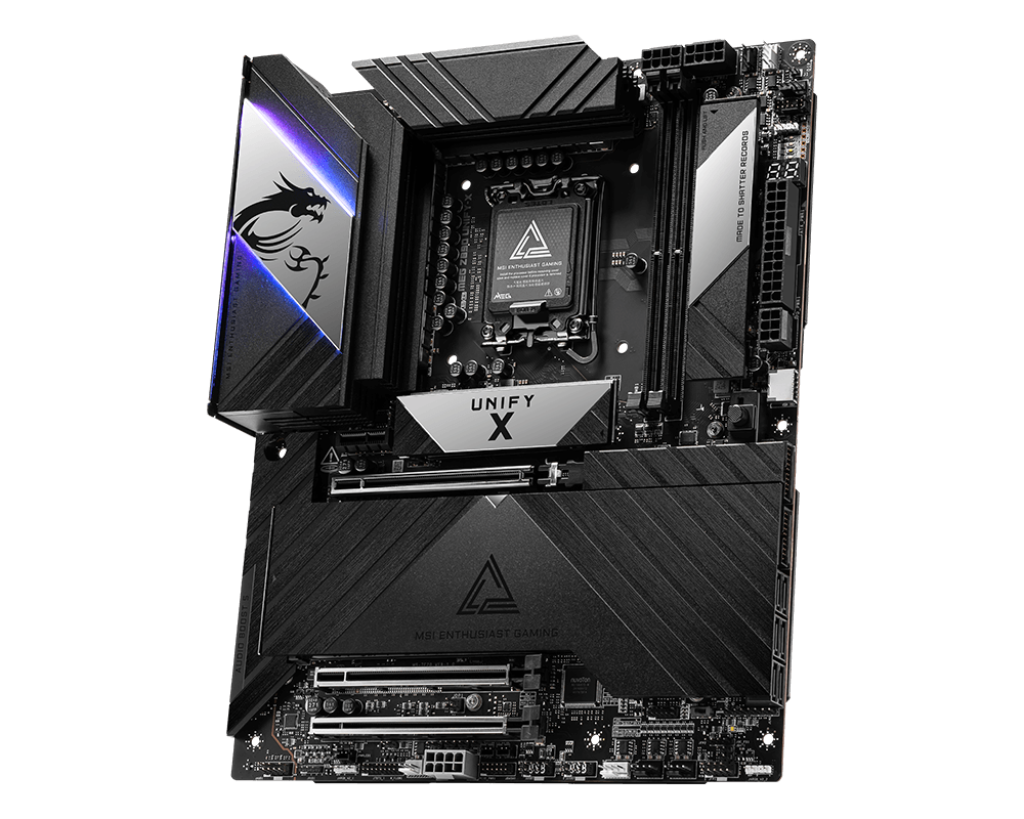

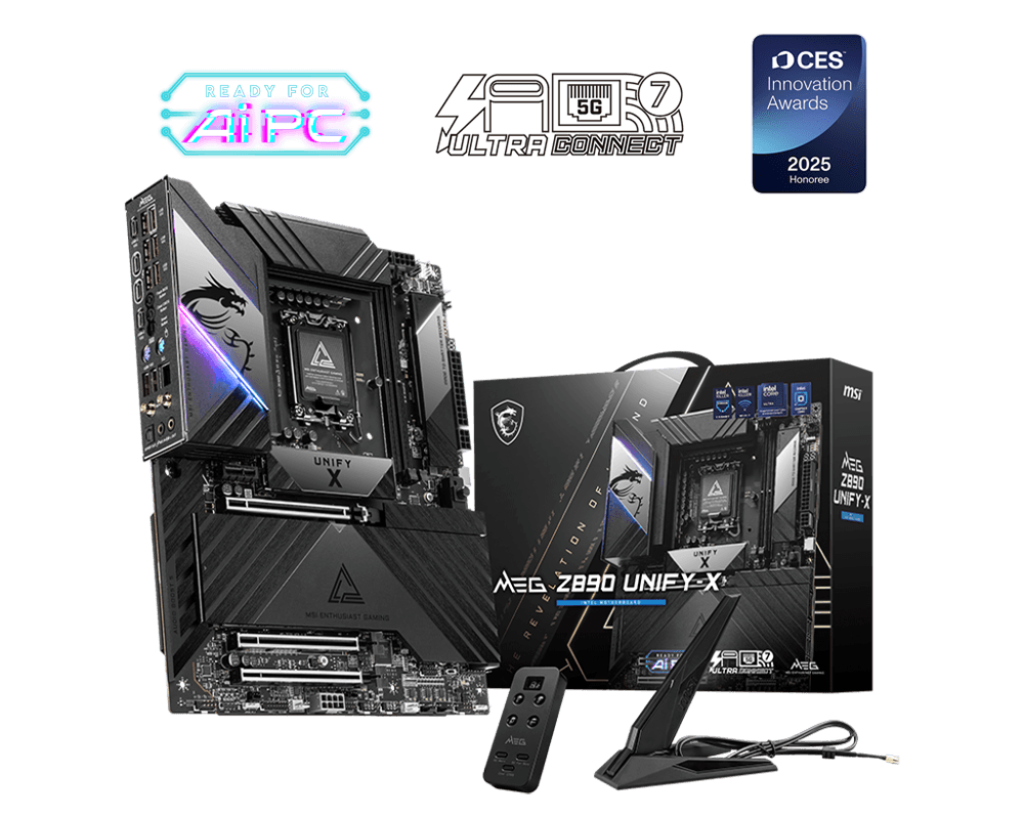

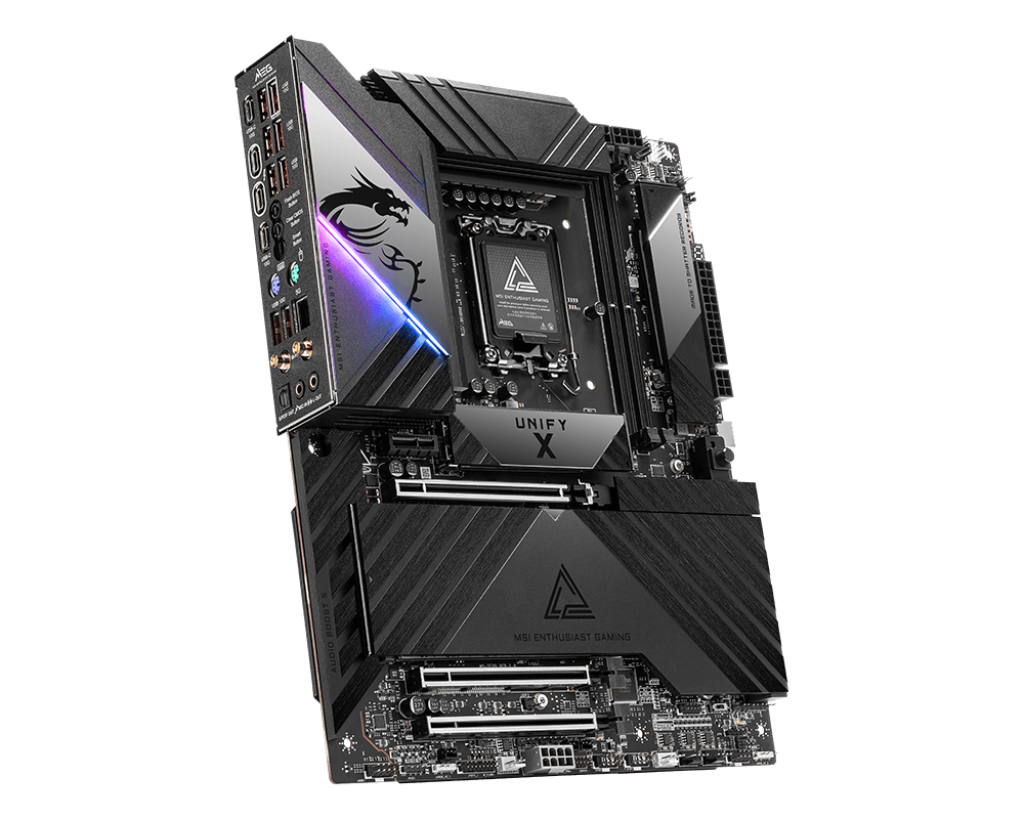

MSI MEG Z890 UNIFY-X Motherboard
  • Model:MEG Z890 UNIFY-X
  • Supports Intel Core Ultra Processors
  • Z890 Chipset, LGA 1851 Socket
  • DDR5 Memory, Dual Channel, 9600+ MT/s (OC)
  • PCIe 5.0, Dual Thunderbolt 4 Ports, Killer Wi-Fi 7
  • 3 Years Warranty from MSI
₹ 73,200
Next Day Dispatch
1
Chipset
INTEL Z890
CPU
Supports Intel® Core™ Ultra Processors (Series 2)LGA 1851
Memory
2x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support 9600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 9600+ MT/s• 1DPC 2R Max speed up to 7200+ MT/sSupports Intel® POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel® XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM* The DIMM slots on this motherboard only have single-sided latches.** Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
2x Type-C DisplayPortThunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz** Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E2 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 5.0 supports up to x8 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset) * PCI_E2 slot will run at x8 speed and PCI_E3 slot will run at x4 speed when installing PCIe Gen 5 M.2 device in M2_4 slot.** PCI_E4 will be unavailable when installing M.2 SSD in the M2_3 slot.
Audio
Realtek® ALC4080 Codec7.1-Channel USB High-Performance AudioSupports S/PDIF outputSupports up to 32-Bit/384 kHz playback on front panel
Storage
6x M.2M.2_1 Source (From CPU) supports up to PCIe 4.0 x4, supports 2280/2260 devicesM.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devicesM.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devicesM.2_4 Source (From CPU+Chipset) supports up to PCIe 5.0 x4 + PCIe 4.0 x4, supports 22110/2280/2260 devicesM.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devicesM.2_6 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices6x SATA 6G* M2_4 default from chipset, can support PCIe 5.0 x4 (From CPU) by manual BIOS adjustment.** SATA3 will be unavailable when installing M.2 SATA SSD in the M2_5 slot.*** Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt
2x Thunderbolt4 ports (Rear)Support up to 40Gbps transfer rate with Thunderbolt devicesSupport up to 20Gbps transfer rate with USB4 devicesSupport up to 10Gbps transfer rate with USB 3.2 devicesSupport up to 5V/3A,15W power chargingEach port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devicesSupport up to 8K display

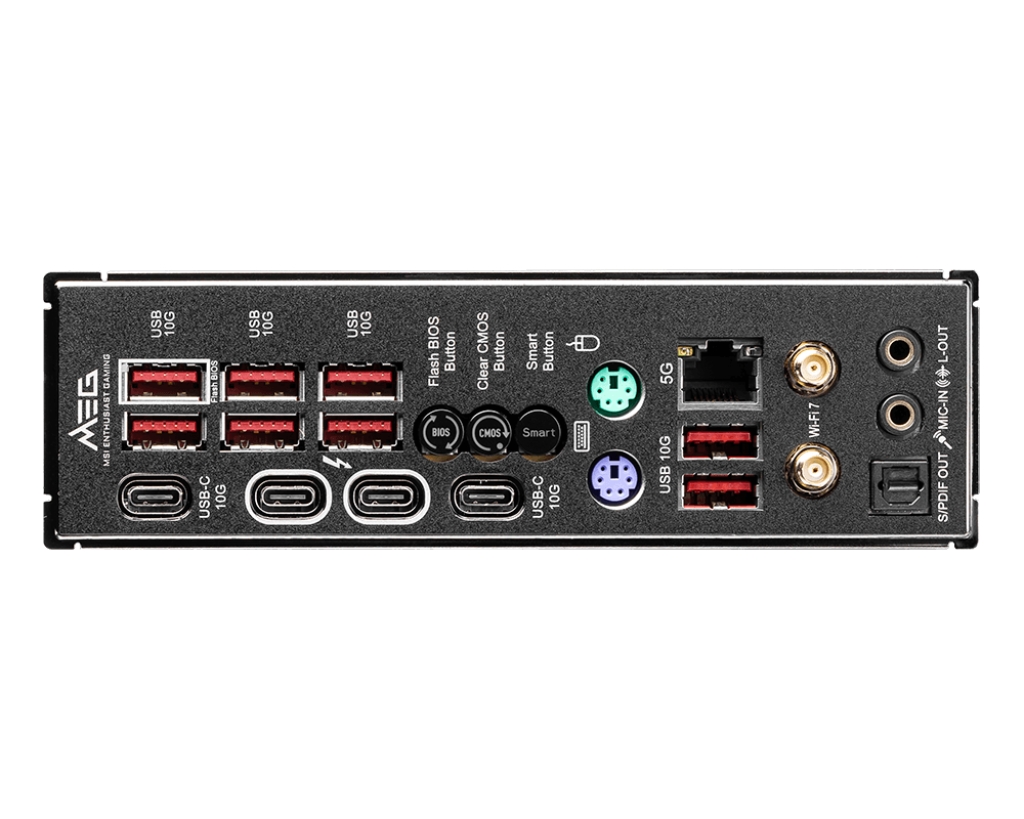

USB
4x USB 2.0 (Front)4x USB 5Gbps Type A (Front)8x USB 10Gbps Type A (Rear)2x USB 10Gbps Type C (Rear)1x USB 20Gbps Type C (Front)* To achieve USB PD 60W fast charging for JUSBC1, the PD_PWR1 connector needs to be connected to the power supply unit.
LAN
1x Intel® Killer E5000B 5G LAN
Internal IO
1x Thunderbolt5 card connector(JTBT5, support RTD3)1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x Front Type-C Quick Charge Connector(PD_PWR1)1x CPU Fan2x Combo Fan (Pump_Sys Fan)4x System Fan1x EZ Conn-header (JAF_2)2x Front Panel (JFP)1x Chas... [Truncated to 5000 characters for display]
