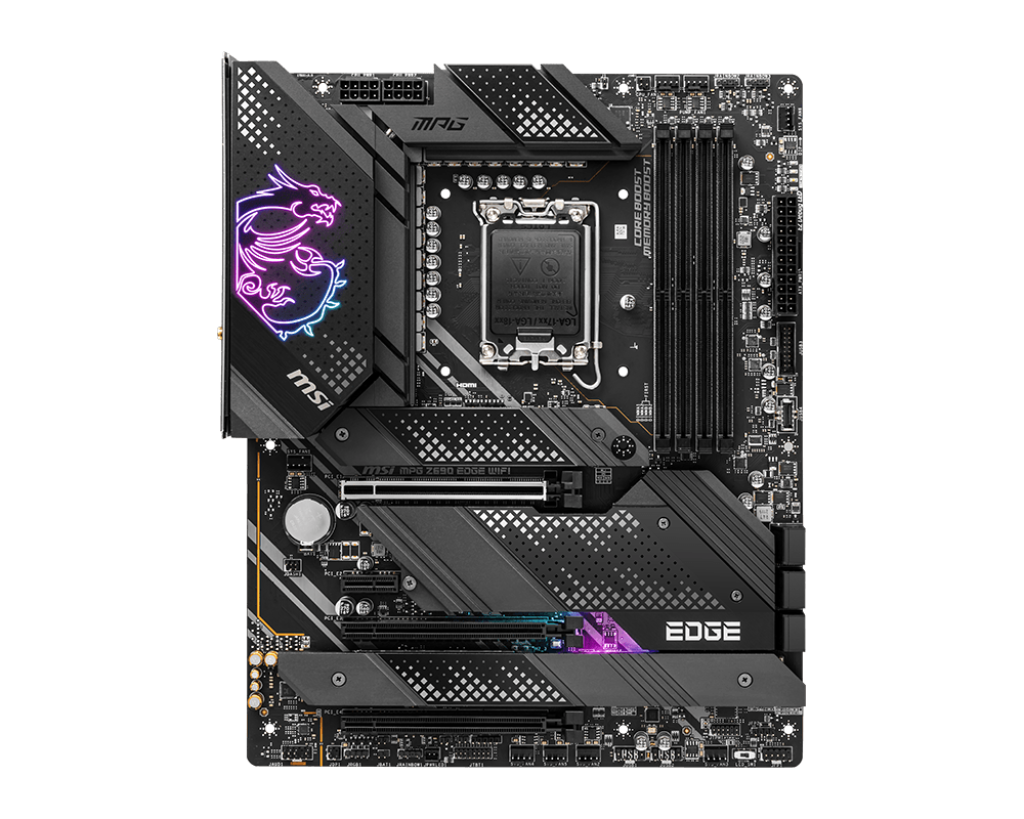

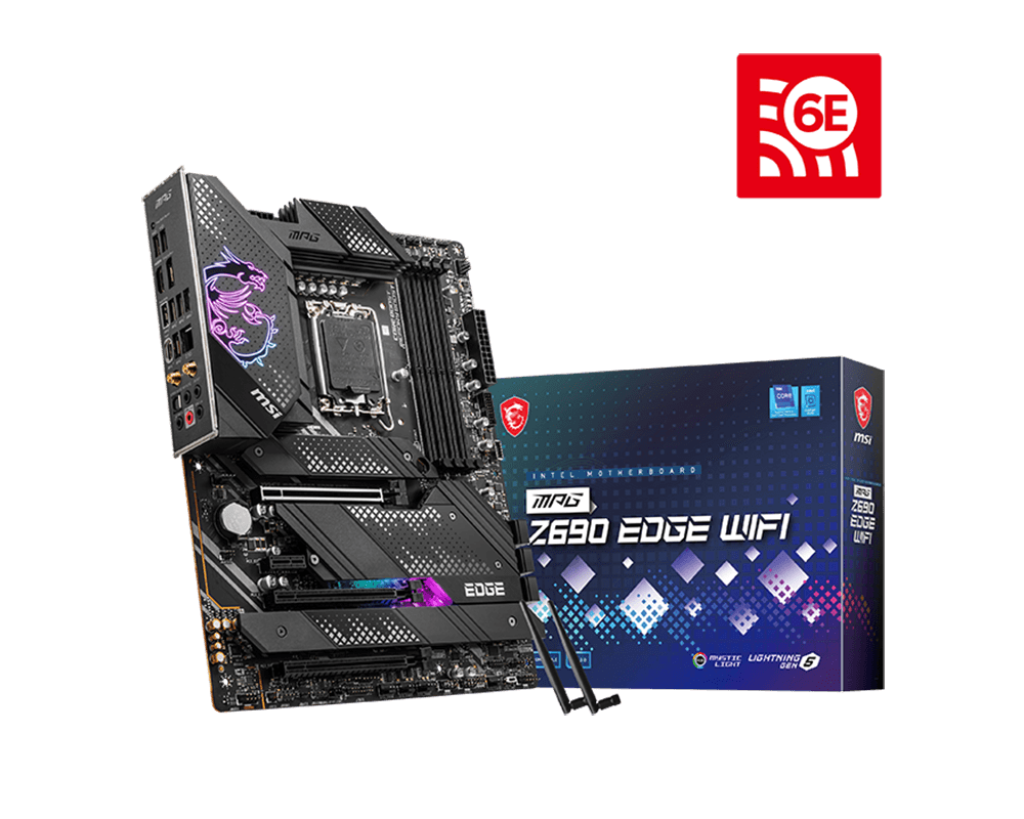

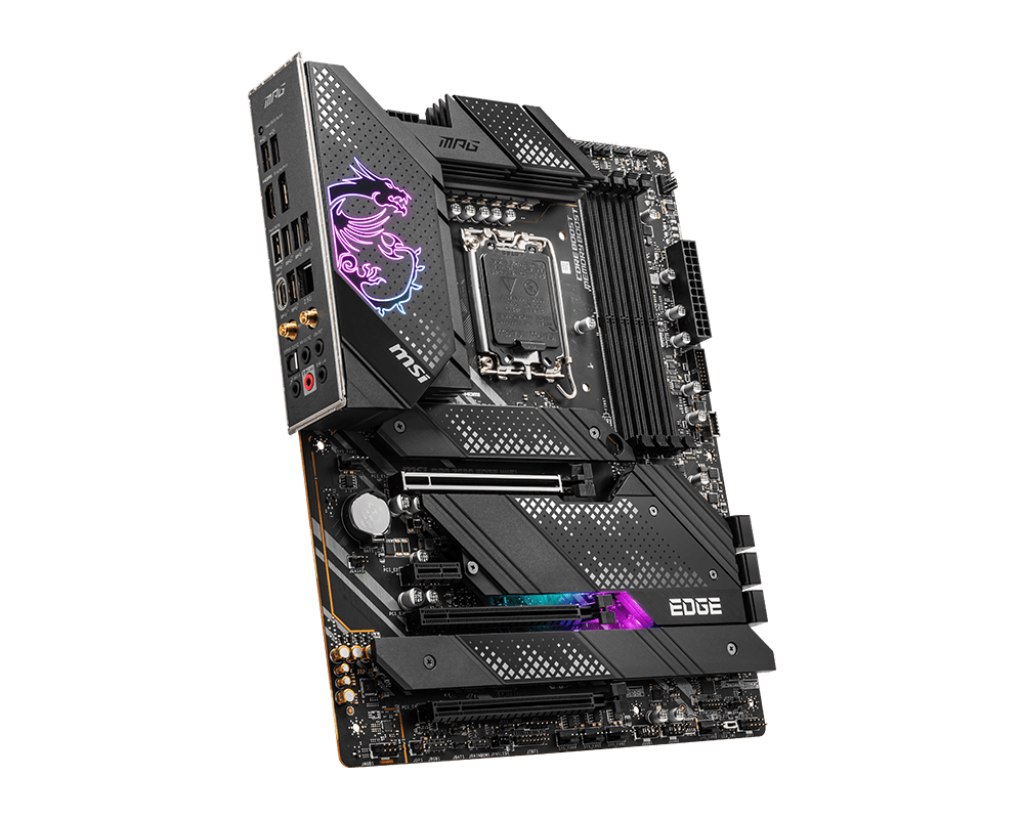

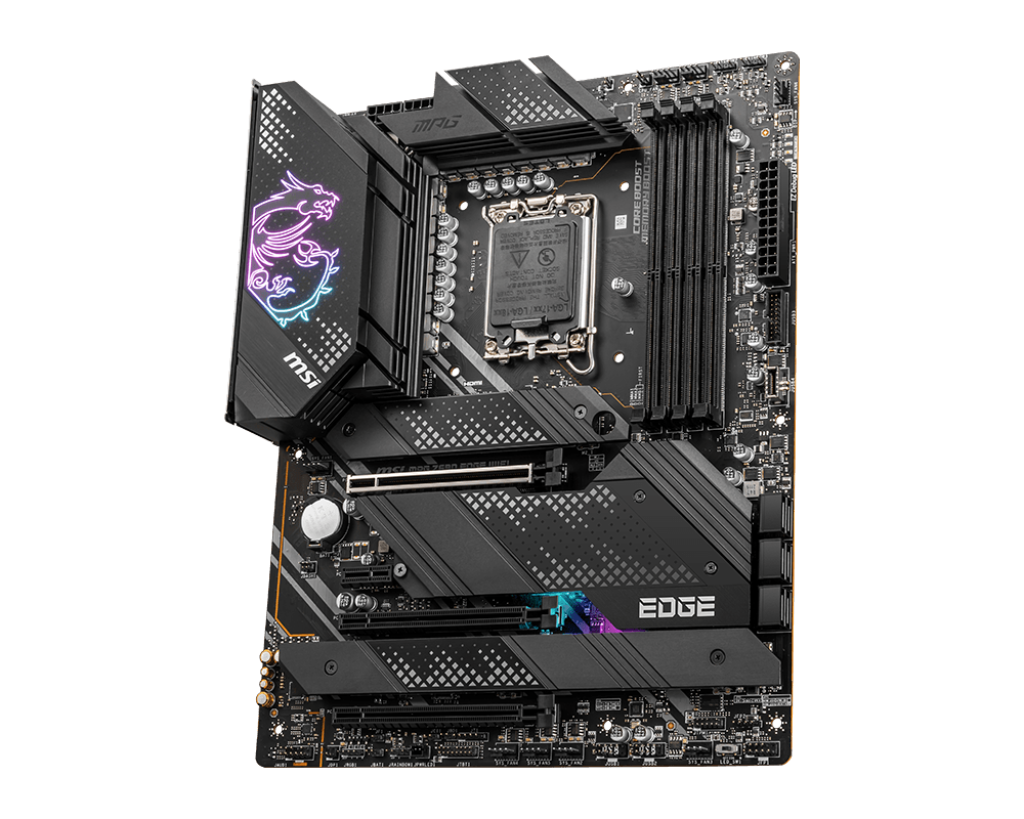

MSI MPG Z690 EDGE WIFI Motherboard
  • Model:MPG Z690 EDGE WIFI
  • Supports Intel 12th Gen CPUs
  • Chipset: Z690, Socket: LGA 1700
  • DDR5 Memory, up to 6400+(OC) MHz
  • PCIe 5.0, USB 3.2 Gen 2x2
  • 3 Years Warranty from MSI
₹ 32,400
Next Day Dispatch
1
Socket
1700
Chipset
Intel® Z690 Chipset
Memory Channel
Dual
DIMM Slots
4
Max Memory (GB)
128
PCI-E x16
3
PCI-E x1
1
SATAIII
6
M.2 Slot
4
RAID
0/1/5/10
WiFi & Bluetooth
Intel® Wi-Fi 6 module
USB 3.2 ports (Front)
1(Gen 2, Type C), 2(Gen 1, Type A)
USB 3.2 ports (Rear)
1(Gen 2x2, Type C), 5(Gen 2, Type A)
USB 2.0 ports (Front)
4
USB 2.0 ports (Rear)
2
Audio ports (Rear)
5+ Optical S/PDIF (Realtek® ALC4080 Codec)
DisplayPort
1
HDMI
1
DirectX
12
CrossFire
Y
CPU Support
Support for Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
ATX
Dimension
12 in. x 9.6 in. (30.5 cm x 24.4 cm)
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Processor socket LGA1700
DDR4 memory slots
4x , support up to 128GB
Max. overclocking frequency
1DPC 1R Max speed up to 5333+ MHz, 1DPC 2R Max speed up to 4800+ MHz, 2DPC 1R Max speed up to 4400+ MHz, 2DPC 2R Max speed up to 4000+ MHz
PCIe x16 slots
3x
HDMI™ 2.1 with HDR port
1x, supports a maximum resolution of 4K 60Hz
DisplayPort 1.4 port with HBR3
1x, supports a maximum resolution of 4K 60Hz
Supports AMD® CrossFire™ Technology
Yes
SATA 6Gb/s ports
6x
Supports RAID 0, RAID 1, RAID 10 for SATA storage devices
Yes
Supports RAID 0, RAID 1, RAID 5, RAID 10 for M.2 NVMe storage devices
Yes

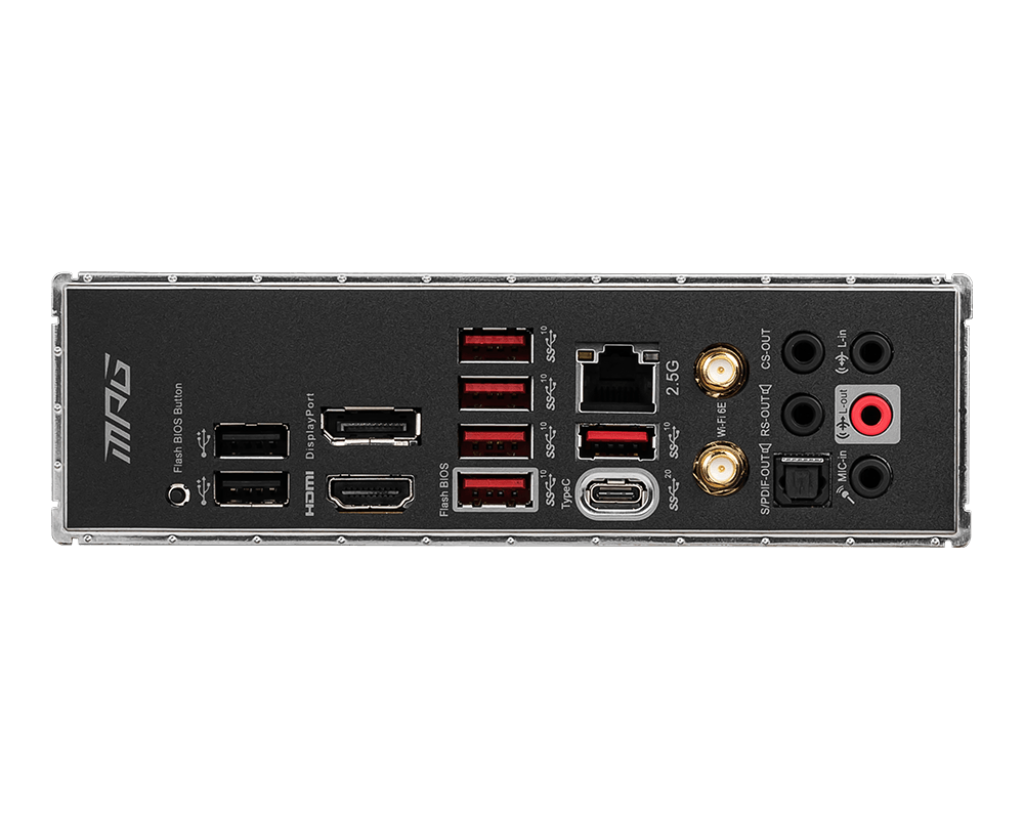

USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel
1x
USB 3.2 Gen 2 10Gbps ports
6x (1 Type-C internal connector and 5 Type-A ports on the back panel)
USB 2.0 Type-A ports on the back panel
2x
USB 3.2 Gen 1 5Gbps ports
2x, available through the internal USB connector
USB 2.0 ports available through internal connectors
4x
Realtek® ALC4080 Codec
7.1-Channel High Definition Audio, Supports S/PDIF output
Intel® I225V 2.5Gbps LAN controller
1x
Intel® Wi-Fi 6E
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/6GHz (160MHz) up to 2.4Gbps, Supports 802.11 a/ b/ g/ n/ ac/ ax, Supports Bluetooth® 5.3
