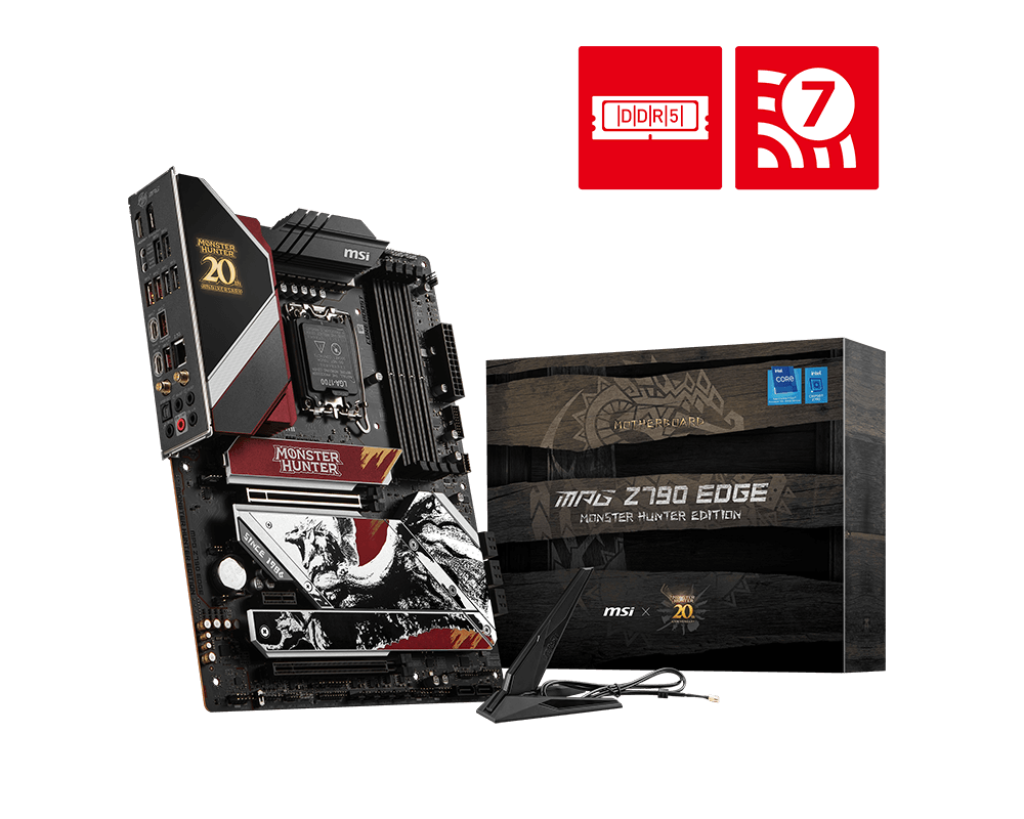

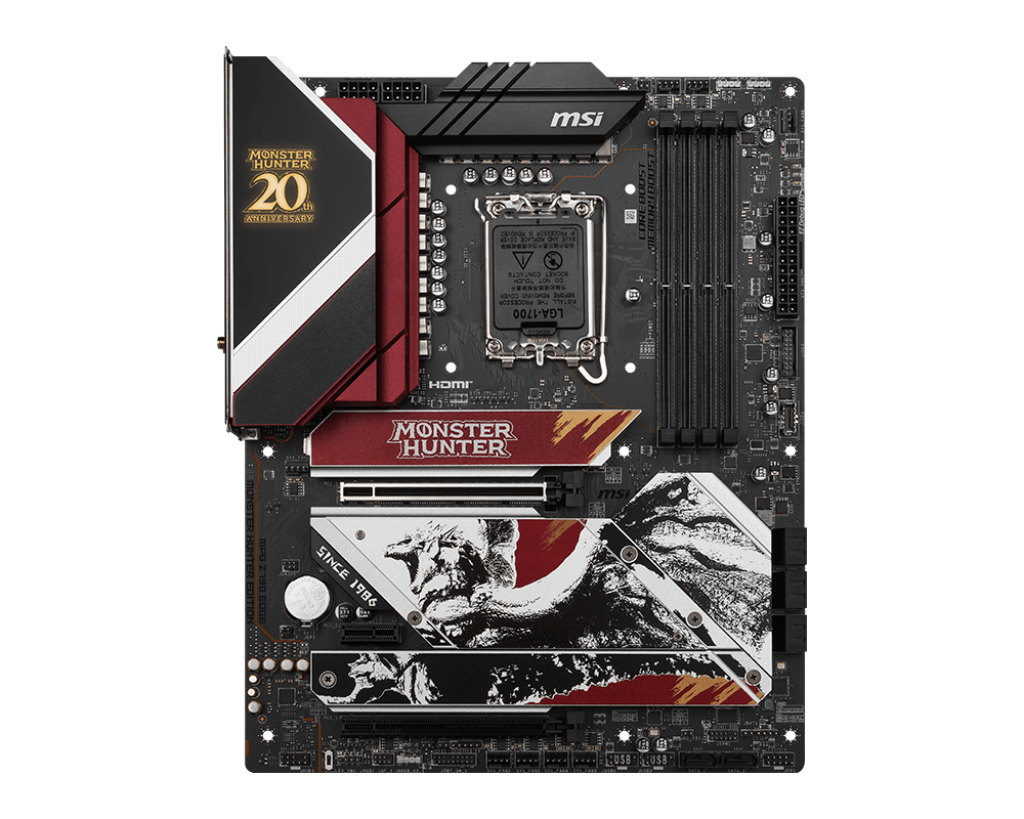

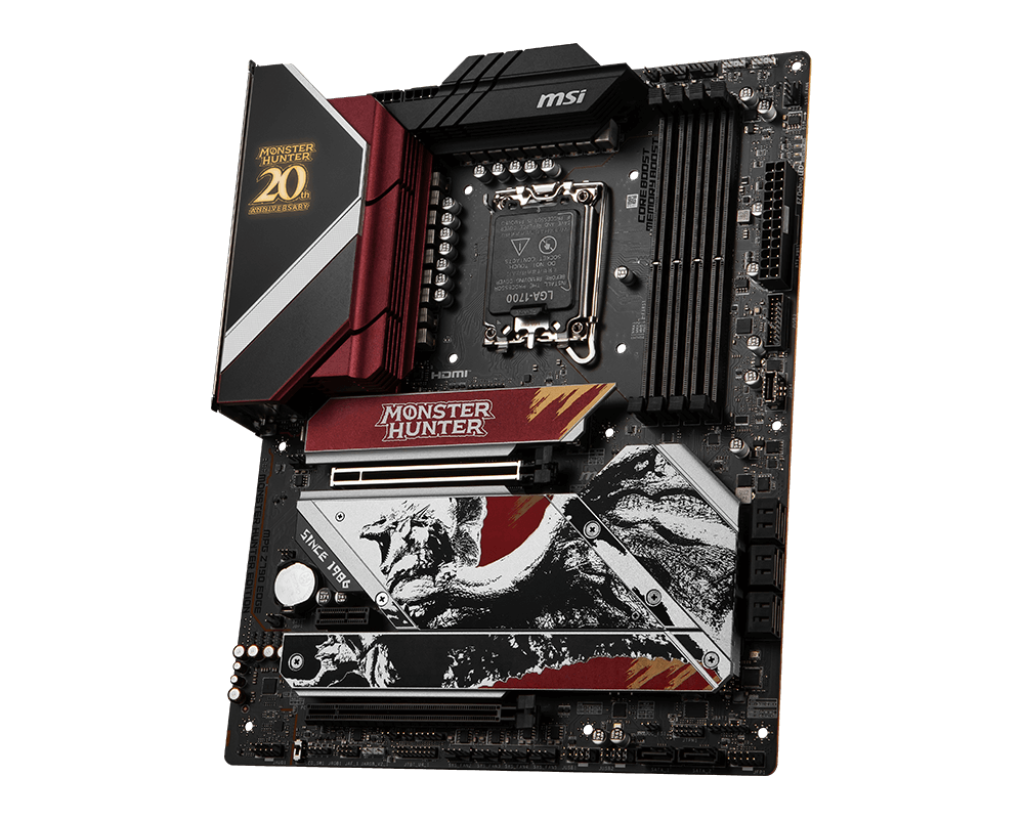

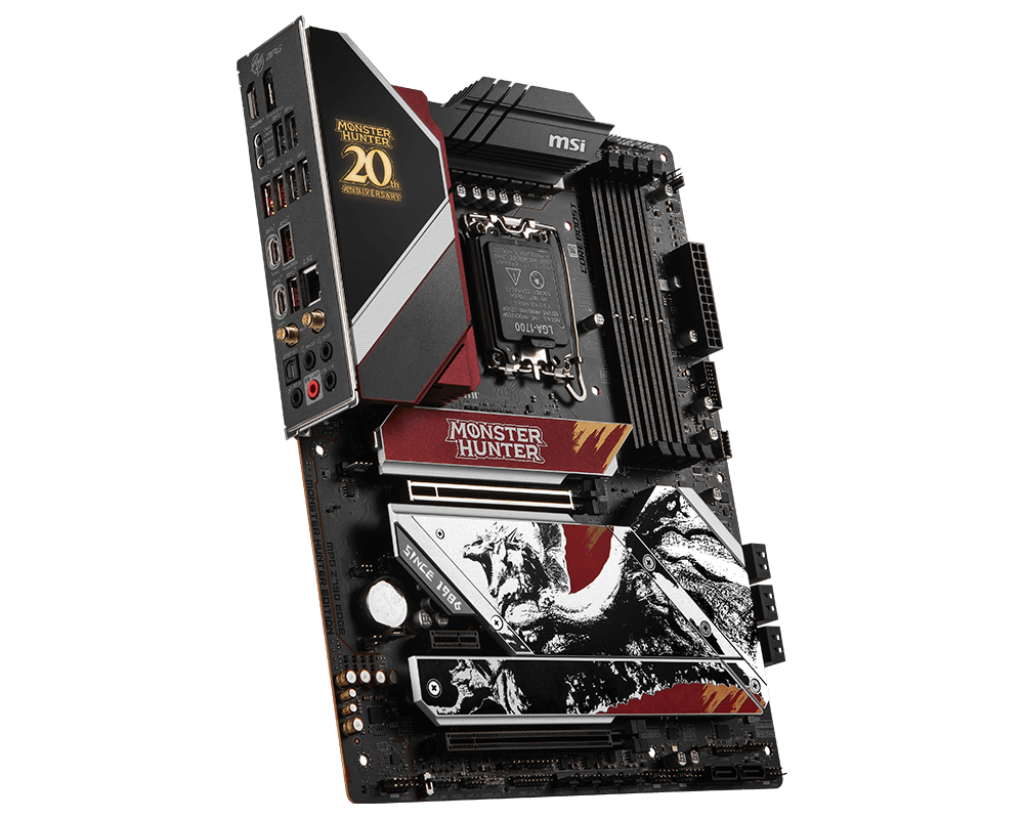

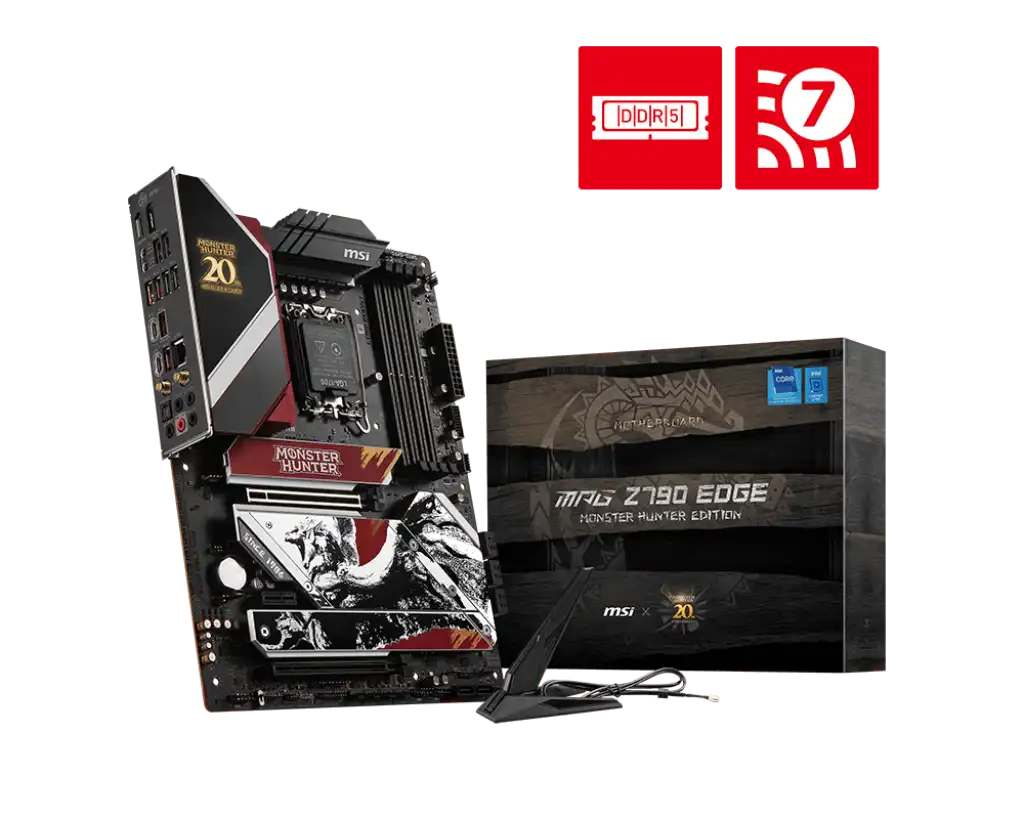

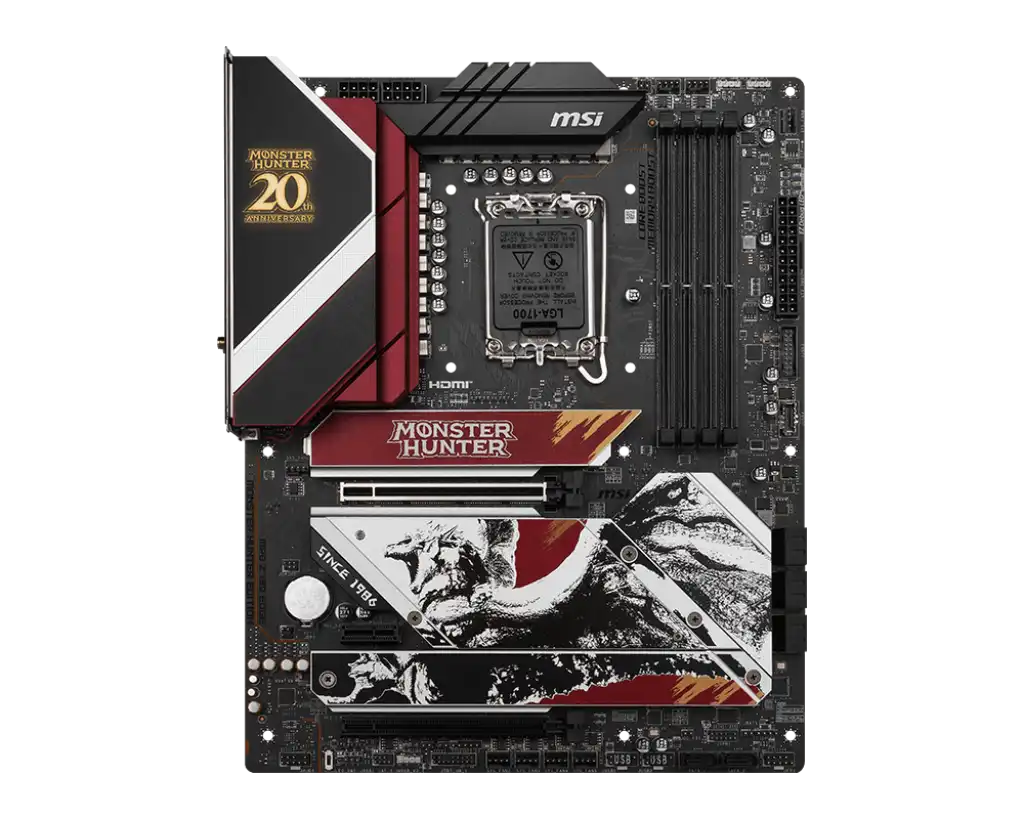

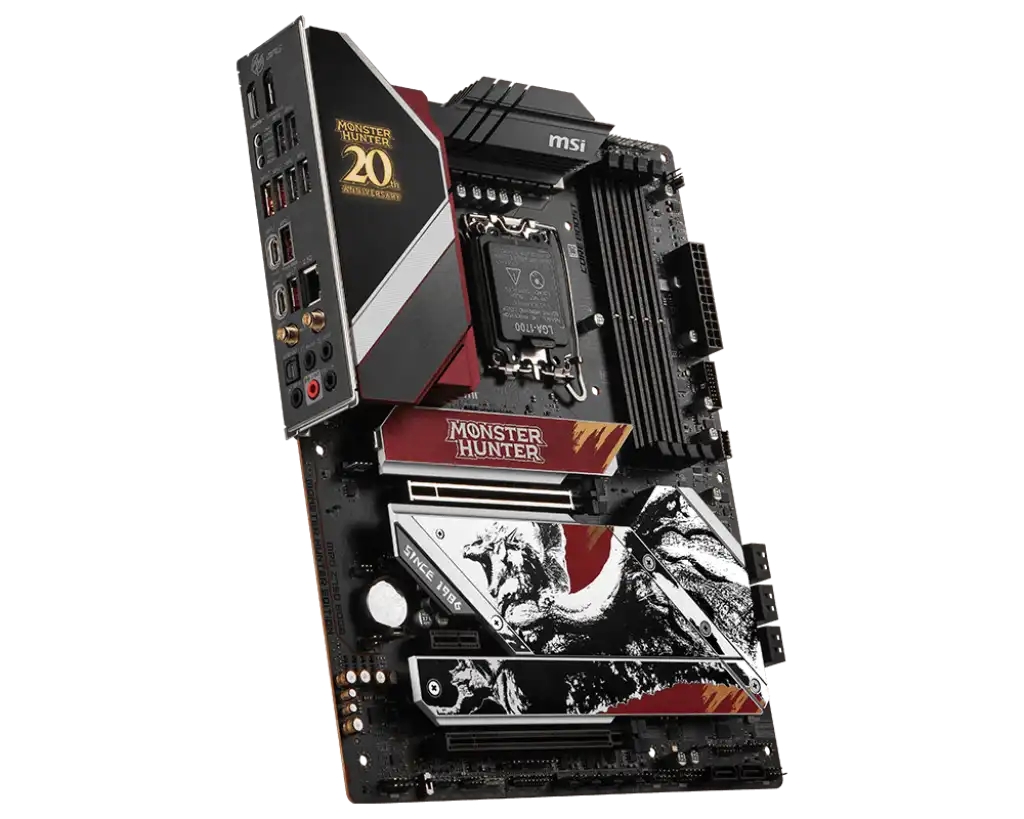

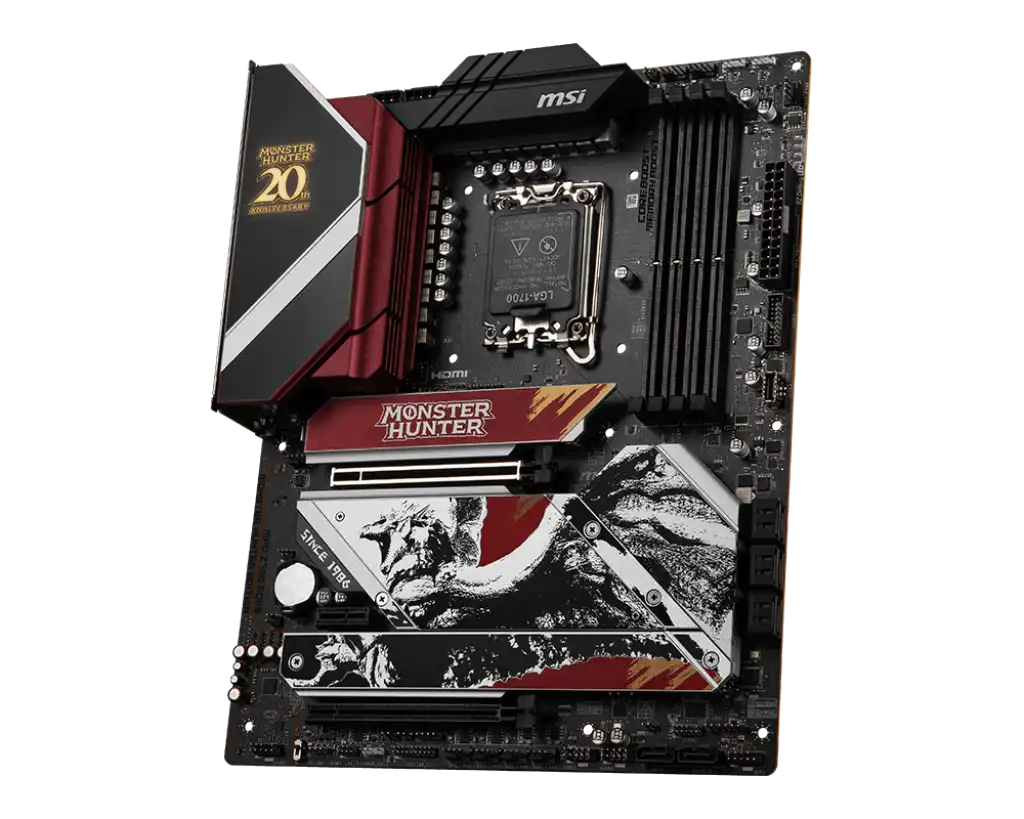

MSI MPG Z790 EDGE MONSTER HUNTER EDITION Motherboard
  • Model:MPG Z790 EDGE MONSTER HUNTER EDITION
  • Supports Intel® 14th/13th Gen CPUs
  • Z790 Chipset and LGA 1700 Socket
  • Supports DDR5 Memory up to 7800+ MHz
  • Wi-Fi 7 and 2.5G LAN connectivity
  • 3 Years Warranty from MSI
₹ 46,300
Next Day Dispatch
1
Chipset
INTEL Z790
CPU
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHzMax. overclocking frequency:• 1DPC 1R Max speed up to 7800+ MHz• 1DPC 2R Max speed up to 6600+ MHz• 2DPC 1R Max speed up to 6400+ MHz• 2DPC 2R Max speed up to 5600+ MHzSupports Intel® XMP3.0 OCSupports Dual-Controller Dual-Channel modeSupports non-ECC, un-buffered memory
Onboard Graphics
1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DP 1.4, maximum resolution of 8K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
2x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Realtek® ALC4080 Codec7.1-Channel USB High Performance AudioSupports up to 32-Bit/384 kHz playback on front panel
Storage
5x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 8x SATA 6G*PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot.* SATA_1 & SATA_2will be unavailable when installing M.2 SATA SSD in the M2_3 slot.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices* SATA_A1~A2 do not support RAID function.
USB
4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)4x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear)
LAN
Intel® 2.5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x CPU Fan1x Pump Fan6x System Fan1x EZ Conn-header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)1x USB4 card connector (JTBT_U4_1, supports RTD3)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Wi-Fi 7 SolutionThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth® 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE
4x EZ Debug LED1x EZ LED Control switch

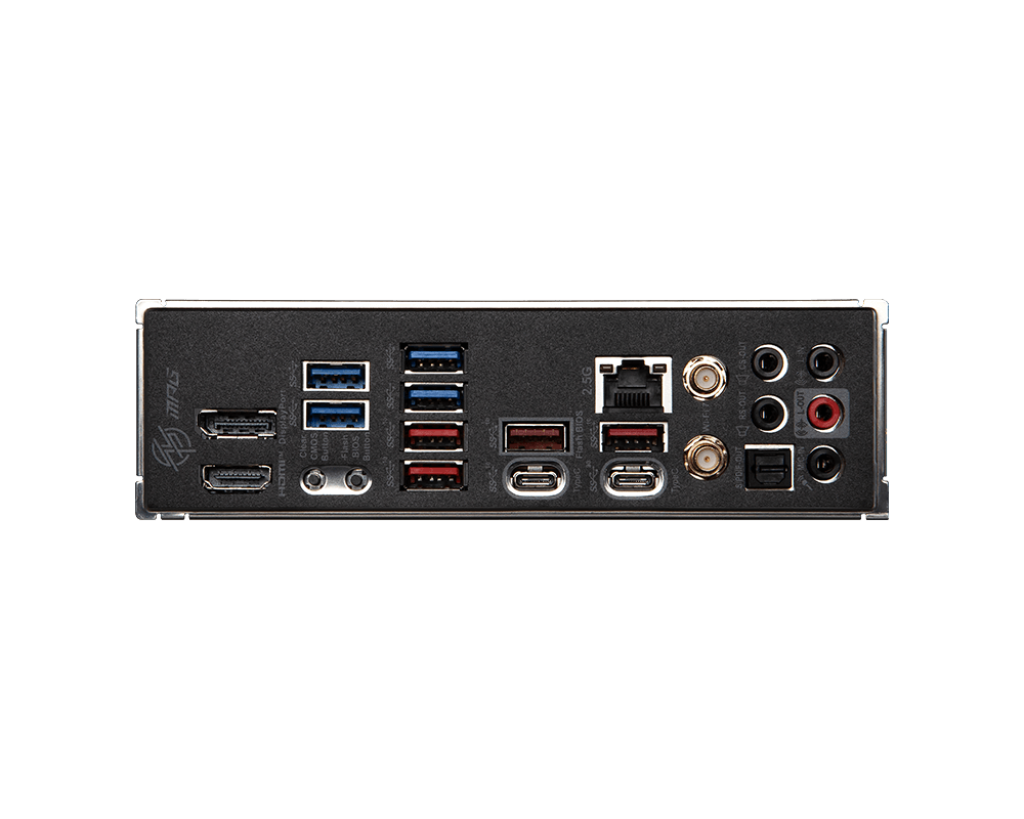

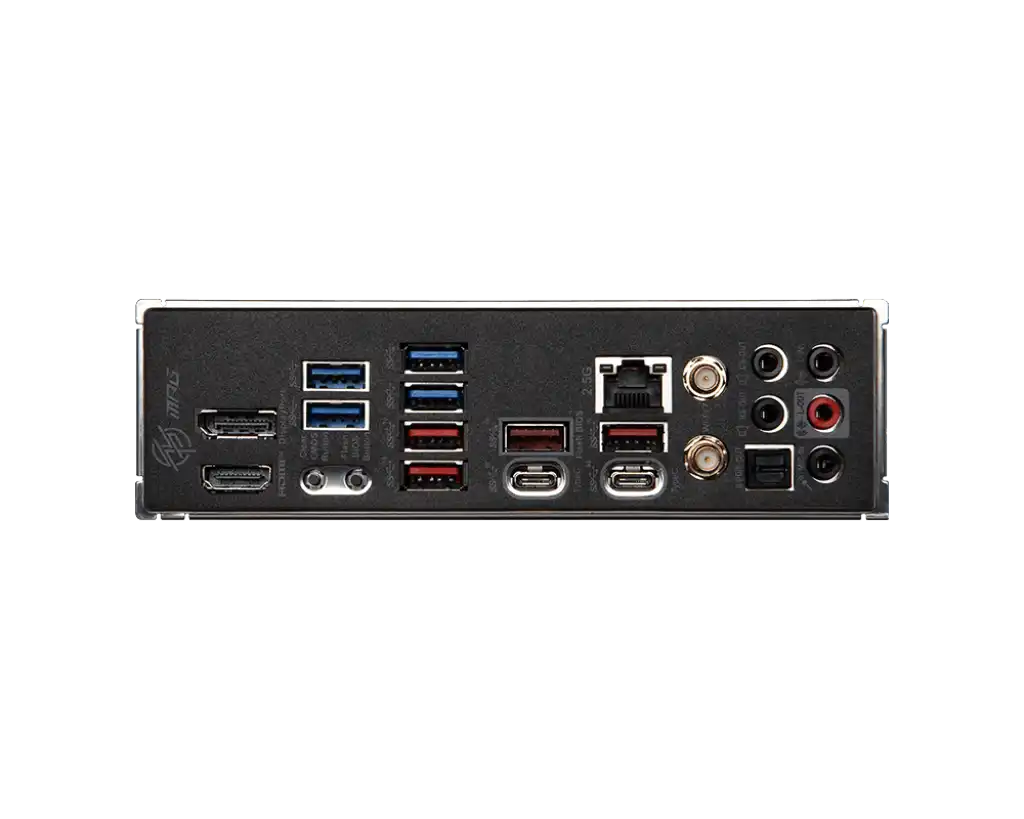

BACK PANEL PORTS
01. Display Port02. USB 5 Gbps (Type-A)03. USB 10Gbps (Type-A)04. 2.5G LAN05. Audio Connectors06. HDMI™07. Clear CMOS08. Flash BIOS09. USB 10Gbps (Type-C)10. USB 20Gbps (Type-C)11. Wi-Fi / Bluetooth12. Optical S/PDIF Out
OPERATING SYSTEM
Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Info
ATX243.84mmx304.8mm
