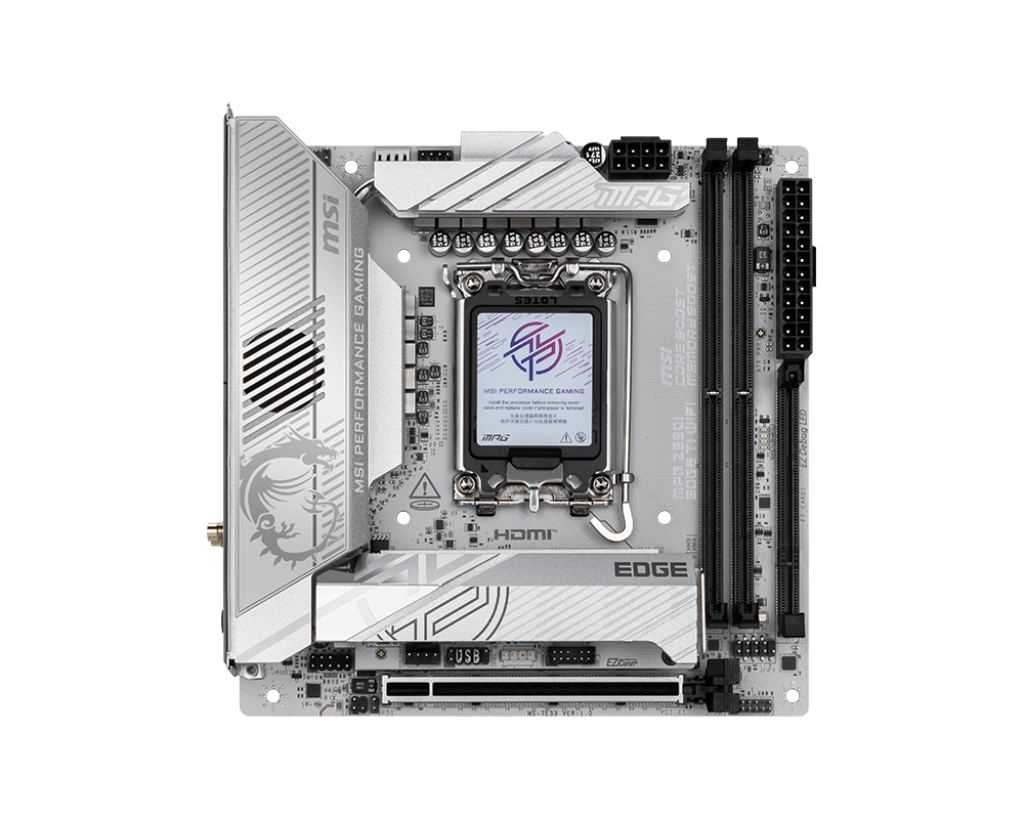

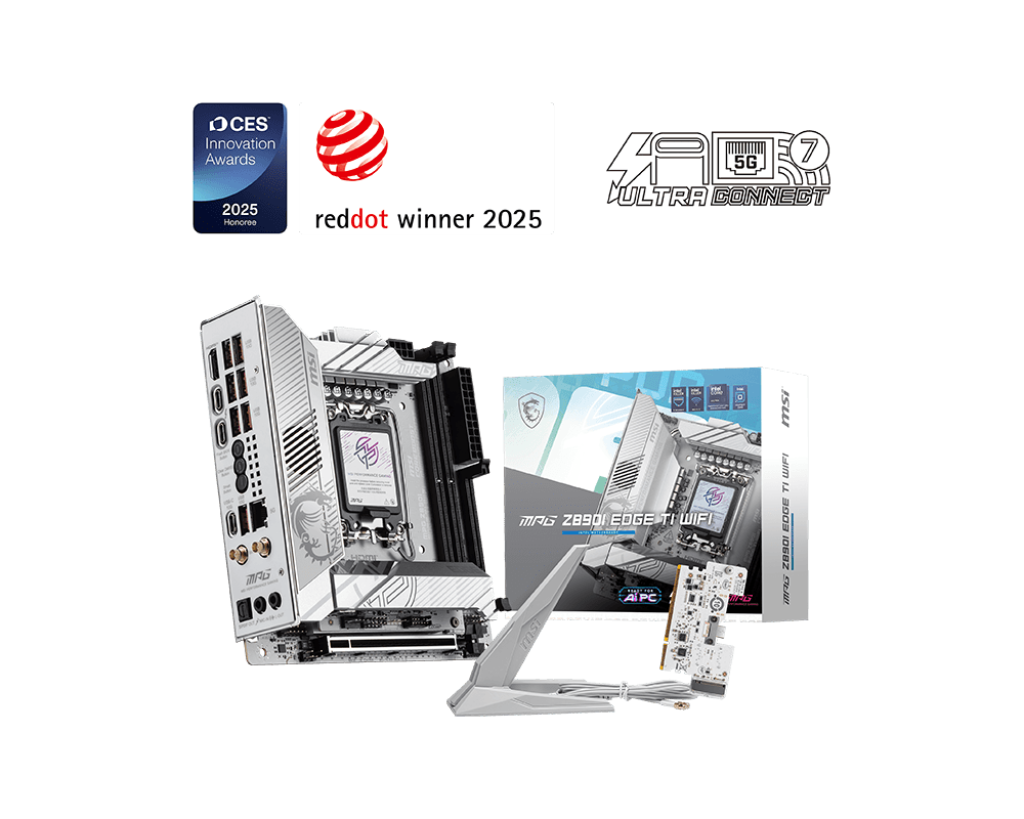

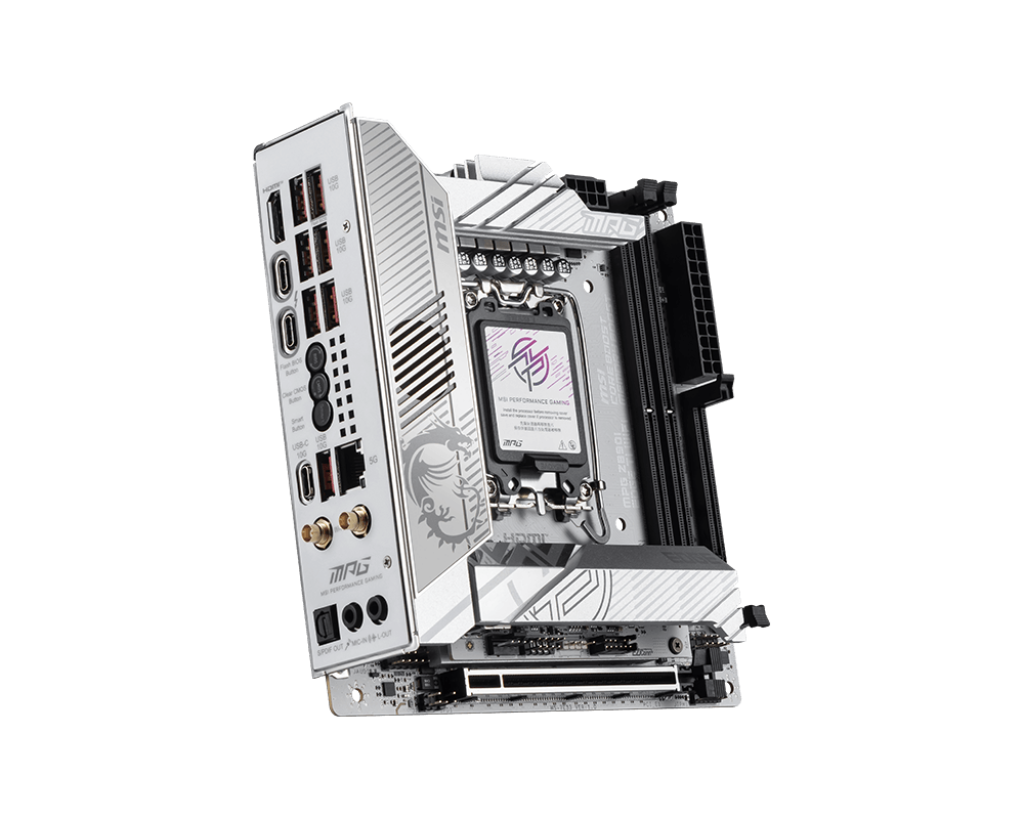

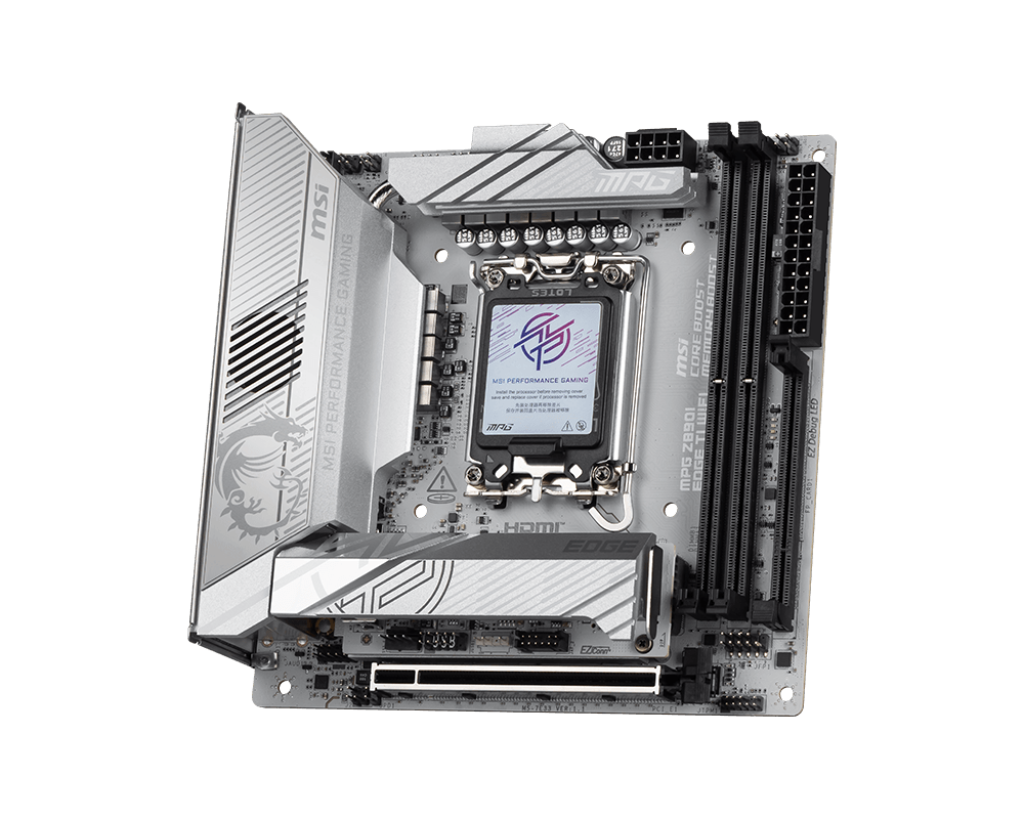

MSI MPG Z890I EDGE TI WIFI Motherboard
  • Model:MPG Z890I EDGE TI WIFI
  • Supports Intel Core Ultra Processors
  • Z890 chipset, LGA 1851 socket
  • Supports DDR5 Memory
  • Wi-Fi 7, PCIe 5.0, Thunderbolt 4
  • 3 Years Warranty from MSI
₹ 39,550
Next Day Dispatch
1
Chipset
INTEL Z890
CPU
Supports Intel® Core™ Ultra Processors (Series 2)LGA 1851
Memory
2x DDR5, Maximum Memory Capacity 128GBMemory Support 8600 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 8600+ MT/s• 1DPC 2R Max speed up to 7200+ MT/sSupports Intel POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM_• The DIMM slots on this motherboard have single-sided latches.__• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/_
Onboard Graphics
1x HDMI™Supports HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz*2x Type-C DisplayPortThunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*_*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed._
Slot
1x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) • PCI_E1 support manual BIOS adjustment to X8+X8 / X8+X4+X4
Audio
Realtek® ALC4080 Codec7.1-Channel USB High Performance AudioSupports S/PDIF output
Storage
4x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280 devices 2x SATA 6G_•M.2_4 & 2x SATA are supported by 5-in-1 XPANDER__•Please refer to the manual for M.2 SSD heatsink restrictions._
RAID
•Supports RAID 0, RAID 1 and RAID 5 for SATA storage devices•Supports RAID 0, RAID 1, Raid 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt
2x Thunderbolt4 ports (Rear)Supports up to 40Gbps transfer rate with Thunderbolt devicesSupports up to 20Gbps transfer rate with USB4 devicesSupports up to 10Gbps transfer rate with USB 3.2 devicesSupports up to 5V/3A,15W power chargingEach port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devicesSupports up to 8K display
USB
2x USB 2.0 (Front)2x USB 5Gbps Type A (Front)7x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 20Gbps Type C (Front)_\*2x 5Gbps Type-A & 1x 20Gbps Type-C are supported by 5-in-1 XPANDER__\*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1_
LAN
1x Intel® Killer™ E5000B 5G LAN
Internal IO
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x Combo Fan (Pump_Sys Fan)1x System Fan1x EZ Conn-header (JAF_2)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Thermal Sensor connectors(T_SEN)1x Addressable V2 RGB LED connector (JARGB_V2)1x TPM pin header(Support TPM 2.0)2x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Intel® Killer™ BE1750x Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**_\* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.__\*\* The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2._
LED FEATURE
4x EZ Debug LED

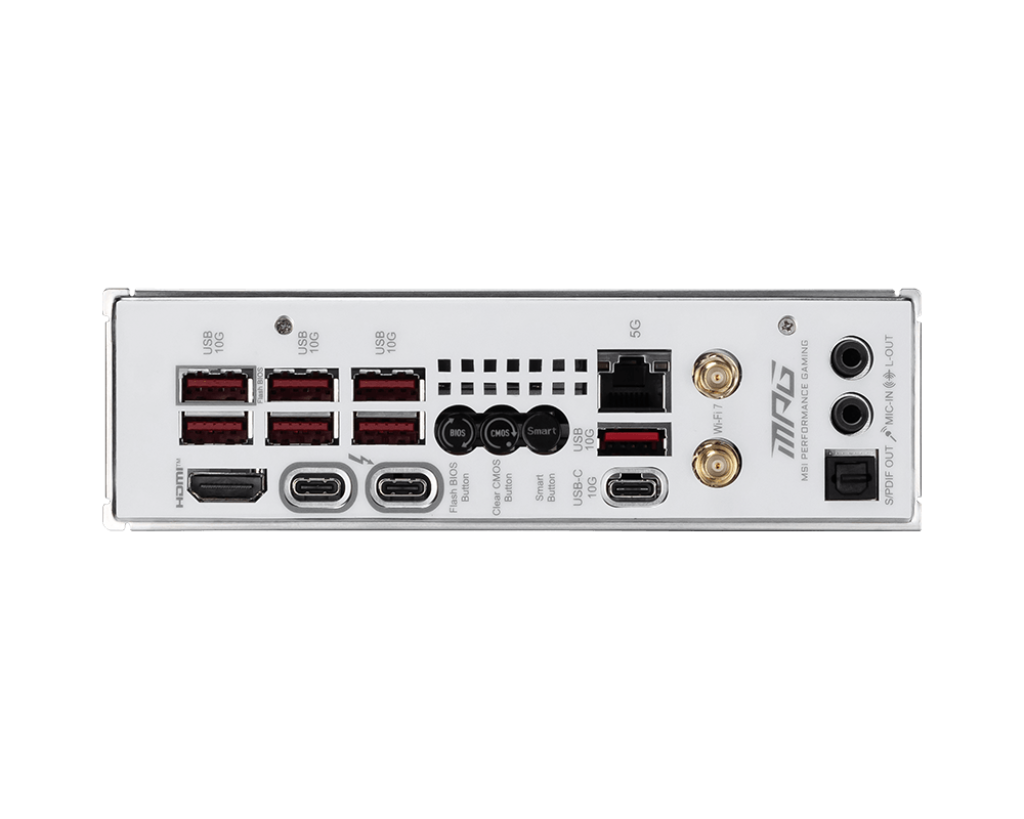

BACK PANEL PORTS
01. USB 10Gbps Type-A02. Flash BIOS Button03. Clear CMOS Button04. Smart Button05. 5G LAN06. Wi-Fi / Bluetooth07. Audio Connectors08. HDMI™09. Thunderbolt 410. USB 10Gbps Type-C11. USB 10Gbps Type-A12. Optical S/PDIF Out
OPERATING SYSTEM
Support for Windows® 11 64-bit
PCB Info
Mini-ITX170mmx170mm
