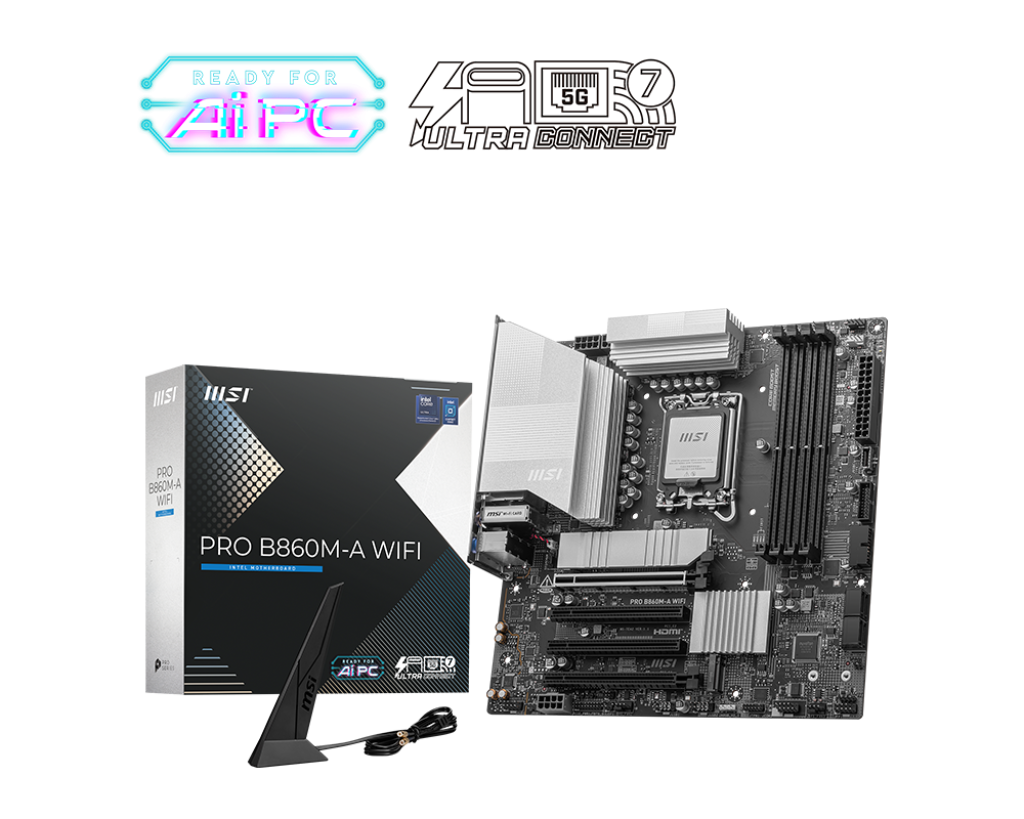

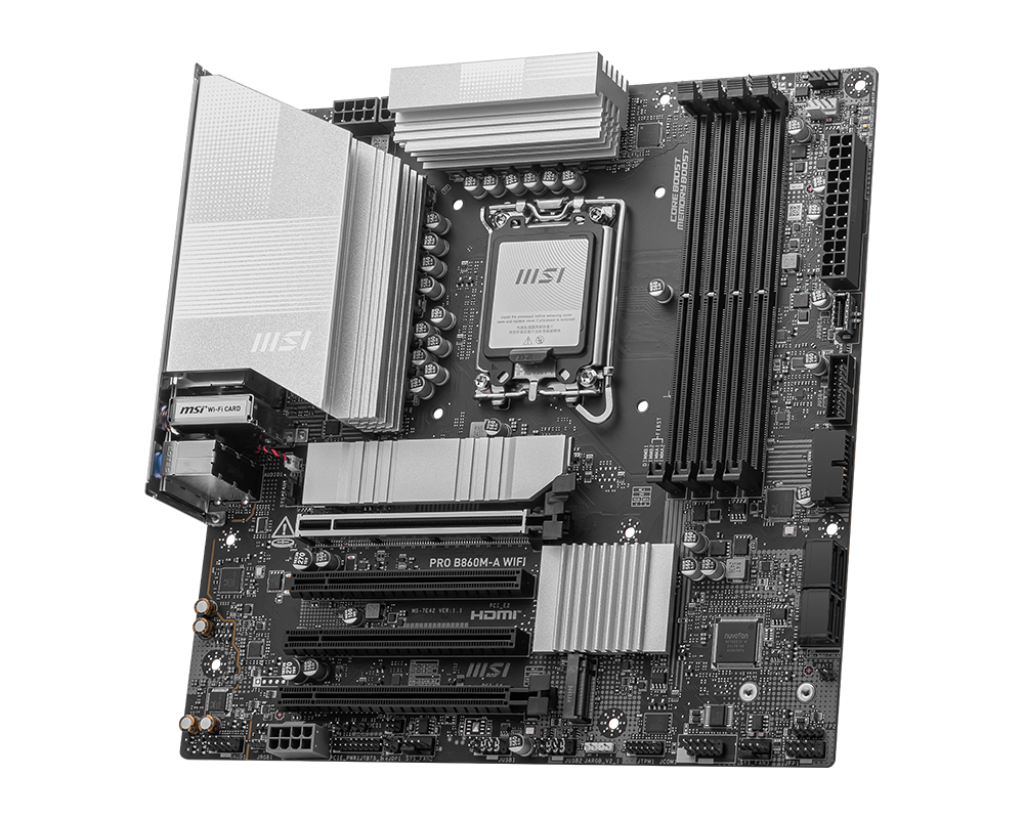

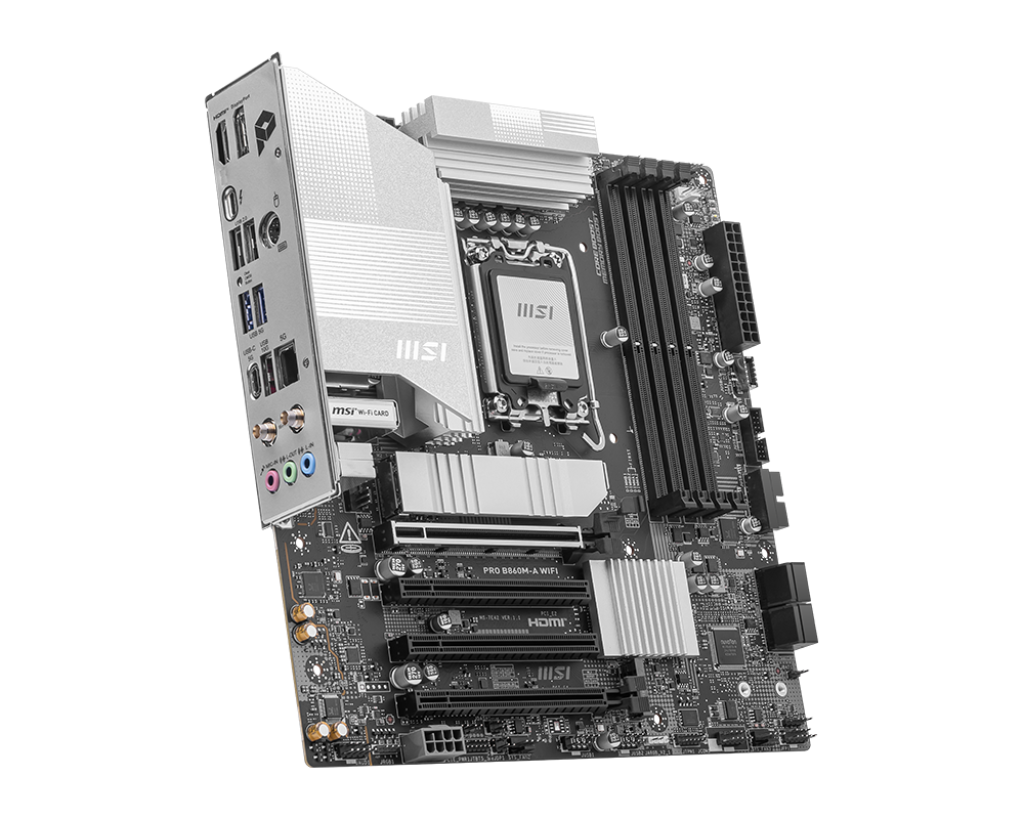

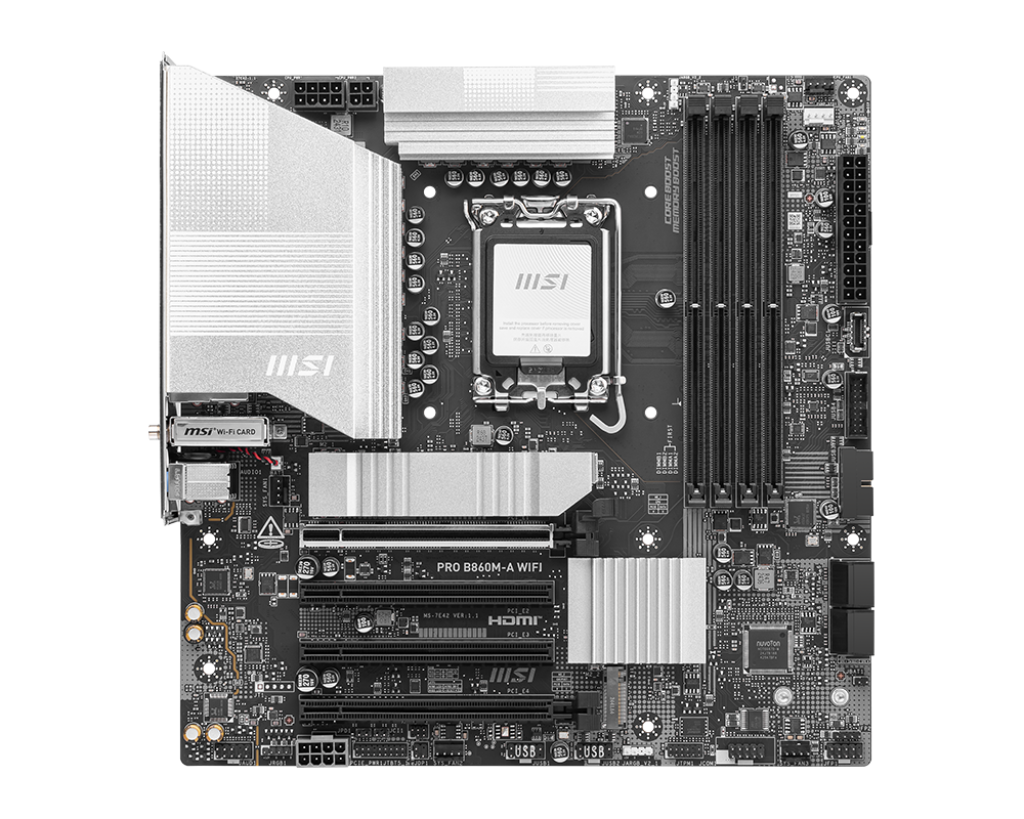

MSI PRO B860M-A WIFI Motherboard
  • Model:PRO B860M-A WIFI
  • Supports Intel Core Ultra CPUs
  • B860 chipset, LGA 1851, ATX
  • Dual DDR5 8800+ support
  • PCIe 5.0, WiFi 7, 5G LAN
  • 3 Years Warranty from MSI
₹ 17,400
In Stock
1
Chipset
INTEL B860
CPU
Supports Intel® Core™ Ultra Processors (Series 2)LGA 1851
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support 8800 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 8800+ MT/s• 1DPC 2R Max speed up to 7200+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 5600+ MT/sSupports Intel® POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel® XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM• The DIMM slots on this motherboard only have single-sided latches.• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics
1x HDMI™Support HDMI™ 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz*1x Type-C DisplayPortThunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
4x PCI-E x16 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Realtek® ALC897 Codec7.1-Channel High Definition Audio
Storage
3x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Onboard Thunderbolt
1x Thunderbolt4 ports (Rear)Supports up to 40Gbps transfer rate with Thunderbolt devicesSupports up to 20Gbps transfer rate with USB4 devicesSupports up to 10Gbps transfer rate with USB 3.2 devicesSupports up to 5V/3A,15W power chargingEach port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devicesSupports up to 8K display
USB
2x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)1x USB 5Gbps Type C (Rear)4x USB 5Gbps Type A (Front)1x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Front)
LAN
Realtek® 8126 5Gbps LAN
Internal IO
1x Thunderbolt5 card connector(JTBT5, support RTD3)1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)3x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Tuning Controller connector(JDASH)2x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Intel® Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE
4x EZ Debug LED

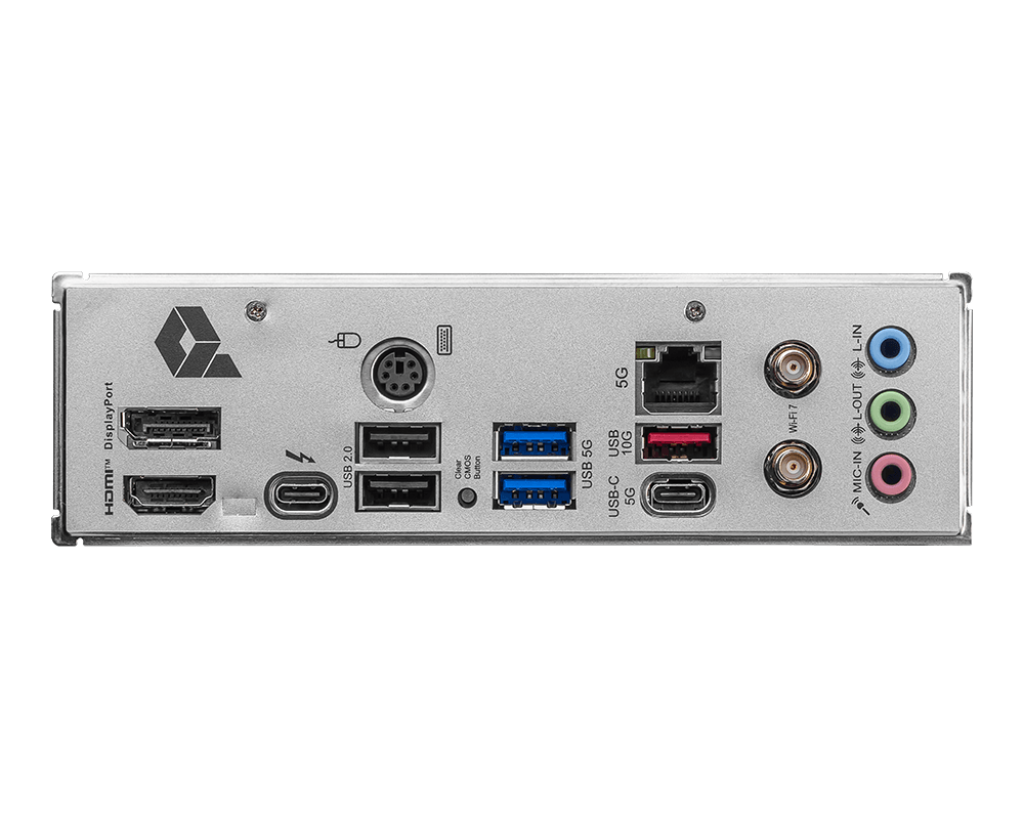

BACK PANEL PORTS
01. DisplayPort02. Keyboard / Mouse03. USB 5Gbps Type-A04. 5G LAN05. Wi-Fi / Bluetooth06. Audio Connectors07. HDMI™08. Thunderbolt™ 4 40Gbps (Type-C)09. USB 2.010. Clear CMOS Button11. USB 10Gbps Type-A12. USB 5Gbps Type-C
OPERATING SYSTEM
Support for Windows® 11 64-bit
PCB Info
mATX243.84mmx243.84mm
