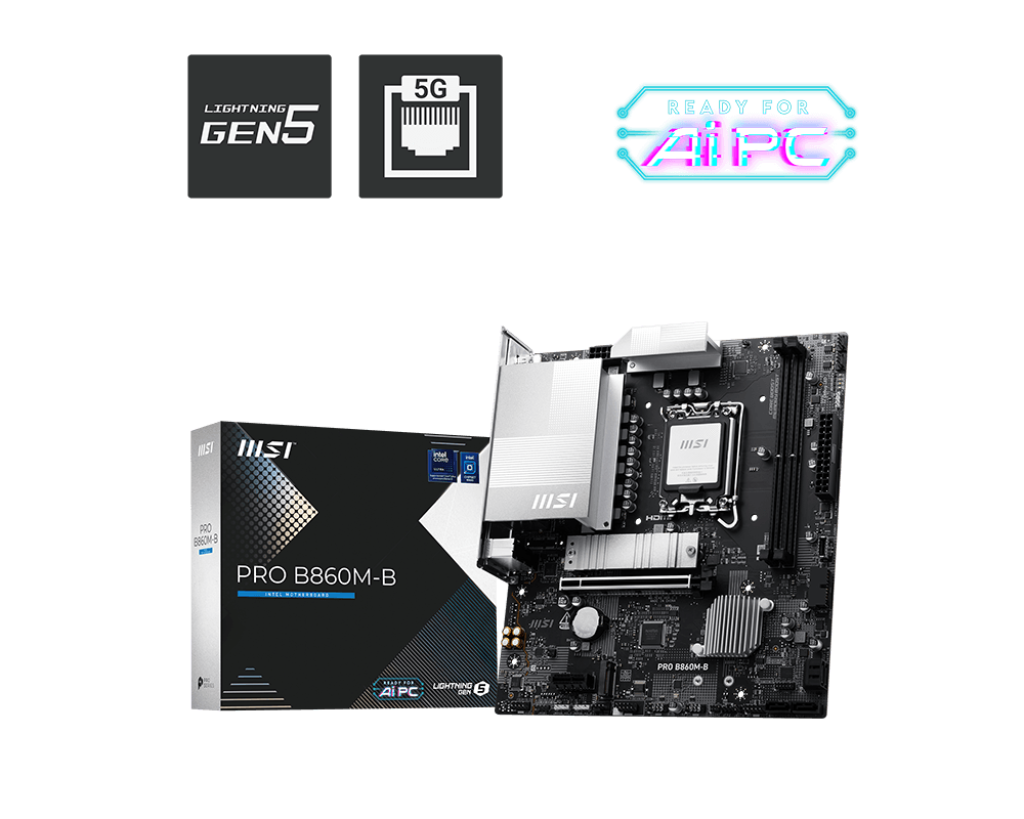

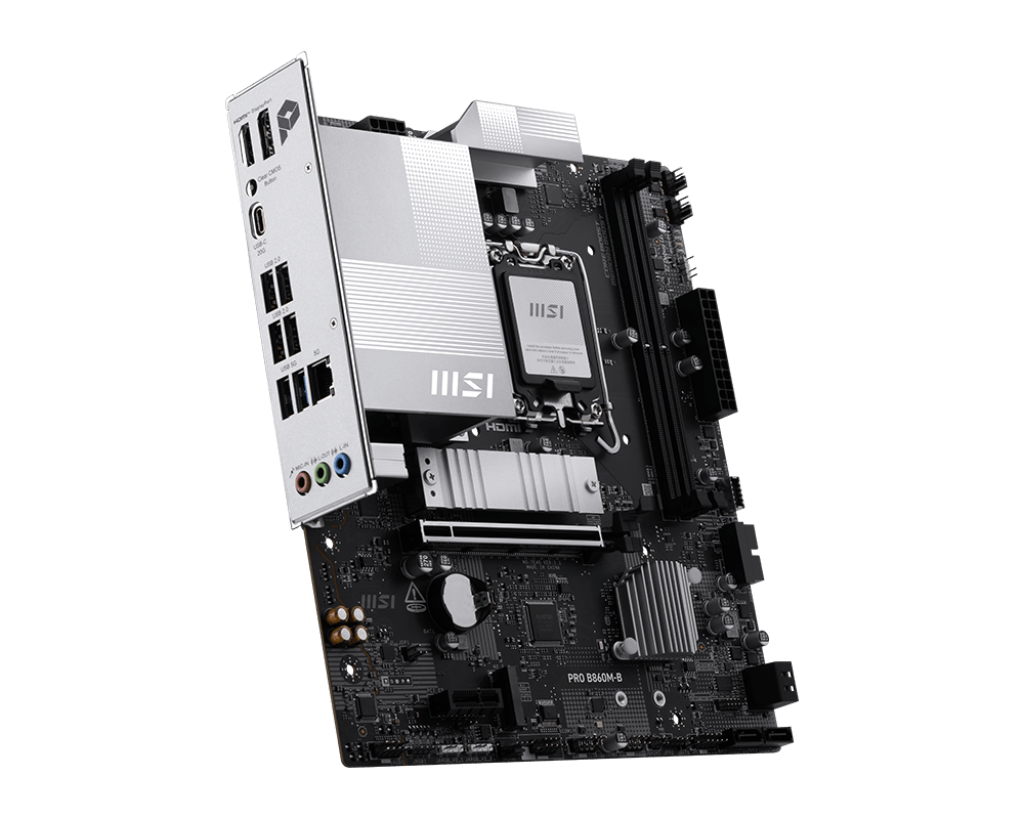

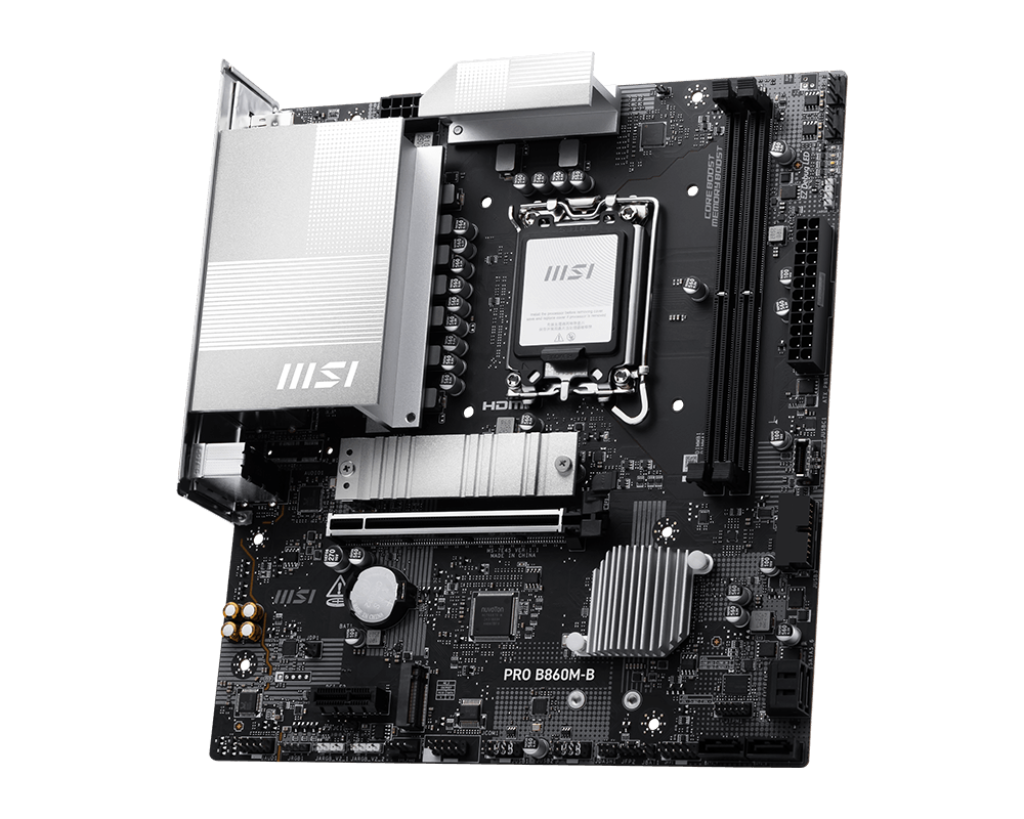

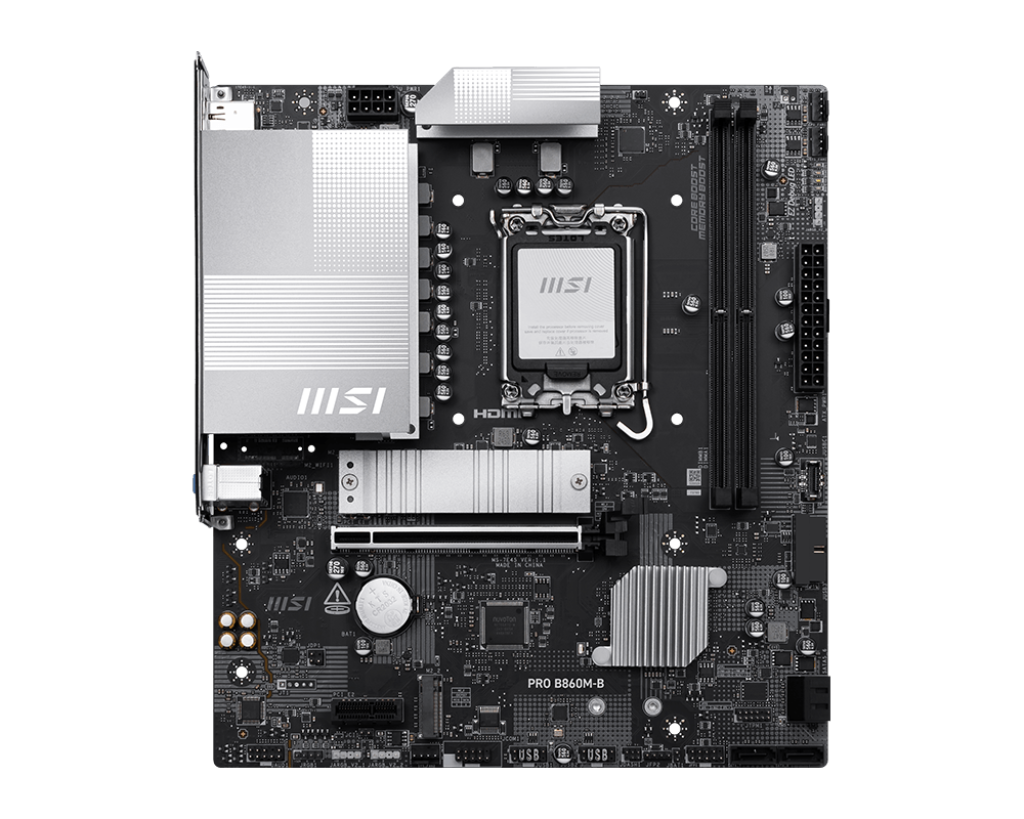

MSI PRO B860M-B Motherboard
  • Model:PRO B860M-B
  • Supports Intel Core Ultra Processors
  • Intel B860 chipset, LGA 1851 socket, Micro-ATX
  • Supports DDR5 memory, Dual Channel 9066+ MT/s
  • PCIe 5.0 M.2, 5G LAN, EZ DIY features
  • 3 Years Warranty from MSI
₹ 11,550
In Stock
1
Chipset
INTEL B860
CPU
Supports Intel® Core™ Ultra Processors (Series 2)LGA 1851
Memory
2x DDR5 UDIMM, Maximum Memory Capacity 128GBMemory Support DDR5 9066 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/sMax. overclocking frequency:31DPC 1R Max speed up to 9066+ MT/s21DPC 2R Max speed up to 7200+ MT/sSupports Intel�ae POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel�ae XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMMThe DIMM slots on this motherboard have double-sided latches.Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the products Support page or visit https://www.msi.com/support/.
Onboard Graphics
1x HDMI0Support HDMI0 2.1, maximum resolution of 4K 60Hz*1x DisplayPortSupport DisplayPort 1.4, maximum resolution of 4K 60Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio
Realtek�ae ALC897 Codec7.1-Channel High Definition Audio
Storage
2x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G*Please refer to the manual for M.2 SSD heatsink restrictions.
USB
4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear)
LAN
Realtek�ae 8126 5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan2x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 10Gbps Type C ports
LED FEATURE
4x EZ Debug LED1x EZ Memory Detection LED

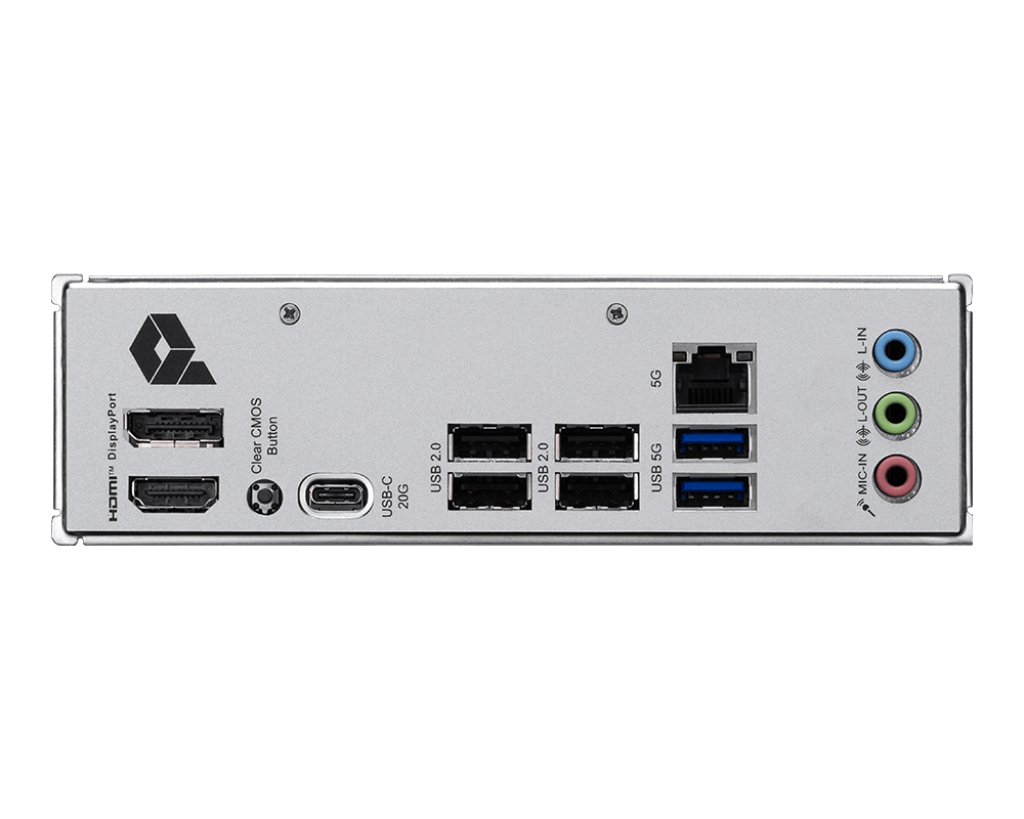

BACK PANEL PORTS
1. DisplayPort2. Clear CMOS Button3. USB 20Gbps Type-C4. USB 2.05. 5G LAN6. Audio Connectors7. HDMI08. USB 5Gbps Type-A
OPERATING SYSTEM
Support for Windows�ae 11 64-bit
PCB Info
mATX220mmx243.84mm
