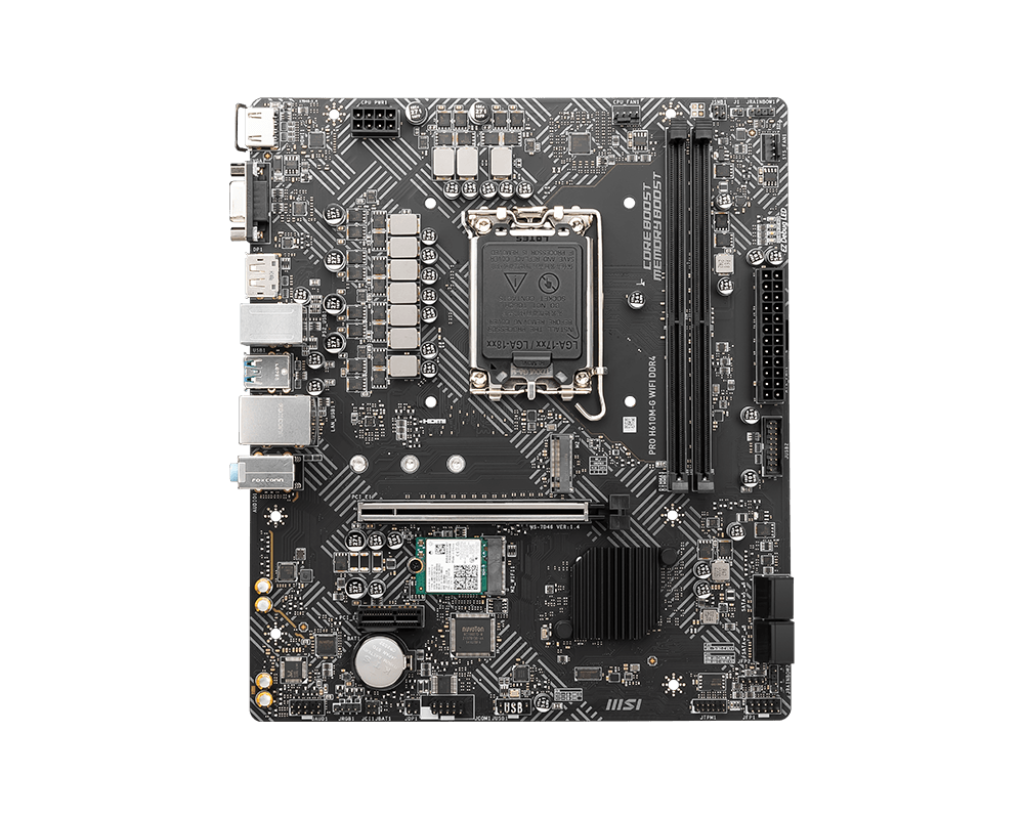

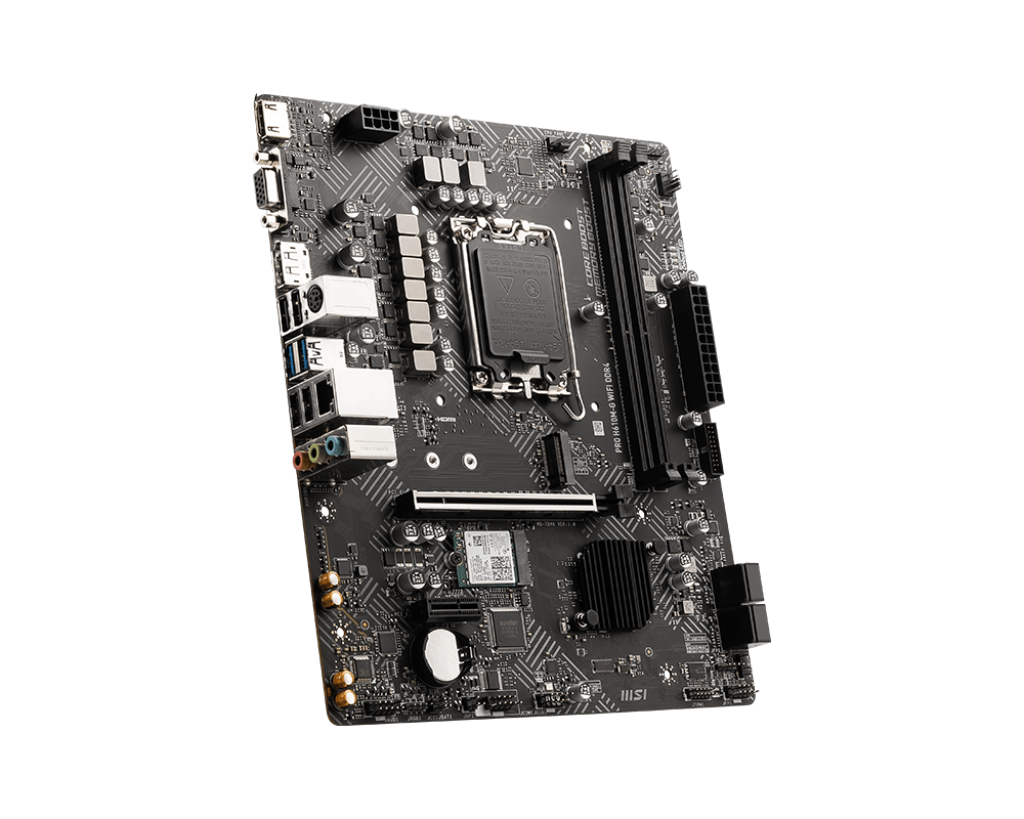

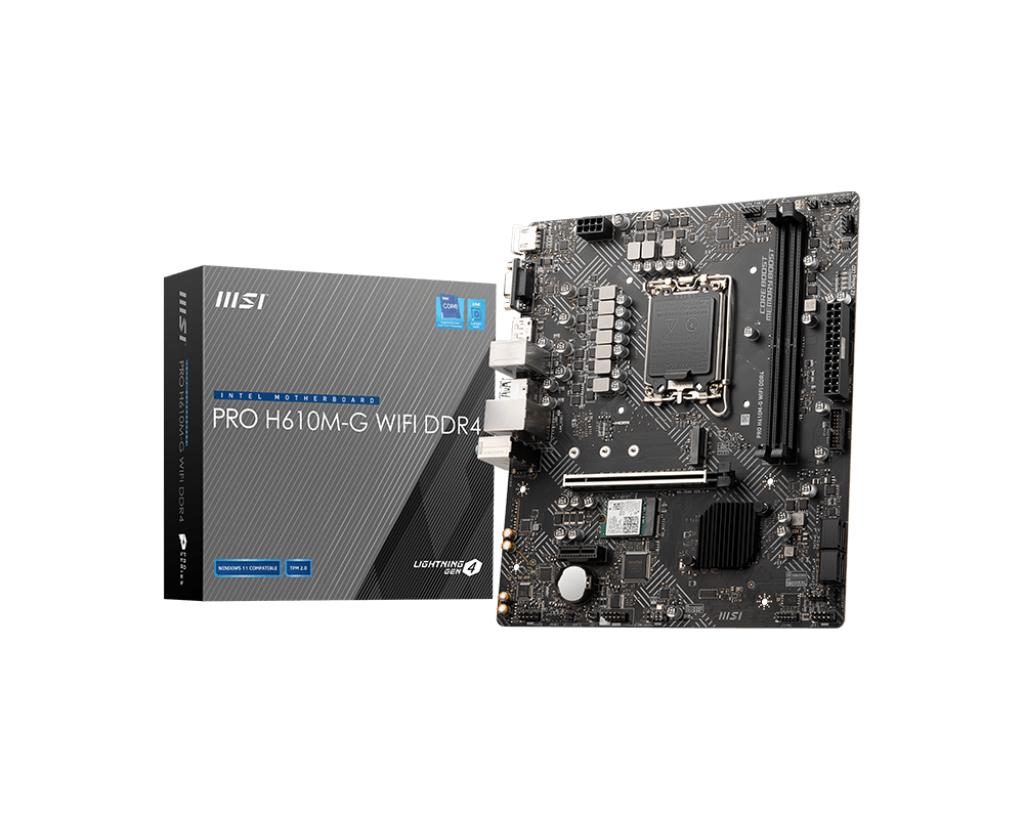

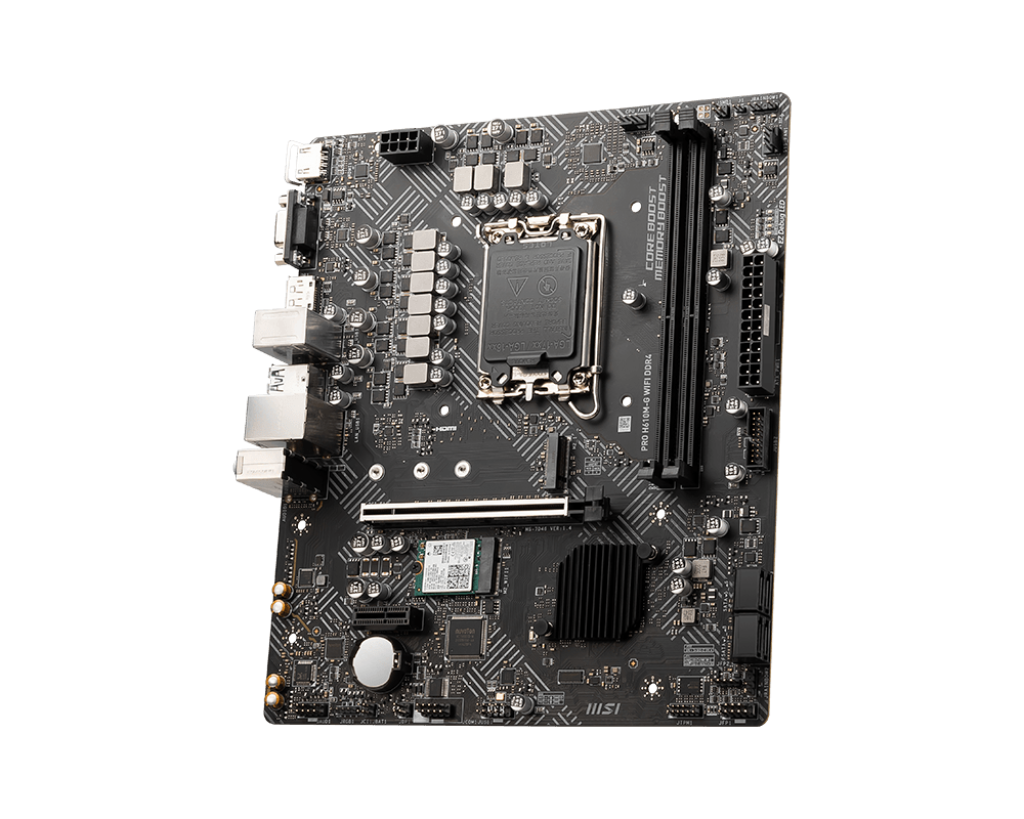

MSI PRO H610M-G DDR4 Motherboard
  • Model:PRO H610M-G DDR4
  • Supports Intel Core 14th/13th/12th
  • H610 chipset, LGA 1700 socket
  • Supports DDR4 up to 3200 MHz
  • PCIe 4.0, Audio Boost
  • 3 Years Warranty from MSI
₹ 6,550
Next Day Dispatch
1
Socket
1700
Chipset
Intel® H610 Chipset
Memory Channel
Dual
DIMM Slots
2
Max Memory (GB)
64
PCI-E x16
1
PCI-E x1
1
SATAIII
4
M.2 Slot
1
TPM (header)
1
USB 3.2 ports (Front)
2(Gen 1, Type A)
USB 3.2 ports (Rear)
2(Gen 1, Type A)
USB 2.0 ports (Front)
2
USB 2.0 ports (Rear)
4
Audio ports (Rear)
Realtek® ALC892/ ALC897 Codec
DisplayPort
1
VGA
1
HDMI
1
DirectX
12
CPU Support
Support for Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
M-ATX
Processor
Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
Expansion Slot
1x PCIe x16 slot (From CPU) - Supports up to PCIe 4.0 x16, 1x PCIe x1 slot - Supports PCIe 3.0 x1, 1x M.2 slot with E-key for PCIe WiFi module only (M2_WIFI1)
Onboard Graphics
1x HDMI™ 2.1 with HDR port, supports a maximum resolution of 4K 60Hz, 1x VGA port, supports a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz, x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz
SATA Ports
4x SATA 6Gb/s ports
M.2 SSD Slot
1x M.2 slot (Key M, from chipset) - Supports up to PCIe 3.0 x4 - Supports up to SATA 6Gb/s - Supports 2242/ 2260/ 2280 storage devices - Supports Intel® Smart Response Technology for Intel Core™ processors
USB
4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, 2 ports available through the internal USB connector), 6x USB 2.0 ports (4 Type-A ports on the back panel(hub-GL850G), 2 ports available through the internal USB 2.0 connector)
Audio
Realtek® ALC892/ ALC897 Codec - 7.1-Channel High Definition Audio
LAN
1x Intel® I219V 1Gbps LAN controller
Power Connectors
1x 24-pin ATX main power connector, 1x 8-pin ATX 12V power connector
Fan Connectors
1x 4-pin CPU fan connector, 1x 4-pin system fan connector
System Connectors
1x Front panel audio connector, 2x System panel connectors, 1x Chassis Intrusion connector, 1x TPM module connector, 1x Serial port connector
Jumpers
1x Clear CMOS jumper
LED Features
1x 4-pin RGB LED connector, 2x 3-pin RAINBOW LED connectors, 4x EZ Debug LED

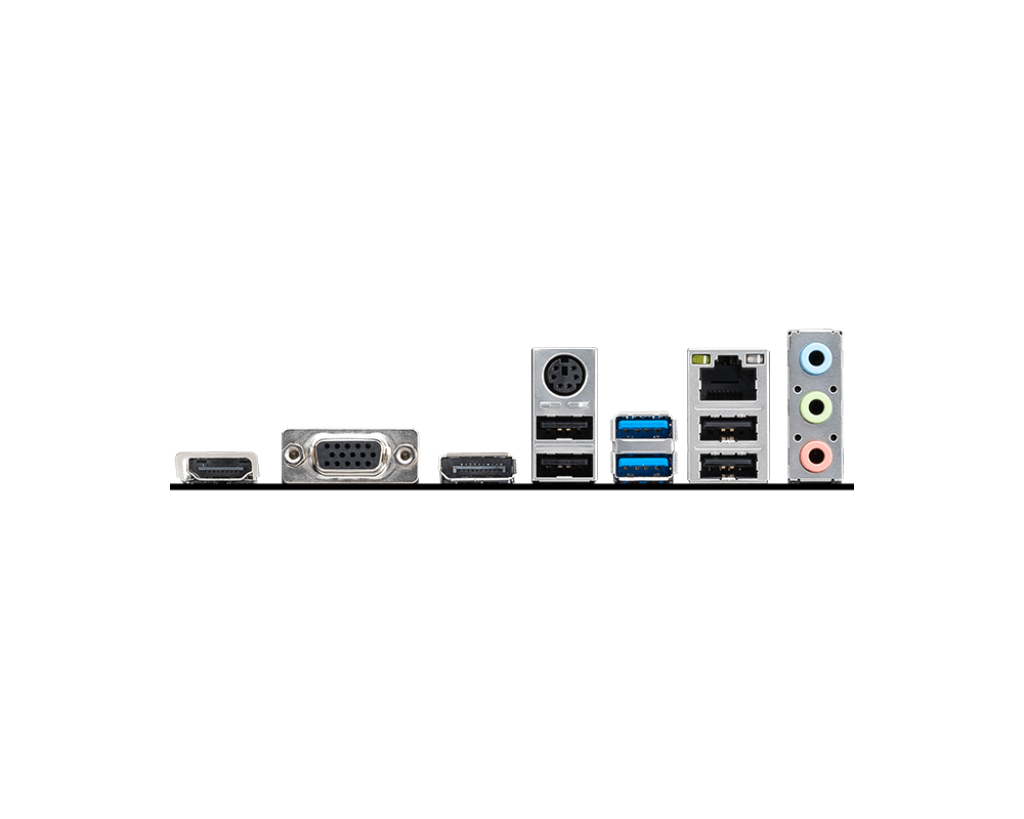

Back panel ports
HDMI™, VGA, DisplayPort, Keyboard/Mouse, USB 3.2 Gen 1 5Gbps Type-A, LAN port, Audio connector, USB 2.0
Dimensions
mATX Form Factor, 9.61 x 8.31 in. (24.4 cm x 21.1 cm)
Operating System
Support for Windows® 11 64-bit
