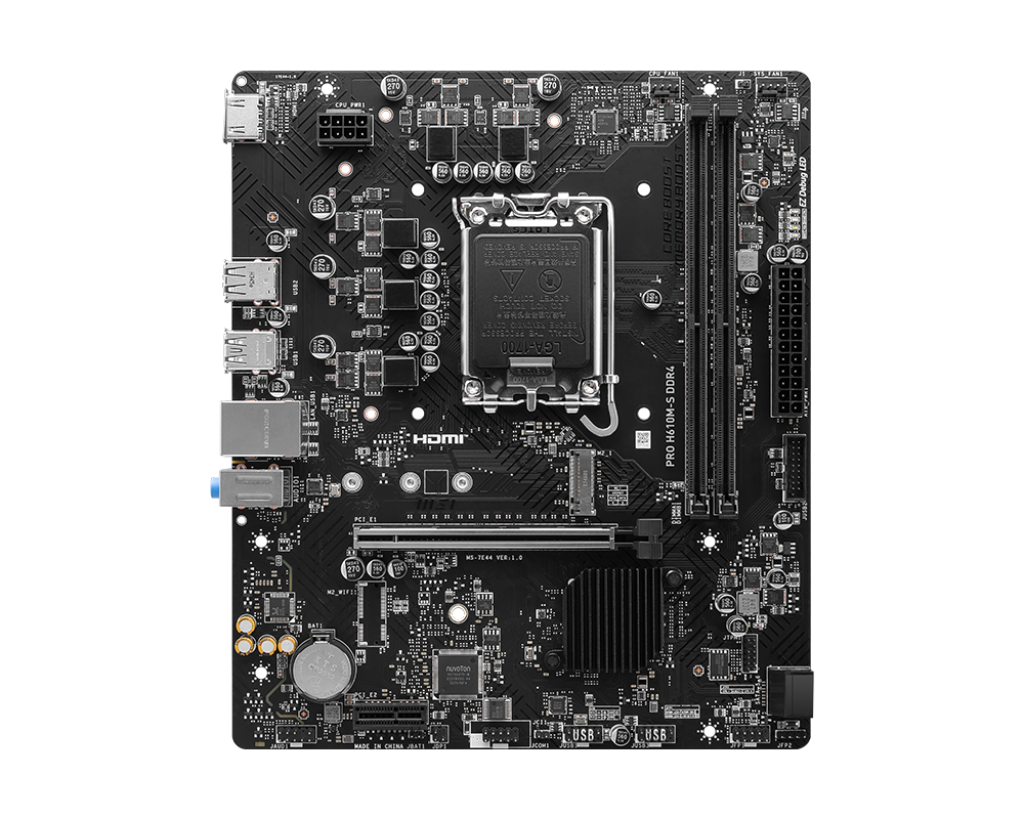

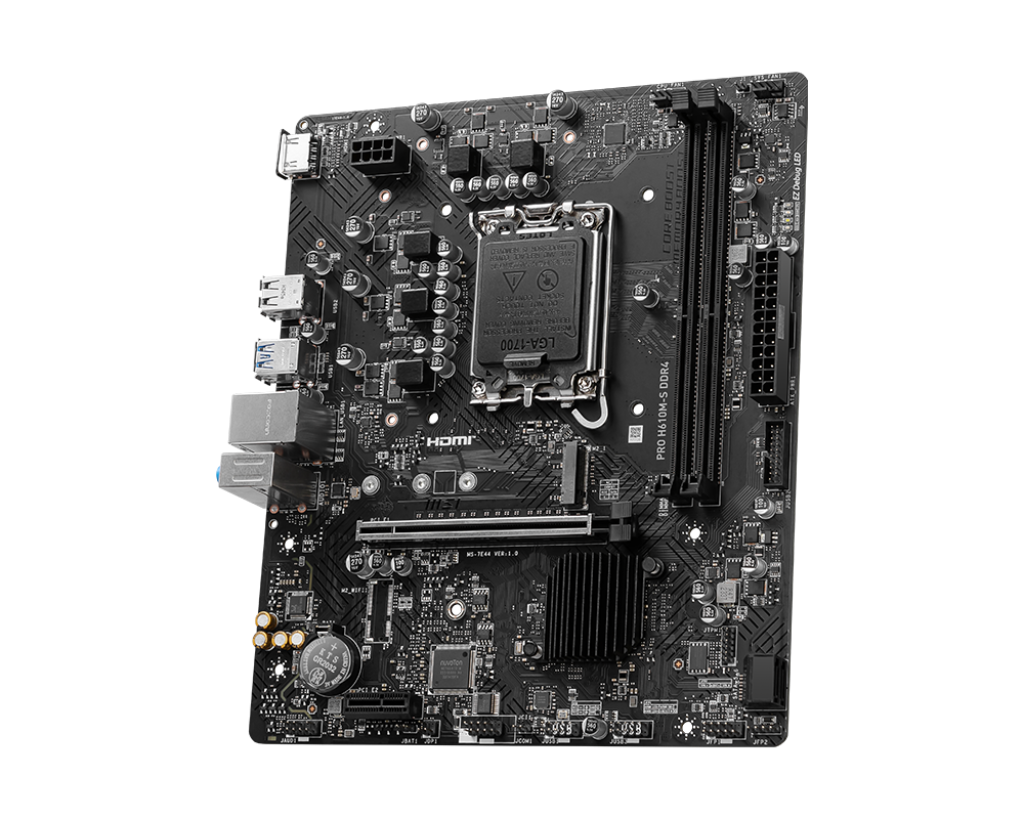

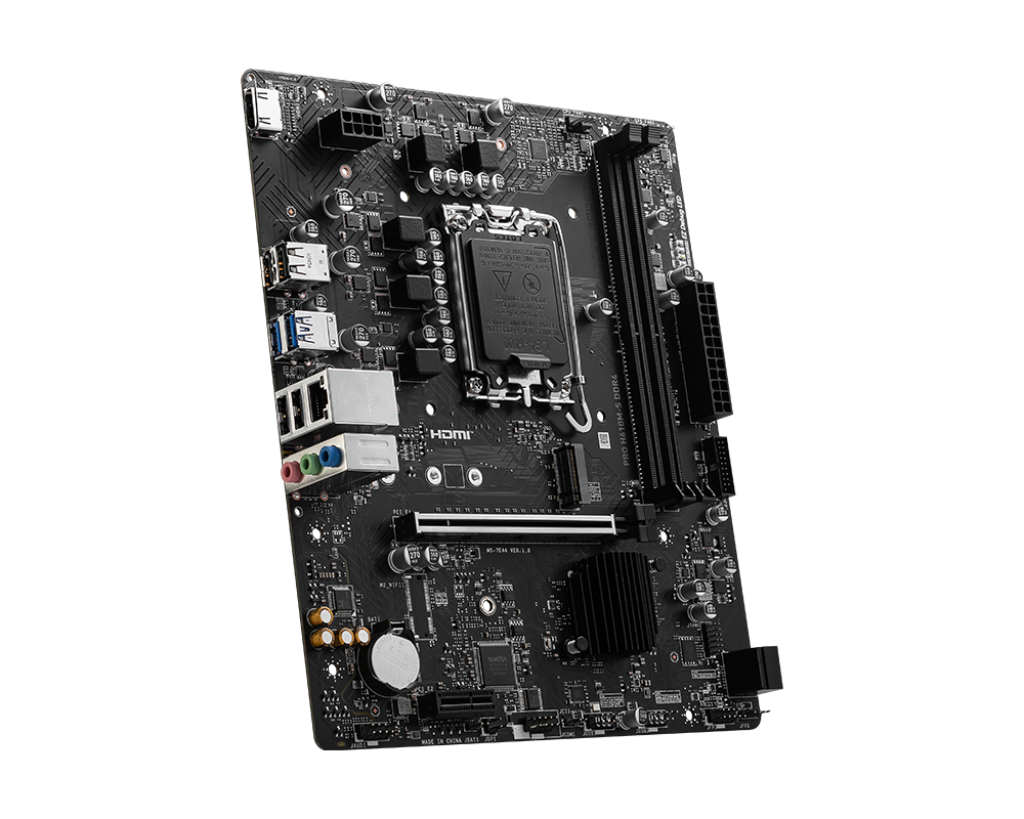

MSI PRO H610M-S DDR4 Motherboard
- Model:PRO H610M-S DDR4
- Supports LGA 1700 Intel CPUs
- H610 chipset, ATX form factor
- DDR4 Memory, up to 3200MHz
- Enhanced PCIe 4.0 support
- 3 Years Warranty from MSI
₹ 6,200
Next Day DispatchFree Delivery
1
Related Products
Best Match Products
MSI PRO H610M-S DDR4 Motherboard
- Model:PRO H610M-S DDR4
- Supports LGA 1700 Intel CPUs
- H610 chipset, ATX form factor
- DDR4 Memory, up to 3200MHz
- Enhanced PCIe 4.0 support
- 3 Years Warranty from MSI
₹ 6,200
Next Day DispatchFree Delivery
1
₹ 6,200
Next Day Dispatch
1
- Chipset
- INTEL H610
- CPU
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® ProcessorsLGA 1700
- Memory
- 2x DDR4, Maximum Memory Capacity 64GBMemory Support DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDECSupports Dual-Channel modeSupports non-ECC, un-buffered memory
- Onboard Graphics
- 1x HDMI™Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz**Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
- Slot
- 1x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- Audio
- Realtek® ALC897 Codec7.1-Channel High Definition Audio
- Storage
- 1x M.2M.2_1 Source (From Chipset) supports up to PCIe 3.0 x4, supports 2280/2260/2242 devices2x SATA 6G
- USB
- 4x USB 2.0 (Rear)4x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)
- LAN
- Realtek® RTL8111H Gigabit LAN
- Internal IO
- 1x Power Connector(ATX_PWR)1x Power Connector(CPU_PWR)1x CPU Fan1x System Fan2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Com Port (JCOM)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports
- LED FEATURE
- 4x EZ Debug LED
- BACK PANEL PORTS
- 1. HDMI™2. USB 3.2 Gen 1 5Gbps (Type-A)3. USB 2.04. LAN port5. Audio Connectors6. USB 2.0
- OPERATING SYSTEM
- Support for Windows® 11 64-bit, Windows® 10 64-bit
- PCB Info
- mATX200mmx236.16mm
- Processor
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
- Processor socket
- LGA1700
- Memory
- 2x DDR4 memory slots, support up to 64GBSupports 1R 2133/ 2666/ 3200 MHz (by JEDEC & POR)Supports Dual-Channel modeSupports non-ECC, un-buffered memory
- Expansion Slot
- 1x PCIe x16 slot (From CPU)Supports up to PCIe 4.0 x16
- PCI-x1 slot
- From H610 chipsetSupports PCIe 3.0 x1
- Onboard Graphics
- 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz
- SATA Ports
- 4x SATA 6Gb/s ports (From H610 chipset)
- M.2 SSD Slot
- 1x M.2 slot (Key M) (from CPU)Supports up to PCIe 3.0 x4Supports 2242/ 2260/ 2280 storage devices
- Audio
- Realtek® ALC897 Codec7.1-Channel High Definition Audio
- LAN
- 1x Realtek® RTL8111H 1Gbps LAN controller
- Power Connectors
- 1x 24-pin ATX main power connector1x 8-pin +12V power connector
- Internal USB Connectors
- 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset)Supports additional 2 USB 3.2 Gen 1 5Gbps ports2x USB 2.0 Type-A connectors (From Hub-GL850G)Supports additional 4 USB 2.0 ports
- Fan Connectors
- 1x 4-pin CPU fan connector2x 4-pin system fan connectors
- System Connectors
- 1x Front panel audio connector2x System panel connectors1x Chassis Intrusion connector1x TPM module connector1x Serial port connector
- Jumpers
- 1x Clear CMOS jumper
- LED Features
- 1x 4-pin RGB LED connector4x EZ Debug LED

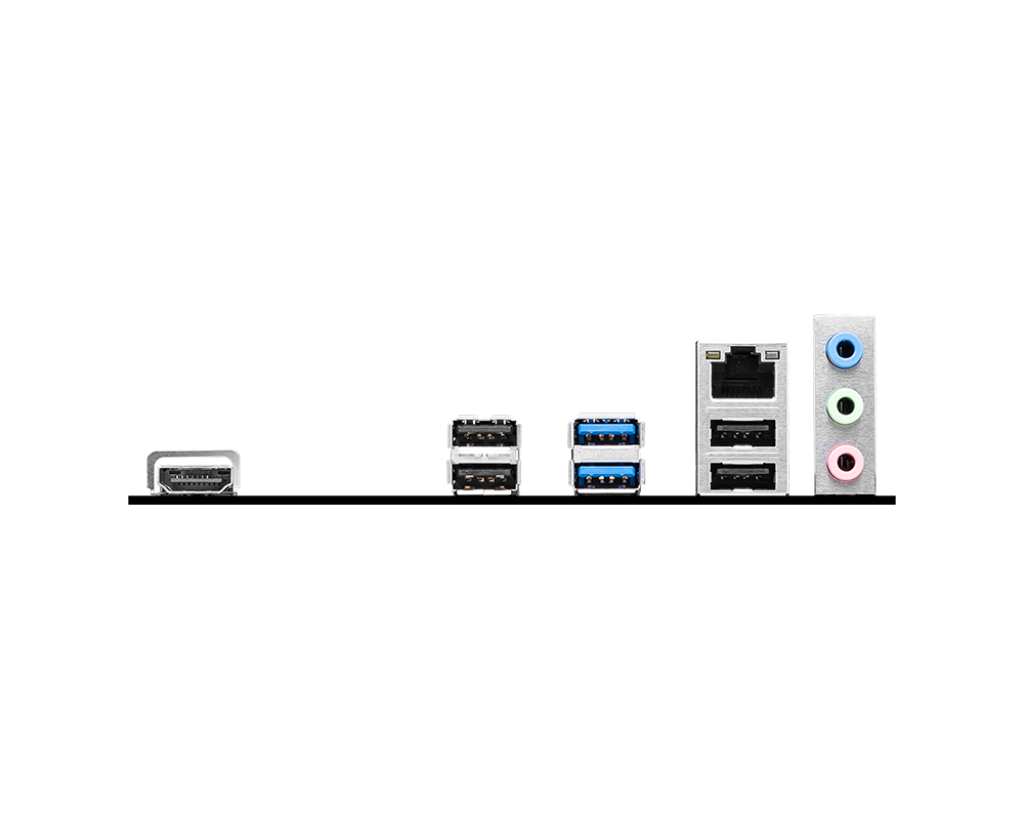

- Back panel ports
- 1. HDMI™2. VGA3. Keyboard / Mouse4. USB 3.2 Gen 1 5Gbps Type-A5. LAN port6. Audio connector7. USB 2.0
- Dimensions
- M-ATX Form Factor9.3 in. x 7.9 in. (23.6 cm x 20 cm)
