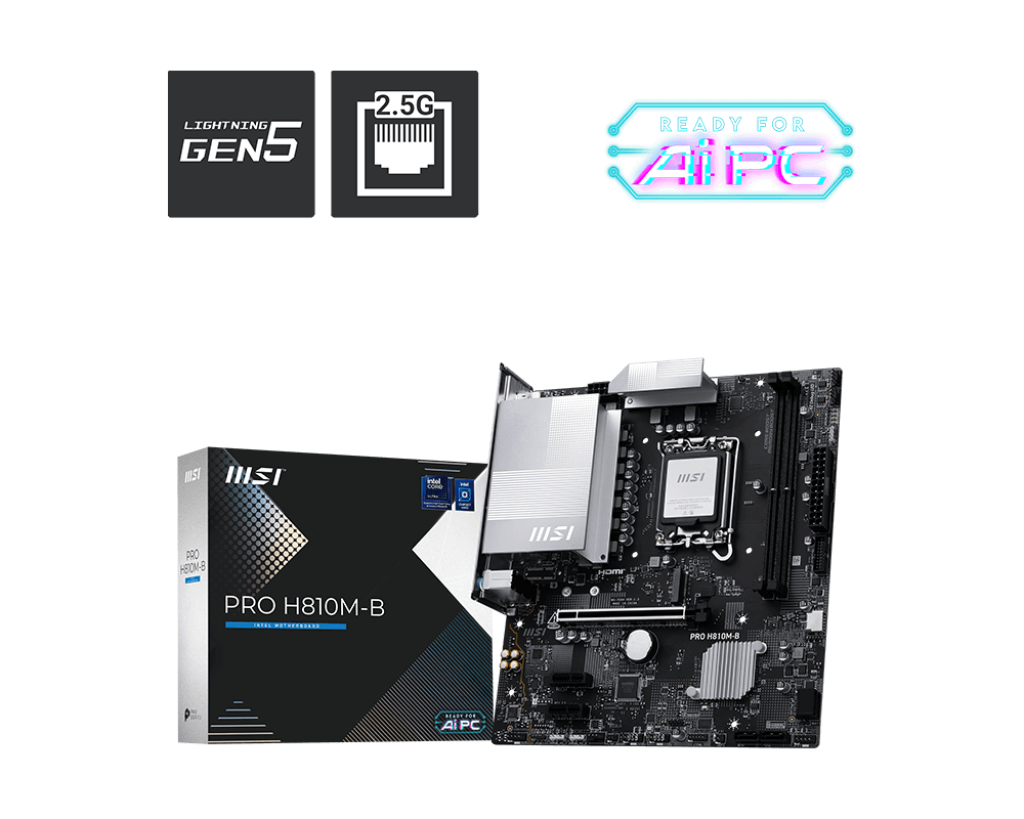

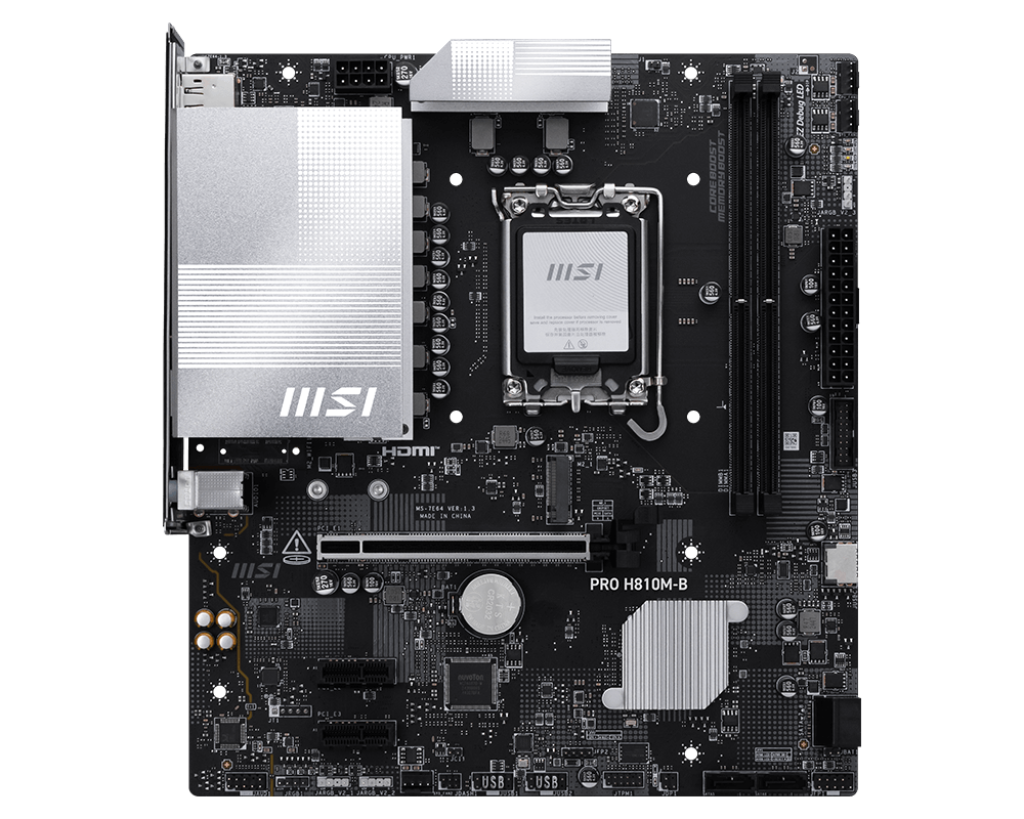

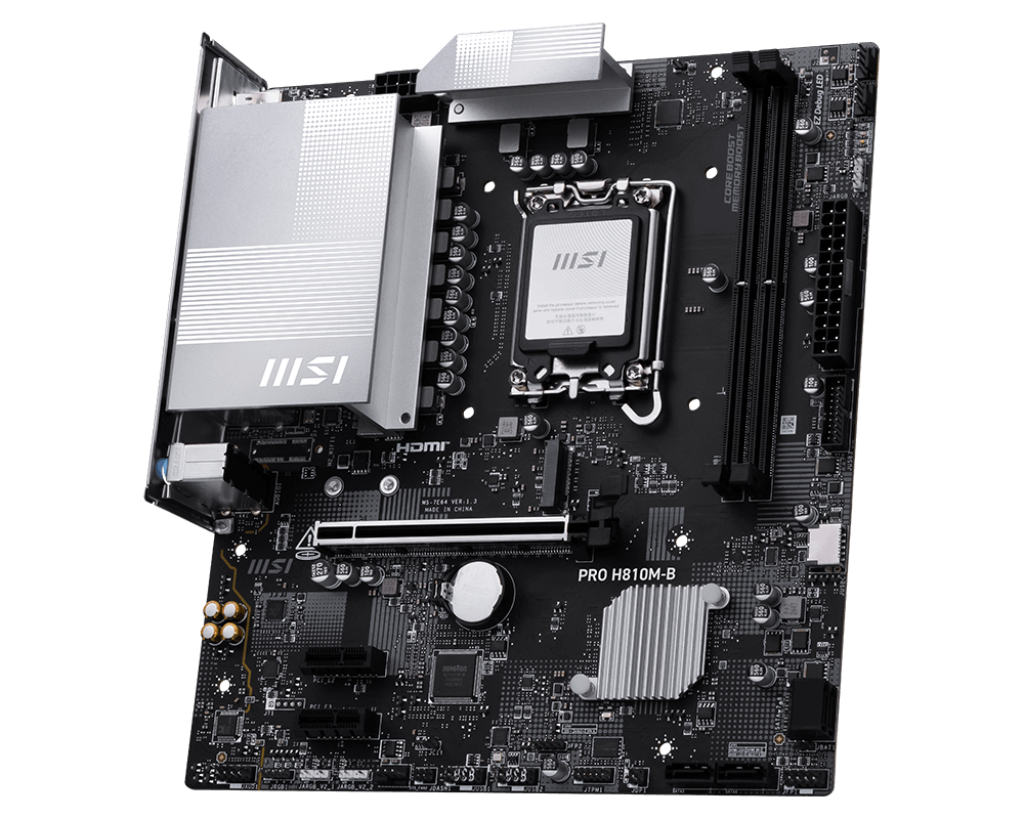

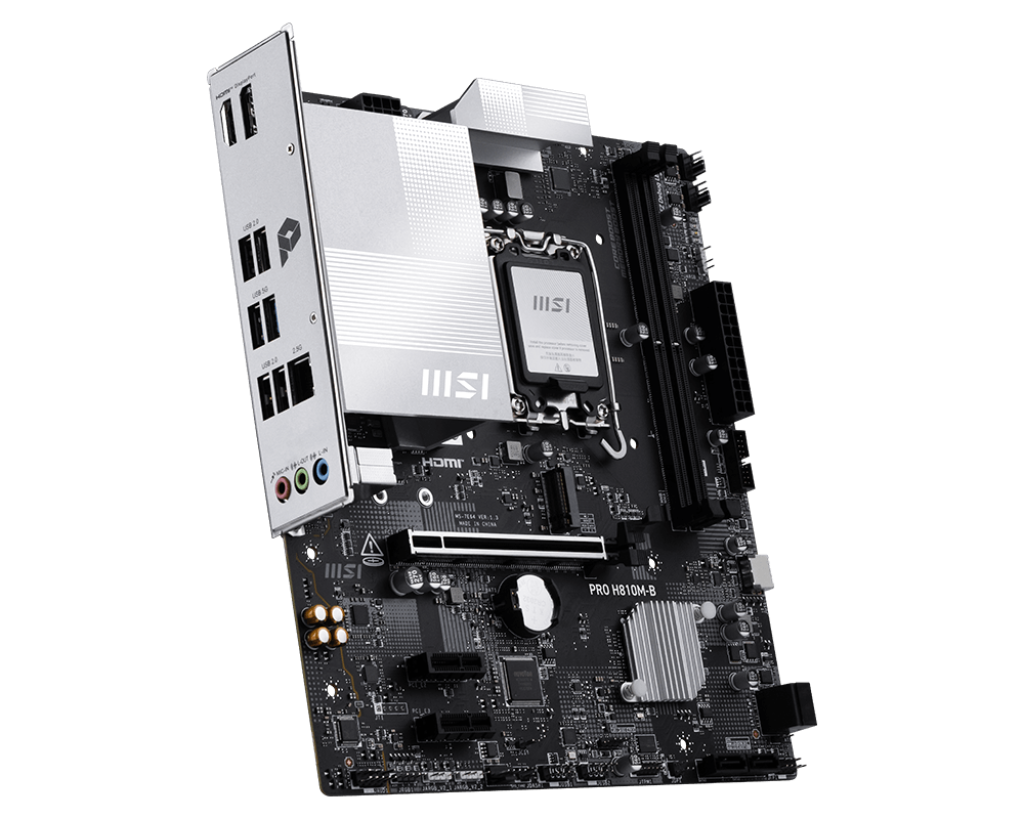

MSI PRO H810M-B Motherboard
  • Model:PRO H810M-B
  • Supports Intel Core Ultra Processors
  • Intel H810 chipset, LGA 1851 socket, Micro-ATX
  • Supports DDR5 Memory up to 6400 MT/s
  • PCIe 5.0 slot and 2.5G LAN connectivity
  • 3 Years Warranty from MSI
₹ 10,550
Next Day Dispatch
1
Chipset
INTEL H810
CPU
Supports Intel® Core™ Ultra Processors (Series 2) LGA 1851
Memory
2x DDR5 UDIMM, Maximum Memory Capacity 128GB Memory Support DDR5 6400 - 4800 (JEDEC) MT/s Max. overclocking frequency: • 1DPC 1R Max speed up to 6400 MT/s • 1DPC 2R Max speed up to 6400 MT/s Supports Intel® POR Speed and JEDEC Speed Supports Intel® XMP 3.0 Supports Dual-Controller Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM _• The DIMM slots on this motherboard have double-sided latches._ _• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/._
Onboard Graphics
1x HDMI™ Support HDMI™ 2.1, maximum resolution of 4K 60Hz* 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz* _*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed._
Slot
1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Audio
Realtek® ALC897 Codec 7.1-Channel High Definition Audio
Storage
1x M.2 M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G _*Please refer to the manual for M.2 SSD heatsink restrictions._
USB
4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Front)
LAN
Realtek® 8125 2.5Gbps LAN
Internal IO
1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LED FEATURE
4x EZ Debug LED 1x EZ Memory Detection LED

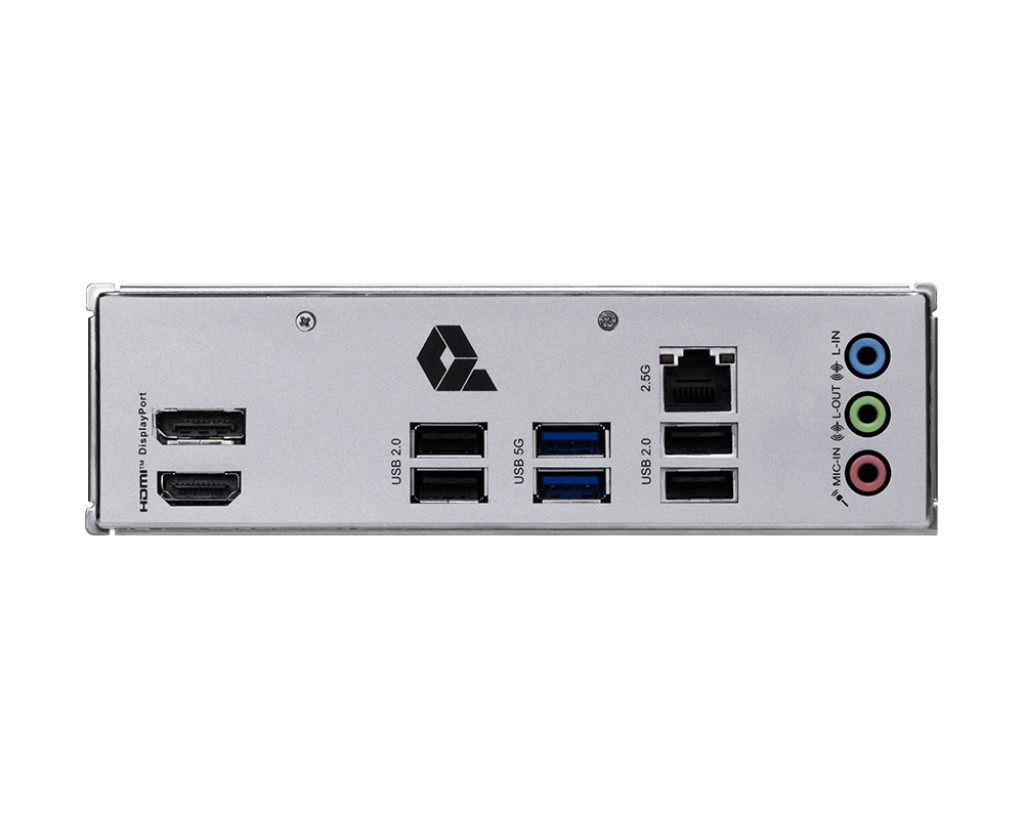

BACK PANEL PORTS
1. DisplayPort 2. USB 2.0 3. USB 5Gbps Type-A 4. 2.5G LAN 5. Audio Connectors 6. HDMITM 7. USB 2.0
OPERATING SYSTEM
Support for Windows® 11 64-bit
PCB Info
mATX 220mmx243.84mm
