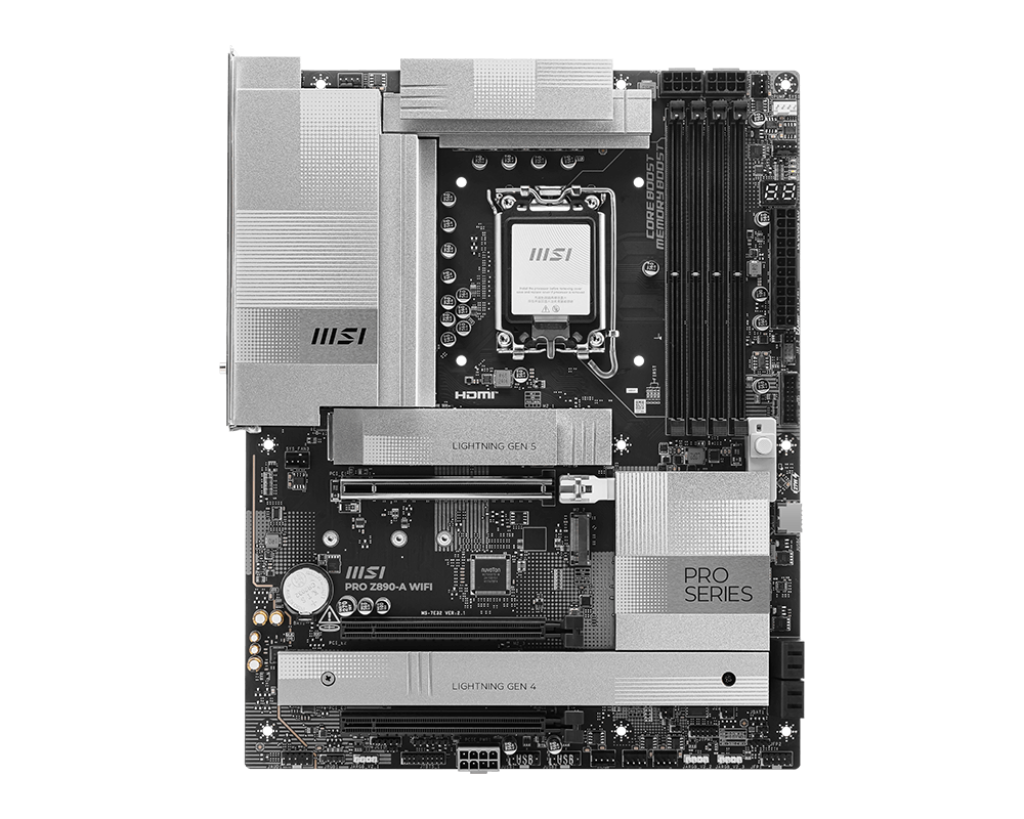

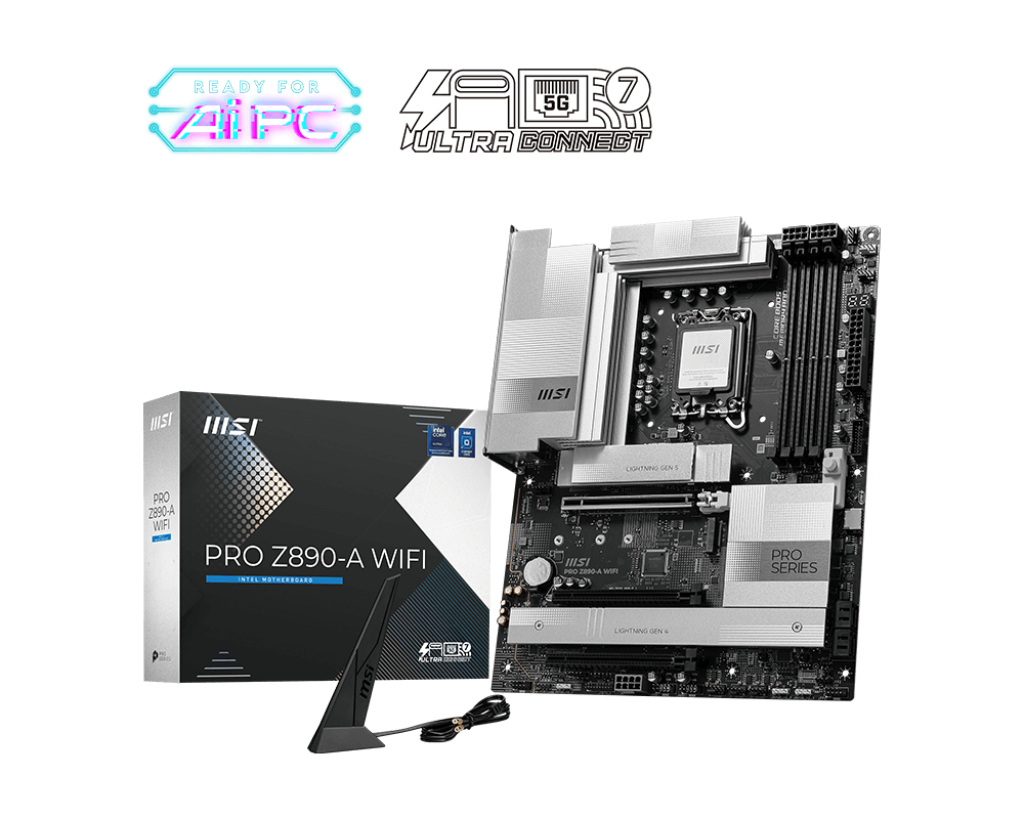

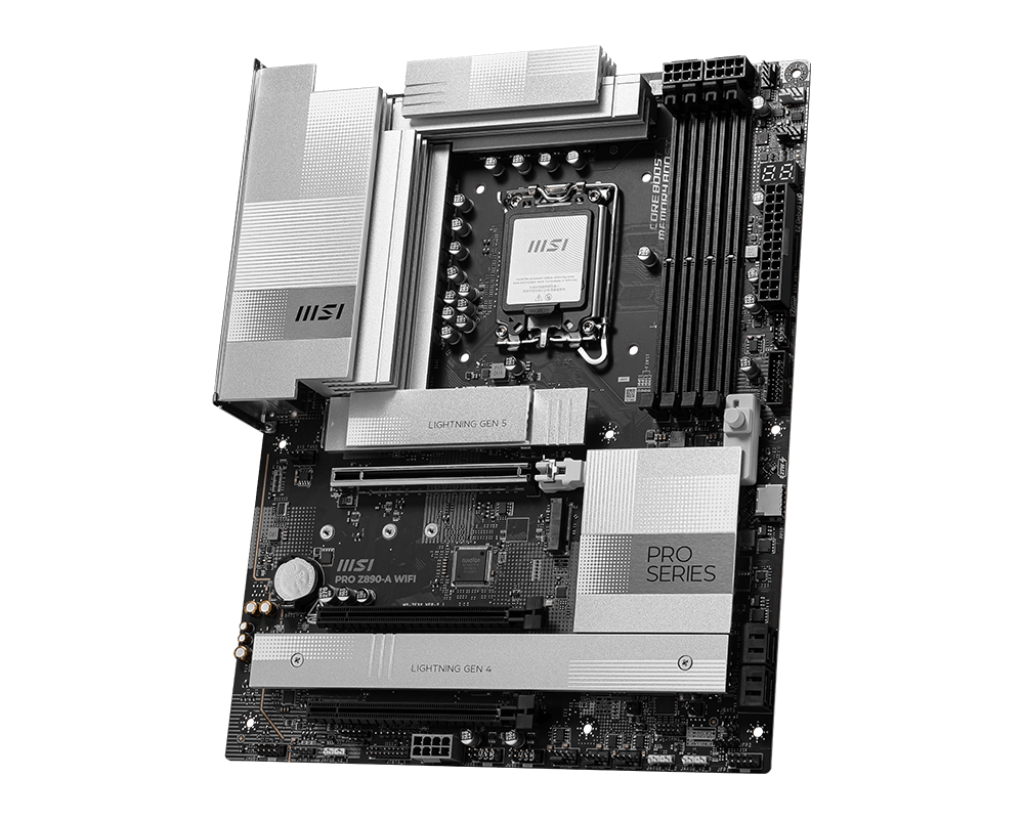

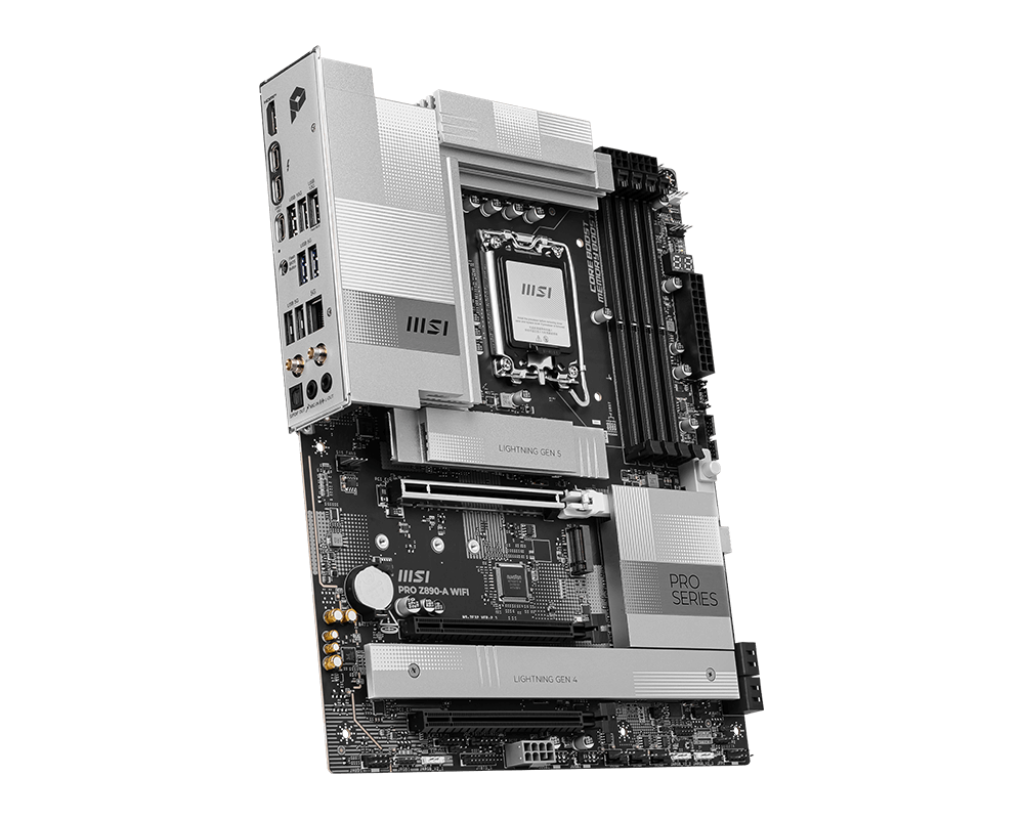

MSI PRO Z890-A WIFI Motherboard

  • Model:PRO Z890-A WIFI
  • Supports Intel Core Ultra CPUs
  • Intel Z890 chipset, LGA 1851
  • DDR5 memory support
  • Dual Thunderbolt 4, Wi-Fi 7
  • 3 Years Warranty from MSI
₹ 28,300
In Stock
1
Chipset
INTEL Z890
CPU
Supports Intel® Core™ Ultra Processors (Series 2)LGA 1851
Memory
4x DDR5 UDIMM, Maximum Memory Capacity 256GBMemory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/sMax. overclocking frequency:• 1DPC 1R Max speed up to 9200+ MT/s• 1DPC 2R Max speed up to 7200+ MT/s• 2DPC 1R Max speed up to 6400+ MT/s• 2DPC 2R Max speed up to 5600+ MT/sSupports Intel® POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel® XMP 3.0Supports Dual-Controller Dual-Channel modeSupports Non-ECC, Un-buffered memorySupports CUDIMM_• The DIMM slots on this motherboard only have single-sided latches.__• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/._
Onboard Graphics
1x HDMI™Support HDMI™ 2.1 with FRL, maximum resolution of 4K 120Hz\*2x Type-C DisplayPortThunderbolt™ 4 ports, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz\*\*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot
3x PCI-E x16 slotPCI\_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI\_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI\_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio
Realtek® ALC1220P7.1-Channel High Definition AudioSupports S/PDIF output
Storage
4x M.2M.2\_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2\_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices M.2\_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2\_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G\*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices
Onboard Thunderbolt
2x Thunderbolt4 ports (Rear)Support up to 40Gbps transfer rate with Thunderbolt devicesSupport up to 20Gbps transfer rate with USB4 devicesSupport up to 10Gbps transfer rate with USB 3.2 devicesSupport up to 5V/3A,15W power chargingEach port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devicesSupport up to 8K display
USB
4x USB 2.0 (Front)4x USB 5Gbps Type A (Rear)2x USB 5Gbps Type A (Front)3x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Rear)1x USB 20Gbps Type C (Front)\*USB 20Gbps Type-C (Front) support USB PD 27W fast charging for JUSBC1
LAN
Realtek® 8126 5Gbps LAN
Internal IO
1x Thunderbolt5 card connector(JTBT5, support RTD3)1x Power Connector(ATX\_PWR)2x Power Connector(CPU\_PWR)1x Power Connector(PCIE\_PWR 8pin)1x CPU Fan1x Combo Fan (Pump\_Sys Fan)6x System Fan1x EZ Conn-header (JAF\_2)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)3x Addressable V2 RGB LED connector (JARGB\_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)4x USB 2.0 ports2x USB 5Gbps Type A ports1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH
Intel® Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz\* (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4\*\*, MLO, 4KQAM_\* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.__\*\* The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.
LED FEATURE
4x EZ Debug LED1x EZ Digit Debug LED

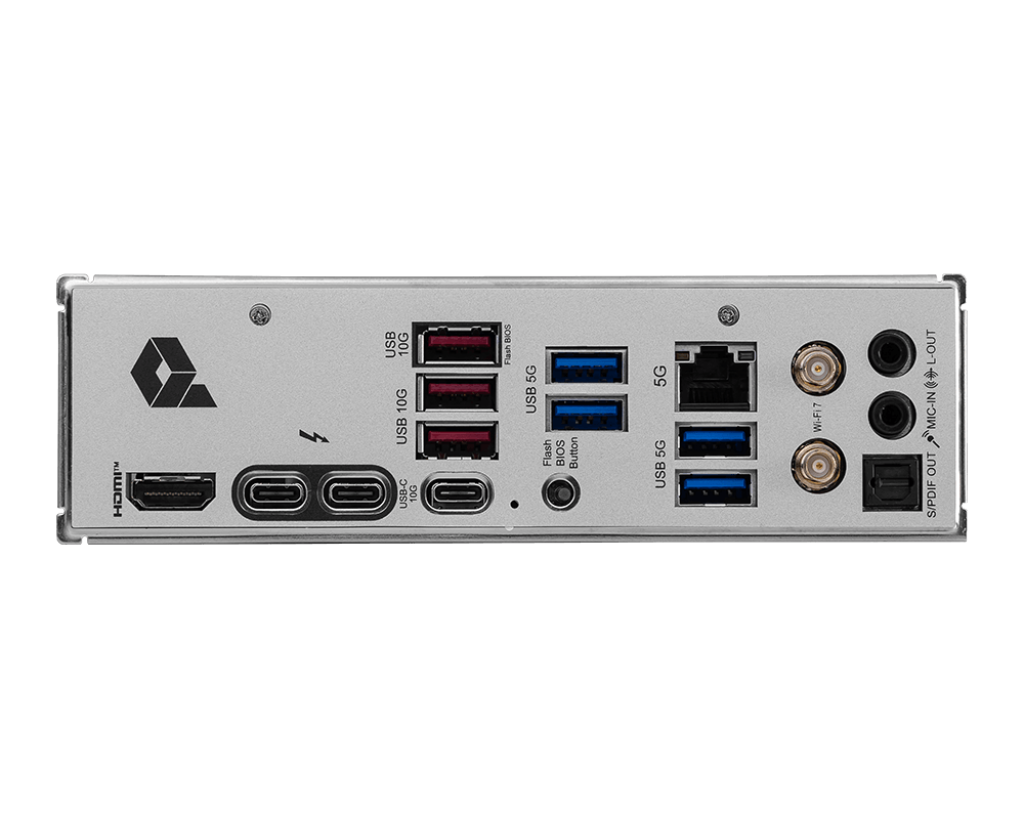

BACK PANEL PORTS
01. USB 10Gbps Type-A02. USB 5Gbps Type-A03. 5G LAN04. Wi-Fi / Bluetooth05. Audio Connectors06. HDMI™07. Thunderbolt™ 4 40Gbps (Type-C)08. USB 10Gbps Type-C09. Flash BIOS Button10. USB 5Gbps Type-A11. S/PDIF-OUT
OPERATING SYSTEM
Support for Windows® 11 64-bit
PCB Info
ATX243.84mmx304.8mm
