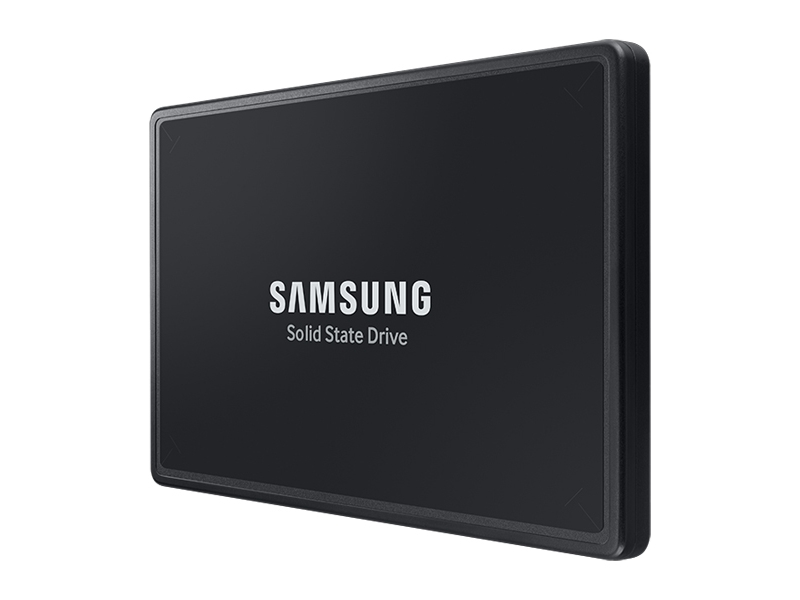

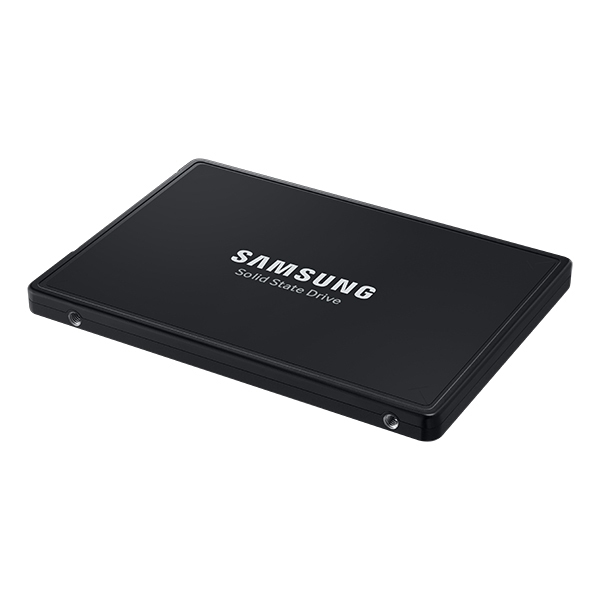

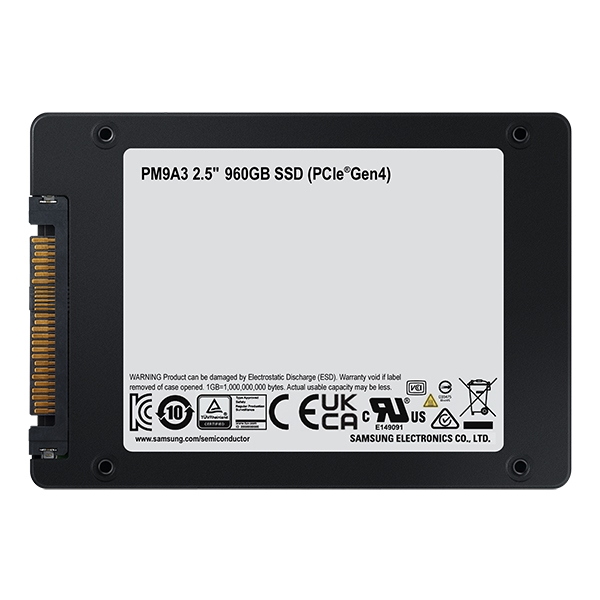

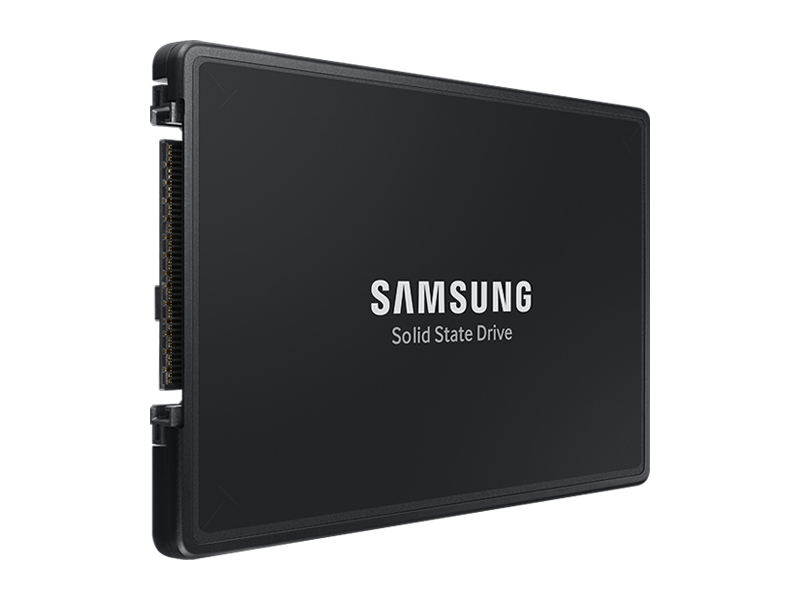

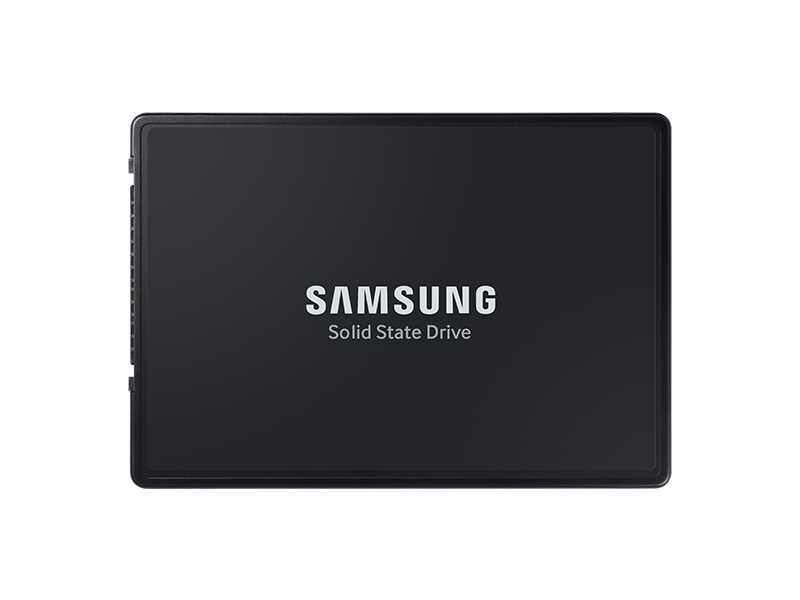

Samsung PM9A3 960GB NVMe U.2 SSD
  • Model:MZ-QL296000
  • 960GB Storage Capacity
  • NVMe U.2 PCIe 4.0 Interface
  • Read/Write Speeds up to 6,500/1,500 MB/s
  • Power Loss Protection
  • 5 Years Warranty
₹ 21,650
Out Of Stock
1
Interface
PCIe 4.0 x4 NVMe 1.4
Series
PM9A3
Application
Data Center
Capacity
960GB
Sequential Read Speed
Up to 6,500 MB/s
Sequential Write Speed
Up to 1,500 MB/s
Random Read Speed
Up to 580,000 IOPS
Random Write Speed
Up to 70,000 IOPS
Controller
Samsung Elpis Controller
NAND Flash
Samsung V-NAND TLC
Cache Memory
Samsung Low Power SDRAM
Trim Support
Yes
AES Encryption
AES 256-bit Encryption
Security
TCG/Opal (Class 0)
S.M.A.R.T. Support
Yes
GC (Garbage Collection)
Auto Garbage Collection Algorithm
WWN Support
NGUID Supported
Internal Storage
Yes
Enterprise storage
Yes
Powerloss Protection
Yes
2.5 U.2
Yes
Power Consumption (W)
Active (Read/Write): 9.5 W / 8.0 WIdle: Max. 3.5 W
Voltage
12.0V ± 10% Allowable voltage
Reliability (MTBF)
2.0 Million Hours Reliability (MTBF)
Operating Temperature
0 - 70 ℃ Operating Temperature
Shock
1,500 G & 0.5 ms (Half sine)
Form Factor
U.2 2.5-inch 7mmT
Dimensions (W x H x D)
100.2 x 69.85 x 6.8 (mm)
Weight
Max 90.0 g
Management SW
Samsung SSD DC Tool kit
Warranty
5 Year Limited Warranty or 1,752 TBW Limited Warranty
