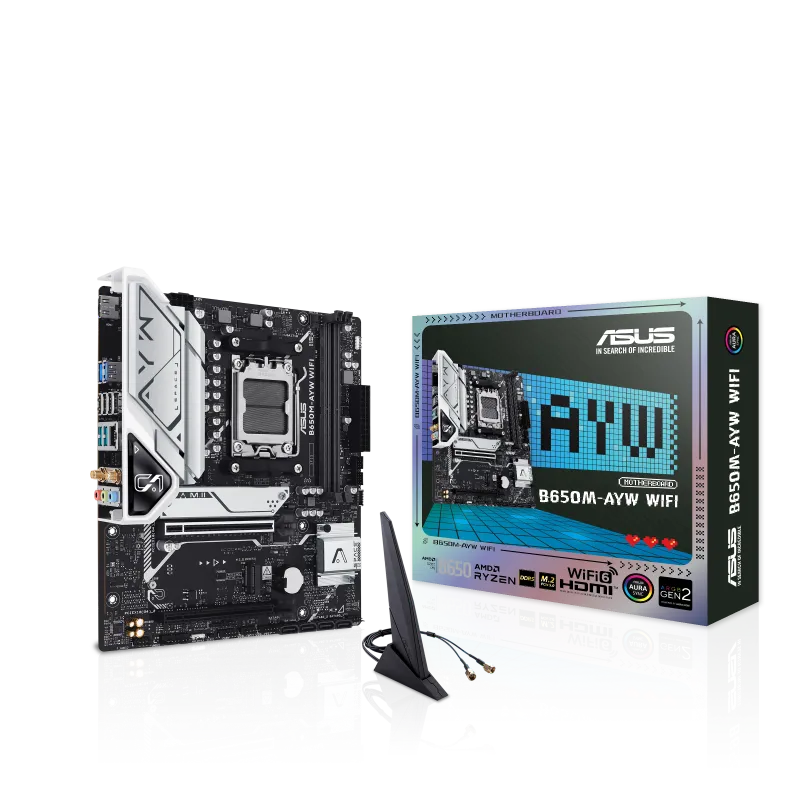

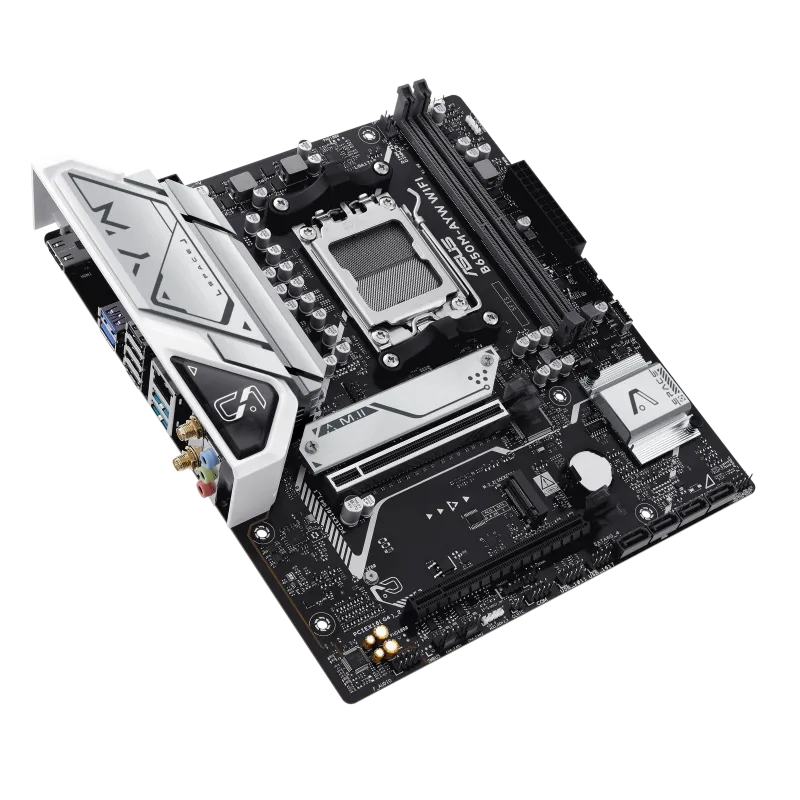

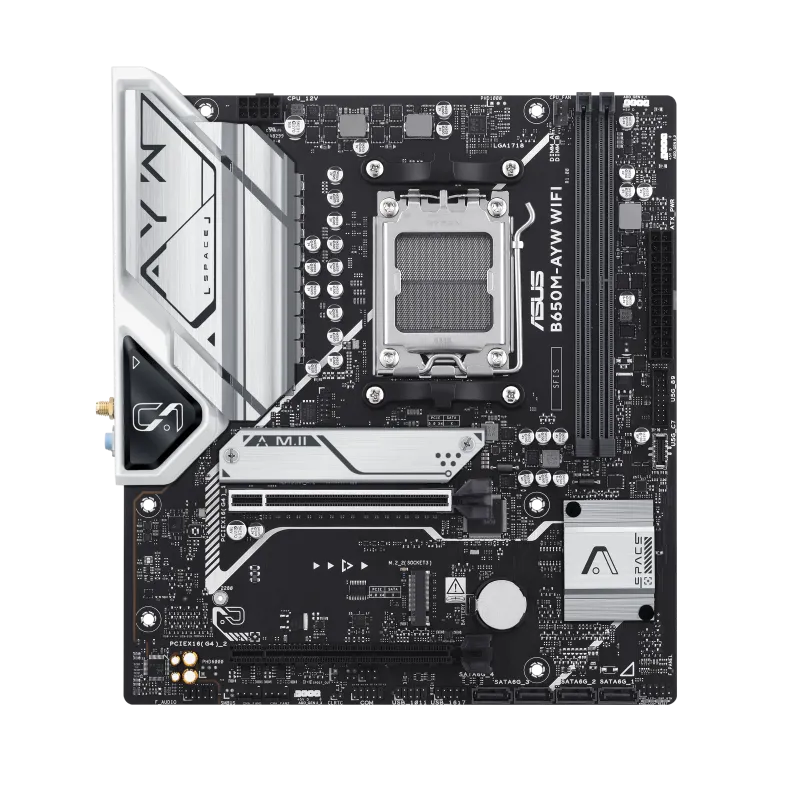

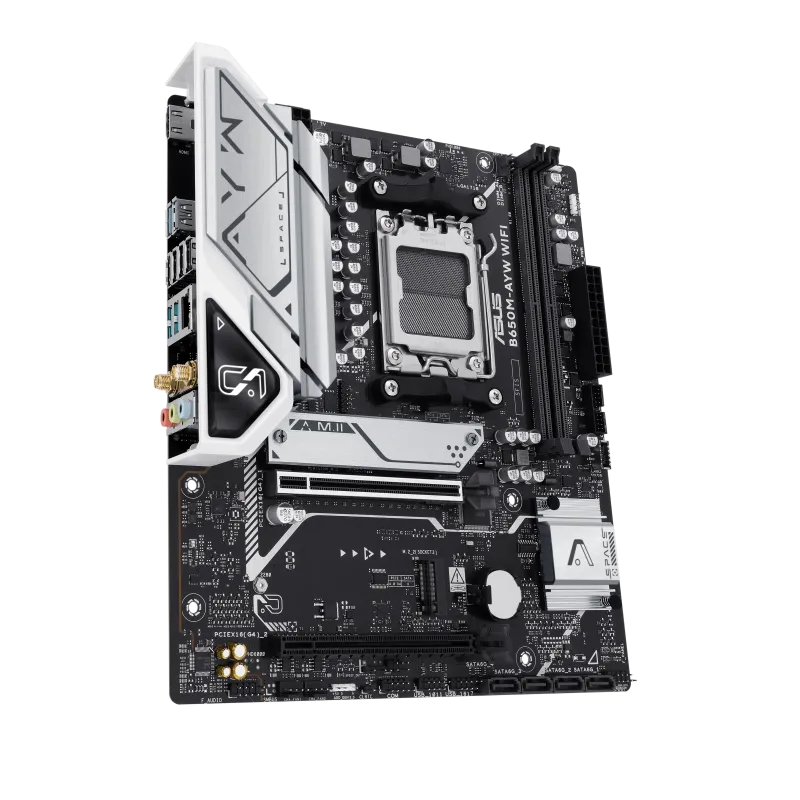

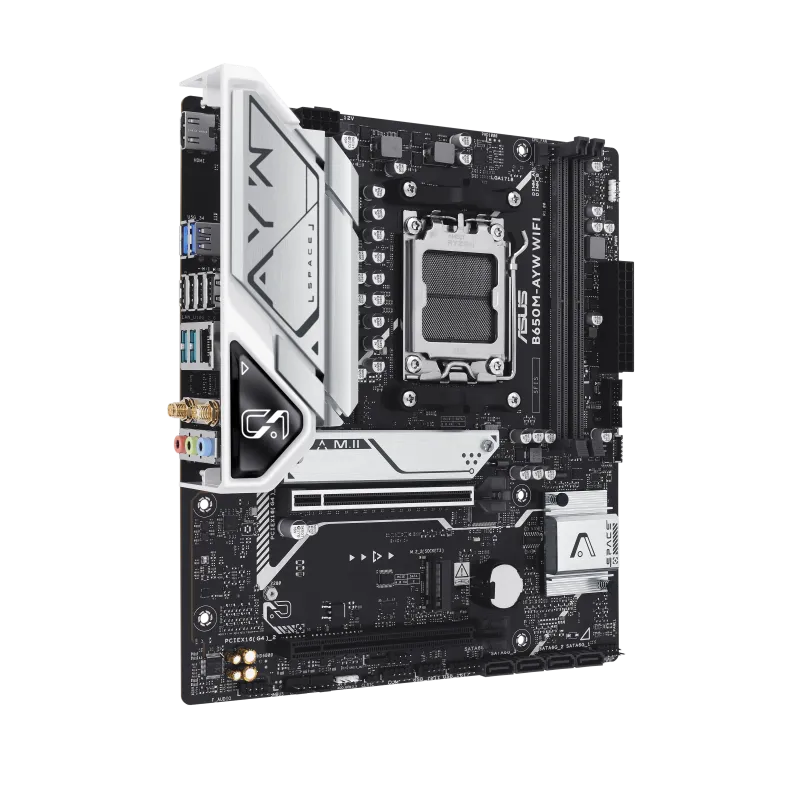

ASUS B650M-AYW WIFI Motherboard
  • Model:B650M-AYW WIFI
  • Compatible with AMD Ryzen 7000 processors
  • AMD B650 chipset, AM5 socket, Micro-ATX form factor
  • Supports high-speed DDR5 memory modules
  • Features PCIe 5.0 M.2 slot, Wi-Fi 6, and USB 10Gbps ports
  • 3 Years Warranty from ASUS
₹ 11,300
Next Day Dispatch
1
Model
B650M-AYW WIFI
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
CPU Note
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
Chipset
AMD B650 Chipset
Memory
2 x DIMM slots, max. 96GB, DDR5 Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Memory Architecture
Dual Channel Memory Architecture
Memory Profiles
Supports AMD Extended Profiles for Overclocking (EXPO™)
Memory Feature
OptiMem II
Memory Note
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
ECC Support Note
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics Output
1 x HDMI™ port**
Graphics Note
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
HDMI Support Note
** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots (AMD Ryzen™ 9000 & 7000 Series Desktop Processors*)
1 x PCIe 4.0 x16 slot (supports x16 mode)
Expansion Slots (AMD Ryzen™ 8000 Series Desktop Processors)
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
Expansion Slots (AMD B650 Chipset)
1 x PCIe 4.0 x16 slot (supports x4 mode)
Expansion Slots Note 1
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Expansion Slots Note 2
** Specifications vary by CPU types.
Expansion Compatibility Note
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.
Storage (Total)
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Storage (AMD Ryzen™ 9000 & 7000 Series Desktop Processors)
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Storage (AMD Ryzen™ 8000 Series Desktop Processors)
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)**
Storage (AMD B650 Chipset)
4 x SATA 6Gb/s ports
RAID Support Note
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Storage Note 2
** Specifications vary by CPU types.
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless
Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Wireless Bands
Supports 2.4/5GHz frequency band
Bluetooth Version
Bluetooth® v5.3*
Bluetooth Note
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Rear USB (Total)
8 ports
Rear USB (Details)
2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A)
Front USB (Total)
7 ports
Front USB (Details)
1 x USB 5Gbps connector (supports USB Type-C®) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio CODEC
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Audio Features (Support 1)
Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio Features (Support 2)
Supports up to 24-Bit/192 kHz playback
Audio Features (Board Level)
Audio Shielding Premium audio capacitors Dedicated audio PCB layers
Audio Note
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

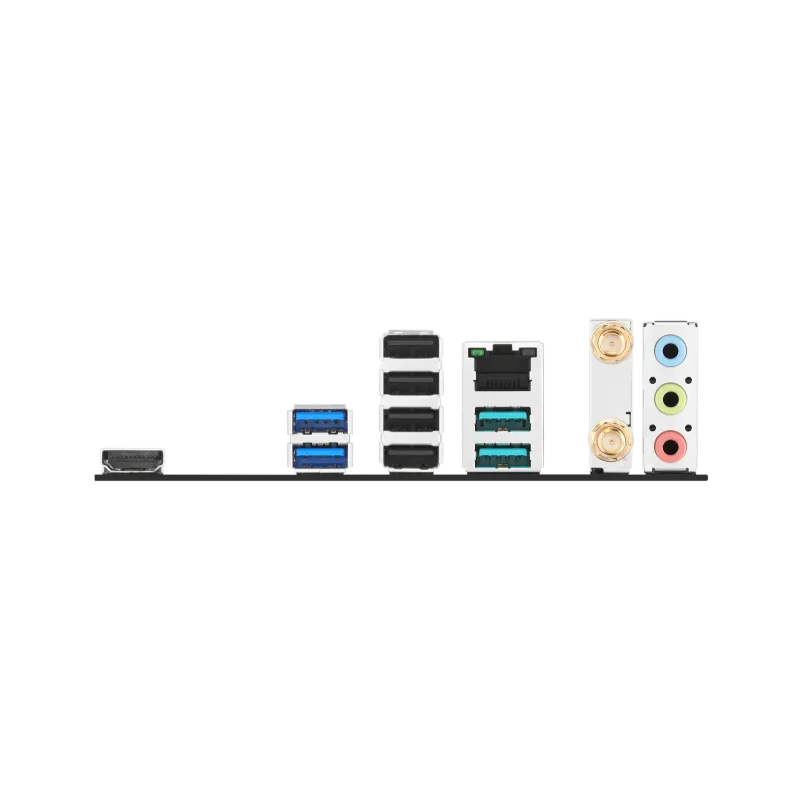

Back Panel I/O Ports
2 x USB 10Gbps ports (2 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x HDMI™ port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks
Internal I/O Connectors (Fan and Cooling related)
1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers
Internal I/O Connectors (Power related)
1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector
Internal I/O Connectors (Storage related)
2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports
Internal I/O Connectors (USB)
1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors (Miscellaneous)
3 x Addressable Gen 2 headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x 10-1 pin System Panel header
Special Features (ASUS 5X PROTECTION III)
DIGI+ VRM LANGuard Overvoltage Protection Safeslot Core+ Stainless-Steel Back I/O
Special Features (ASUS Q-Design)
M.2 Q-Latch Q-DIMM Q-LED Core Q-Slot
Special Features (ASUS Thermal Solution)
M.2 heatsink VRM heatsink design
Special Features (Aura Sync)
Addressable Gen 2 headers
Software Features (ASUS Exclusive Software)
Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial)
Software Features (UEFI BIOS)
ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories (Cables)
2 x SATA 6Gb/s cables
Accessories (Miscellaneous)
1 x ASUS Wi-Fi moving antenna 1 x I/O Shield 1 x M.2 Rubber Package 1 x Screw Package for M.2 SSD
Accessories (Documentation)
1 x Quick start guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
micro-ATX Form Factor
Dimensions
9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
