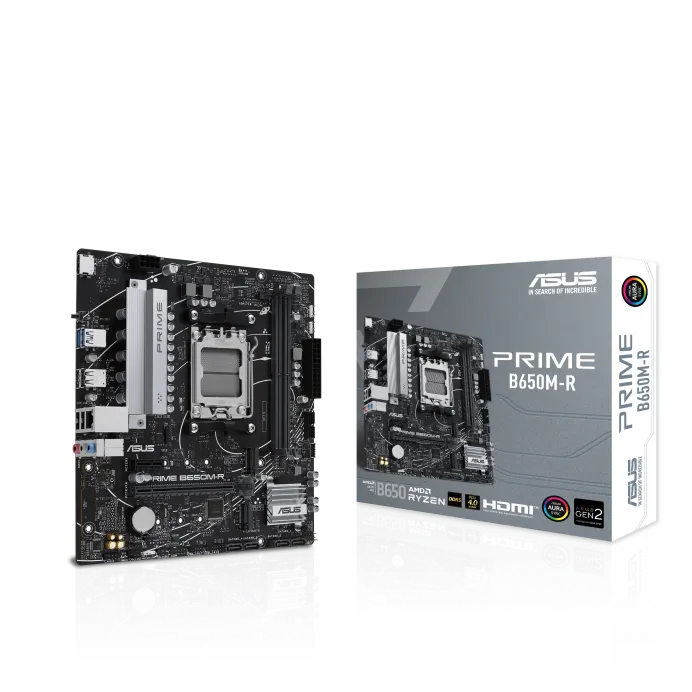

ASUS PRIME B650M-R Motherboard
  • Model:PRIME B650M-R
  • Compatible with AMD Ryzen 7000 Series processors
  • AMD B650 chipset, AM5 socket, Micro-ATX form factor
  • Supports fast DDR5 memory and PCIe 4.0 connectivity
  • Includes Realtek 2.5Gb Ethernet and front USB Type-C
  • 3 Years Warranty from ASUS
₹ 8,750
Next Day Dispatch
1
Model
PRIME B650M-R
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
CPU Note
* Refer to www.asus.com for CPU support list.
Chipset
AMD B650 Chipset
Memory
2 x DIMM slots, Max. 96GB, DDR5 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Yes
Supports AMD Extended Profiles for Overclocking (EXPO™)
Yes
OptiMem II
Yes
Memory Note 1
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Memory Note 2
* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function.
Graphics
1 x HDMI™ port*
Graphics Note 1
* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Graphics Note 2
** Supports 4K@60Hz as specified in HDMI 2.1.
Expansion Slots (AMD Ryzen™ 9000 & 7000 Series Desktop Processors*)
1 x PCIe 4.0 x16 slot (supports x16 mode)
Expansion Slots (AMD Ryzen™ 8000 Series Desktop Processors)
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
Expansion Slots (AMD B650 Chipset)
1 x PCIe 4.0 x1 slots
Expansion Slots Note
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Storage (AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage (AMD B650 Chipset)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Storage (SATA Ports)
4 x SATA 6Gb/s ports
Storage Note
* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
USB (Rear USB, Total 6 ports)
2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A)
USB (Front USB, Total 7 ports)
1 x USB 5Gbps connector (supports USB Type-C®); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Audio - Supports
Jack-detection, Multi-streaming, Front Panel Jack-retasking
Audio - Playback
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding; Premium audio capacitors; Dedicated audio PCB layers
Audio Note
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Back Panel I/O Ports
2 x USB 5Gbps ports (2 x Type-A); 4 x USB 2.0 ports (4 x Type-A); 1 x HDMI™ port; 1 x Realtek 2.5Gb Ethernet port; 3 x Audio jacks; 1 x BIOS FlashBack™ button
Internal I/O Connectors (Fan and Cooling related)
1 x 4-pin CPU Fan header; 2 x 4-pin Chassis Fan headers
Internal I/O Connectors (Power related)
1 x 24-pin Main Power connector; 1 x 8-pin +12V Power connector
Internal I/O Connectors (Storage related)
2 x M.2 slots (Key M); 4 x SATA 6Gb/s ports
Internal I/O Connectors (USB)
1 x USB 5Gbps connector (supports USB Type-C® ); 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports; 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors (Miscellaneous)
3 x Addressable Gen 2 headers; 1 x Clear CMOS header; 1 x COM Port header; 1 x Front Panel Audio header (AAFP); 1 x S/PDIF Out header; 1 x Speaker header; 1 x SPI TPM header (14-1pin); 1 x 10-1 pin System Panel header
Special Features - ASUS 5X PROTECTION III
DIGI+ VRM; LANGuard; Overvoltage Protection; Safeslot Core; Stainless-Steel Back I/O
Special Features - ASUS Q-Design
Q-DIMM; Q-LED Core; Q-Slot
Special Features - ASUS Thermal Solution
VRM heatsink design
Special Features - ASUS EZ DIY
BIOS FlashBack™ button; BIOS FlashBack™ LED
Special Features - Aura Sync
Addressable Gen 2 headers
Software Features - ASUS Exclusive Software
Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 2+, Power Saving, Two-Way AI Noise Cancellation), AI Suite 3 (TurboV EVO, DIGI+ VRM, PC Cleaner), ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR (40 Days Free Trial)
Software Features - UEFI BIOS
ASUS EZ DIY (ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories (Cables)
2 x SATA 6Gb/s cables
Accessories (Miscellaneous)
1 x I/O Shield; 2 x M.2 Anchors
Accessories (Documentation)
1 x Quick start guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
micro-ATX Form Factor9.3 inch x 8.7 inch ( 23.6 cm x 22.1 cm )
