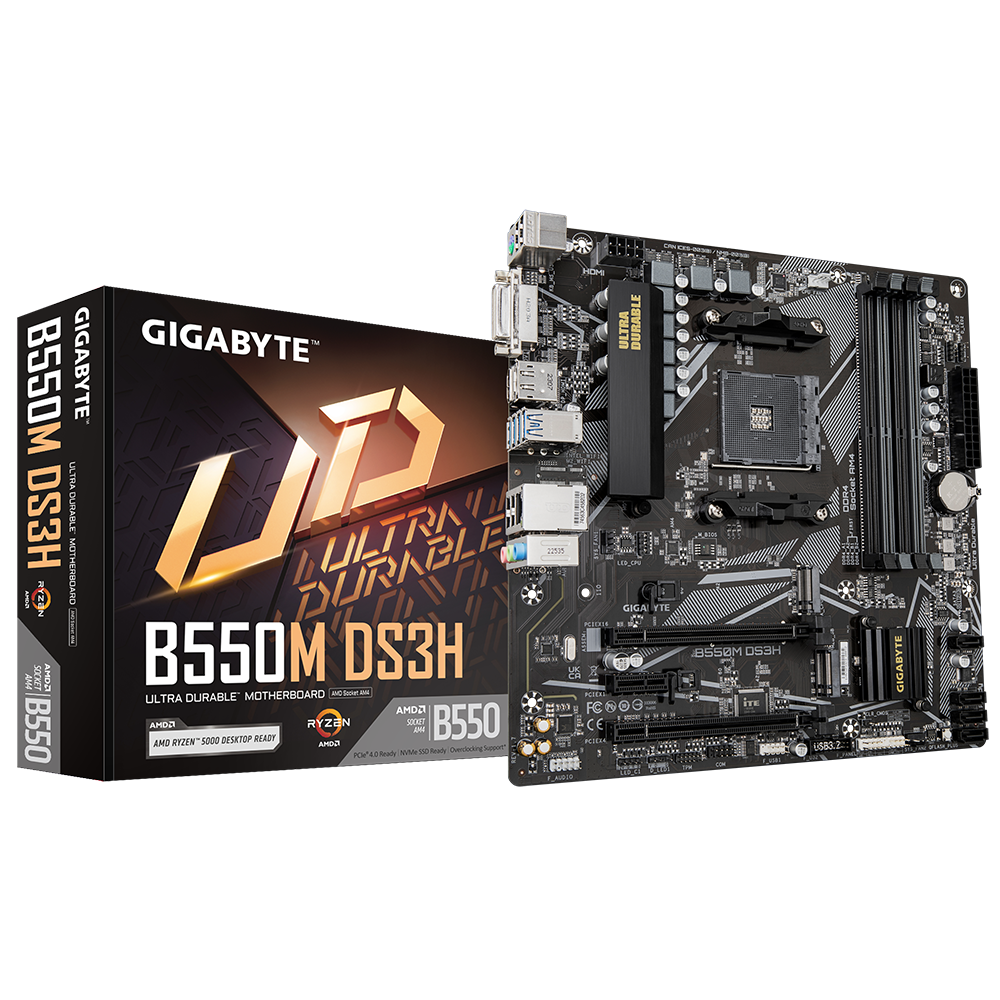

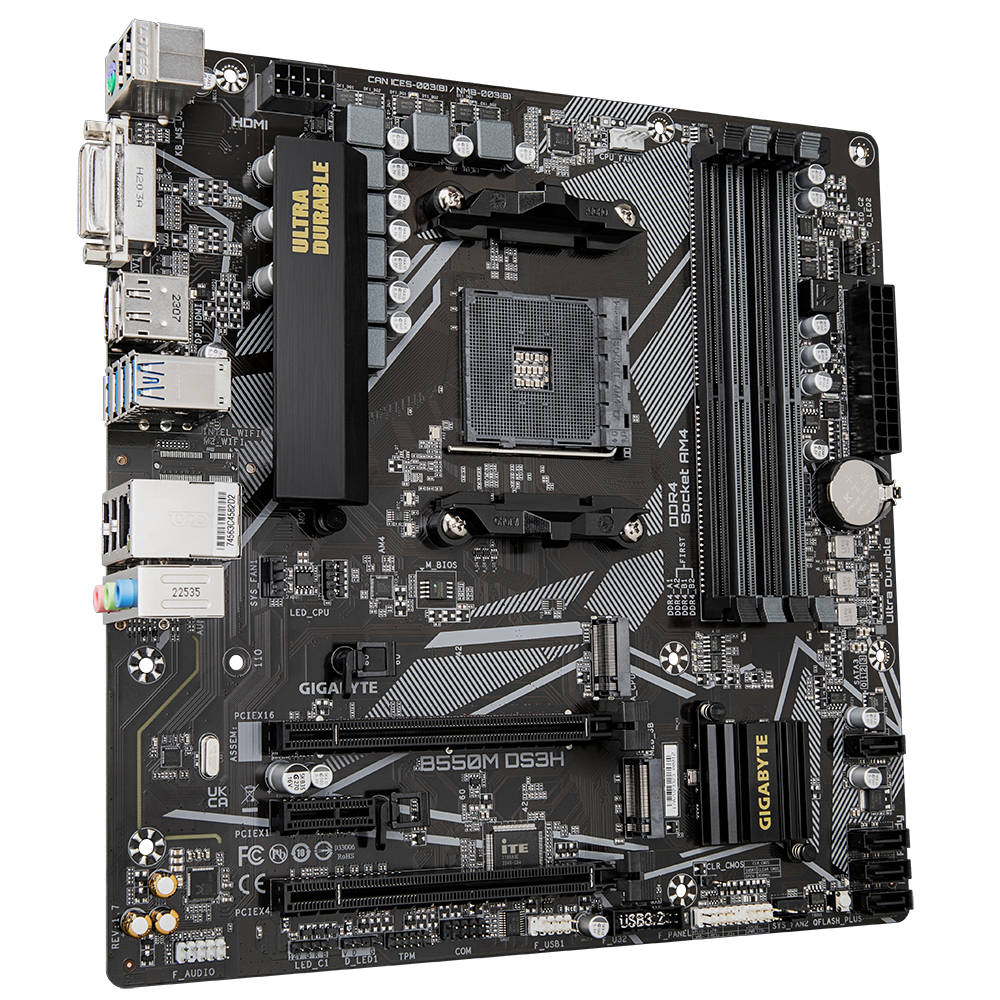

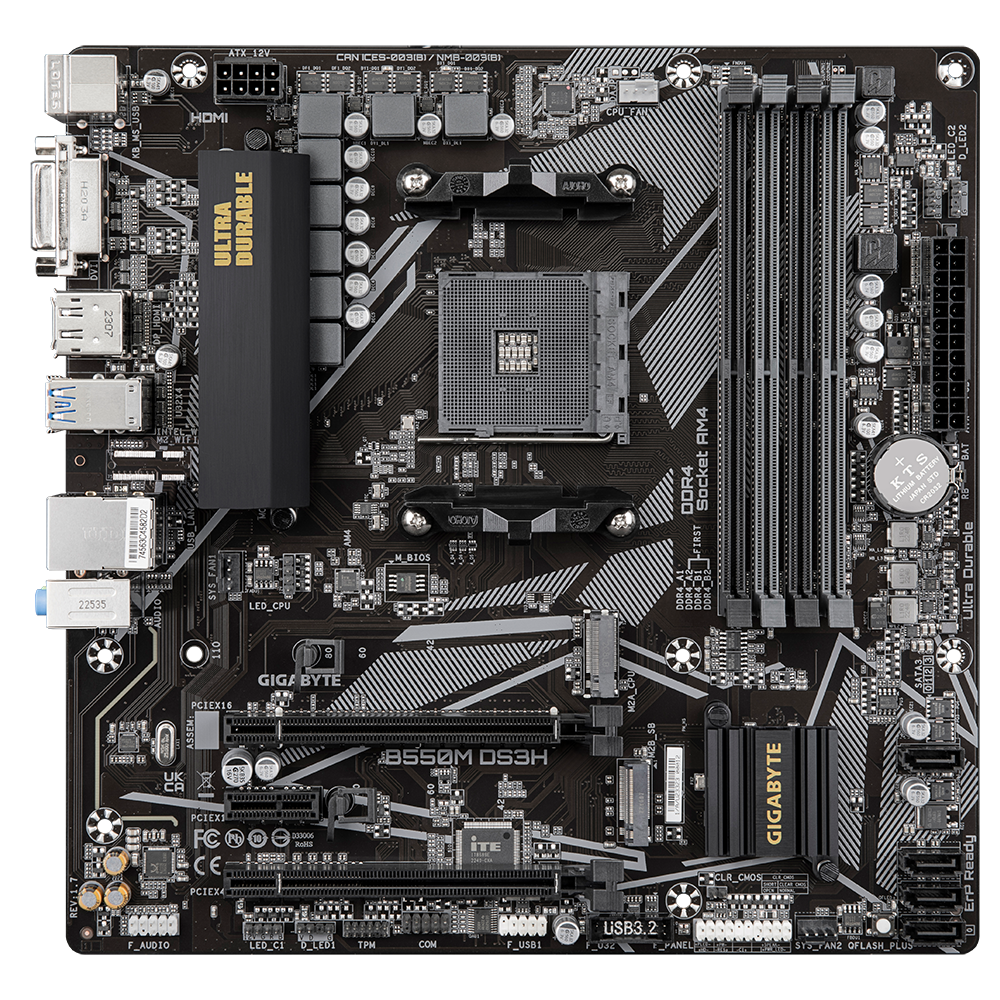

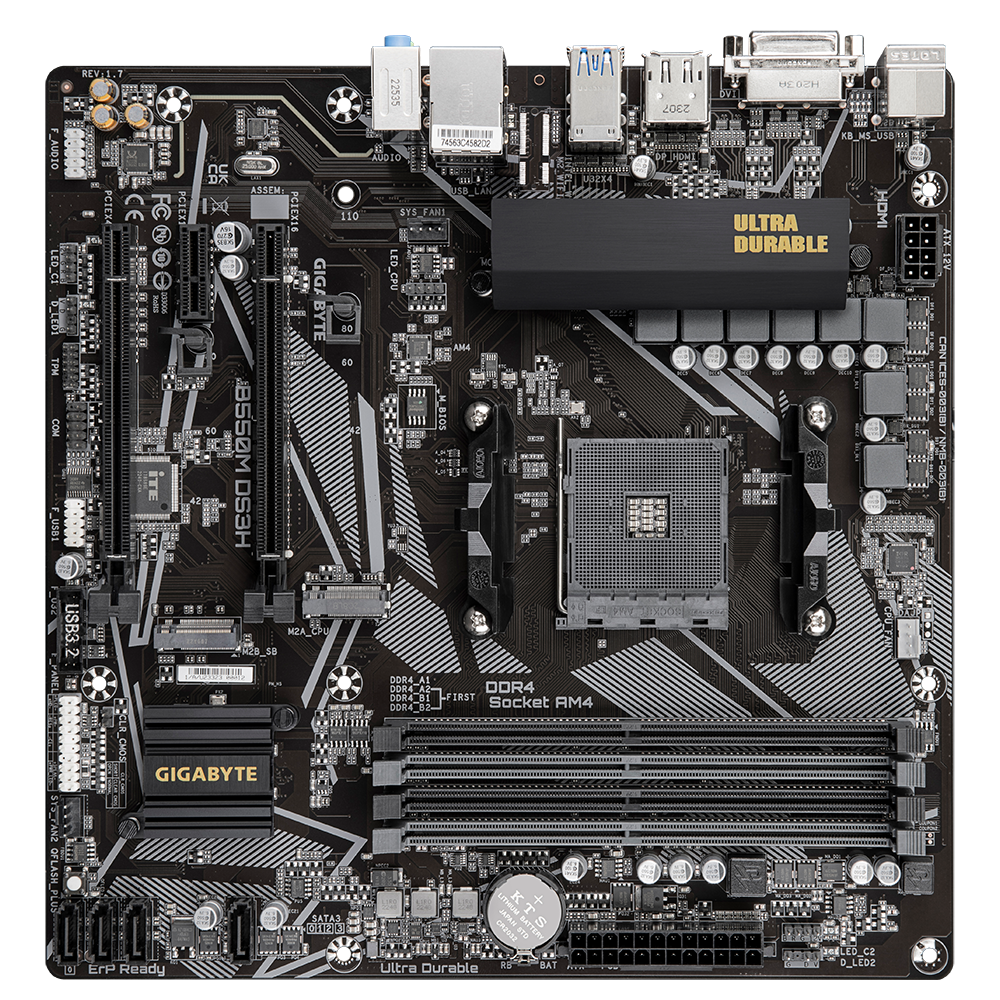

Gigabyte B550M DS3H Motherboard
  • Model:B550M DS3H
  • Supports AMD Ryzen 5000/4000/3000 CPUs
  • AMD B550 chipset, AM4 socket, Micro-ATX
  • Dual channel DDR4, 4 DIMMs
  • PCIe 4.0, Dual M.2, HDMI/DP ports
  • 3 Years Warranty from Gigabyte
₹ 8,700
Out Of Stock
1
CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 G-Series Processors/ AMD Ryzen™ 5000 Series Processors/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 and Ryzen™ 3000 G-Series Processors(Please refer "CPU Support List" for more information.)
Chipset
AMD B550
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memorySupport for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MT/s memory modulesDual channel memory architectureSupport for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modulesSupport for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modulesSupport for Extreme Memory Profile (XMP) memory modules(Please refer "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor:- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz* The DVI-D port does not support D-Sub connection by adapter.- 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version, HDCP 2.3, and HDR.Support for up to 3 displays at the same timeMaximum shared memory of 16 GB
Audio
Realtek® ALC1220-VB CODEC* The back panel line out jack supports DSD audio.High Definition Audio2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:- AMD Ryzen™ 5000 Series*/3000 Series Processors support PCIe 4.0 x16 mode* Actual support may vary by AMD CPU's specification.- AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support PCIe 3.0x16 mode* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:- Supporting PCIe 3.0 x4 mode1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:- Supporting PCIe 3.0 x1 mode
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280/22110 SSDs:- AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0x4/x2 SSDs- AMD Ryzen™ 5000 G-Series/4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs:- Supporting SATA and PCIe 3.0 x2 SSDs4 x SATA 6Gb/s connectors, integrated in the ChipsetSupport for RAID 0, RAID 1, and RAID 10
USB
CPU:- 4 x USB 3.2 Gen 1 ports on the back panelChipset:- 2 x USB 3.2 Gen 1 ports available through the internal USB header- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector1 x CPU fan header2 x system fan headers2 x addressable LED strip headers2 x RGB LED strip headers1 x CPU cooler LED strip/RGB LED strip header2 x M.2 Socket 3 connectors4 x SATA 6Gb/s connectors1 x front panel header1 x front panel audio header1 x USB 3.2 Gen 1 header1 x USB 2.0/1.1 header1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper1 x Q-Flash Plus button

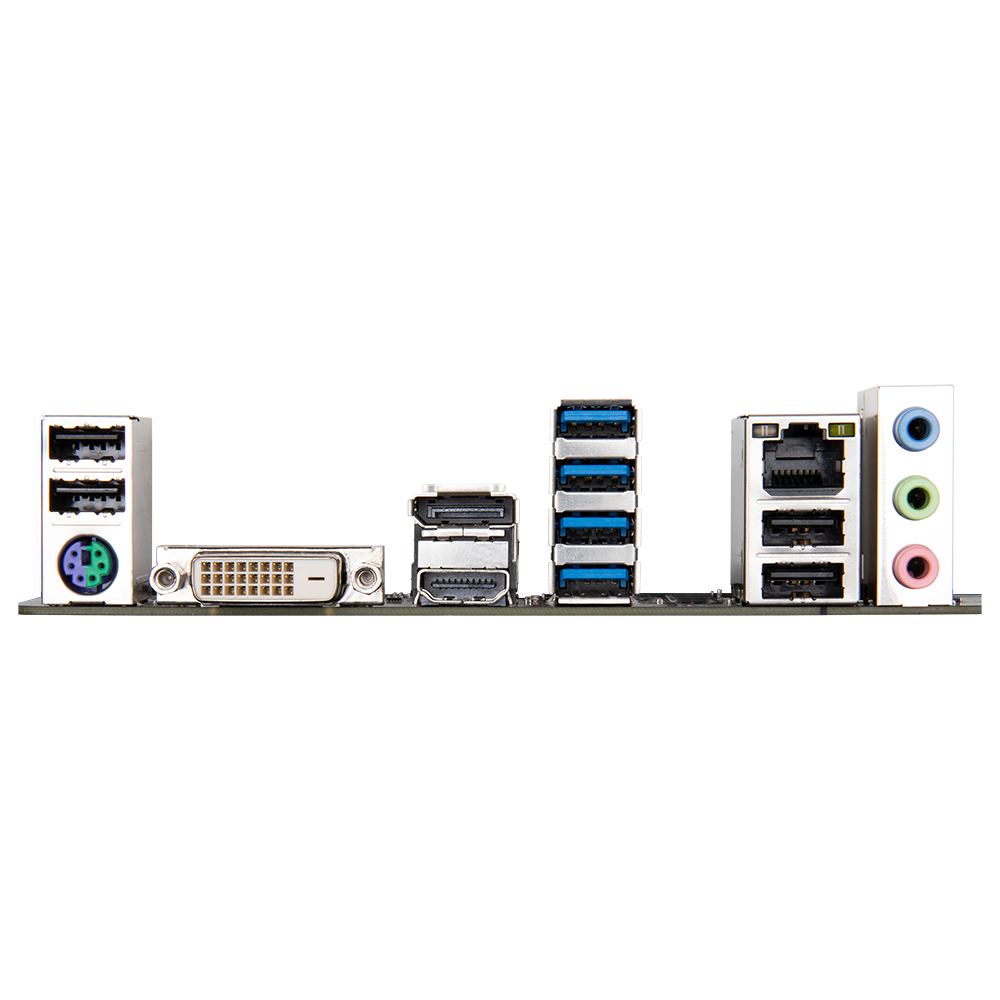

Back Panel Connectors
1 x PS/2 keyboard/mouse port1 x DVI-D port1 x DisplayPort1 x HDMI port4 x USB 3.2 Gen 1 ports4 x USB 2.0/1.1 ports1 x RJ-45 port3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.- @BIOS- EasyTune- RGB Fusion- Smart Backup- System Information ViewerSupport for Q-Flash PlusSupport for Q-FlashSupport for Xpress Install
Bundled Software
Norton® Internet Security (OEM version)LAN bandwidth management software
Operating System
Support for Windows 11 64-bitSupport for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
