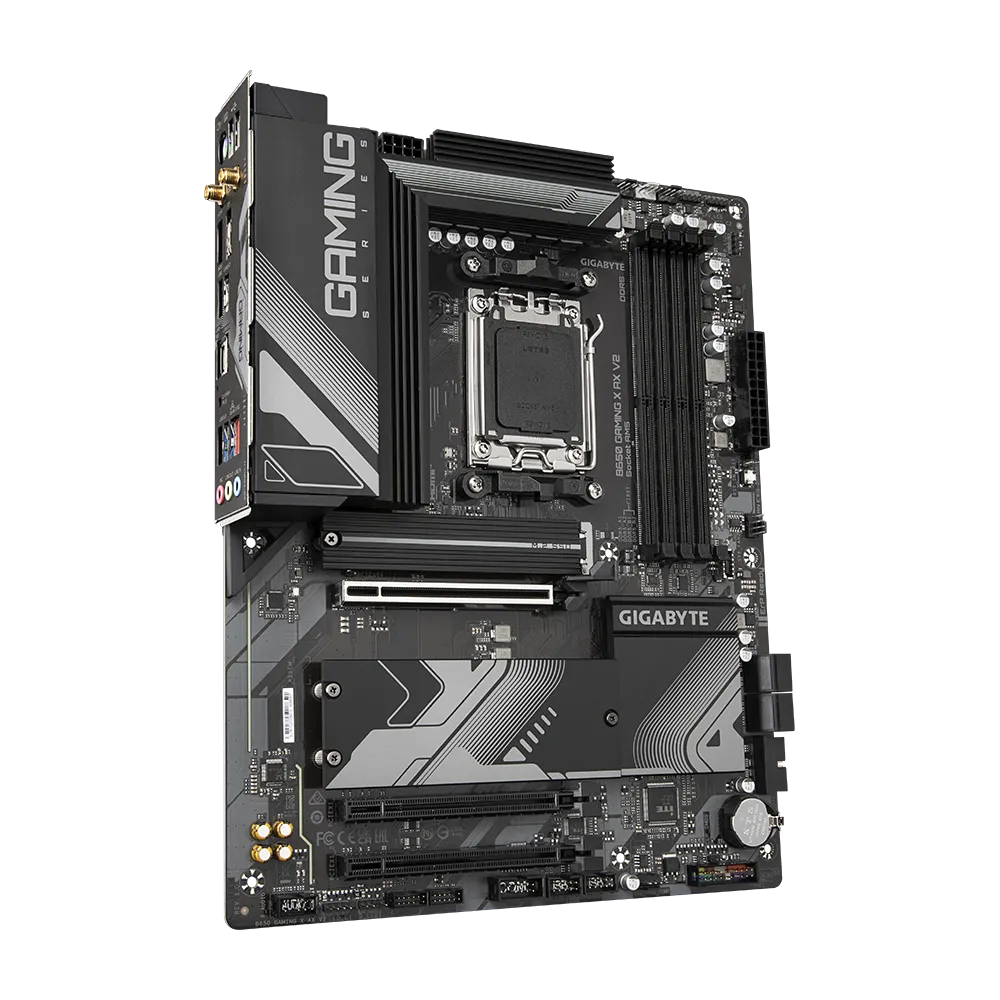

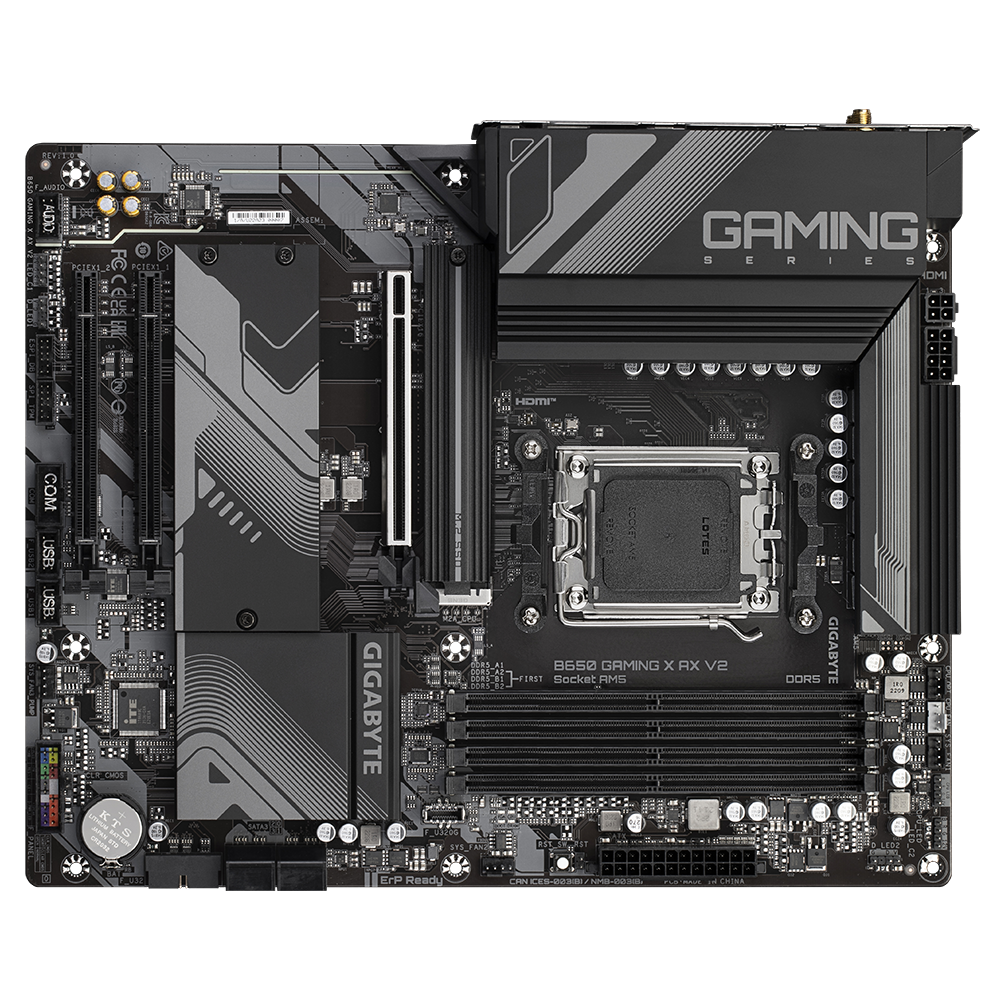

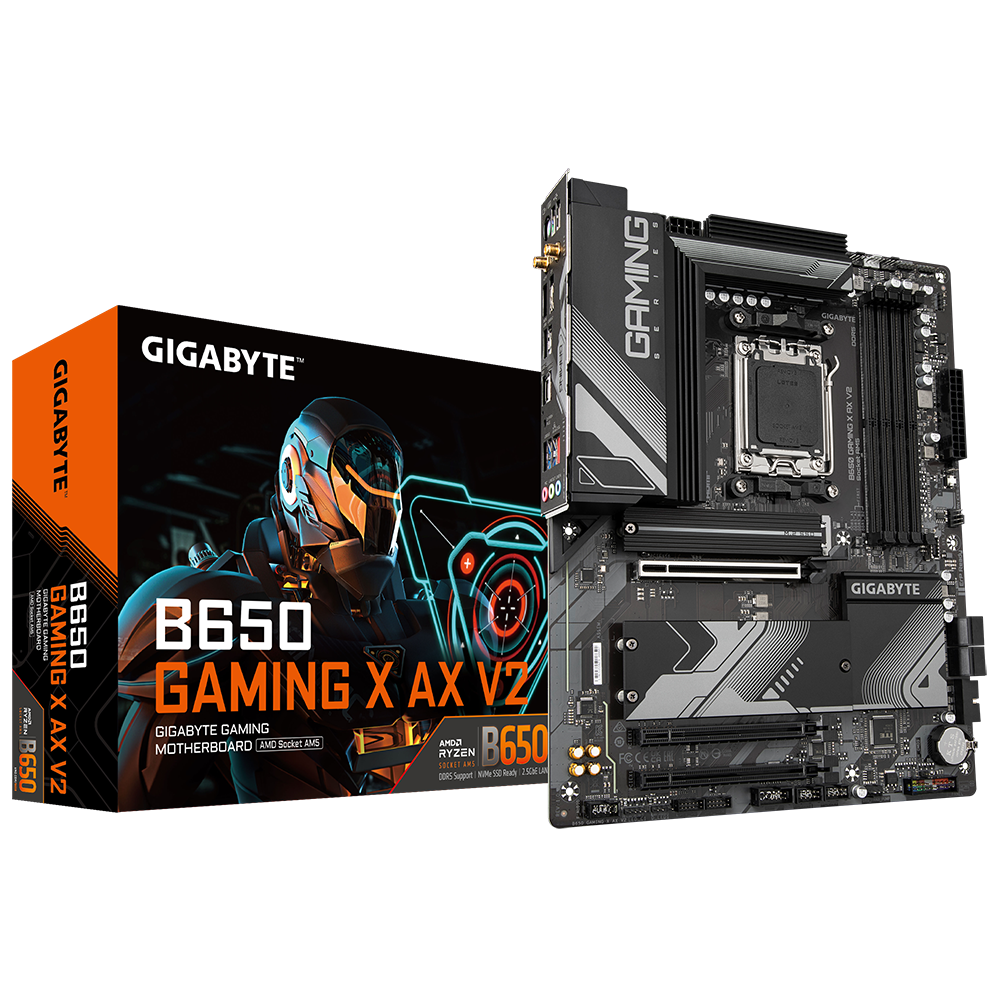

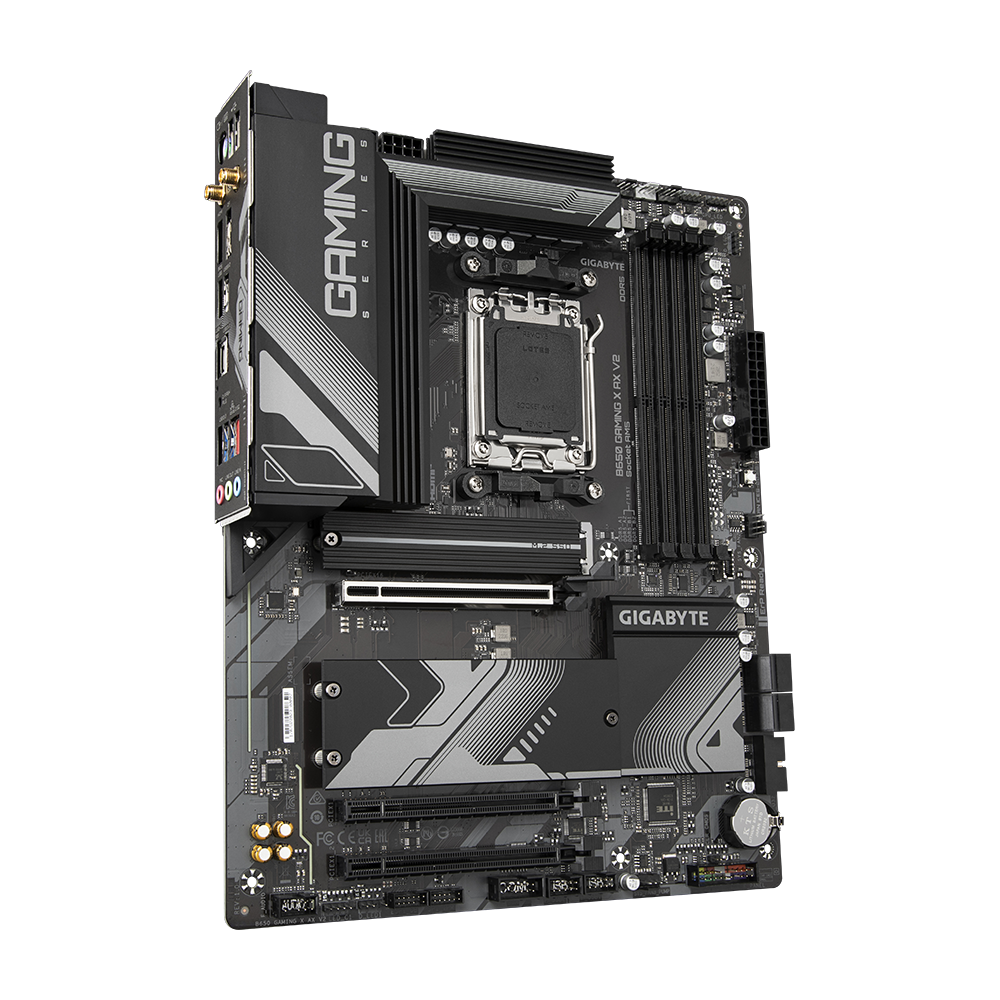

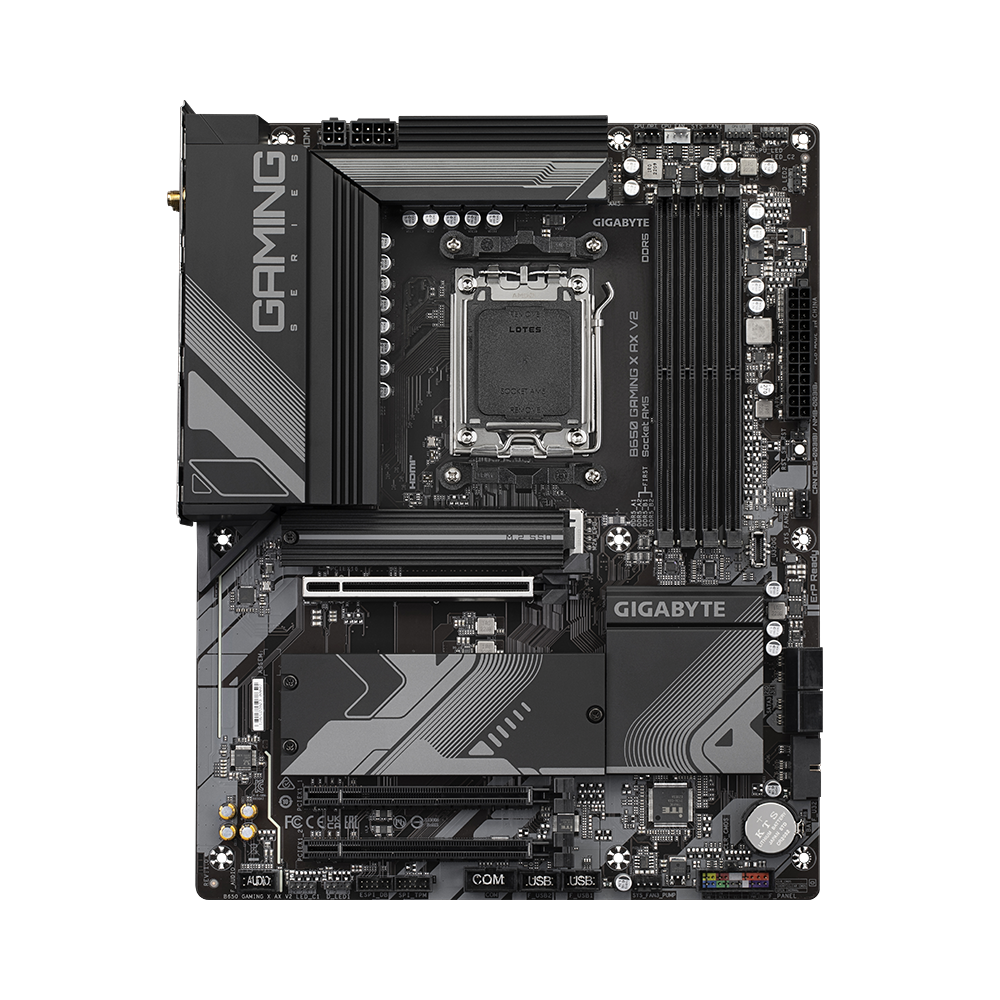

Gigabyte B650 GAMING X AX V2 Motherboard

  • Model:B650 GAMING X AX V2
  • Supports AMD Ryzen 7000/8000/9000 CPUs
  • AMD B650 Chipset, Socket AM5, ATX Form Factor
  • 4x DDR5 DIMMs, EXPO & XMP Support
  • PCIe 5.0, WiFi 6E, USB-C, 2.5GbE LAN
  • 3 Years Warranty from Gigabyte
₹ 15,950
Next Day Dispatch
1
CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Please refer "CPU Support List" for more information.)
Chipset
AMD B650
Memory
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory
Dual channel memory architecture
Memory
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version and HDR.1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.
Onboard Graphics
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC
Audio
High Definition Audio
Audio
2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module (PCB rev. 1.0)
Realtek® Wi-Fi 6E RTL8852CE1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands2. BLUETOOTH 5.33. Support for 11ax 160MHz wireless standard
Wireless Communication module (PCB rev. 1.1)
AMD Wi-Fi 6E RZ616 (MT7922A22M)1. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands2. BLUETOOTH 5.23. Support for 11ax 160MHz wireless standard
Wireless Communication module (PCB rev. 1.2)
Intel® Wi-Fi 6E AX2101. WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands2. BLUETOOTH 5.33. Support for 11ax 160MHz wireless standard
Wireless Communication module
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots (CPU)
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion Slots (Chipset)
2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage Interface (M2A_CPU)
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs2. AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Storage Interface (M2B_CPU)
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:1. AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs2. AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs3. AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Storage Interface (M2C_SB)
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs
Storage Interface
4 x SATA 6Gb/s connectors
Storage Interface
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Storage Interface
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB (CPU)
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support1 x USB 3.2 Gen 2 Type-A port (red) on the back panel1 x USB 3.2 Gen 1 port on the back panel
USB (CPU + USB 2.0 Hub)
3 x USB 2.0/1.1 ports on the back panel
USB (Chipset)
1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 8-pin ATX 12V power connector
Internal I/O Connectors
1 x 4-pin ATX 12V power connector
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
1 x CPU fan/water cooling pump header
Internal I/O Connectors
2 x system fan headers
Internal I/O Connectors
1 x system fan/water cooling pump header
Internal I/O Connectors
2 x addressable LED strip headers
Internal I/O Connectors
2 x RGB LED strip headers
Internal I/O Connectors
1 x CPU cooler LED strip/RGB LED strip header
Internal I/O Connectors
3 x M.2 Socket 3 connectors
Internal I/O Connectors
4 x SATA 6Gb/s connectors
Internal I/O Connectors
1 x front panel header
Internal I/O Connectors
1 x front panel audio header
Internal I/O Connectors
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
Internal I/O Connectors
1 x USB 3.2 Gen 1 header
Internal I/O Connectors
2 x USB 2.0/1.1 headers
Internal I/O Connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Internal I/O Connectors
1 x serial port header
Internal I/O Connectors
1 x reset button
Internal I/O Connectors
1 x reset jumper
Internal I/O Connectors
1 x Clear CMOS jumper
Back Panel Connectors
2 x SMA antenna connectors (2T2R)
Back Panel Connectors
1 x Q-Flash Plus button
Back Panel Connectors
1 x DisplayPort
Back Panel Connectors
1 x HDMI port
Back Panel Connectors
1 x USB Type-C® port, with USB 3.2 Gen 2 support
Back Panel Connectors
1 x USB 3.2 Gen 2 Type-A port (red)
Back Panel Connectors
3 x USB 3.2 Gen 1 ports
Back Panel Connectors
3 x USB 2.0/1.1 ports
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
H/W Monitoring
Temperature detection
H/W Monitoring
Fan speed detection
H/W Monitoring
Water cooling flow rate detection
H/W Monitoring
Fan fail warning
H/W Monitoring
Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Unique Features
Support for Q-Flash
Unique Features
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Operating System
Support for Windows 10 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
