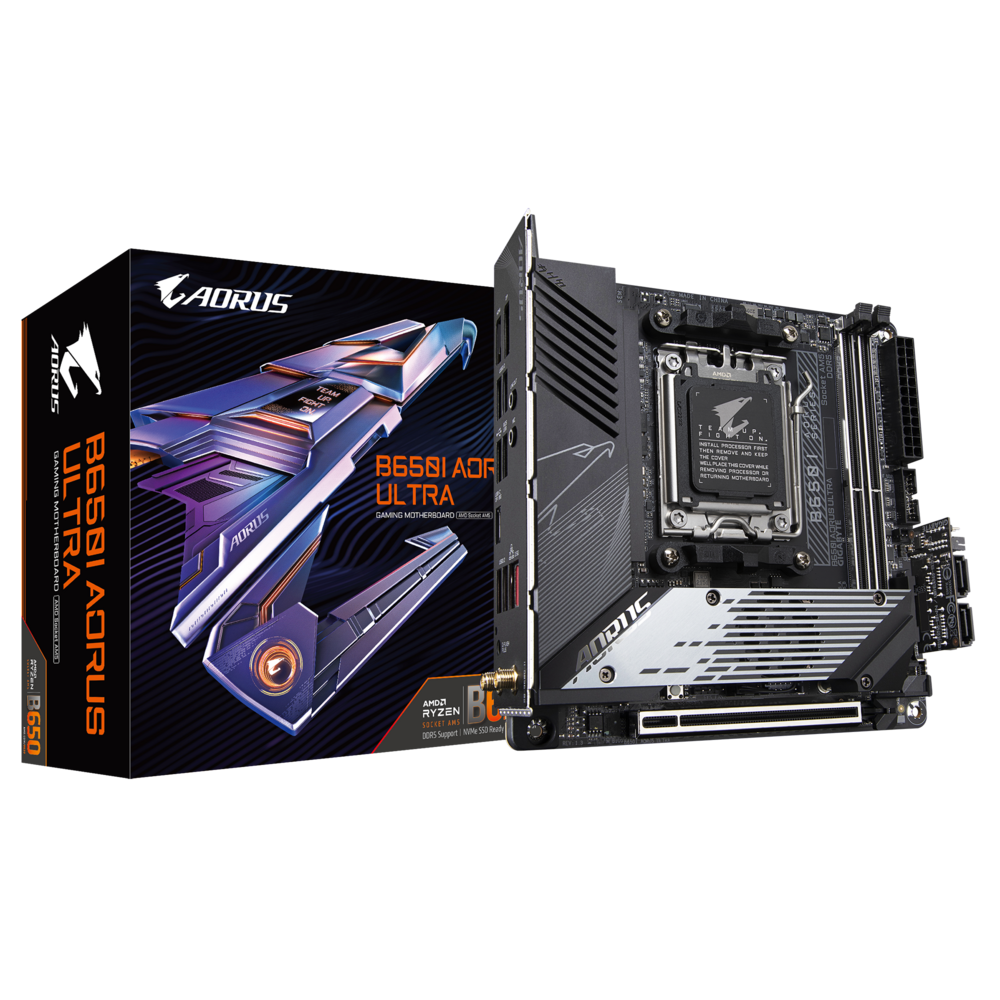

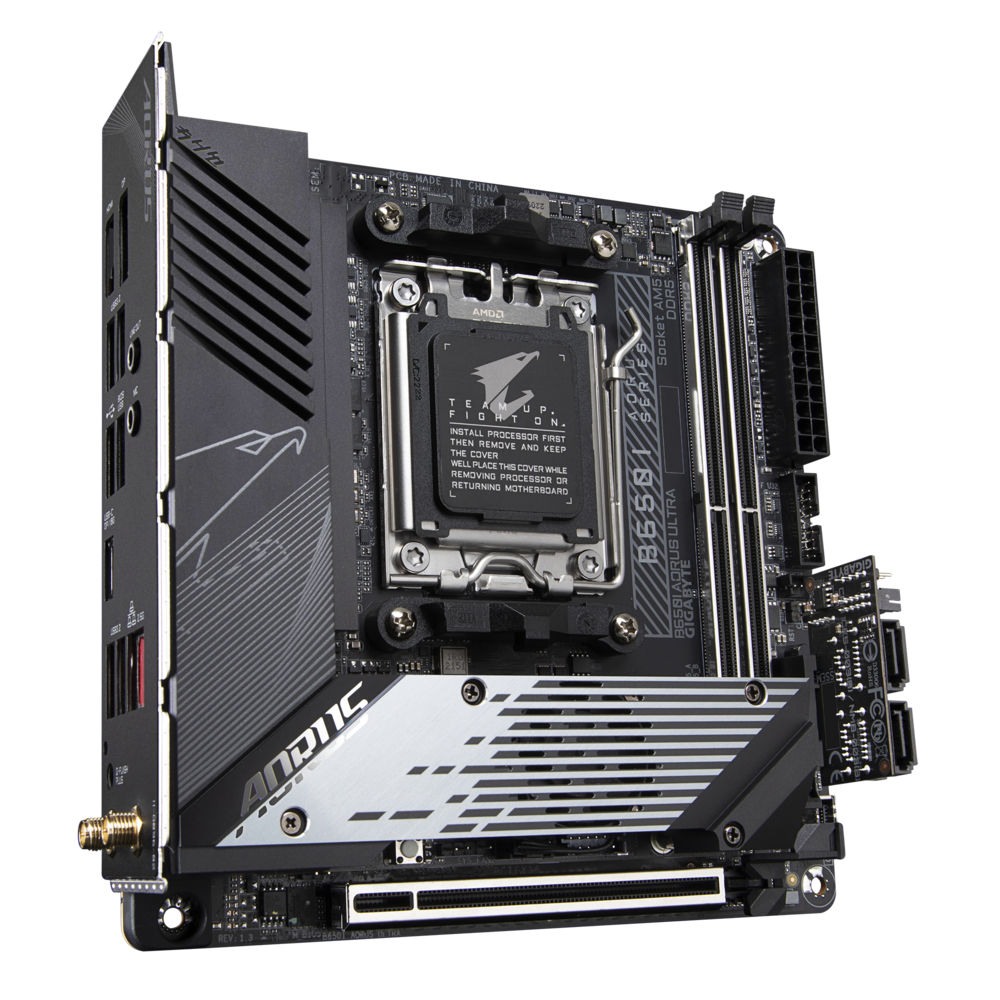

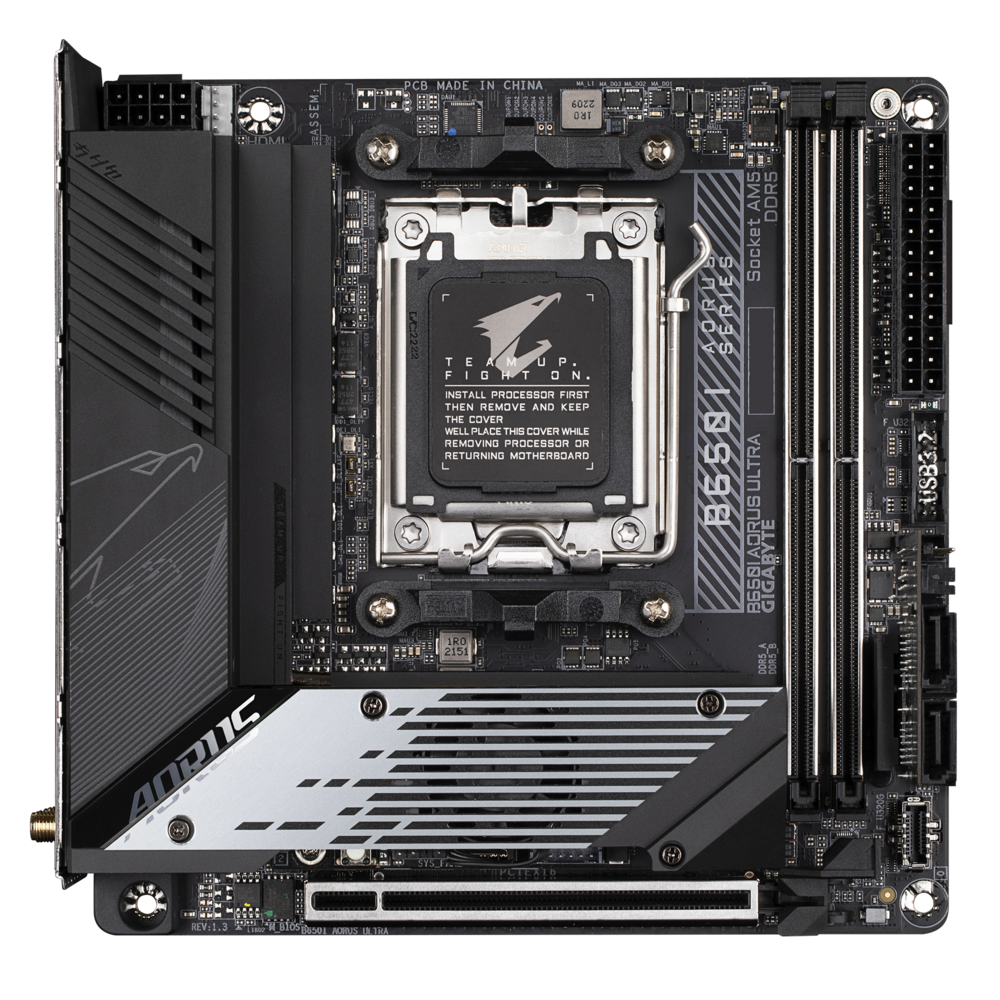

Gigabyte B650I AORUS ULTRA Motherboard
  • Model:B650I AORUS ULTRA
  • Supports AMD Ryzen 7000/8000/9000 CPUs
  • AMD B650 chipset, AM5 socket, Mini-ITX Form Factor
  • Dual Channel DDR5 up to 7200+ OC
  • PCIe 5.0, 3x M.2, WiFi 6E, USB-C
  • 3 Years Warranty from Gigabyte
₹ 33,250
Out Of Stock
1
CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Please refer "CPU Support List" for more information.)
Chipset
AMD B650
Memory
Support for DDR5 7200(OC)/ 7000(OC)/ 6800(OC)/ 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Memory
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Memory
Dual channel memory architecture
Memory
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Memory
(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor with AMD Radeon™ Graphics support:
Onboard Graphics
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version and HDR.
Onboard Graphics
1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version and HDR.
Onboard Graphics
1 x HDMI port, supporting a maximum resolution of 7680x4320@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.
Onboard Graphics
(Graphics specifications may vary depending on CPU support.)
Audio
Realtek® ALC4080 CODEC
Audio
High Definition Audio
Audio
2-channel
LAN
Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek® Wi-Fi 6E RTL8852CE
Wireless Communication module
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless Communication module
BLUETOOTH 5.3
Wireless Communication module
Support for 11ax 160MHz wireless standard
Wireless Communication module
(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
1 x PCI Express x16 slot, integrated in the CPU:
Expansion Slots
AMD Ryzen™ 7000/9000 Series Processors support PCIe 4.0 x16 mode
Expansion Slots
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
Expansion Slots
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Expansion Slots
* The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage Interface
1 x M.2 connector on the front of GC-B650I BTB PLUG (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
Storage Interface
AMD Ryzen™ 7000/9000 Series Processors support PCIe 5.0 x4/x2 SSD
Storage Interface
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSD
Storage Interface
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSD
Storage Interface
1 x M.2 connector on the back of GC-B650I BTB PLUG (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280/2260 SSDs:
Storage Interface
AMD Ryzen™ 7000/9000 Series Processors support PCIe 4.0 x4/x2 SSD
Storage Interface
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSD
Storage Interface
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSD
Storage Interface
1 x M.2 connector on the back of the motherboard (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD
Storage Interface
4 x SATA 6Gb/s connectors on the front of GC-B650I FRONT CARD
Storage Interface
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Storage Interface
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
USB
CPU: 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
USB
CPU + USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the F_USB header on the front of GC-B650I BTB PLUG
USB
Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
USB
Chipset: 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
USB
Chipset: 2 x USB 2.0/1.1 ports on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 8-pin ATX 12V power connector
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
1 x CPU fan/water cooling pump header
Internal I/O Connectors
1 x system fan header (SYS_FAN1(Note 1))
Internal I/O Connectors
1 x addressable LED strip header(Note 2)
Internal I/O Connectors
1 x RGB LED strip header(Note 1)
Internal I/O Connectors
3 x M.2 Socket 3 connectors (M2B_CPU(Note 2)/M2A_CPU(Note 3)/M2C_SB(Note 4))
Internal I/O Connectors
4 x SATA 6Gb/s connectors(Note 1)
Internal I/O Connectors
1 x front panel header(Note 1)
Internal I/O Connectors
1 x front panel audio header (routed from the adapter card on the rear panel)
Internal I/O Connectors
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
Internal I/O Connectors
1 x USB 3.2 Gen 1 header
Internal I/O Connectors
1 x USB 2.0/1.1 header(Note 2)
Internal I/O Connectors
1 x reset button(Note 2)
Internal I/O Connectors
1 x reset jumper
Internal I/O Connectors
1 x power switch jumper
Internal I/O Connectors
1 x Clear CMOS jumper
Internal I/O Connectors
(Note 1) The connector is on the front of GC-B650I FRONT CARD.
Internal I/O Connectors
(Note 2) The connector is on the front of GC-B650I BTB PLUG.
Internal I/O Connectors
(Note 3) The connector is on the back of GC-B650I BTB PLUG.
Internal I/O Connectors
(Note 4) The connector is on the back of the motherboard.

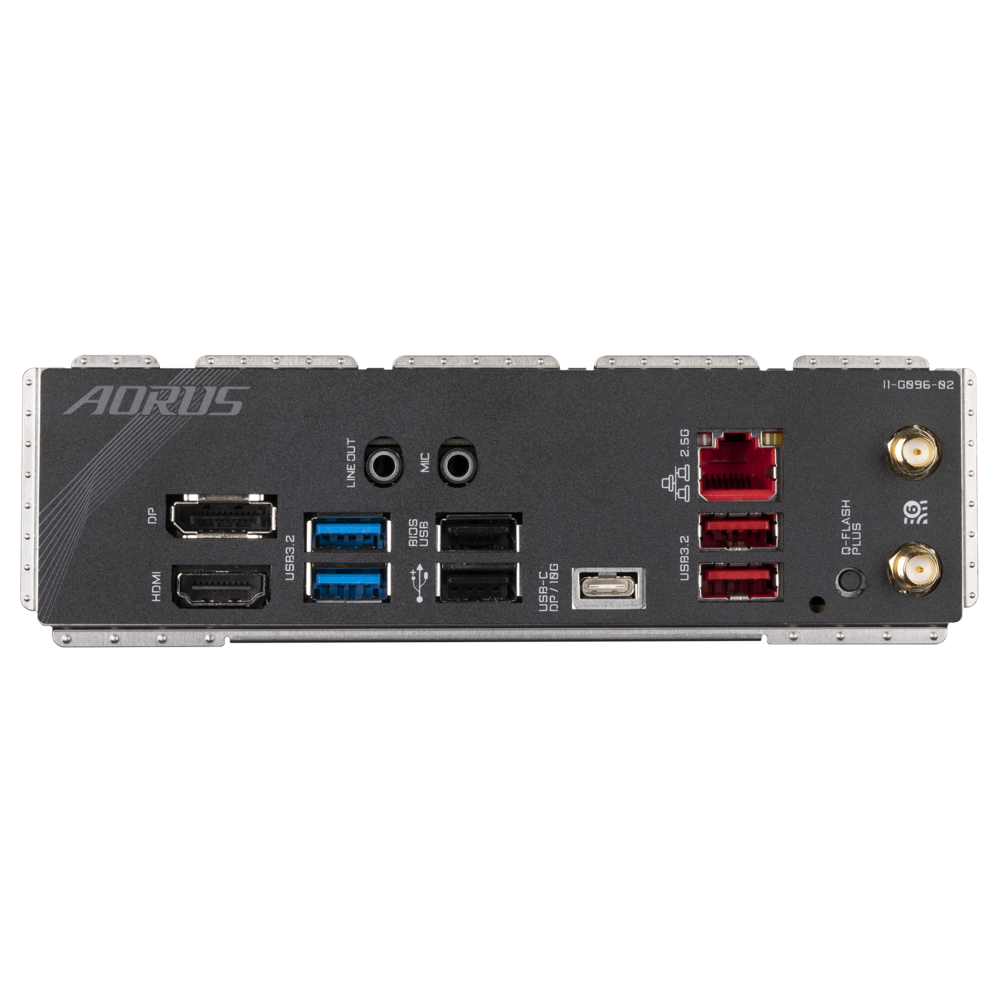

Back Panel Connectors
1 x DisplayPort*
Back Panel Connectors
1 x HDMI port*
Back Panel Connectors
1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support
Back Panel Connectors
2 x USB 3.2 Gen 2 Type-A ports (red)
Back Panel Connectors
2 x USB 3.2 Gen 1 ports
Back Panel Connectors
2 x USB 2.0/1.1 ports
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
2 x SMA antenna connectors (2T2R)
Back Panel Connectors
1 x Q-Flash Plus button
Back Panel Connectors
2 x audio jacks
Back Panel Connectors
* Actual support may vary by CPU.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
H/W Monitoring
Temperature detection
H/W Monitoring
Fan speed detection
H/W Monitoring
Water cooling flow rate detection
H/W Monitoring
Fan fail warning
H/W Monitoring
Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS
1 x 256 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Unique Features
Support for Q-Flash
Unique Features
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Operating System
Support for Windows 10 64-bit
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
