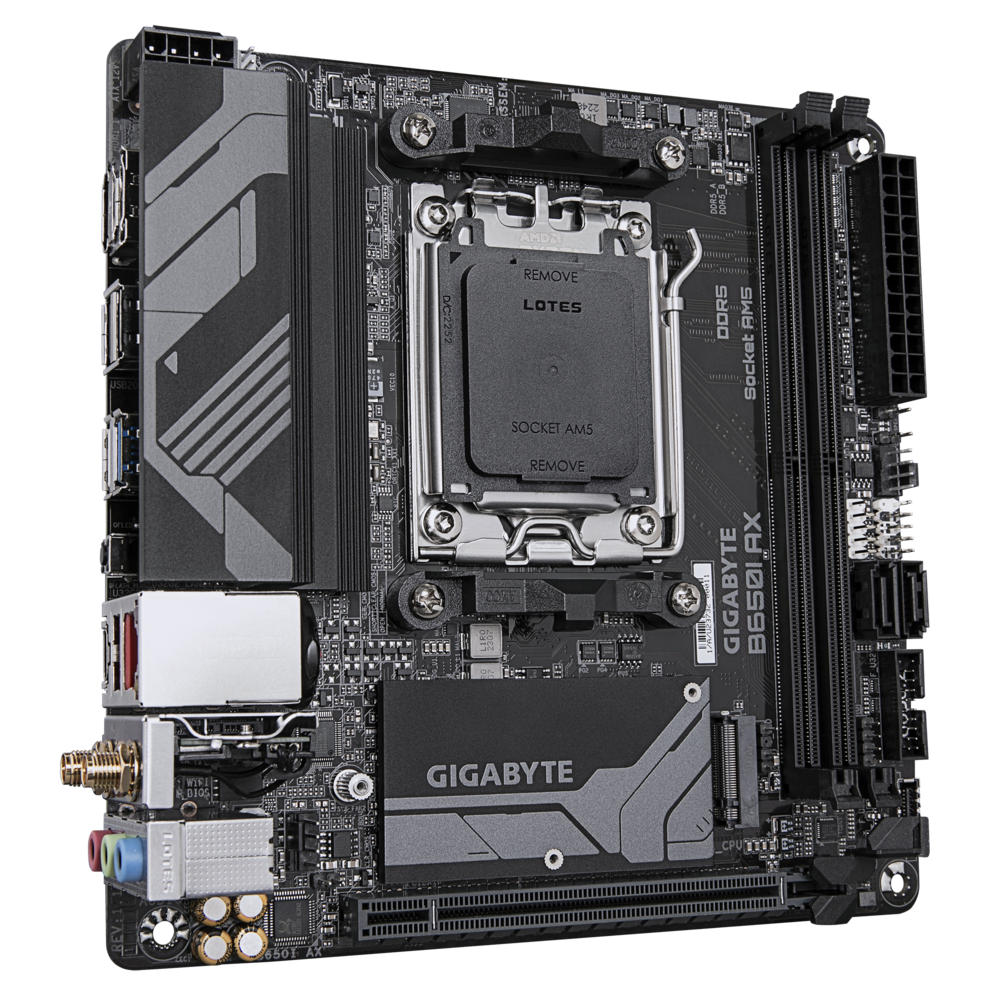

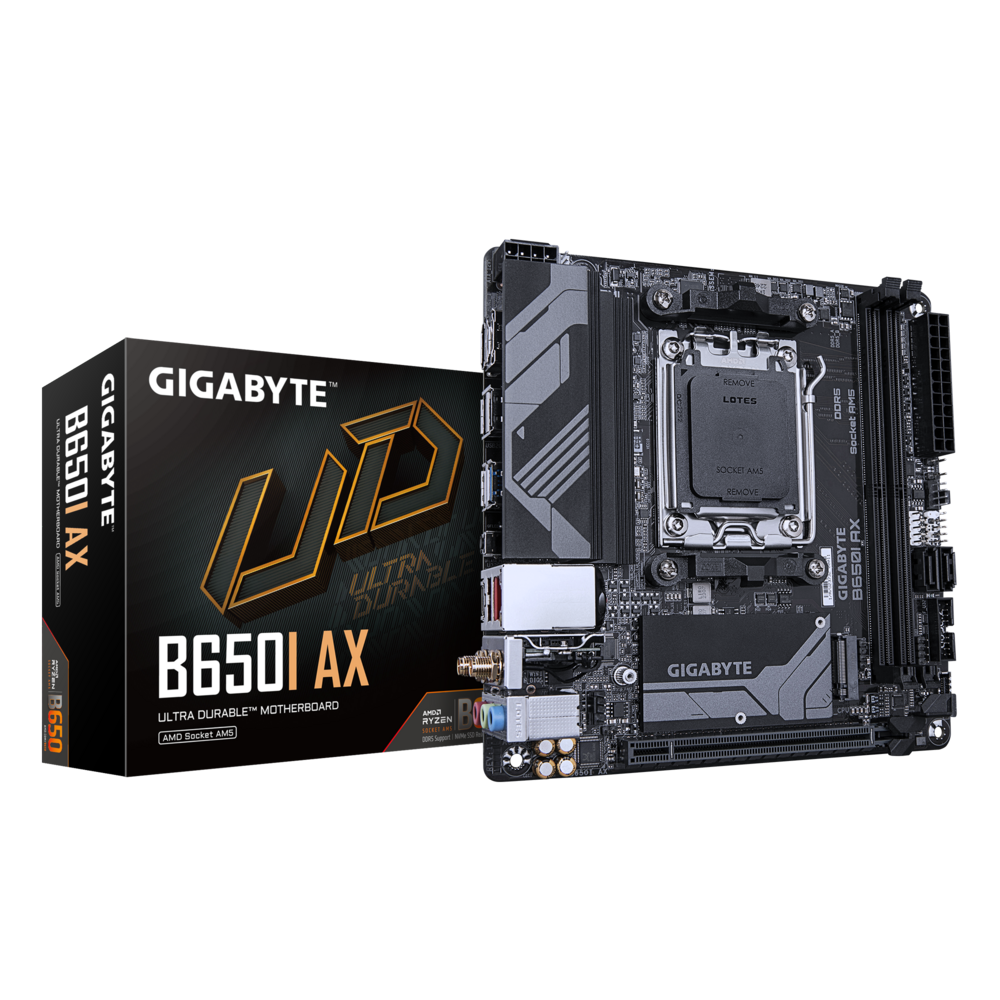

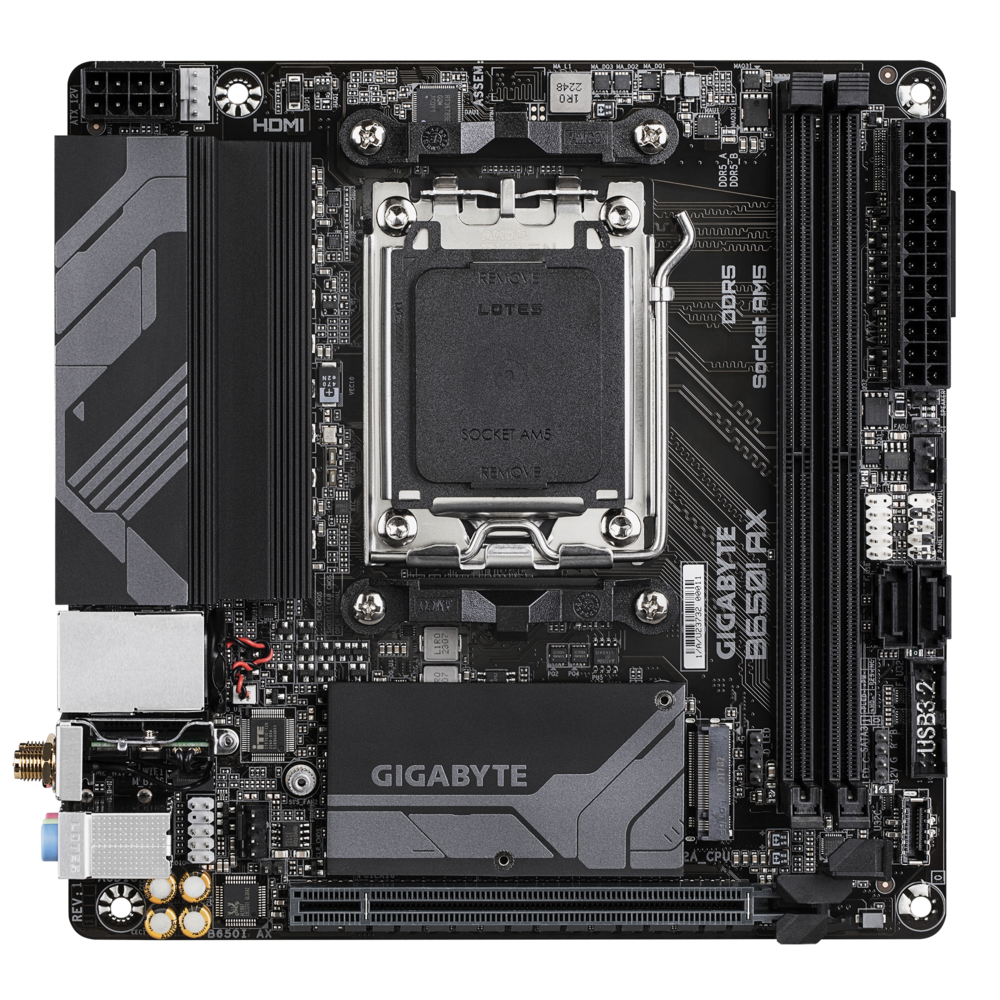

Gigabyte B650I AX Motherboard

  • Model:B650I AX
  • Supports AMD Ryzen 7000/8000/9000 CPUs
  • AMD B650 chipset, Socket AM5, Mini-ITX
  • 2 DIMM DDR5 up to 6400+ MHz OC
  • PCIe 4.0, WiFi 6E, 2.5GbE LAN
  • 3 Years Warranty from Gigabyte
₹ 18,550
Next Day Dispatch
1
CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Please refer "CPU Support List" for more information.)
Chipset
AMD B650
Memory
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
Memory Sockets
2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory
Memory Architecture
Dual channel memory architecture
Memory Support
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory Overclocking Profiles
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Memory Configuration Note
The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.
Onboard Graphics - DisplayPort
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version.
Onboard Graphics - HDMI
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.
Graphics Note
Graphics specifications may vary depending on CPU support.
Audio
Realtek® Audio CODEC
Audio Features
High Definition Audio
Audio Channels
2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek® Wi-Fi 6E RTL8852CE
WIFI Support
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Bluetooth
BLUETOOTH 5.3
Wireless Standard
Support for 11ax 160MHz wireless standard(Actual data rate may vary depending on environment and equipment.)
Expansion Slots
1 x PCI Express x16 slot, integrated in the CPU:
PCIe Support - Ryzen 7000/9000
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
PCIe Support - Ryzen 8000 (Phoenix 1)
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
PCIe Support - Ryzen 8000 (Phoenix 2)
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
PCIEX16 Slot Note
The PCIEX16 slot can only support a graphics card or an NVMe SSD.
Storage Interface - M.2
1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
M.2 Support - Ryzen 7000/9000
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
M.2 Support - Ryzen 8000 (Phoenix 1)
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
M.2 Support - Ryzen 8000 (Phoenix 2)
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
SATA
2 x SATA 6Gb/s connectors
RAID Support - NVMe SSD
RAID 0 and RAID 1 support for NVMe SSD storage devices
RAID Support - SATA
RAID 0 and RAID 1 support for SATA storage devices
USB (CPU)
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
USB (CPU)
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
USB (CPU)
1 x USB 2.0/1.1 port on the back panel
USB (Chipset)
1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
USB (Chipset)
3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
USB (Chipset)
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 8-pin ATX 12V power connector
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
2 x system fan headers
Internal I/O Connectors
1 x addressable LED strip header
Internal I/O Connectors
1 x RGB LED strip header
Internal I/O Connectors
1 x M.2 Socket 3 connector
Internal I/O Connectors
2 x SATA 6Gb/s connectors
Internal I/O Connectors
1 x front panel header
Internal I/O Connectors
1 x front panel audio header
Internal I/O Connectors
1 x speaker header
Internal I/O Connectors
1 x USB Type-C® header, with USB 3.2 Gen 1 support
Internal I/O Connectors
1 x USB 3.2 Gen 1 header
Internal I/O Connectors
1 x USB 2.0/1.1 header
Internal I/O Connectors
1 x Clear CMOS jumper
Internal I/O Connectors
1 x chassis intrusion header

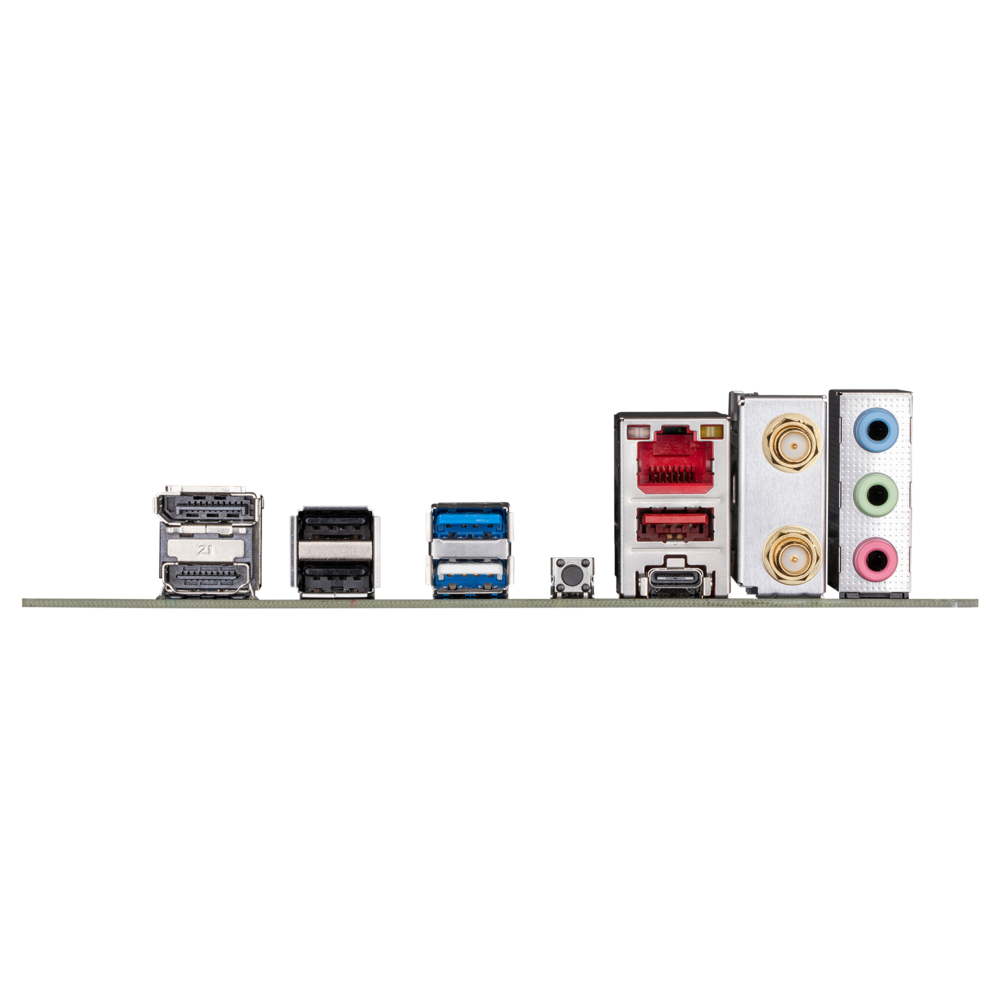

Back Panel Connectors
1 x DisplayPort*
Back Panel Connectors
1 x HDMI port*
Back Panel Connectors
1 x USB Type-C® port, with USB 3.2 Gen 1 support
Back Panel Connectors
1 x USB 3.2 Gen 2 Type-A port (red)
Back Panel Connectors
1 x USB 3.2 Gen 1 port
Back Panel Connectors
3 x USB 2.0/1.1 ports
Back Panel Connectors
1 x Q-Flash Plus button
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
2 x SMA antenna connectors (2T2R)
Back Panel Connectors
3 x audio jacks
Back Panel Note
* Actual support may vary by CPU.
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
H/W Monitoring
Temperature detection
H/W Monitoring
Fan speed detection
H/W Monitoring
Water cooling flow rate detection
H/W Monitoring
Fan fail warning
H/W Monitoring
Fan speed control* Whether the fan speed control function is supported will depend on the fan you install.
BIOS
1 x 256 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Unique Features
Support for Q-Flash
Unique Features
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Operating System
Support for Windows 10 64-bit
Form Factor
Mini-ITX Form Factor; 17.0cm x 17.0cm
