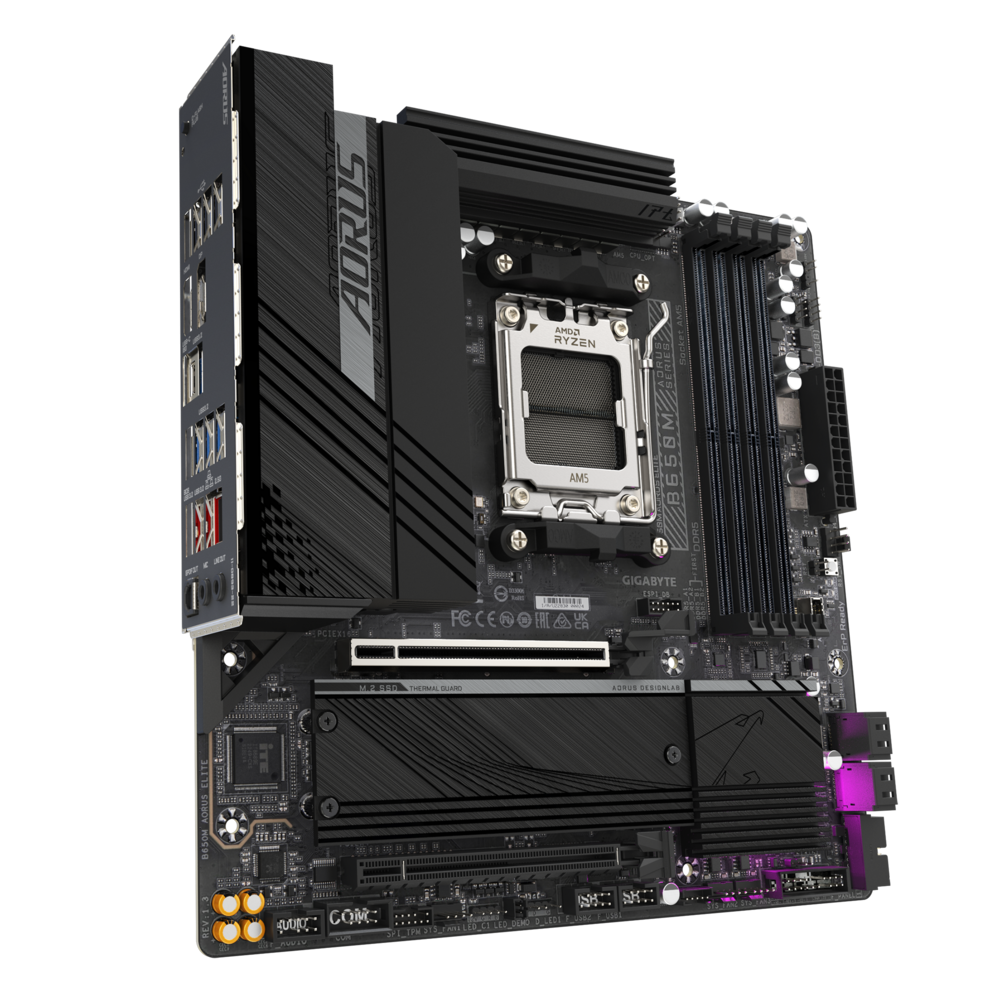

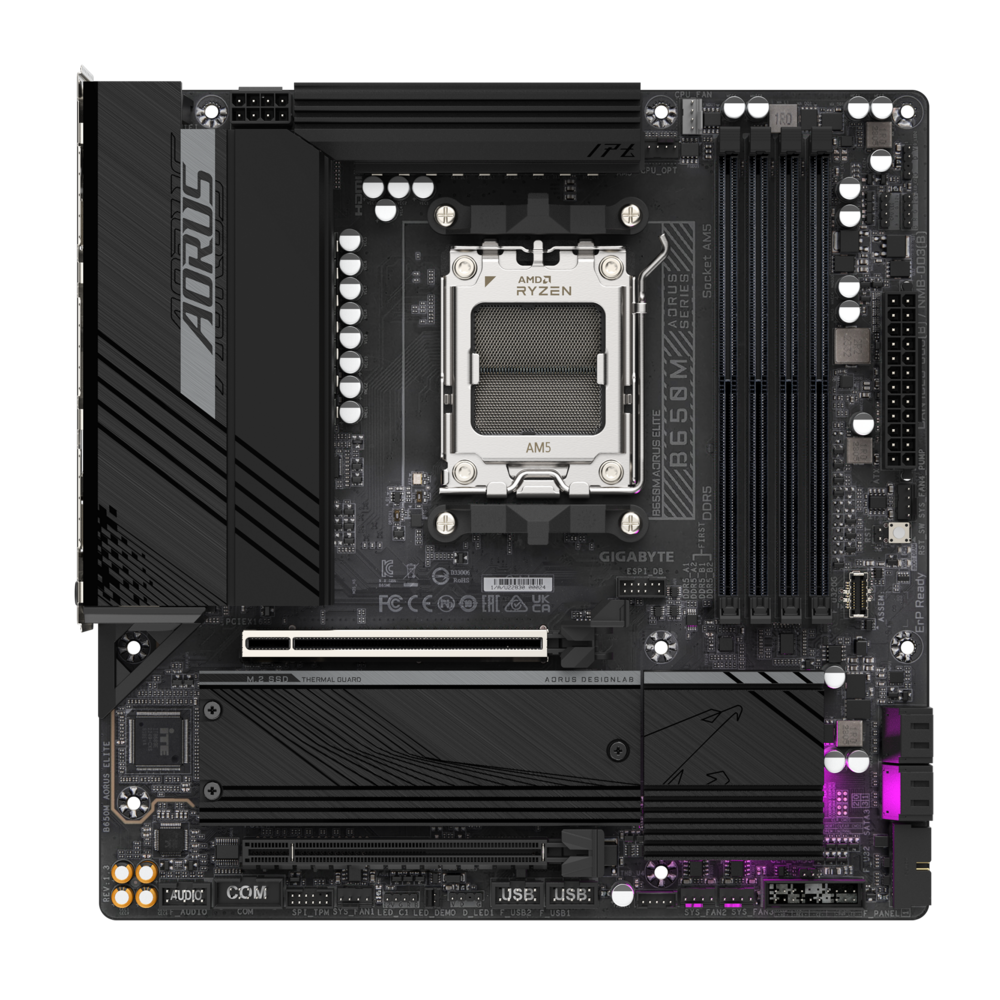

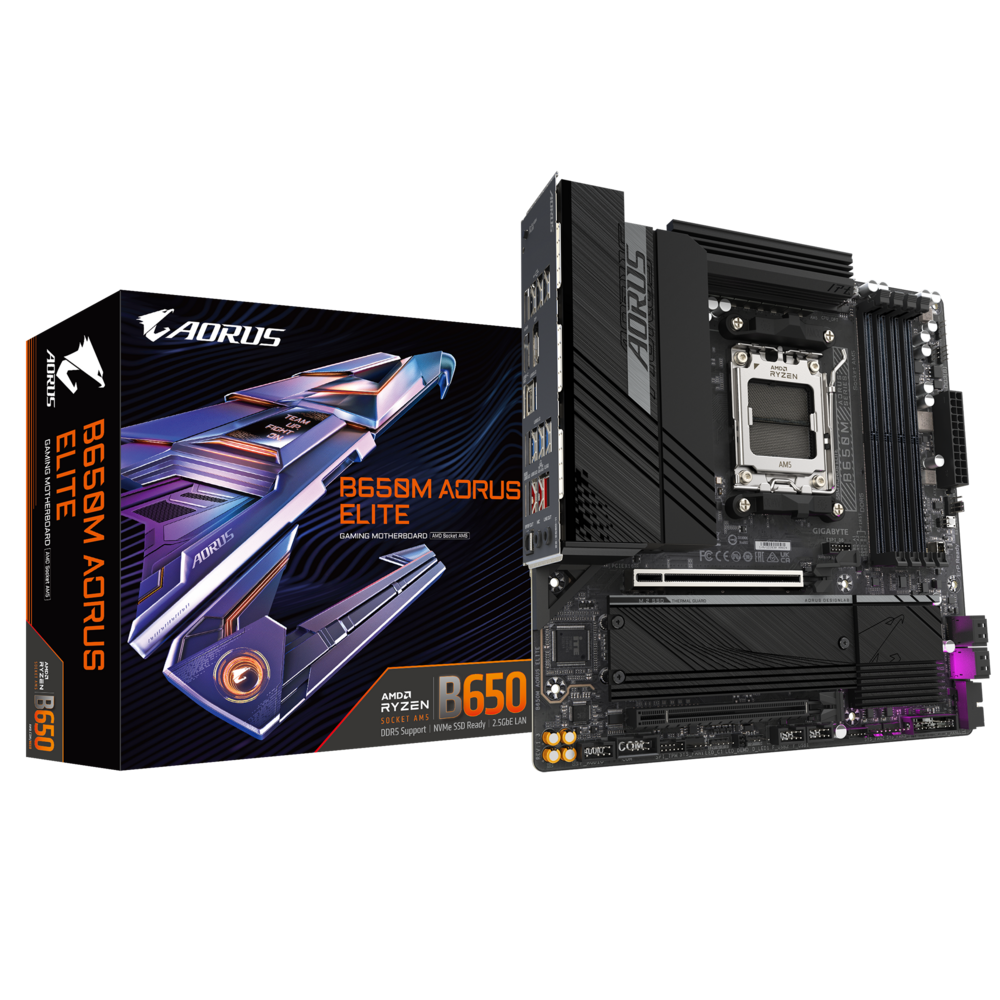

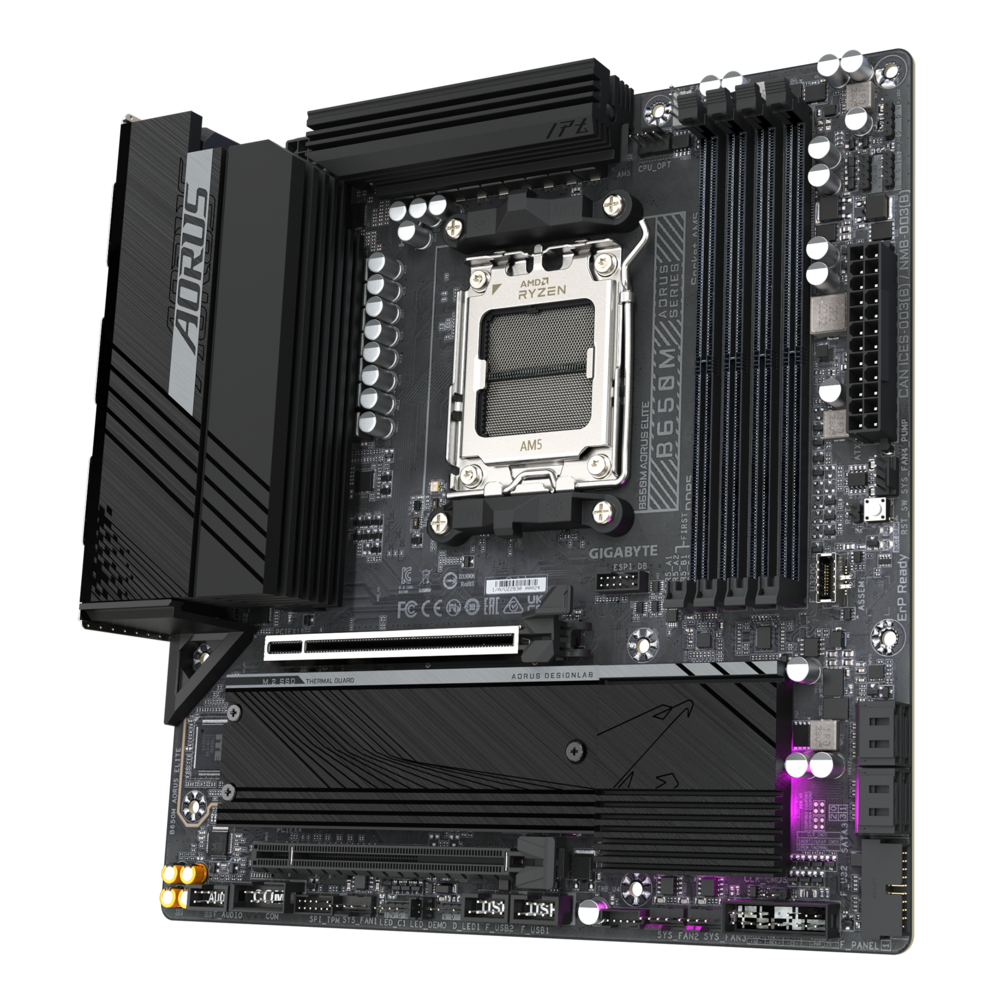

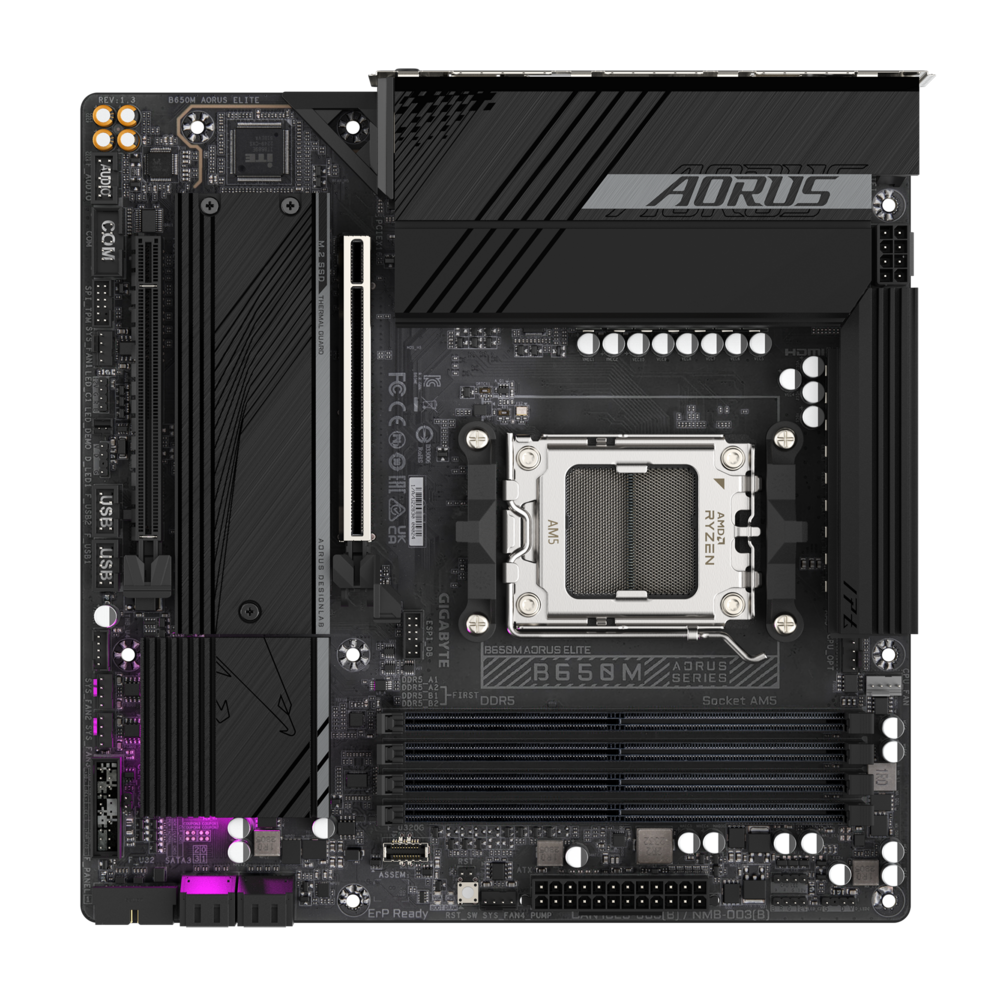

Gigabyte B650M AORUS ELITE Motherboard
  • Model:B650M AORUS ELITE
  • Supports AMD Ryzen 7000/8000/9000 CPUs
  • AMD B650, Socket AM5, Micro-ATX
  • 4x DDR5 DIMMs, up to 8000 MT/s
  • PCIe 5.0, 2.5GbE LAN, USB-C ports
  • 3 Years Warranty from Gigabyte
₹ 15,100
Next Day Dispatch
1
CPU
AMD Socket AM5, support for:�3Cbr>�3Cbr>AMD Ryzen212; 7000 / Ryzen212; 8000 / Ryzen212; 9000 Series Processors�3Cbr>�3Cbr>* Please refer to "CPU Support List" for more information.
Chipset
AMD B650
Memory
Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules�3Cbr>�3Cbr>4 x DDR5 DIMM sockets supporting up to 256�A0GB (64�A0GB single DIMM capacity) of system memory�3Cbr>�3Cbr>Dual channel memory architecture�3Cbr>�3Cbr>Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules�3Cbr>�3Cbr>Support for AMD EXtended Profiles for Overclocking (AMD EXPO212;) and Extreme Memory Profile (XMP) memory modules�3Cbr>�3Cbr>(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Onboard Graphics
Integrated Graphics Processor with AMD Radeon212; Graphics support:�3Cbr>�3Cbr>- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz�3Cbr>�3Cbr>* Support for DisplayPort 1.4 version and HDR.�3Cbr>�3Cbr>- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz�3Cbr>�3Cbr>* Support for HDMI 2.1 version and HDCP 2.3.�3Cbr>** Support for native HDMI 2.1 TMDS compatible ports.�3Cbr>�3Cbr>(Graphics specifications may vary depending on CPU support.)
Audio
Realtek�AE; Audio CODEC�3Cbr>�3Cbr>High Definition Audio�3Cbr>�3Cbr>2/4/5.1/7.1-channel�3Cbr>�3Cbr>* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.�3Cbr>�3Cbr>Support for S/PDIF Out
LAN
Realtek�AE; 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:�3Cbr>�3Cbr>- AMD Ryzen212; 7000 Series Processors/ Ryzen212; 9000 Series Processors support PCIe 4.0 x16 mode�3Cbr>- AMD Ryzen212; 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode�3Cbr>- AMD Ryzen212; 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode�3Cbr>�3Cbr>* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.�3Cbr>�3Cbr>Chipset:�3Cbr>- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:�3Cbr>�3Cbr>- AMD Ryzen212; 7000 Series Processors/ Ryzen212; 9000 Series Processors support PCIe 5.0 x4/x2 SSDs�3Cbr>- AMD Ryzen212; 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs�3Cbr>- AMD Ryzen212; 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs�3Cbr>�3Cbr>1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:�3Cbr>�3Cbr>- AMD Ryzen212; 7000 Series Processors/ Ryzen212; 9000 Series Processors support PCIe 4.0 x4/x2 SSDs�3Cbr>- AMD Ryzen212; 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs�3Cbr>- AMD Ryzen212; 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs�3Cbr>�3Cbr>4 x SATA 6Gb/s connectors�3Cbr>�3Cbr>RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices�3Cbr>RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB
CPU:�3Cbr>- 1 x USB Type-C�AE; port on the back panel, with USB 3.2 Gen 2 support�3Cbr>- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel�3Cbr>�3Cbr>CPU + USB 2.0 Hub:�3Cbr>- 4 x USB 2.0/1.1 ports on the back panel�3Cbr>�3Cbr>Chipset:�3Cbr>- 1 x USB Type-C�AE; port with USB 3.2 Gen 2x2 support, available through the internal USB header�3Cbr>- 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)�3Cbr>- 4 x USB 2.0/1.1 ports available through the internal USB headers�3Cbr>�3Cbr>Chipset+USB 3.2 Gen 1 Hub:�3Cbr>- 4 x USB 3.2 Gen 1 ports on the back panel
Internal I/O Connectors
1 x 24-pin ATX main power connector�3Cbr>1 x 8-pin ATX 12V power connector�3Cbr>1 x CPU fan header�3Cbr>1 x CPU fan/water cooling pump header�3Cbr>3 x system fan headers�3Cbr>1 x system fan/water cooling pump header�3Cbr>2 x addressable LED strip headers�3Cbr>2 x RGB LED strip headers�3Cbr>1 x CPU cooler LED strip/RGB LED strip header�3Cbr>2 x M.2 Socket 3 connectors�3Cbr>4 x SATA 6Gb/s connectors�3Cbr>1 x front panel header�3Cbr>1 x front panel audio header�3Cbr>1 x USB Type-C�AE; header, with USB 3.2 Gen 2x2 support�3Cbr>1 x USB 3.2 Gen 1 header�3Cbr>2 x USB 2.0/1.1 headers�3Cbr>1 x serial port header�3Cbr>1 x THB_U4 add-in card connector�3Cbr>1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)�3Cbr>1 x reset button�3Cbr>1 x reset jumper�3Cbr>1 x Clear CMOS jumper

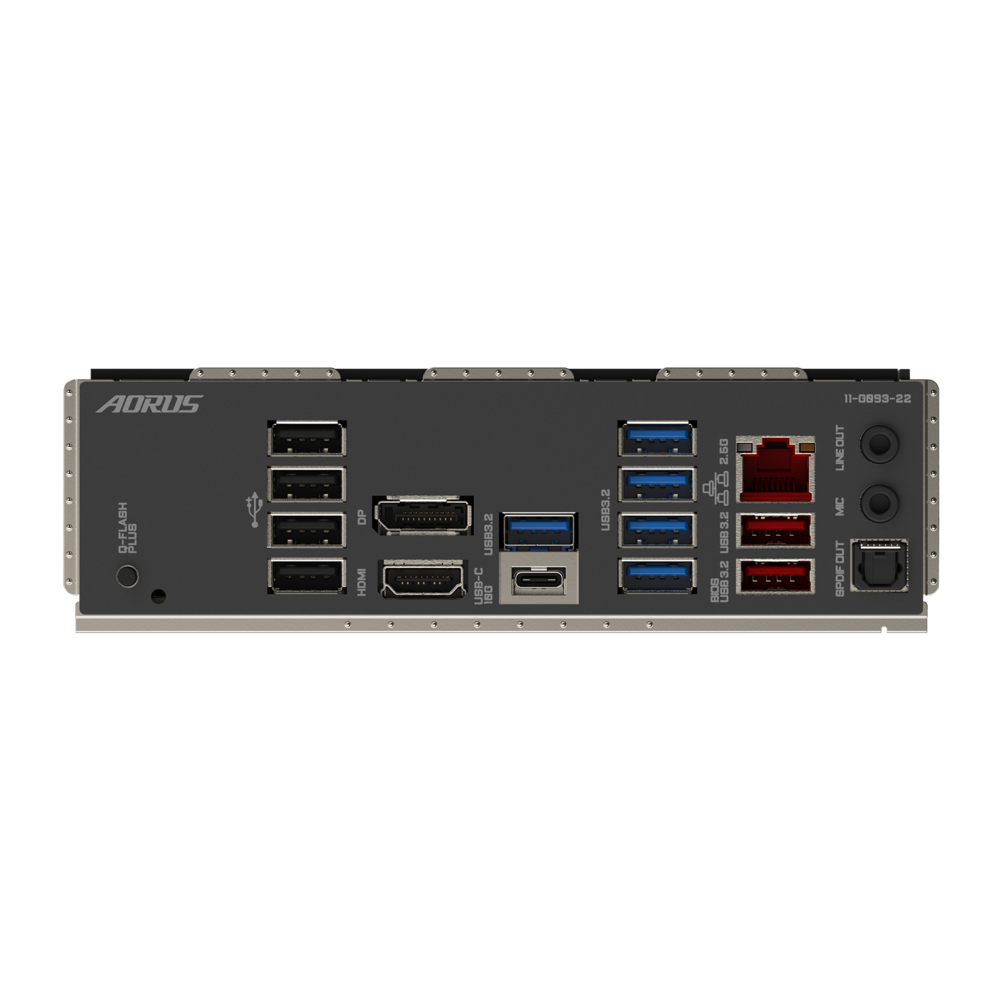

Back Panel Connectors
1 x Q-Flash Plus button�3Cbr>1 x DisplayPort�3Cbr>1 x HDMI port�3Cbr>1 x USB Type-C�AE; port, with USB 3.2 Gen 2 support�3Cbr>2 x USB 3.2 Gen 2 Type-A ports (red)�3Cbr>5 x USB 3.2 Gen 1 ports�3Cbr>4 x USB 2.0/1.1 ports�3Cbr>1 x RJ-45 port�3Cbr>1 x optical S/PDIF Out connector�3Cbr>2 x audio jacks
I/O Controller
iTE�AE; I/O Controller Chip
H/W Monitoring
Voltage detection�3Cbr>Temperature detection�3Cbr>Fan speed detection�3Cbr>Water cooling flow rate detection�3Cbr>Fan fail warning�3Cbr>Fan speed control�3Cbr>�3Cbr>* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
1 x 256 Mbit flash�3Cbr>Use of licensed AMI UEFI BIOS�3Cbr>PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)�3Cbr>�3Cbr>* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.�3Cbr>�3Cbr>Support for Q-Flash�3Cbr>Support for Q-Flash Plus
Bundled Software
Norton�AE; Internet Security (OEM version)�3Cbr>LAN bandwidth management software
Operating System
Support for Windows 11 64-bit�3Cbr>Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
