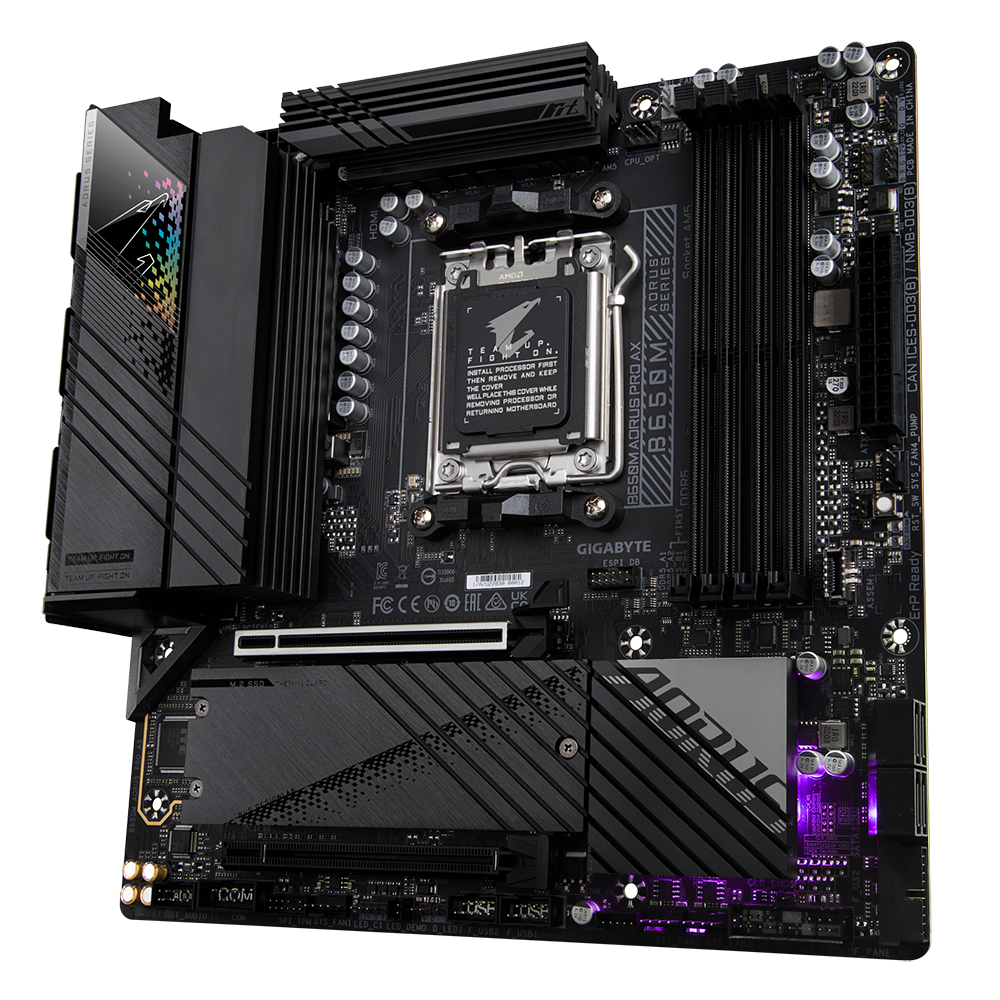

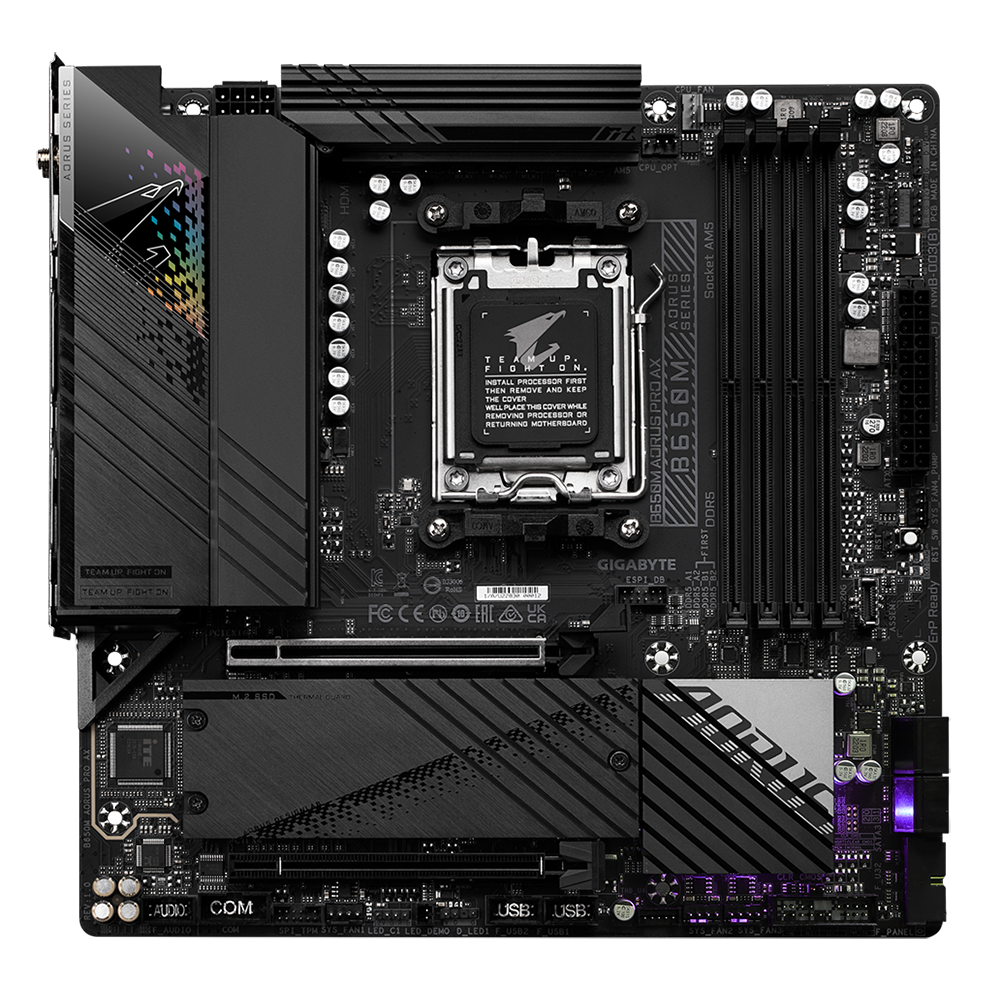

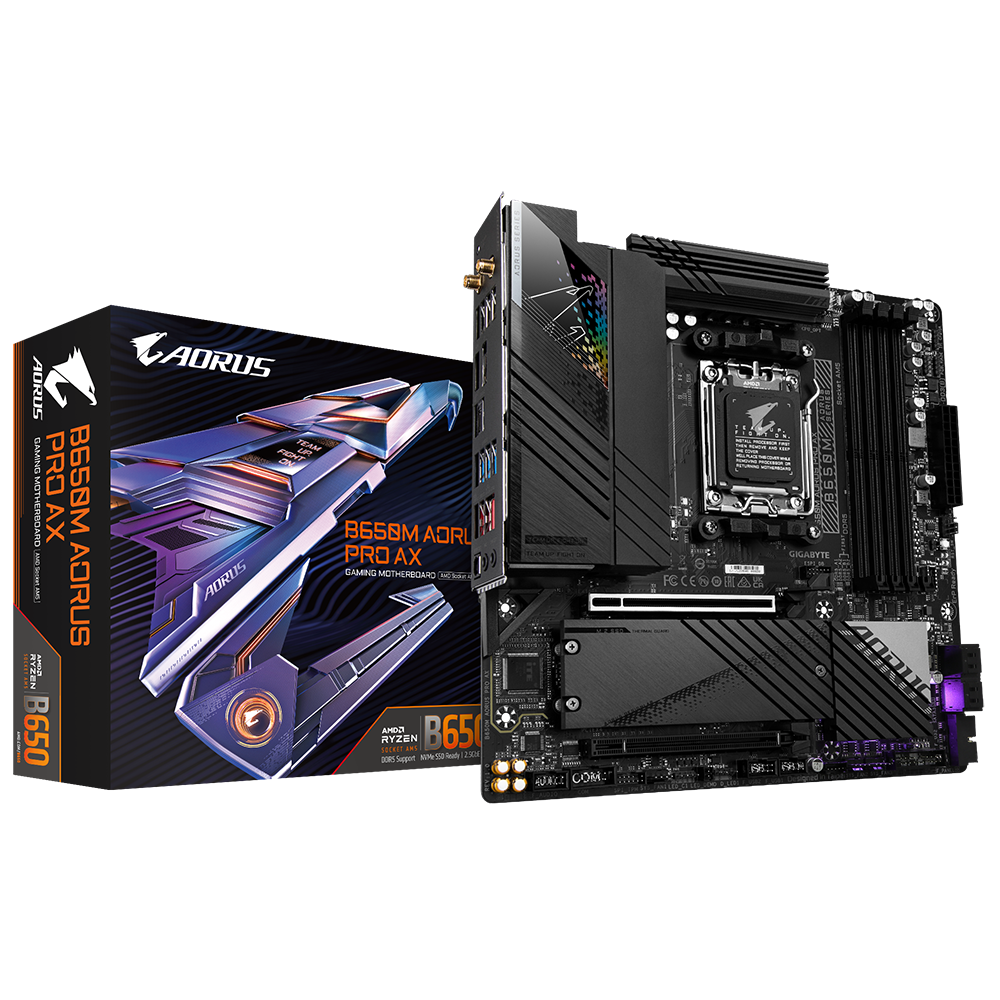

Gigabyte B650M AORUS PRO AX Motherboard
  • Model:B650M AORUS PRO AX
  • Supports AMD Ryzen 7000/8000/9000 CPUs
  • AMD B650 Chipset, AM5 Socket, Micro-ATX
  • DDR5 Memory, Dual Channel, 4 DIMMs
  • PCIe 5.0, WiFi 6E, USB-C Connectivity
  • 3 Years Warranty from Gigabyte
₹ 23,050
Next Day Dispatch
1
CPU
AMD Socket AM5, support for: AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors (Please refer "CPU Support List" for more information.)
Chipset
AMD B650
Memory
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
Memory
Dual channel memory architecture
Memory
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Memory
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
Memory Note
The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.
Onboard Graphics
Integrated Graphics Processor:
Onboard Graphics
1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz* Support for DisplayPort 1.4 version and HDR.
Onboard Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* Support for HDMI 2.1 version and HDCP 2.3.** Support native HDMI 2.1 TMDS compatible ports.
Onboard Graphics Note
Graphics specifications may vary depending on CPU support.
Audio
Realtek® Audio CODEC
Audio
High Definition Audio
Audio
2/4/5.1/7.1-channel* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Audio
Support for S/PDIF Out
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Realtek® Wi-Fi 6E RTL8852CE
Wireless Communication module
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Wireless Communication module
BLUETOOTH 5.3
Wireless Communication module
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Wireless Communication module Note
Actual data rate may vary depending on environment and equipment.
Expansion Slots (CPU)
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
Expansion Slots (CPU)
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x16 mode
Expansion Slots (CPU)
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
Expansion Slots (CPU)
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
Expansion Slots (CPU) Note
The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Expansion Slots (Chipset)
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Storage Interface (M2A_CPU)
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
Storage Interface (M2A_CPU)
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 5.0 x4/x2 SSDs
Storage Interface (M2A_CPU)
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
Storage Interface (M2A_CPU)
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
Storage Interface (M2B_CPU)
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
Storage Interface (M2B_CPU)
AMD Ryzen™ 7000 Series Processors/ Ryzen™ 9000 Series Processors support PCIe 4.0 x4/x2 SSDs
Storage Interface (M2B_CPU)
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
Storage Interface (M2B_CPU)
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Storage Interface
4 x SATA 6Gb/s connectors
Storage Interface
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
Storage Interface
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
USB (CPU)
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
USB (CPU)
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
USB (CPU + USB 2.0 Hub)
4 x USB 2.0/1.1 ports on the back panel
USB (Chipset)
1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
USB (Chipset)
3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
USB (Chipset)
4 x USB 2.0/1.1 ports available through the internal USB headers
USB (Chipset+USB 3.2 Gen 1 Hub)
4 x USB 3.2 Gen 1 ports on the back pane
Internal I/O Connectors
1 x 24-pin ATX main power connector
Internal I/O Connectors
1 x 8-pin ATX 12V power connector
Internal I/O Connectors
1 x CPU fan header
Internal I/O Connectors
1 x water cooling CPU fan header
Internal I/O Connectors
3 x system fan headers
Internal I/O Connectors
1 x system fan/water cooling pump header
Internal I/O Connectors
2 x addressable LED strip headers
Internal I/O Connectors
2 x RGB LED strip headers
Internal I/O Connectors
1 x CPU cooler LED strip/RGB LED strip header
Internal I/O Connectors
2 x M.2 Socket 3 connectors
Internal I/O Connectors
4 x SATA 6Gb/s connectors
Internal I/O Connectors
1 x front panel header
Internal I/O Connectors
1 x front panel audio header
Internal I/O Connectors
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
Internal I/O Connectors
1 x USB 3.2 Gen 1 header
Internal I/O Connectors
2 x USB 2.0/1.1 headers
Internal I/O Connectors
1 x serial port header
Internal I/O Connectors
1 x THB_U4 add-in card connector
Internal I/O Connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Internal I/O Connectors
1 x reset button
Internal I/O Connectors
1 x reset jumper
Internal I/O Connectors
1 x Clear CMOS jumper

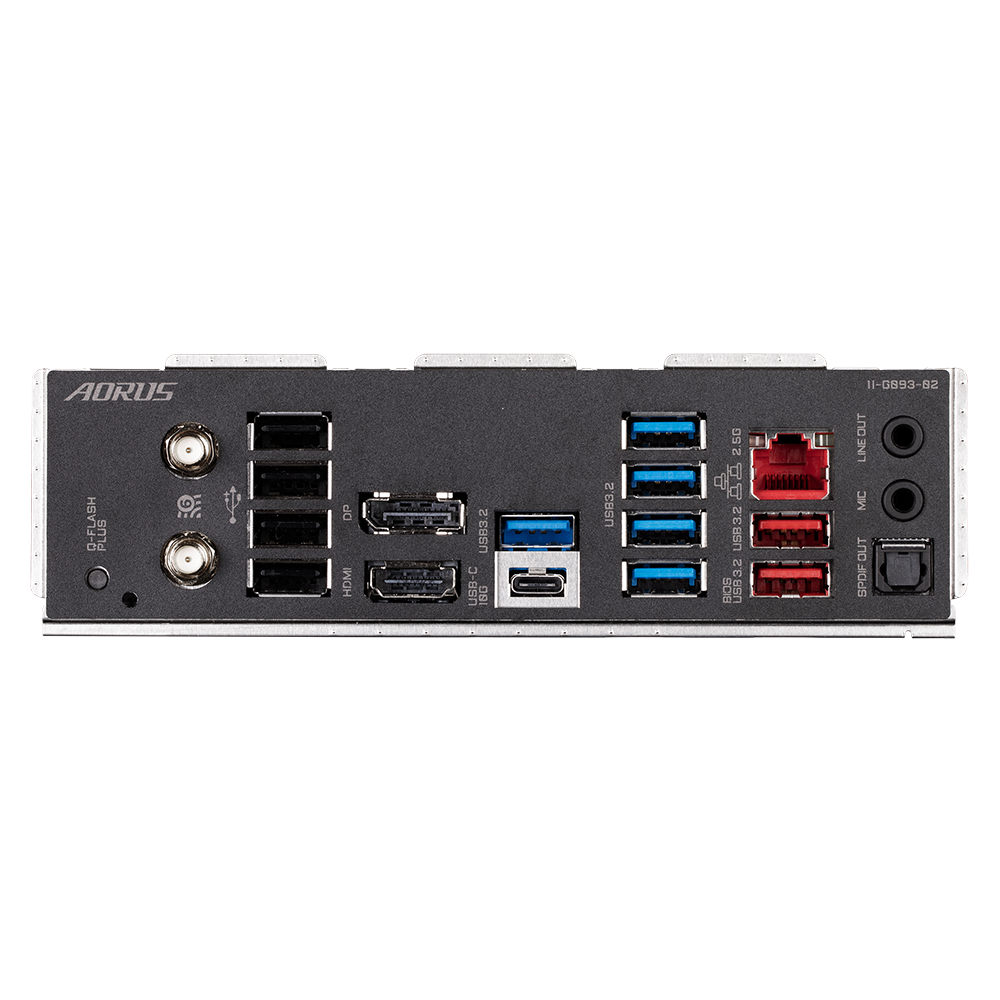

Back Panel Connectors
1 x Q-Flash Plus button
Back Panel Connectors
2 x SMA antenna connectors (2T2R)
Back Panel Connectors
1 x DisplayPort
Back Panel Connectors
1 x HDMI port
Back Panel Connectors
1 x USB Type-C® port, with USB 3.2 Gen 2 support
Back Panel Connectors
2 x USB 3.2 Gen 2 Type-A ports (red)
Back Panel Connectors
5 x USB 3.2 Gen 1 ports
Back Panel Connectors
4 x USB 2.0/1.1 ports
Back Panel Connectors
1 x RJ-45 port
Back Panel Connectors
1 x optical S/PDIF Out connector
Back Panel Connectors
2 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
H/W Monitoring
Temperature detection
H/W Monitoring
Fan speed detection
H/W Monitoring
Water cooling flow rate detection
H/W Monitoring
Fan fail warning
H/W Monitoring
Fan speed control* Whether the fan (pump) speed control function is supported will depend on the fan(pump) you install.
BIOS
1 x 256 Mbit flash
BIOS
Use of licensed AMI UEFI BIOS
BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Unique Features
Support for Q-Flash
Unique Features
Support for Q-Flash Plus
Bundled Software
Norton® Internet Security (OEM version)
Bundled Software
LAN bandwidth management software
Operating System
Support for Windows 11 64-bit
Operating System
Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
