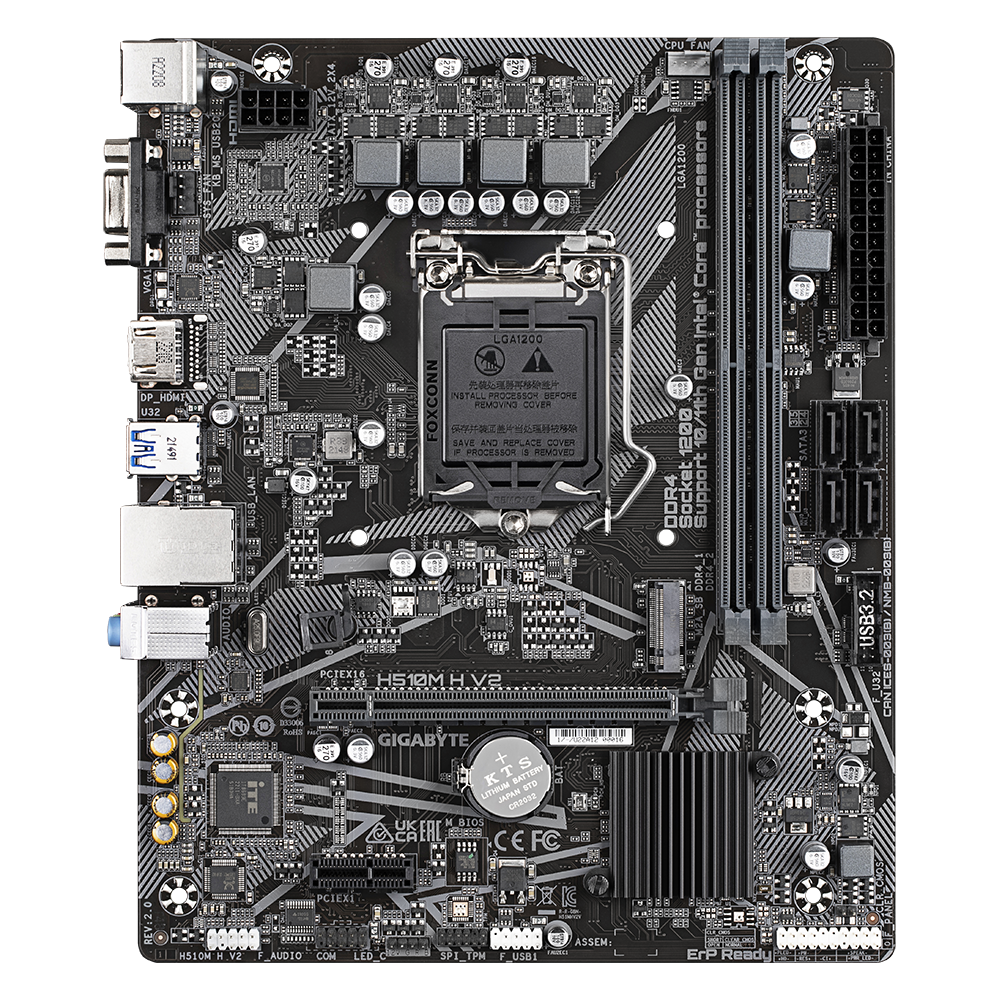

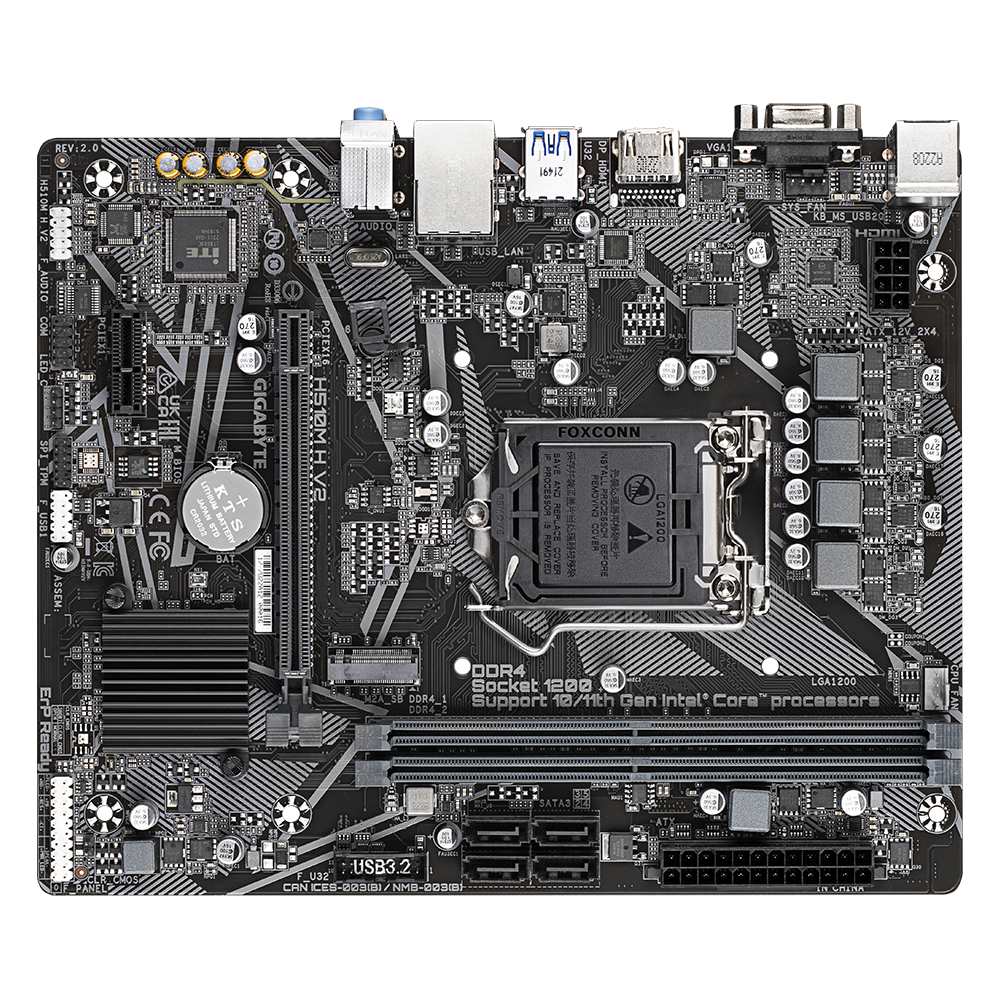

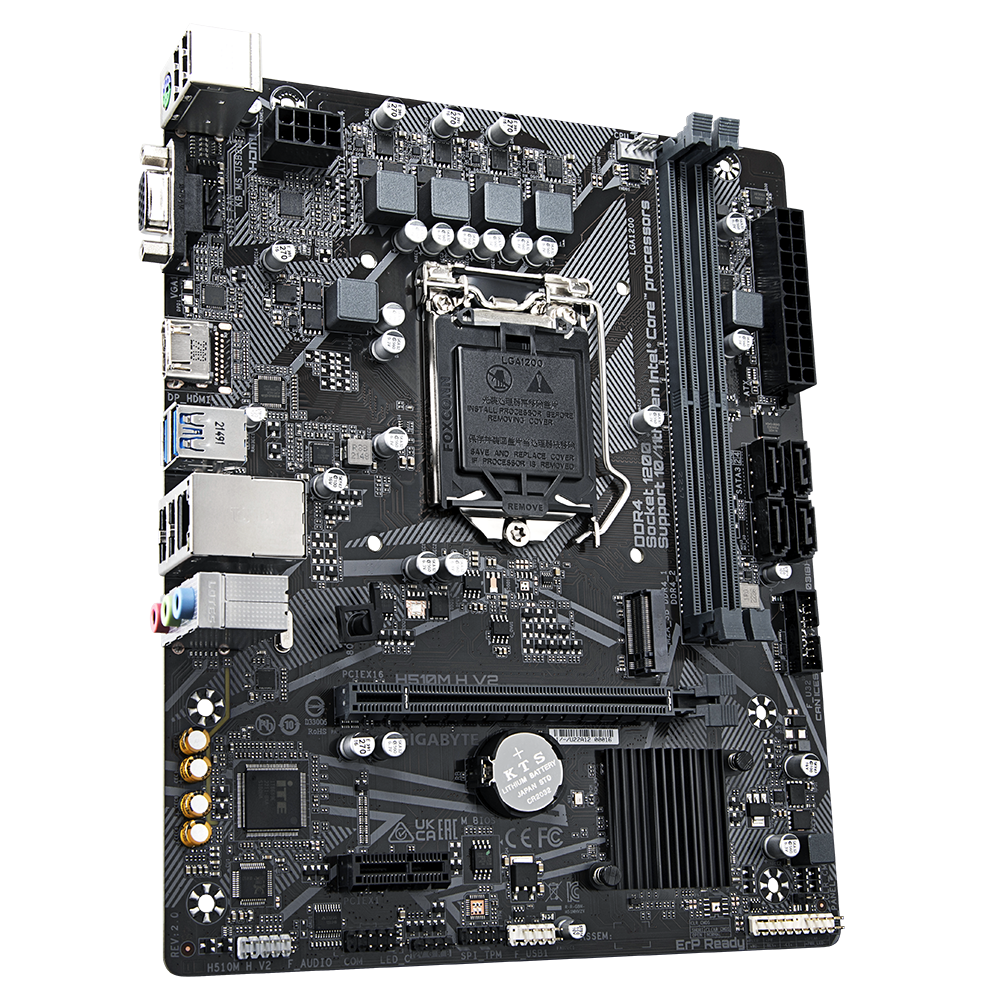

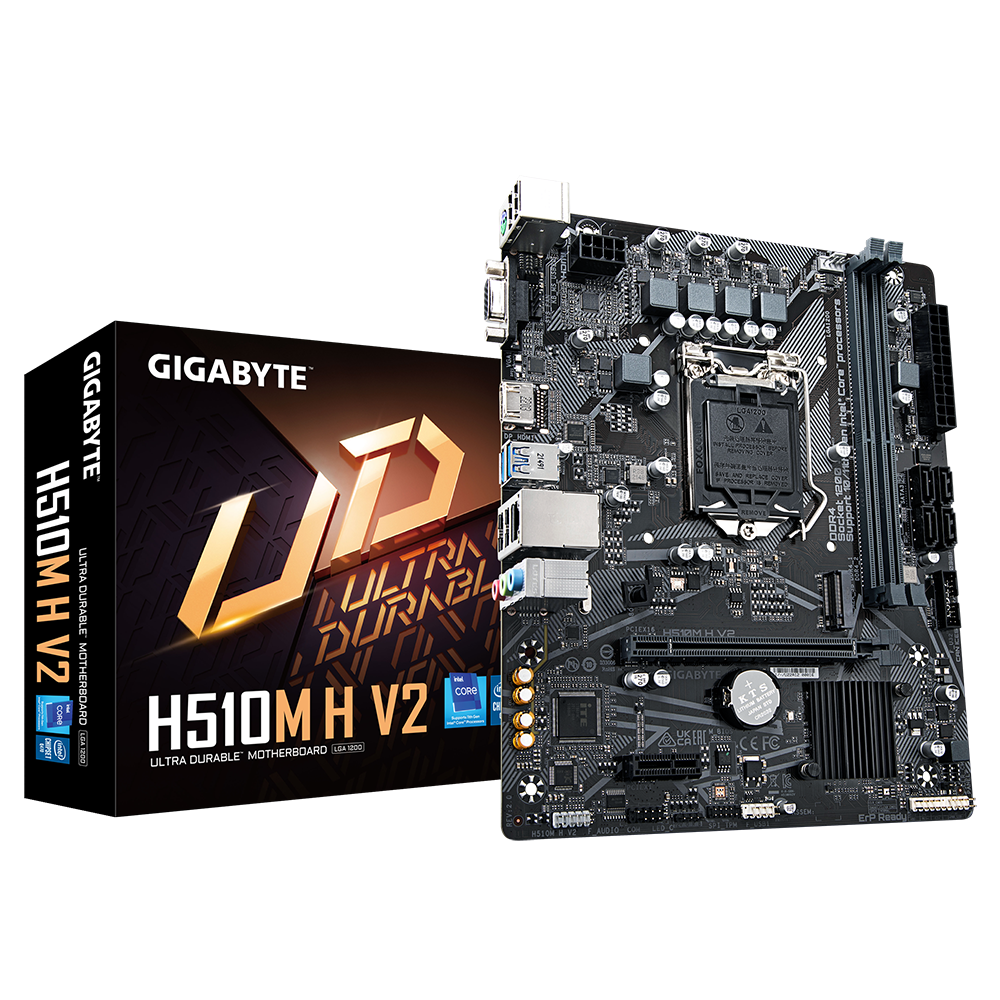

Gigabyte H510M H V2 Motherboard
  • Model:H510M H V2
  • Supports 10th / 11th Gen Intel Core CPUs
  • Intel H510, LGA 1200, Micro-ATX Form Factor
  • Dual Channel DDR4 Memory Support
  • NVMe PCIe Gen3 x4 M.2 Connector
  • 3 Years Warranty from Gigabyte
₹ 5,950
Next Day Dispatch
1
CPU
Support for 11th/10th Generation Intel® Core™ Processors/ Pentium®/Celeron® Processors in the LGA1200 package L3 cache varies with CPU
Chipset
Intel® H510 Express Chipset
Memory
2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 3200/2933/2800/2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Onboard Graphics
Integrated Graphics Processor: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz* * Support for HDMI 1.4 version and HDCP 2.3.
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps)
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: Supporting PCIe 4.0*/3.0 x16 * Only supported by 11th Generation Intel® Core™ Processors. 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset: Supporting PCIe 3.0 x1
Storage Interface
Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA & PCIe 3.0 x4/x2 SSD support) 4 x SATA 6Gb/s connectors
USB
Chipset: Up to 8 USB ports (4 x USB 3.2 Gen 1 ports on the back panel, 4 x USB 2.0/1.1 ports available through the internal USB headers)
Internal I/O Connectors
1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x front panel header 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header

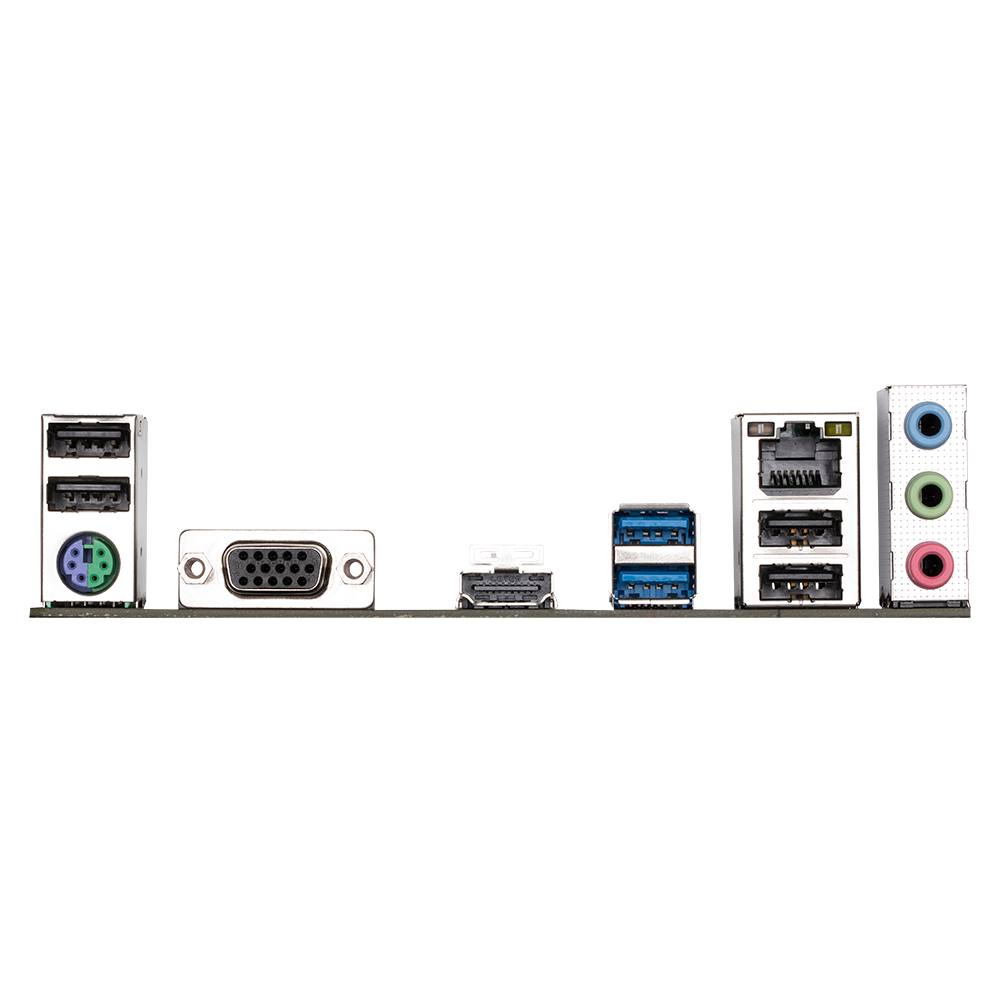

Back Panel Connectors
1 x PS/2 keyboard port 1 x PS/2 mouse port 1 x D-Sub port 1 x HDMI port 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
H/W Monitoring
Voltage detection Temperature detection Fan speed detection Fan fail warning
BIOS
1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PNP 1.0a, DMI 2.7, SM BIOS 2.7, ACPI 5.0 support
Unique Features
Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Xpress Install
Bundled Software
Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility
Operating System
Support for Windows 11 64-bit Support for Windows 10 64-bit
Form Factor
Micro ATX Form Factor; 22.6cm x 18.5cm
